Special Tools

Special Tools

Illustration Tool Number/Description
GM59260Courtesy of GENERAL MOTORS CORP.
Scan Tool
GM166875Courtesy of GENERAL MOTORS CORP.
J 6125-B
Slide Hammer
GM177628Courtesy of GENERAL MOTORS CORP.
J 6125-1B
Slide Hammer Adapter

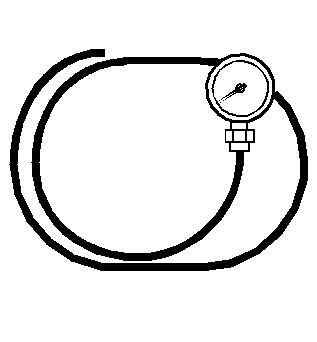

GM29339Courtesy of GENERAL MOTORS CORP.
J 21867
Pressure Gage
GM36152Courtesy of GENERAL MOTORS CORP.
J 23129
Universal Seal Remover
GM13080Courtesy of GENERAL MOTORS CORP.
J 29130
Axle Shaft Seal Installer
GM13087Courtesy of GENERAL MOTORS CORP.
J 34094-A
Thermo Element Height Gage
GM13088Courtesy of GENERAL MOTORS CORP.
J 34115
Sprocket Bearing Installer
GM8917Courtesy of GENERAL MOTORS CORP.
J 35616-B
GM Terminal Test Kit
GM9210Courtesy of GENERAL MOTORS CORP.
J 35944-A
Transmission Oil Cooler and Line Flusher
GM652475Courtesy of GENERAL MOTORS CORP.
J 35944-22
Transmission Oil Cooler Flushing Fluid
GM13128Courtesy of GENERAL MOTORS CORP.
J 36850
Transjel Lubricant
GM37623Courtesy of GENERAL MOTORS CORP.
J 37096
Flywheel Holder
GM99087Courtesy of GENERAL MOTORS CORP.
J 37292-B
Axle Seal Protector
GM3430Courtesy of GENERAL MOTORS CORP.
J 39200
Digital Multimeter (DMM)
GM214411Courtesy of GENERAL MOTORS CORP.
J 42562
Axle Removal Wedge
GM537322Courtesy of GENERAL MOTORS CORP.
J 44152
Jumper Harness (20 pins)
GM656904Courtesy of GENERAL MOTORS CORP.
J 44246
Solenoid Testing Kit
GM1215917Courtesy of GENERAL MOTORS CORP.
J 45096
Transmission Oil Cooling System Flush and Flow Test Tool
