Installation Procedure

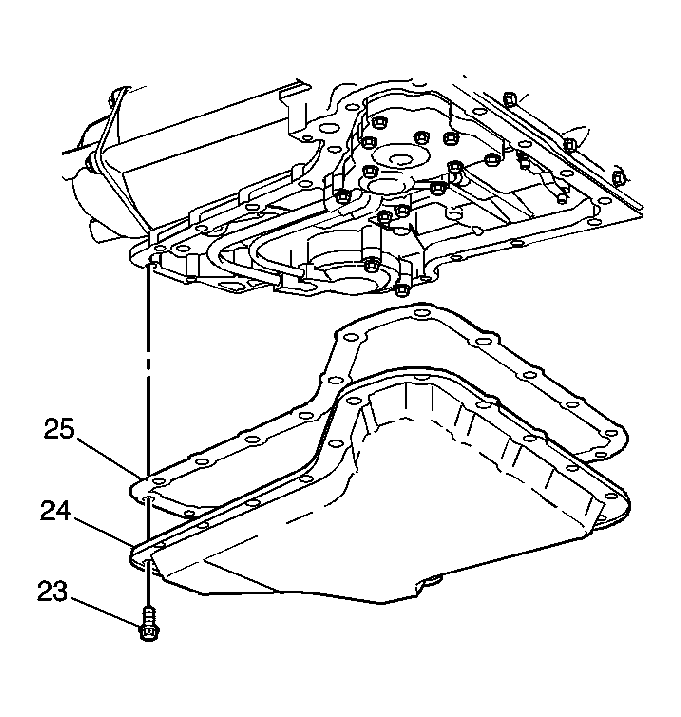

    Fig 1: View Of Transaxle Oil Pan And Gasket
    GM164804Courtesy of GENERAL MOTORS CORP.
  1. Install the oil pan gasket (25).
  2. Install the oil pan (24).
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the oil pan bolts (23).

    Tighten:  Tighten the oil pan bolts (23) to 14 N.m (10 lb ft).

  4. Lower the vehicle.
  5. Fill the transaxle with the proper quantity of DEXRON® III.
  6. Place the gear selector in the Park position.
  7. Start the engine.
  8. Run the engine at a slow idle. Do NOT race the engine.
    9. NOTE: Do NOT overfill the transaxle. The overfilling of the transaxle causes foaming, loss of fluid, shift complaints, and possible damage to the transaxle.
  9. Adjust the fluid level. Refer to Transmission Fluid Checking Procedure , Capacities - Approximate Fluid and Fluid and Lubricant Recommendations in Maintenance and Lubrication.
  10. Inspect for proper completion of the repairs.
  11. Inspect the fluid for leaks.
