Removal Procedure

  1. Remove the throttle body air inlet duct. Refer to Air Cleaner Assembly Replacement in Engine Controls-3.4L.

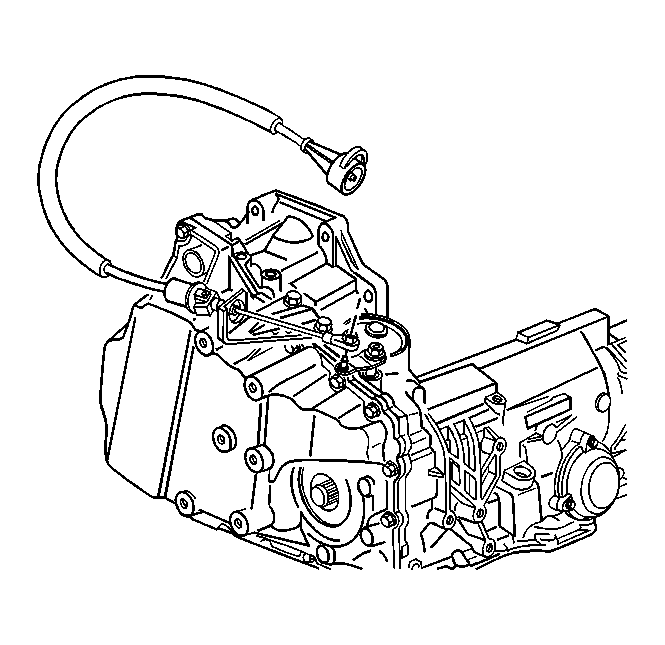

    2. Fig 1: Identifying Automatic Transaxle Range Selector Cable To Cable Bracket
    GM629687Courtesy of GENERAL MOTORS CORP.
  2. Remove the automatic transaxle range selector lever cable from the automatic transaxle range selector lever.

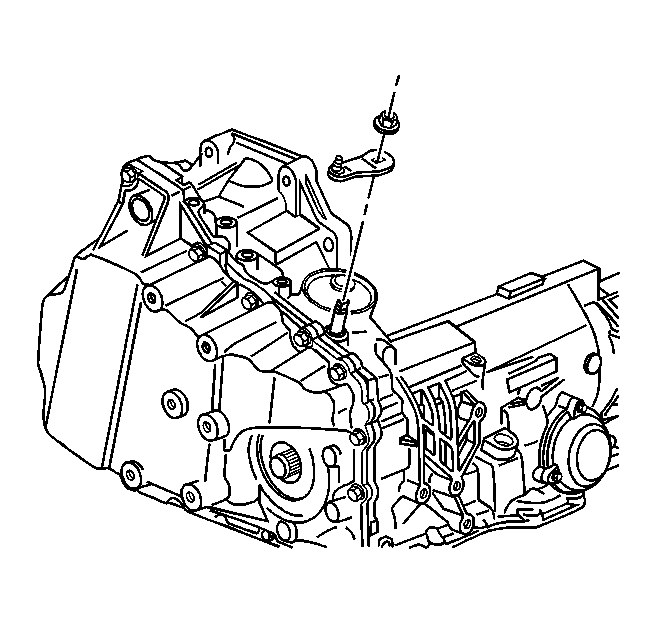

    3. Fig 2: Identifying Automatic Transaxle Range Selector Lever Retaining Nut
    GM629693Courtesy of GENERAL MOTORS CORP.
  3. Remove the automatic transaxle range selector lever retaining nut.
  4. Remove the automatic transaxle range selector lever from the automatic transaxle.
