HVAC Component Views

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

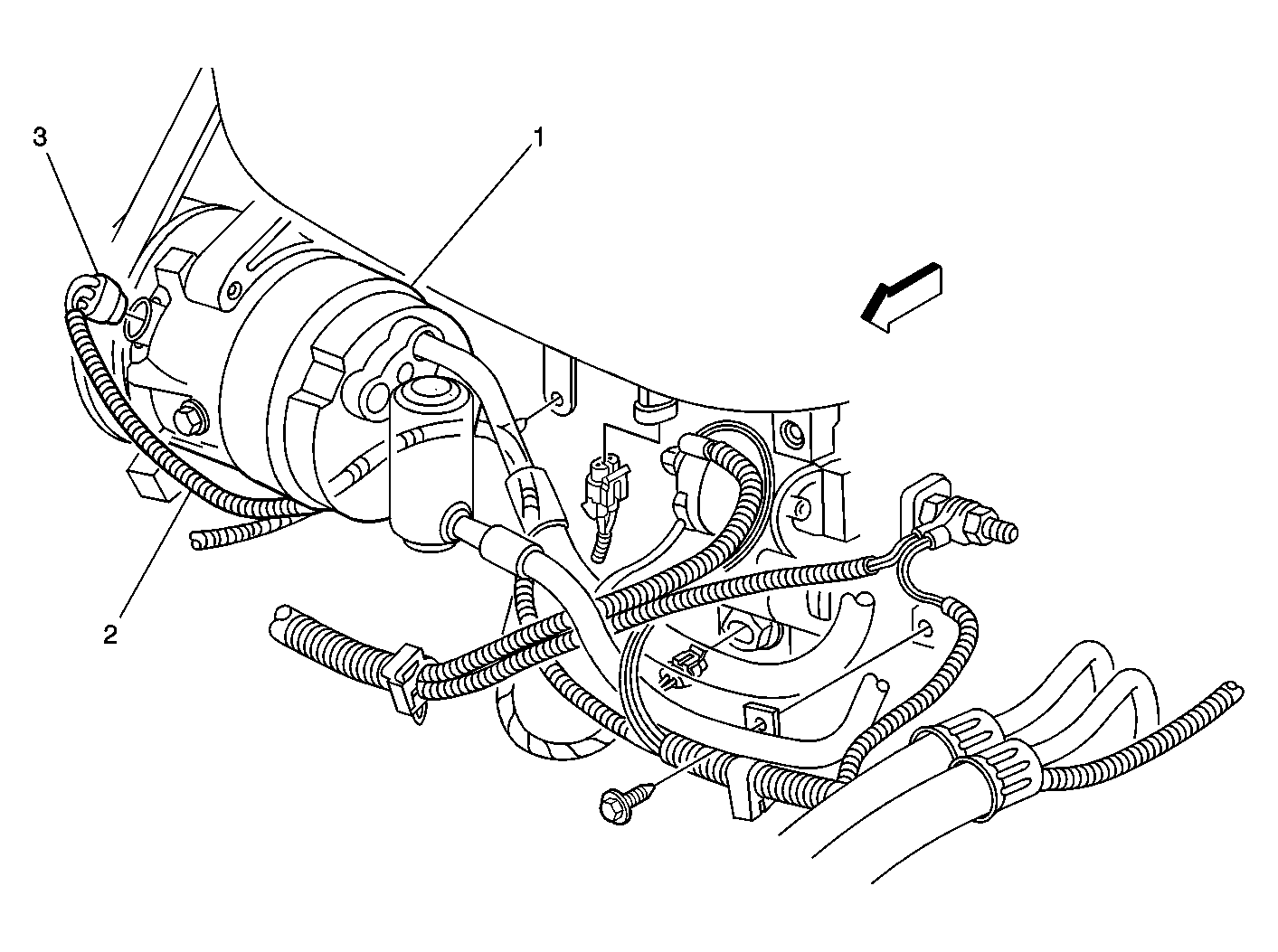

Fig 1: Lower Right Of Engine Component View (L36/L67 Shown, LA1 Similar)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Compressor
2	A/C Compressor Clutch Diode
3	A/C Compressor Clutch Connector

Fig 2: Left Center Of Engine Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C101
2	G151
3	A/C Refrigerant Pressure Sensor
4	C113
5	Electronic Brake Control Module (EBCM)
6	Cruise Control Module (CCM)

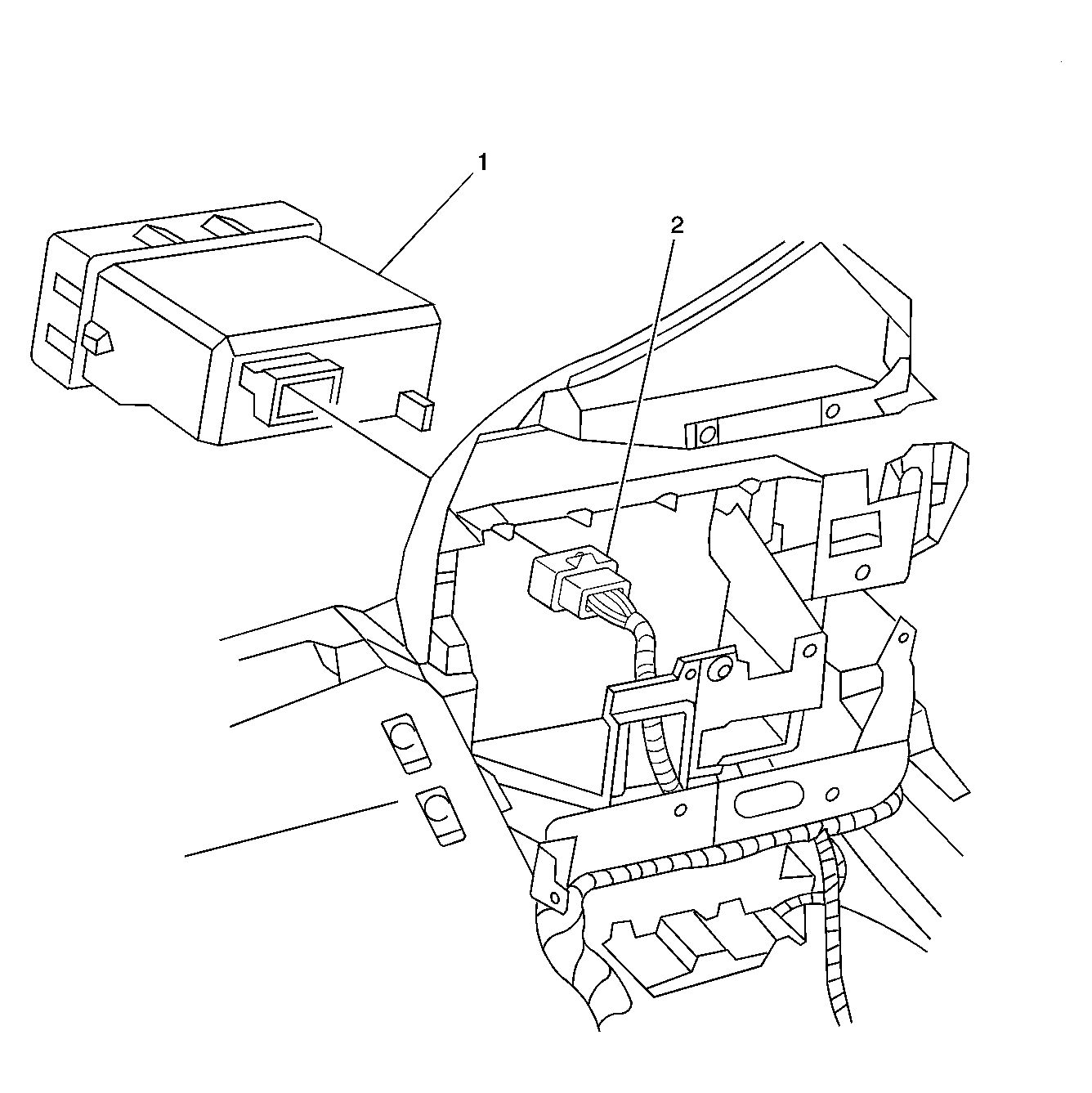

Fig 3: Middle Center Of Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	HVAC Control Module
2	HVAC Control Module Connector

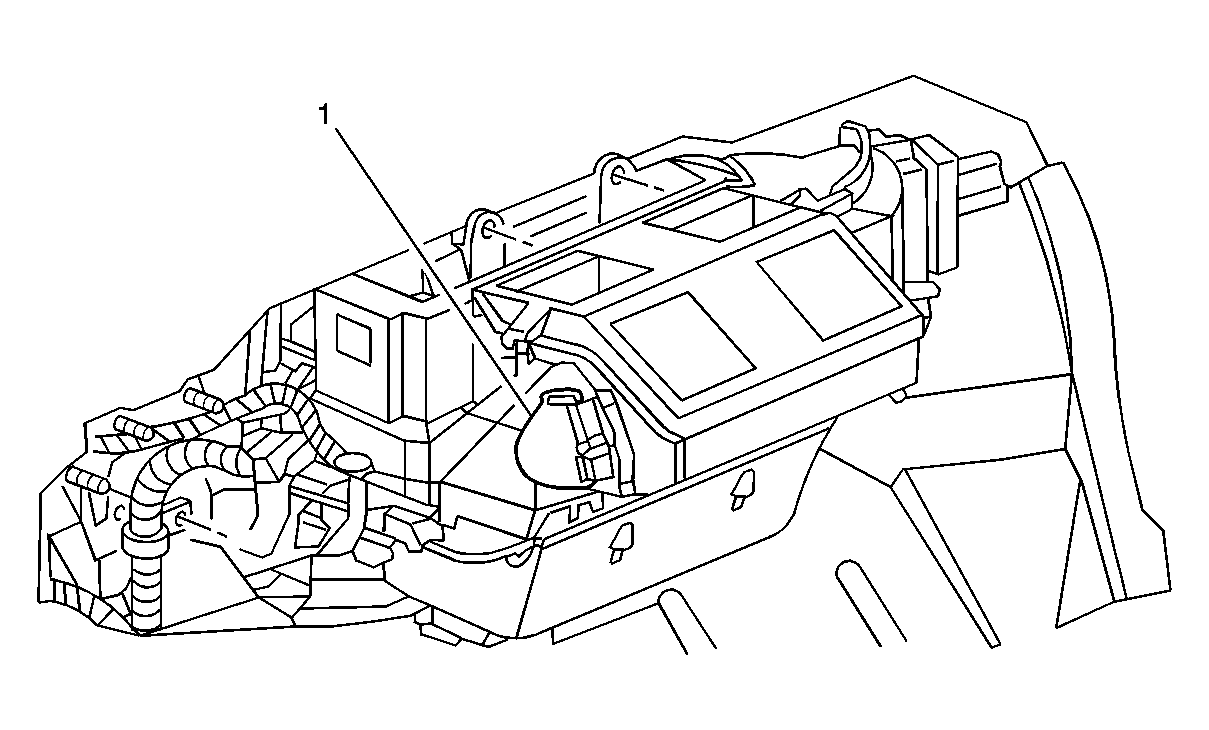

Fig 4: Lower Center Of Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Temperature Actuator - Left

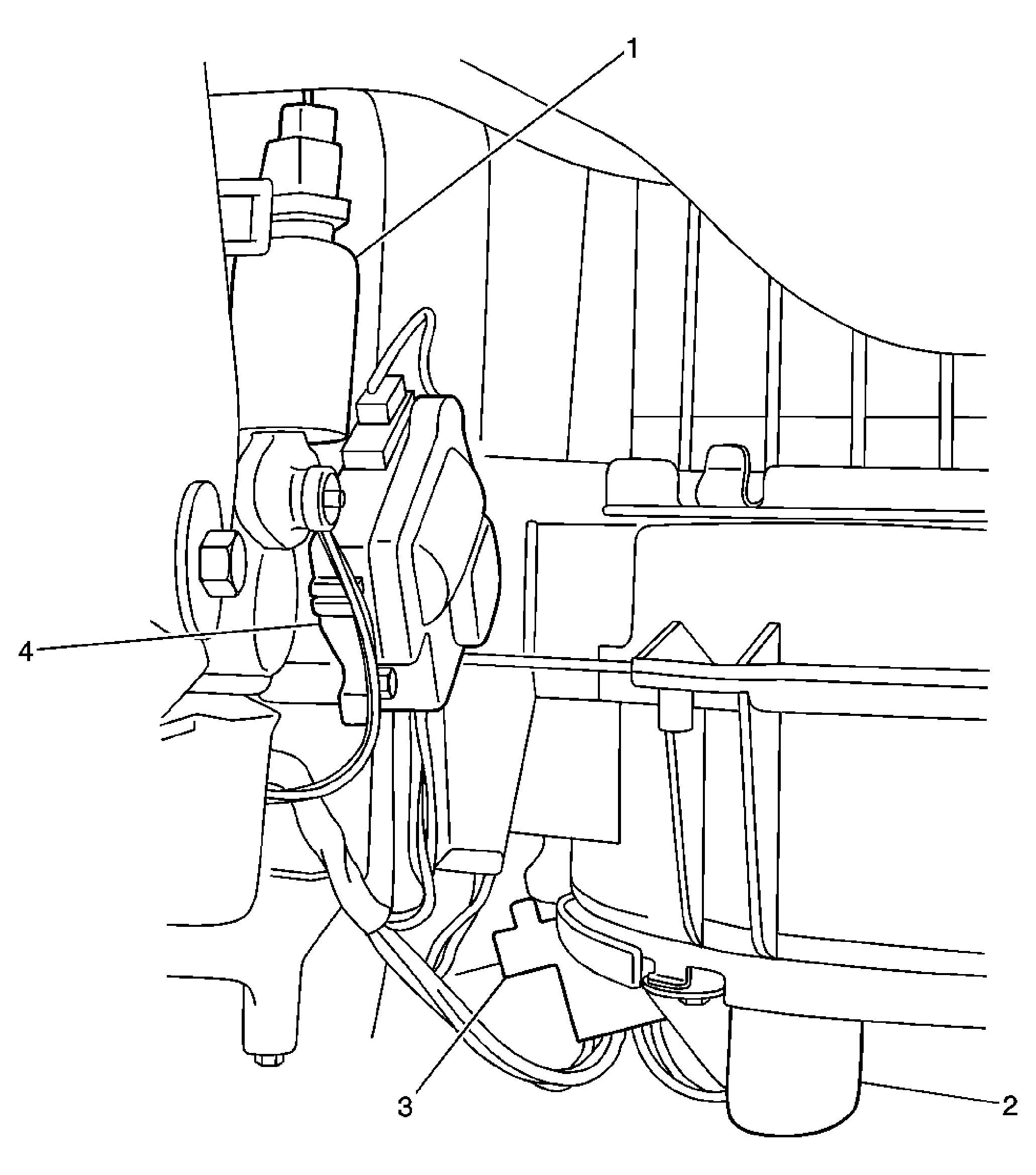

Fig 5: Lower Right Of Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mode Actuator
2	Blower Motor
3	Blower Motor Control Processor
4	Air Temperature Actuator - Right
