SIR Component Views

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

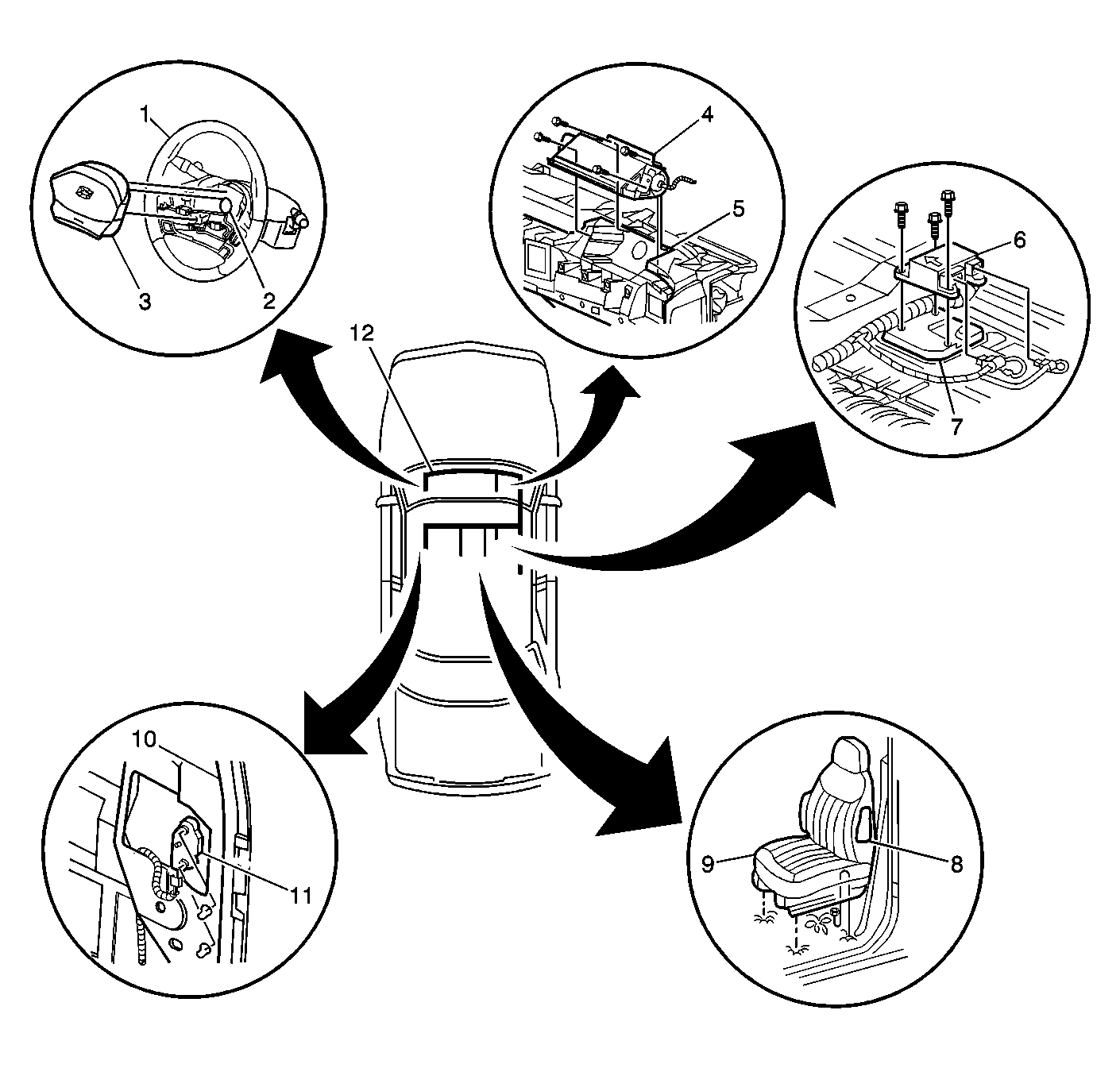

Fig 1: SIR Subsystem Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel
2	Inflatable Restraint Steering Wheel Module Coil
3	Inflatable Restraint Steering Wheel Module
4	Inflatable Restraint IP Module
5	Cross-Car Beam
6	Inflatable Restraint Sensing and Diagnostic Module (SDM)
7	Floor Pan
8	Inflatable Restraint Side Impact Module-LF
9	Driver Seat (w/ AW6)
10	Center Pillar-Left (Impala)
11	Inflatable Restraint Side Impact Sensor (SIS)-LF (Impala, w/ AW6)
12	IP Wiring Harness

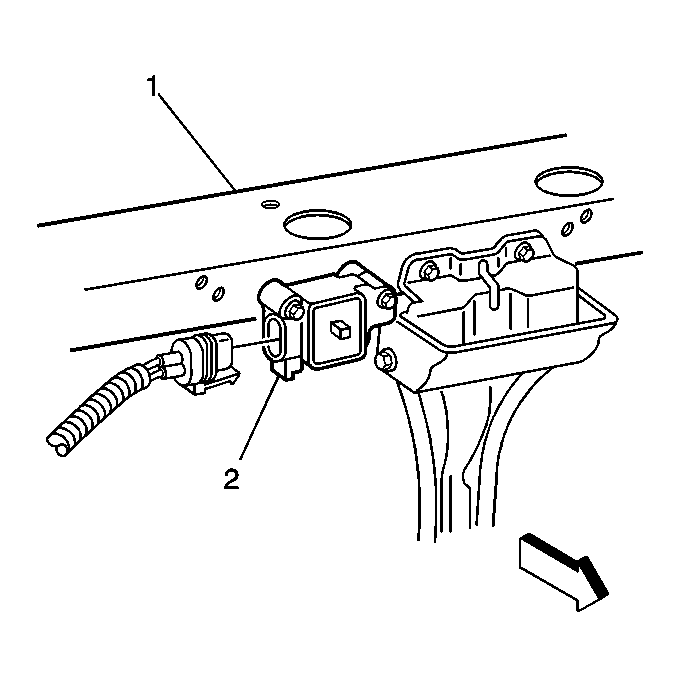

Fig 2: Center Front Of Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radiator Support
2	Inflatable Restraint Front End Discriminating Sensor

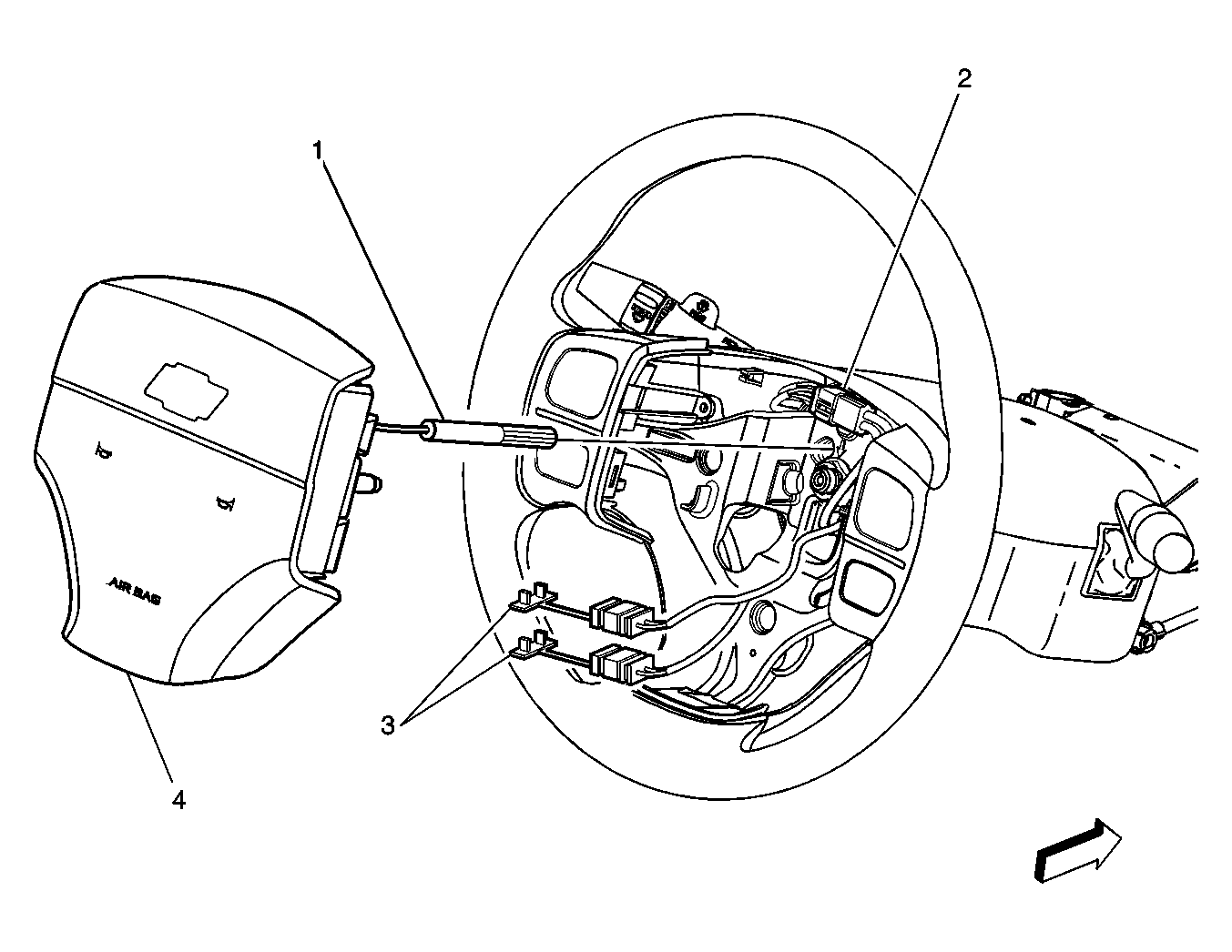

Fig 3: Steering Wheel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Horn Switch Spring-Loaded Contact
2	Inflatable Restraint Steering Wheel Module Coil Connector C5
3	Inflatable Restraint Steering Wheel Module Coil Connector C2, C3
4	Inflatable Restraint Steering Wheel Module

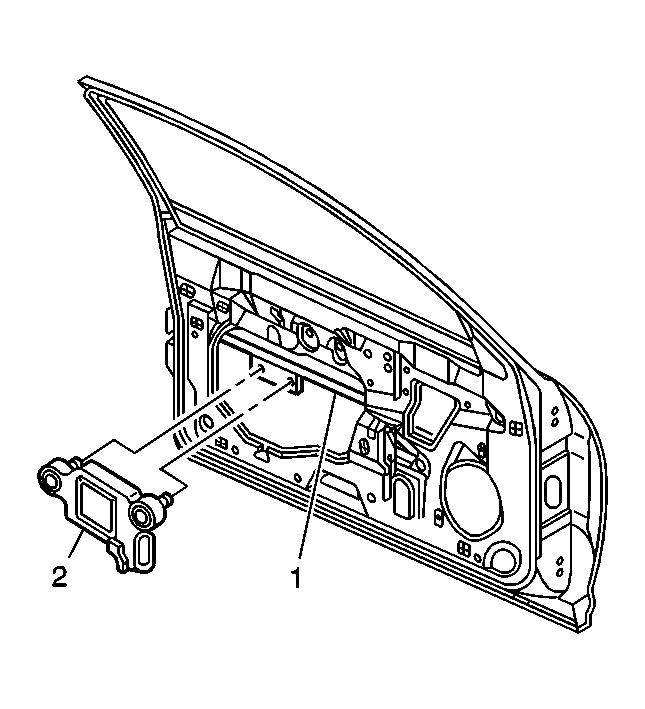

Fig 4: Left Door Component View (Monte Carlo w/ AW6)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Impact Beam
2	Inflatable Restraint Side Impact Sensor (SIS)-LF
