Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the traction control switch (1) to the IP cluster trim plate (2).

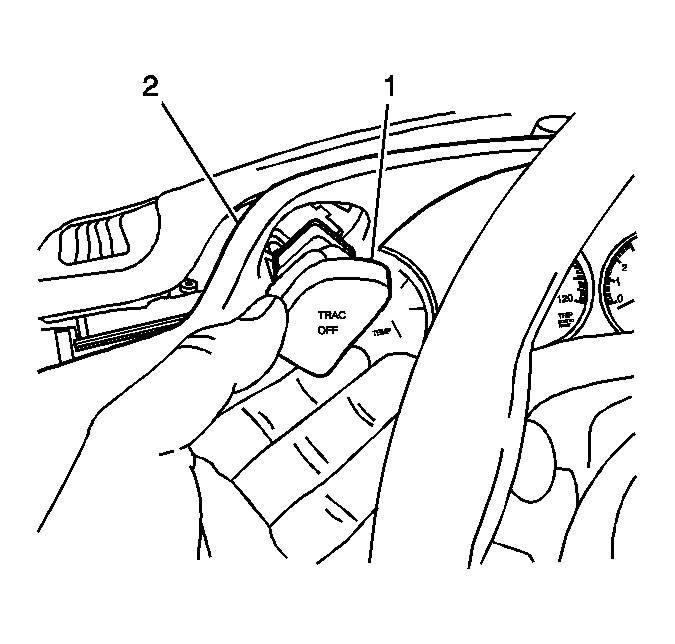

    2. Fig 1: Installing Traction Control Switch To Cluster Trim Plate (Impala)
    GM814200Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector (1) to the traction control switch (2).

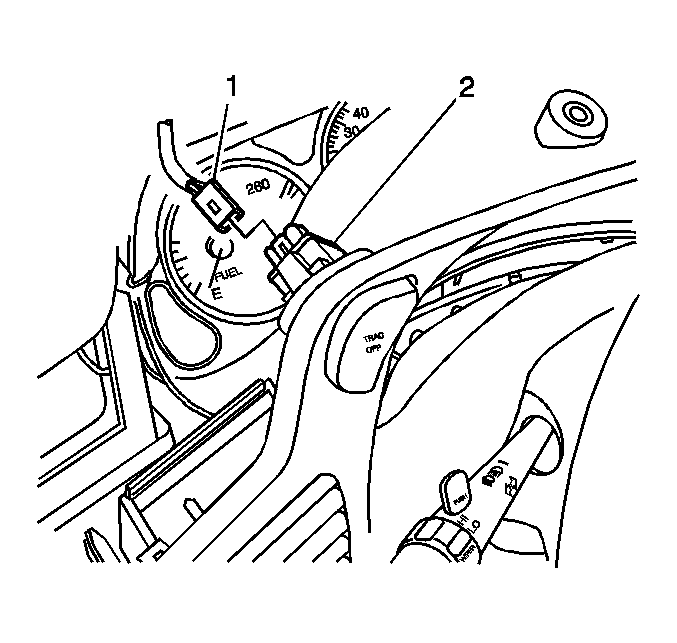

    3. Fig 2: Connecting Traction Control Switch Electrical Connector (Impala)
    GM814203Courtesy of GENERAL MOTORS CORP.
  3. Align and carefully press the IP cluster trim plate into the IP trim pad. Make sure all of the retainers are fully engaged.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the LH IP cluster trim plate screws.

    Tighten:  Tighten the IP cluster trim plate screws to 2 N.m (18 lb in).

  5. Install the LH instrument panel (IP) fuse block access opening covers.
  6. Install the ignition switch cylinder bezel.
  7. Return the steering wheel to the original position.
  8. If equipped with a column shift, position the transaxle shift control indicator to Park.
  9. If equipped with column shift, release the parking brake.
