Radio/Audio System Schematics

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

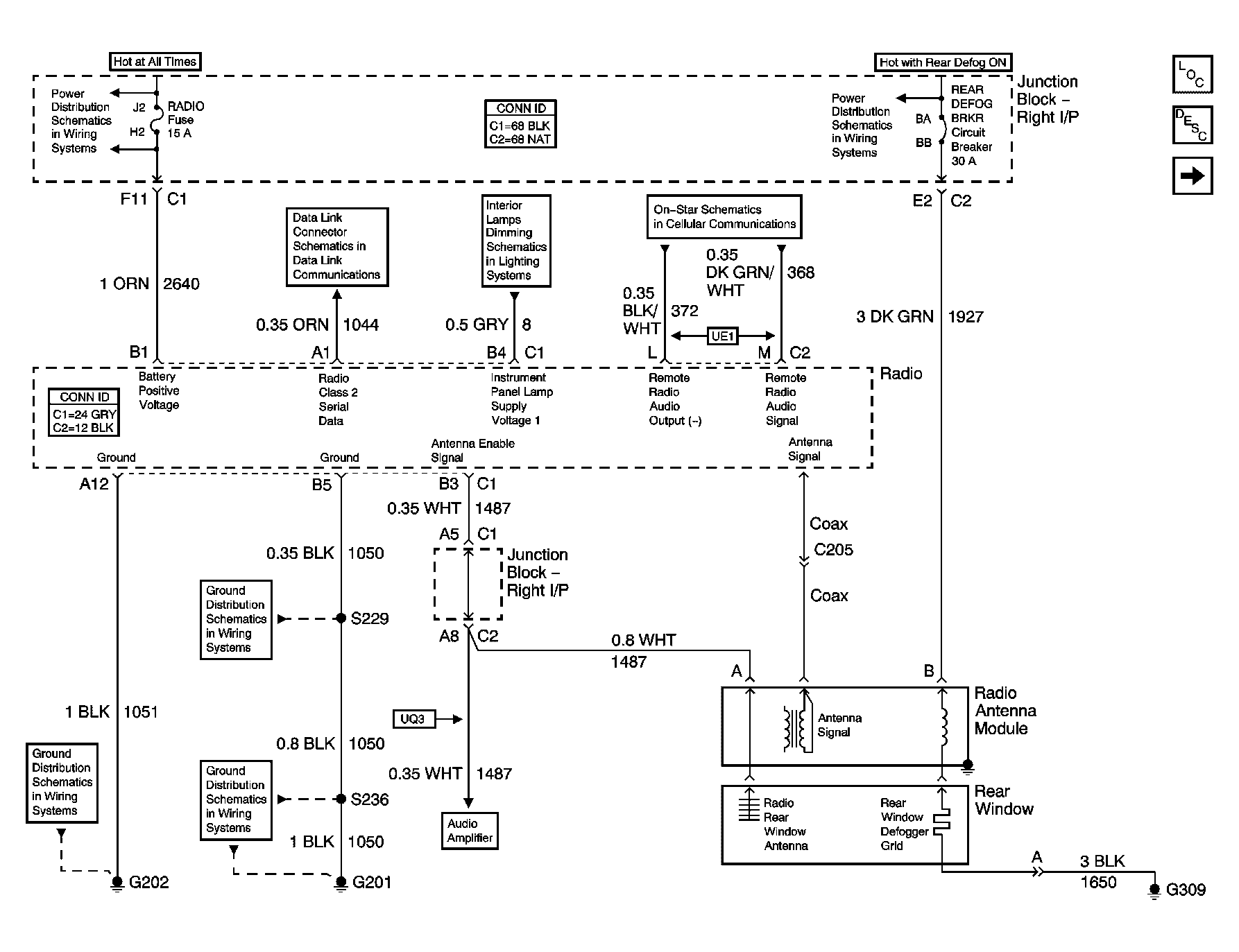

Fig 1: Antenna, Grounds, Power, and References to DLC, Lighting, and OnStar

Courtesy of GENERAL MOTORS CORP.

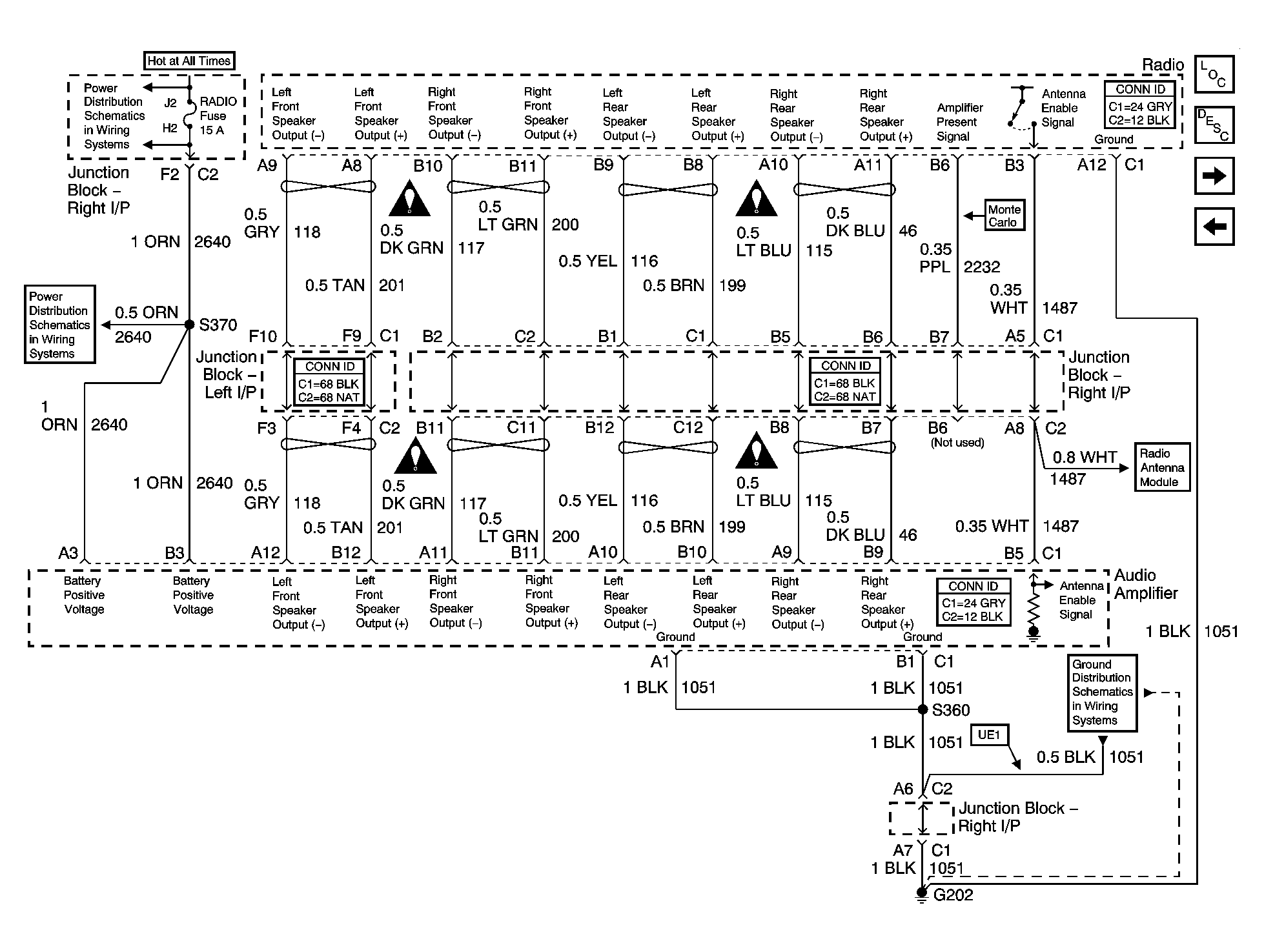

Fig 2: Audio Amplifier

Courtesy of GENERAL MOTORS CORP.

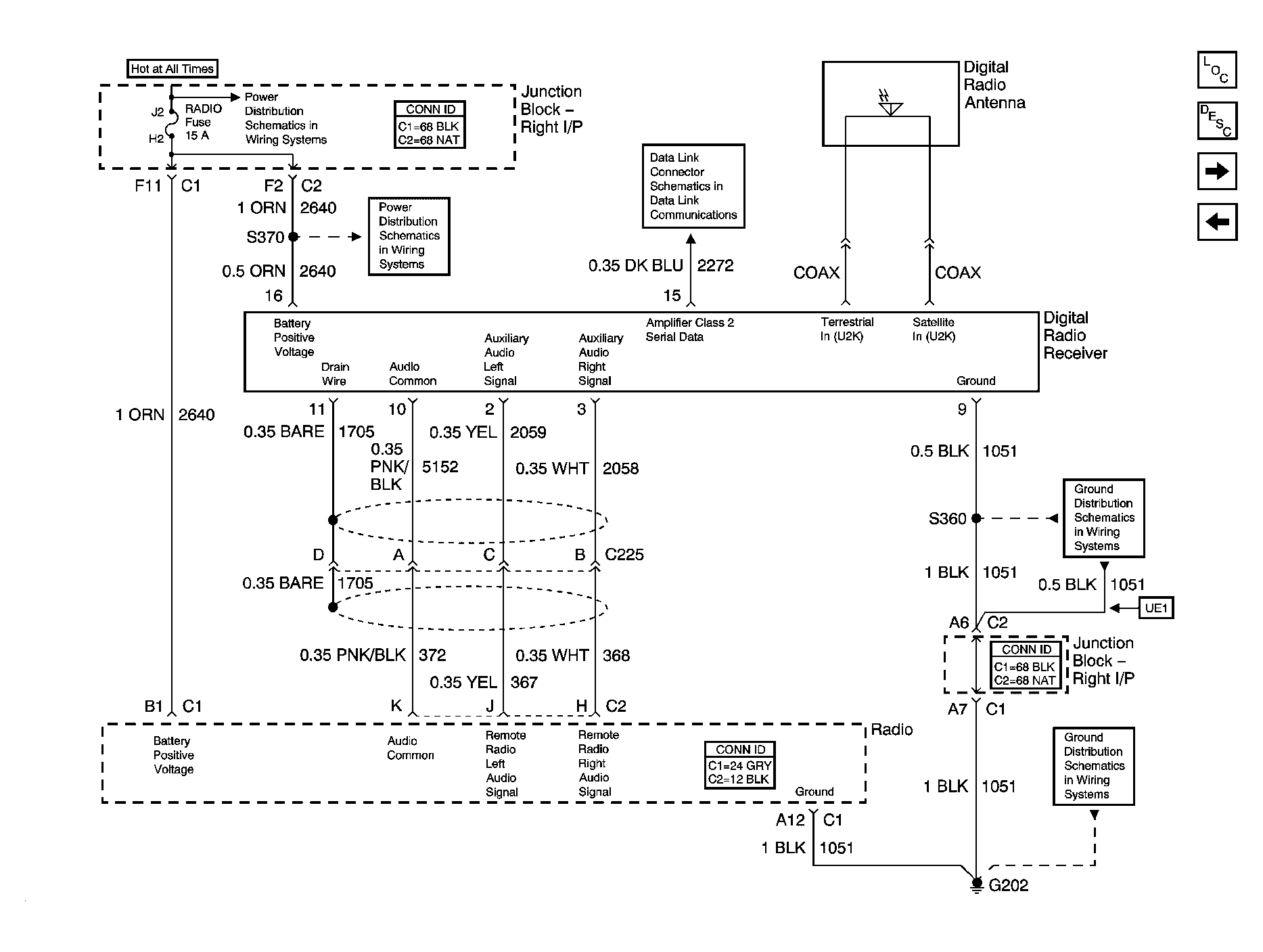

Fig 3: Digital Radio Receiver (U2K)

Courtesy of GENERAL MOTORS CORP.

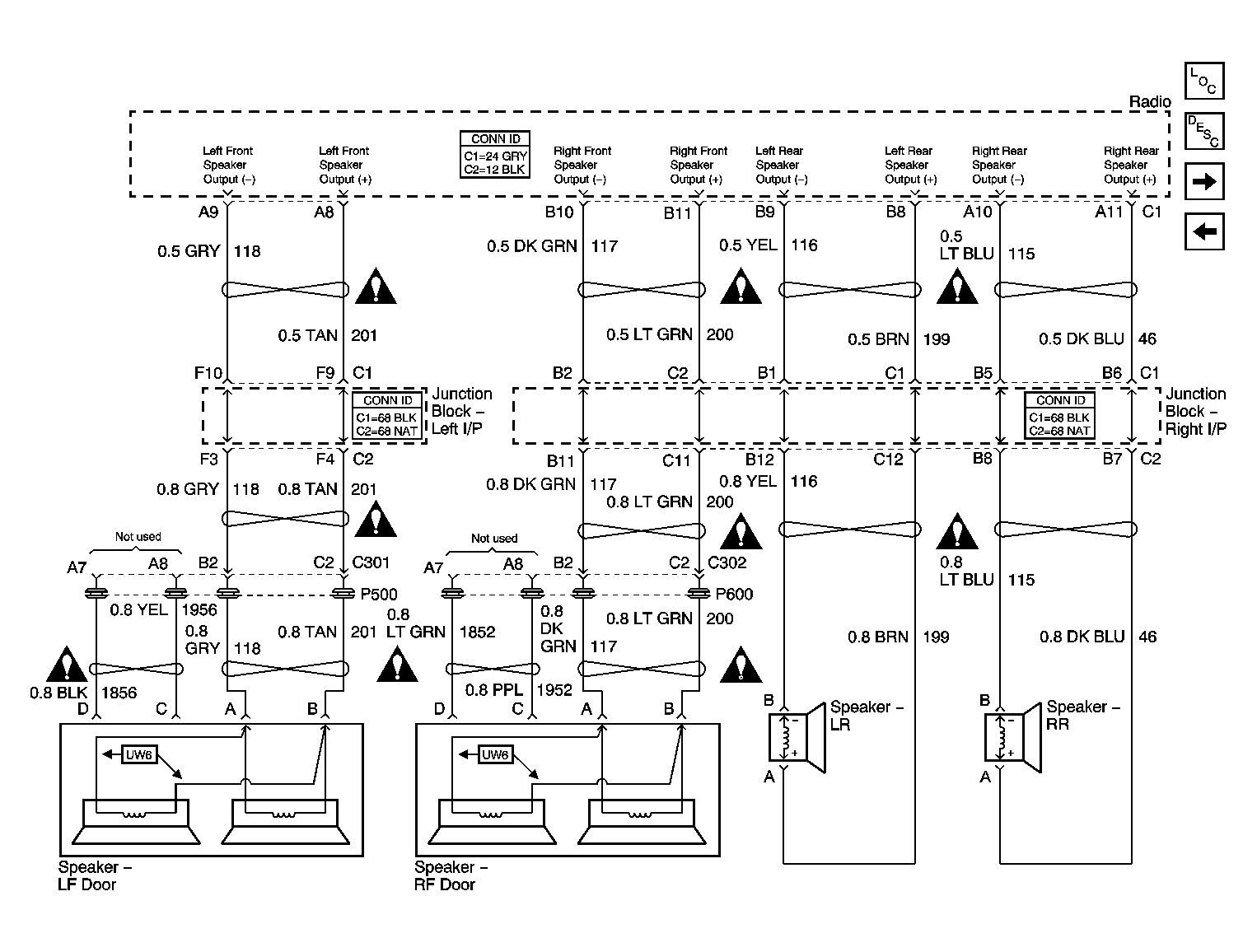

Fig 4: Speakers (U62/UW6)

Courtesy of GENERAL MOTORS CORP.

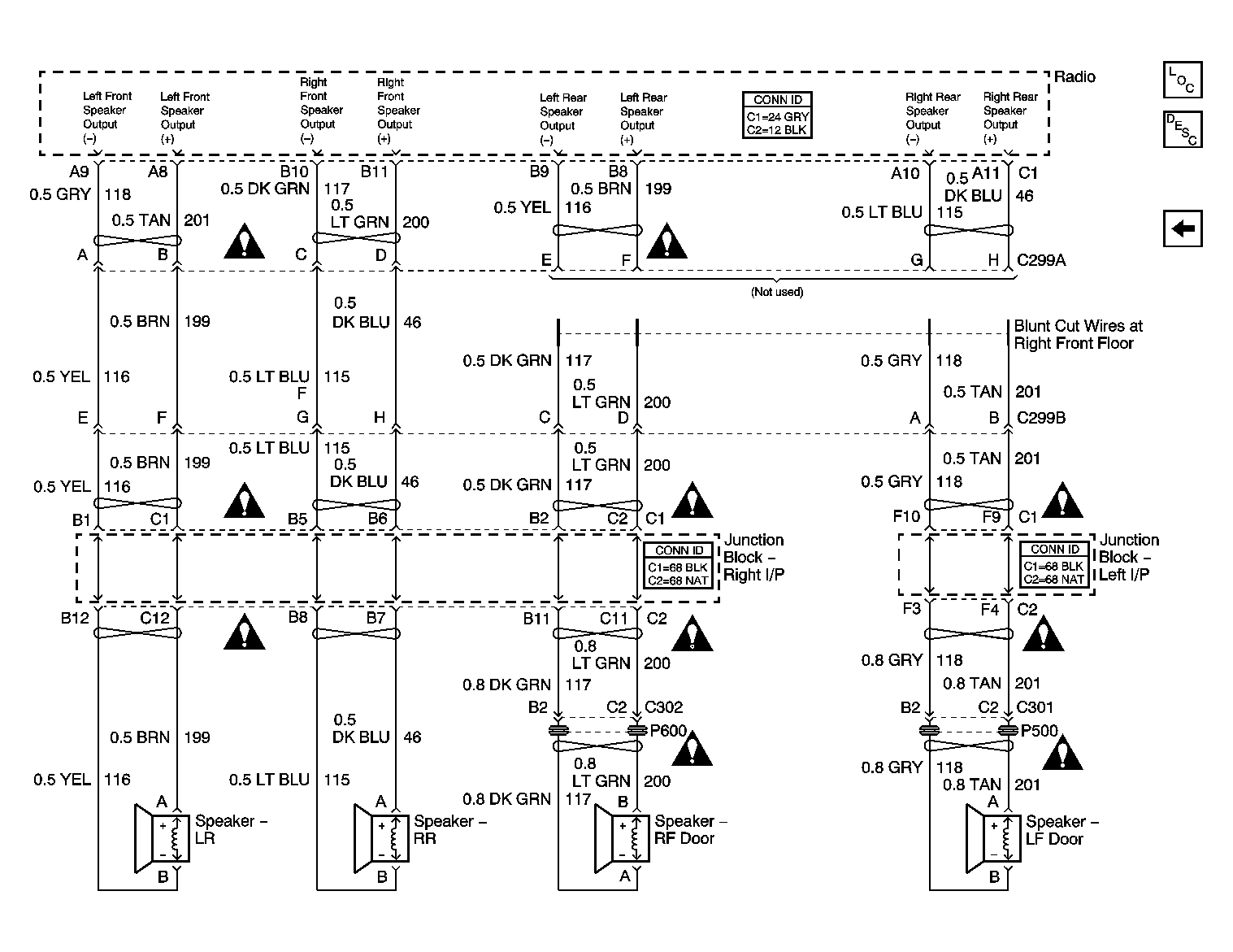

Fig 5: Speakers (UQ3)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Speakers (WX7)

Courtesy of GENERAL MOTORS CORP.
