Body Control System Schematics

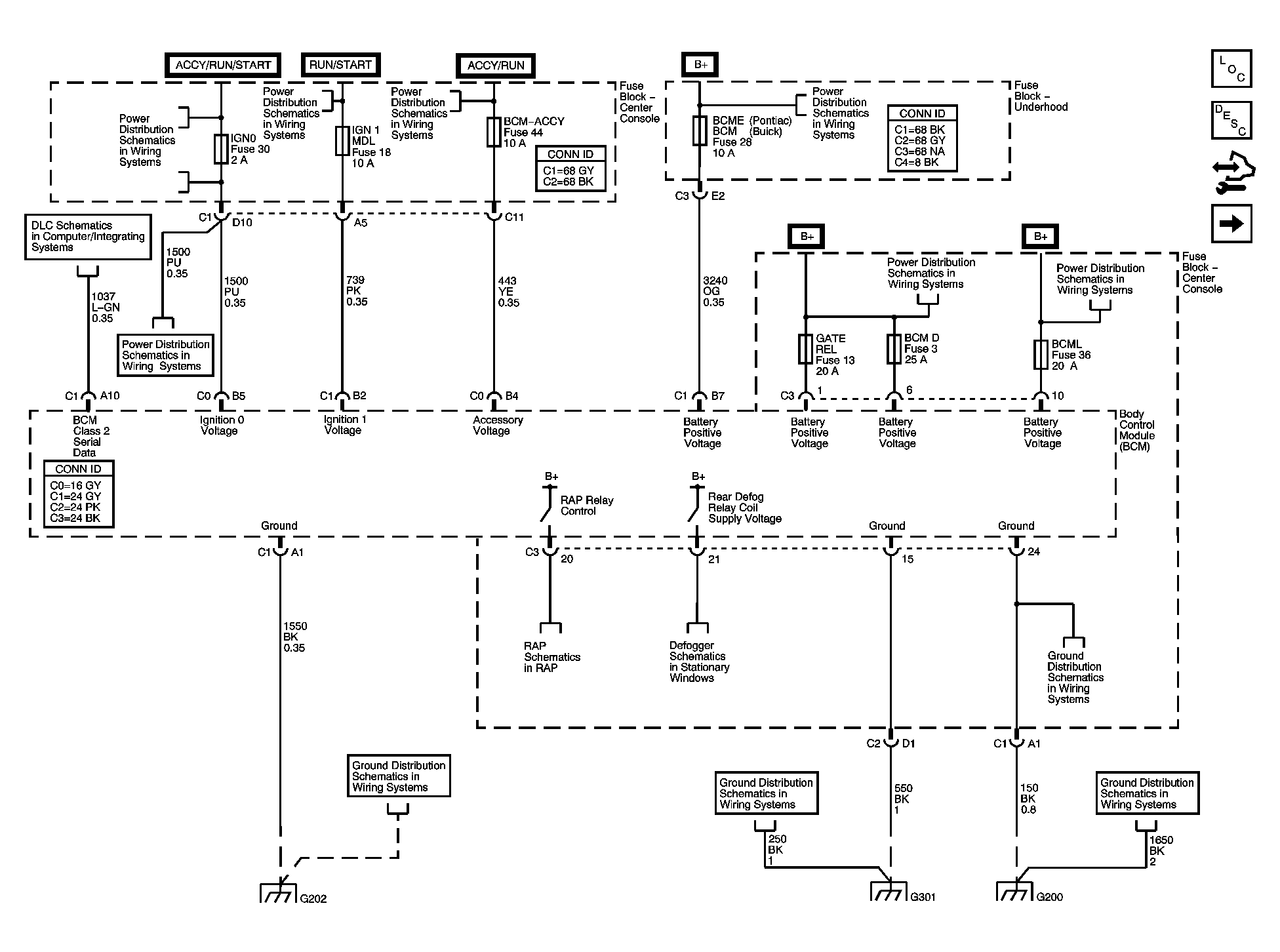

Fig 1: Power, Ground and Serial Data
GM1499560Courtesy of GENERAL MOTORS CORP.

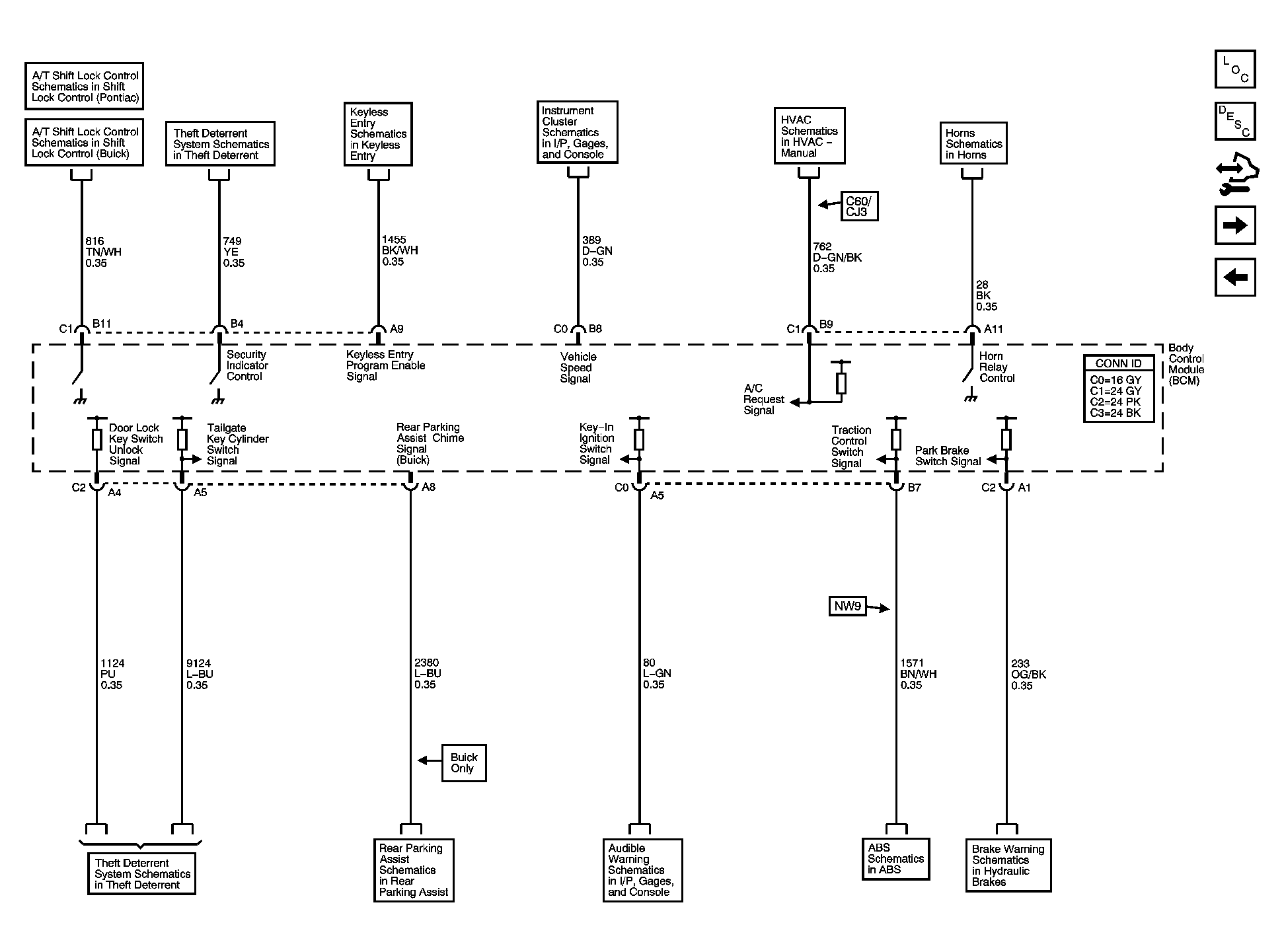

Fig 2: Subsystem References
GM1500915Courtesy of GENERAL MOTORS CORP.

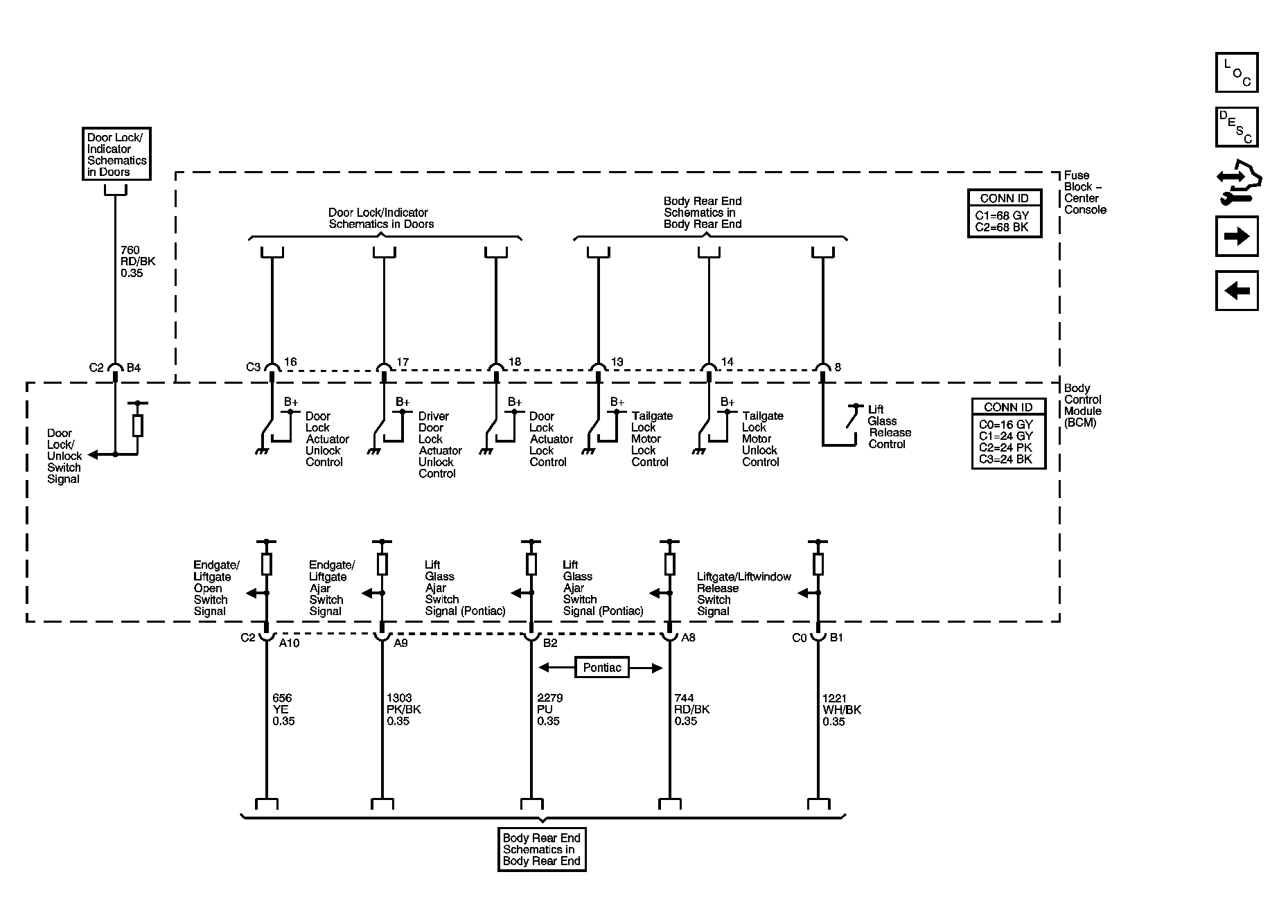

Fig 3: Door and Body Rear End References
GM1500918Courtesy of GENERAL MOTORS CORP.

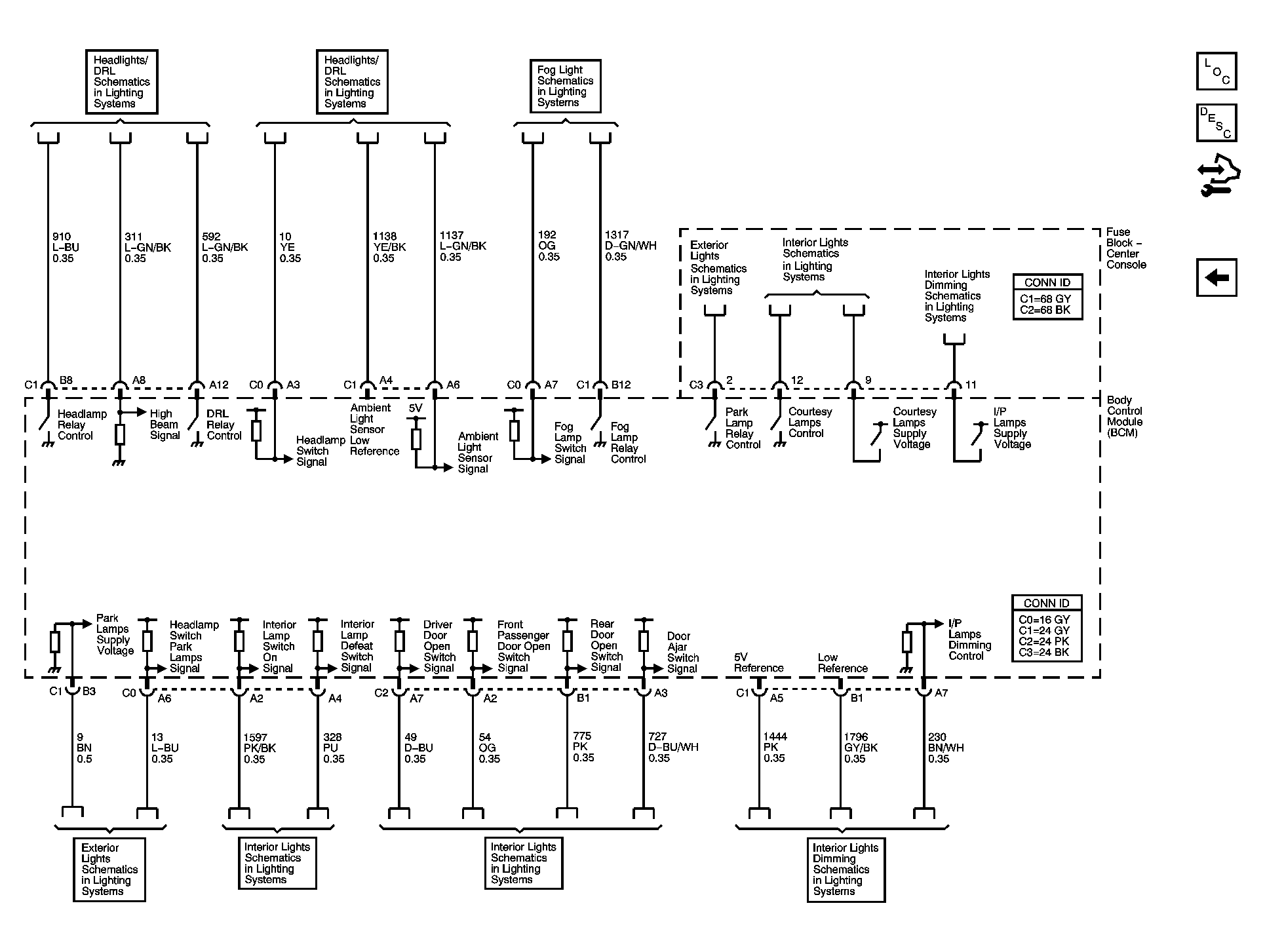

Fig 4: Lighting References
GM1499687Courtesy of GENERAL MOTORS CORP.
