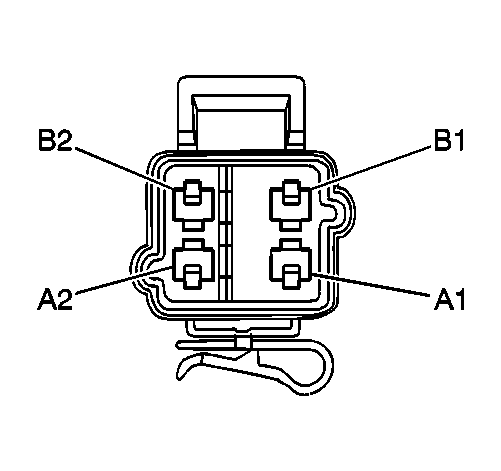

Inflatable Restraint I/P Module Connector End View - Rendezvous

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15336477 4-Way M Metri-Pack 280 Series (YE)
Pin	Wire Color	Circuit No.	Function
A1	YE	3025	I/P Module - Stage 1 - High Control
A2	OG	3024	I/P Module - Stage 1 - Low Control
B1	GY	3027	I/P Module - Stage 2 - High Control
B2	PU	3026	I/P Module - Stage 2 - Low Control
