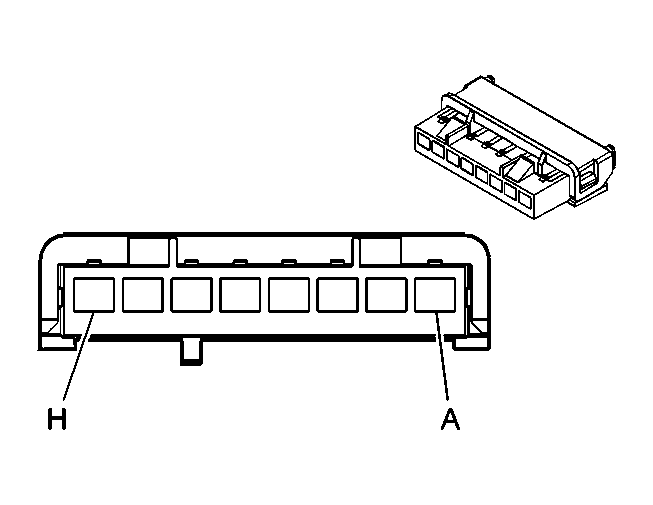

I/P Switch Assembly Connector End View C2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12047976 8-Way F Metri-Pack 280 Series (BU)
Pin	Wire Color	Circuit No.	Function
A	GY	8	Instrument Panel Lamp Supply Voltage - 1
B	BK	150	Ground
C	L-GN	911	Rear Defog Relay Coil Supply Voltage
D	L-BU	1462	Driver Heated Seat Switch Signal
E	L-BU/BK	1505	Front Passenger Heated Seat Switch Signal
F-H	-	-	Not Used
