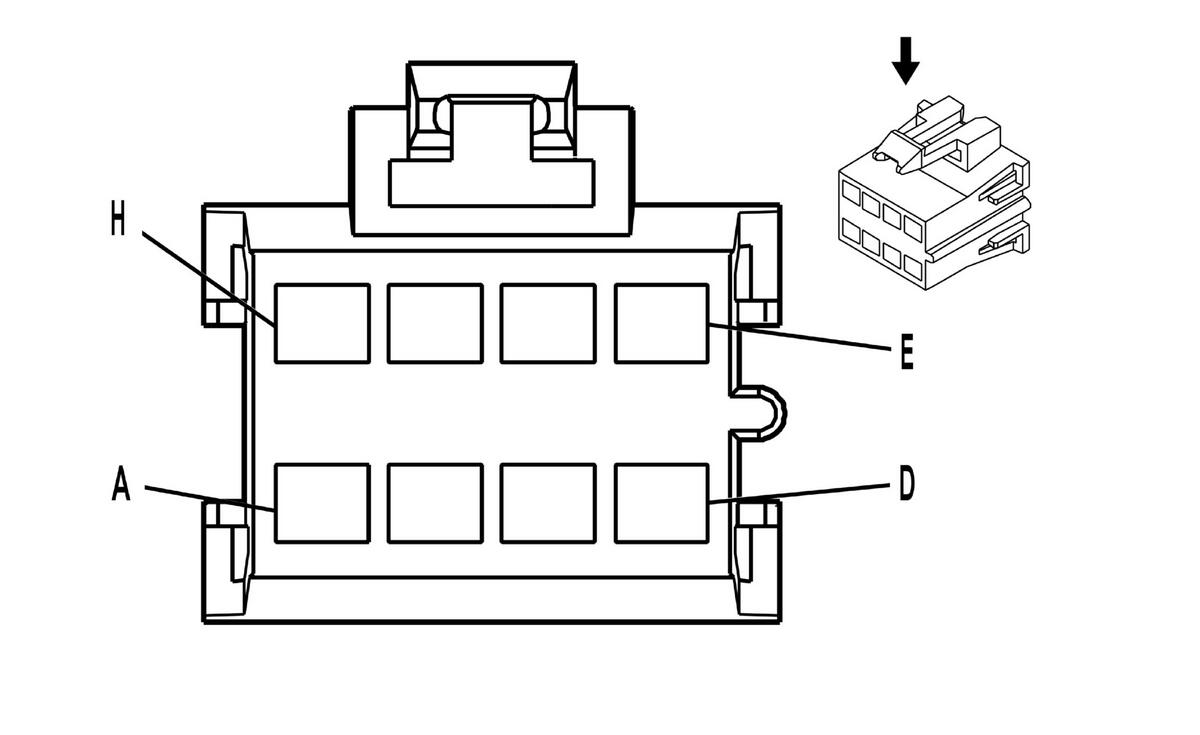

HVAC Control Module - Connector End View C2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12064998 8-Way F Metri-Pack 280 Series (BK)
Pin	Wire Color	Circuit No.	Function
A	D-GN	71	OFF Blower Motor Control
B	BN	41	Ignition 3 Voltage
C	OG	52	High Blower Motor Control
D	-	-	Not Used
E	PU	73	Medium 3 Blower Motor Control
F	L-BU	72	Medium 2 Blower Motor Control
G	TN	63	Medium 1 Blower Motor Control
H	YE	60	Low Blower Motor Control
