Power and Grounding Component Views

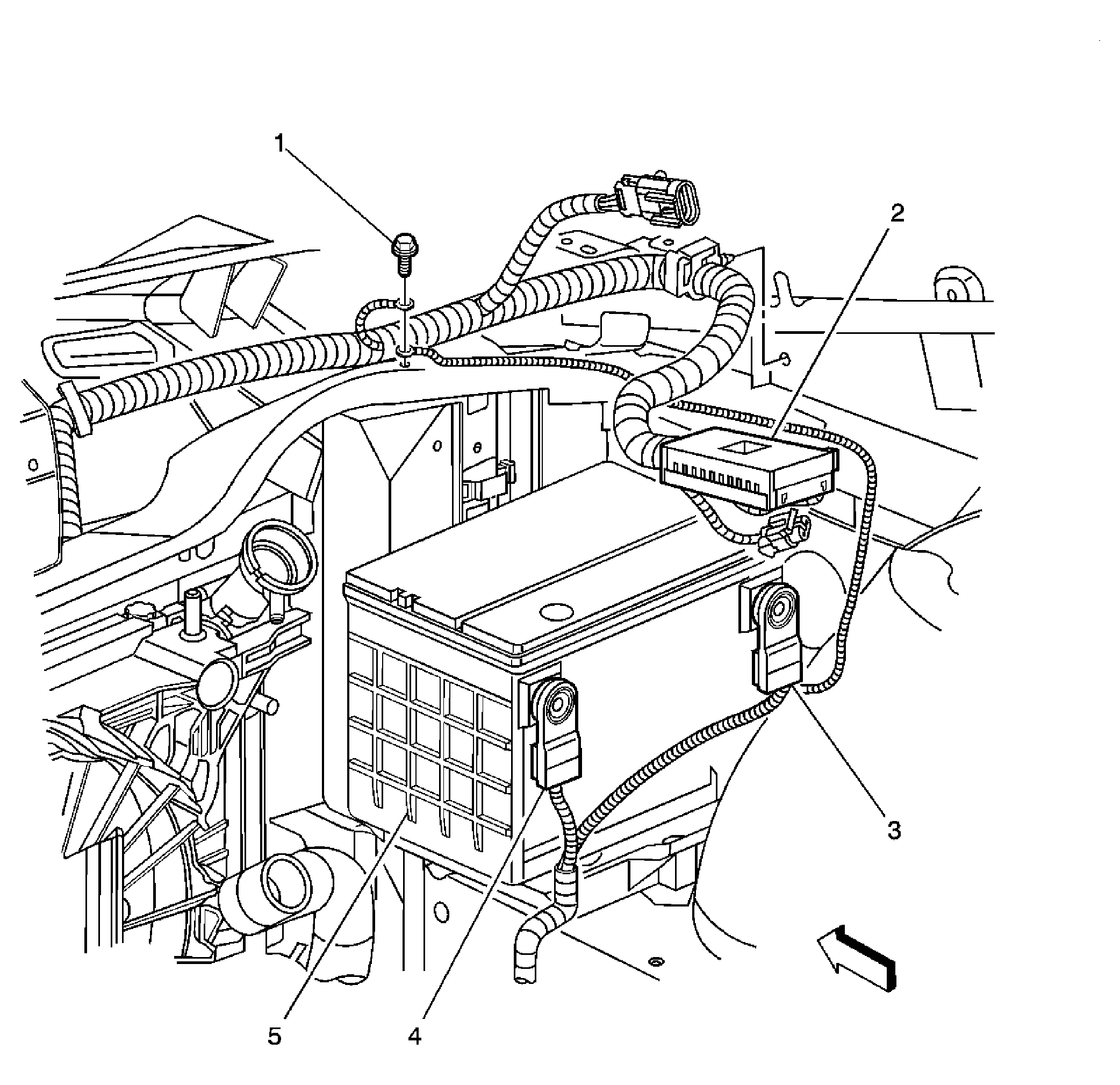

Fig 1: Engine Compartment Component View - RF
GM861237Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ground G100
2 Fuse Block - Underhood C2
3 Negative Battery Cable
4 Positive Battery Cable
5 Battery

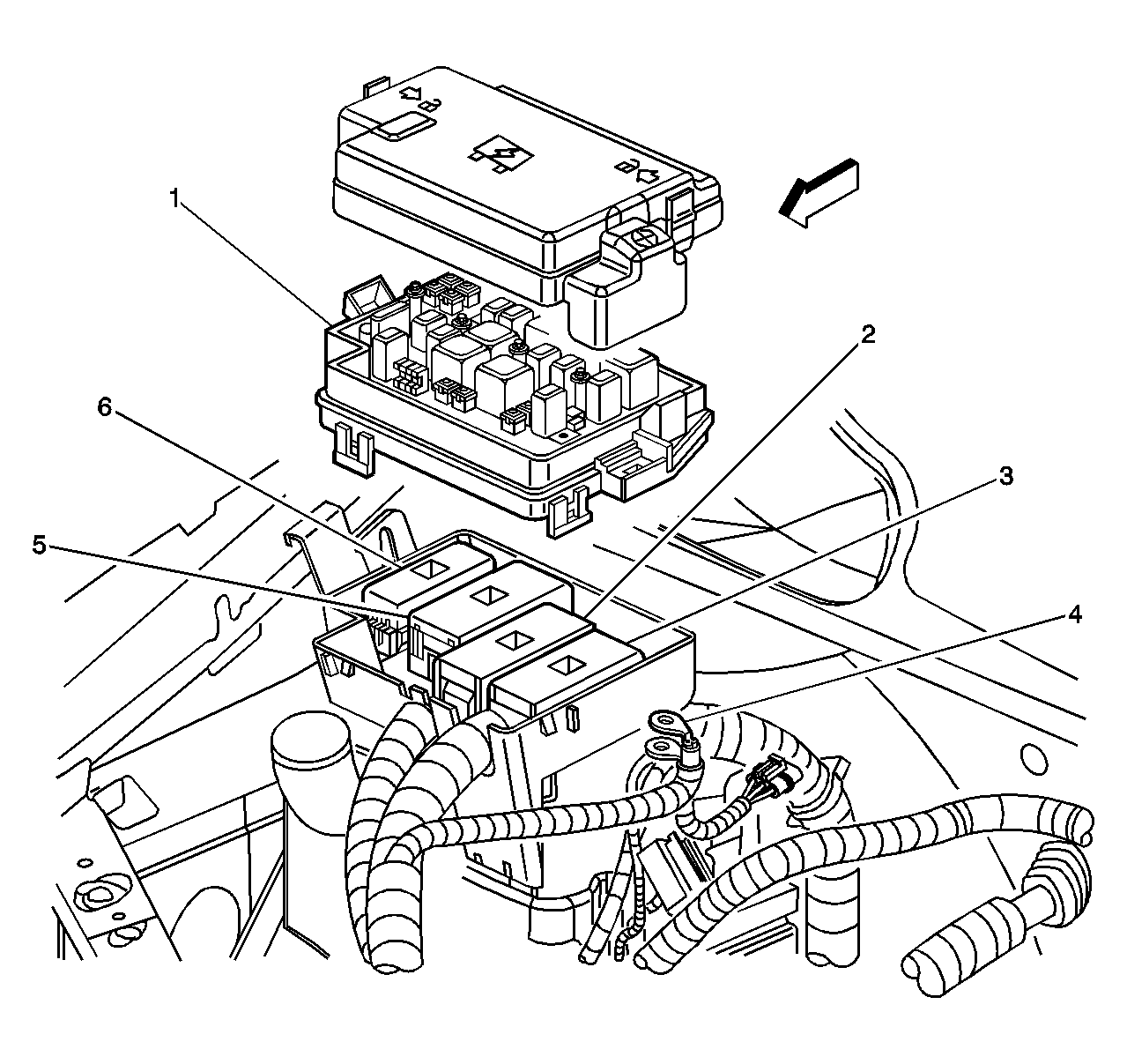

Fig 2: Engine Compartment Component View - RR
GM861238Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood
2 Fuse Block - Underhood C2
3 Fuse Block - Underhood C1
4 Positive Battery Cable Connection
5 Fuse Block - Underhood C3
6 Fuse Block - Underhood C4

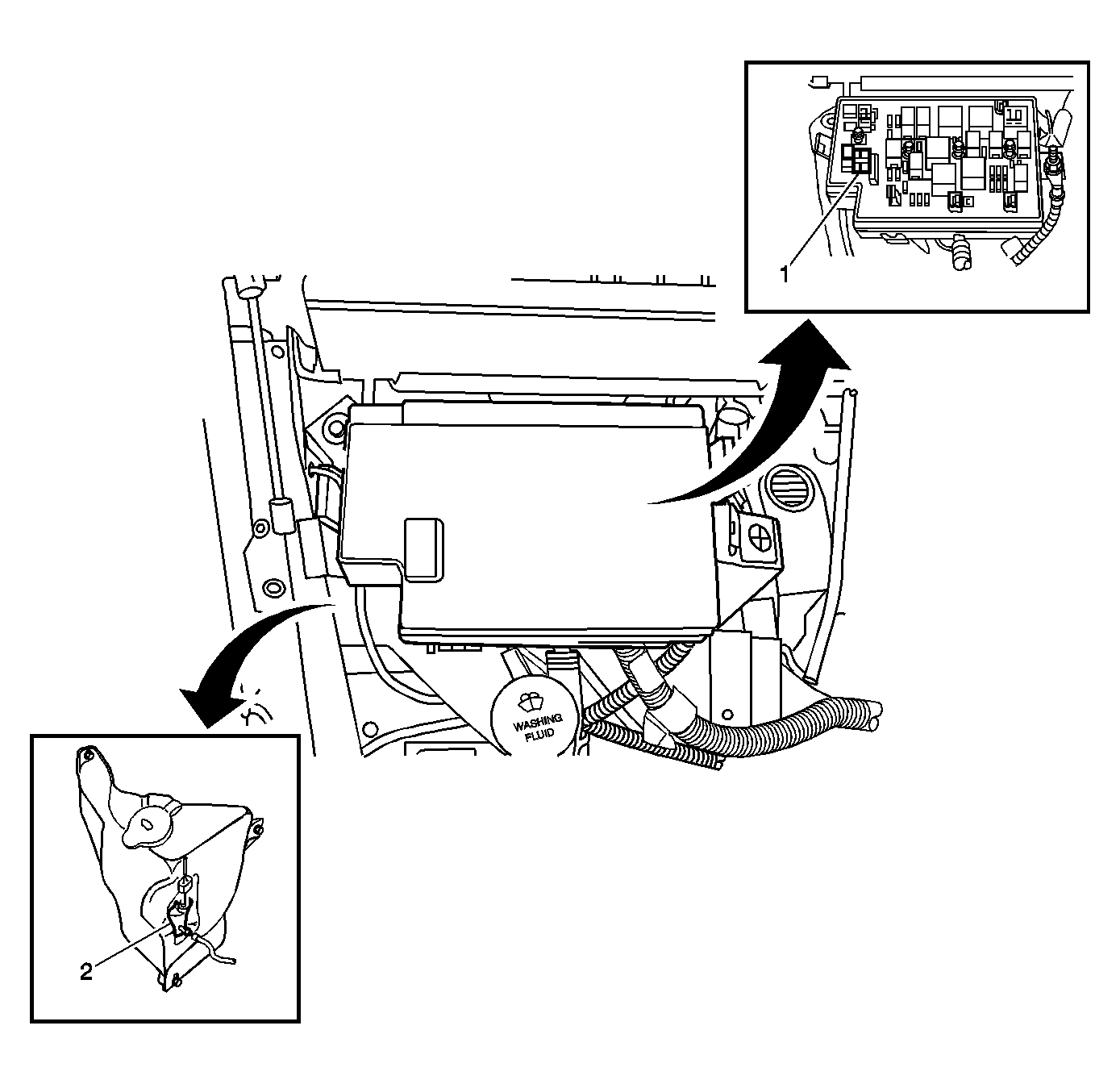

Fig 3: LH Engine Compartment Component View
GM757626Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block-Underhood
2 Windshield Washer Fluid Pump
Fig 4: Center Console Component View - Pontiac
GM861248Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Control Module (BCM) C2
2 Body Control Module (BCM) C1
3 Body Control Module (BCM) C0
4 Automatic Transmission Floor Shift Control
5 Fuse Block - Center Console C2
6 Fuse Block - Center Console C1

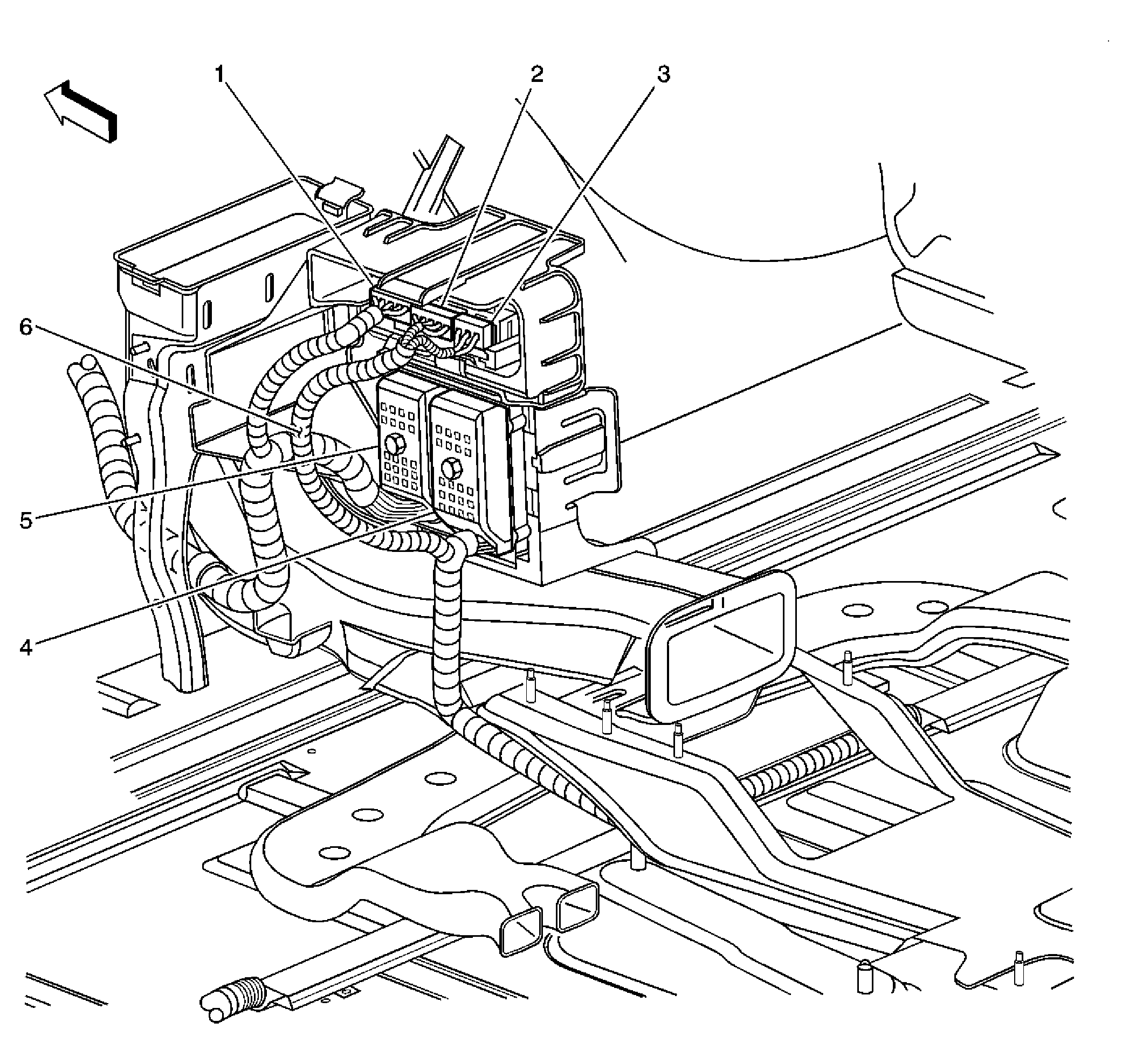

Fig 5: Center Console Location View - Buick
GM861251Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Control Module (BCM) C2
2 Body Control Module (BCM) C1
3 Body Control Module (BCM) C0
4 Fuse Block - Center Console C2
5 Fuse Block - Center Console C1
6 Rear Parking Assist (RPA) Diagnostic Connector

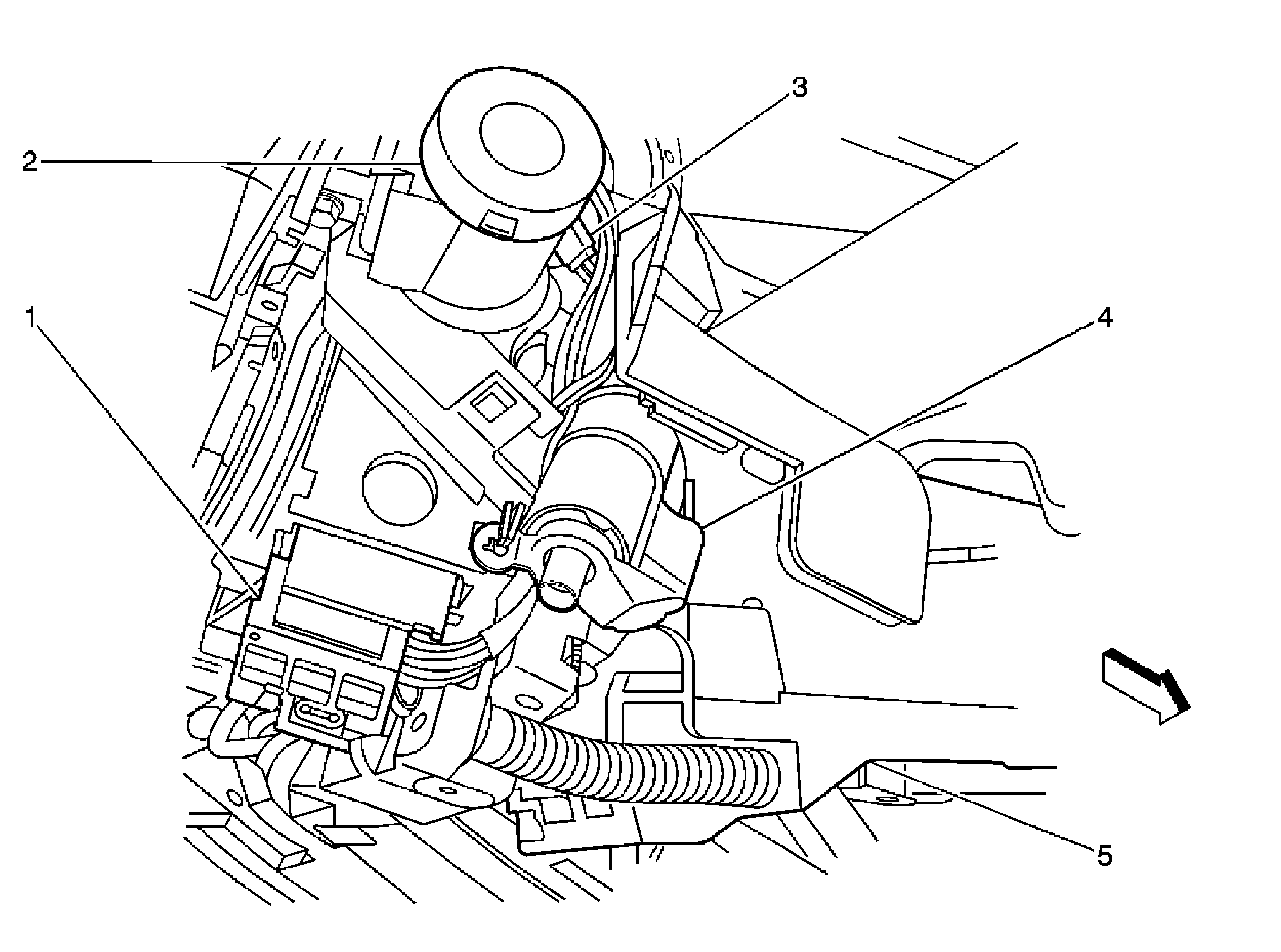

Fig 6: Top Of Steering Column Component Views
GM900962Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ignition Switch
2 Passlock Sensor
3 Ignition Key Alarm Switch
4 Ignition Lock Cylinder Control Actuator
5 Steering Column

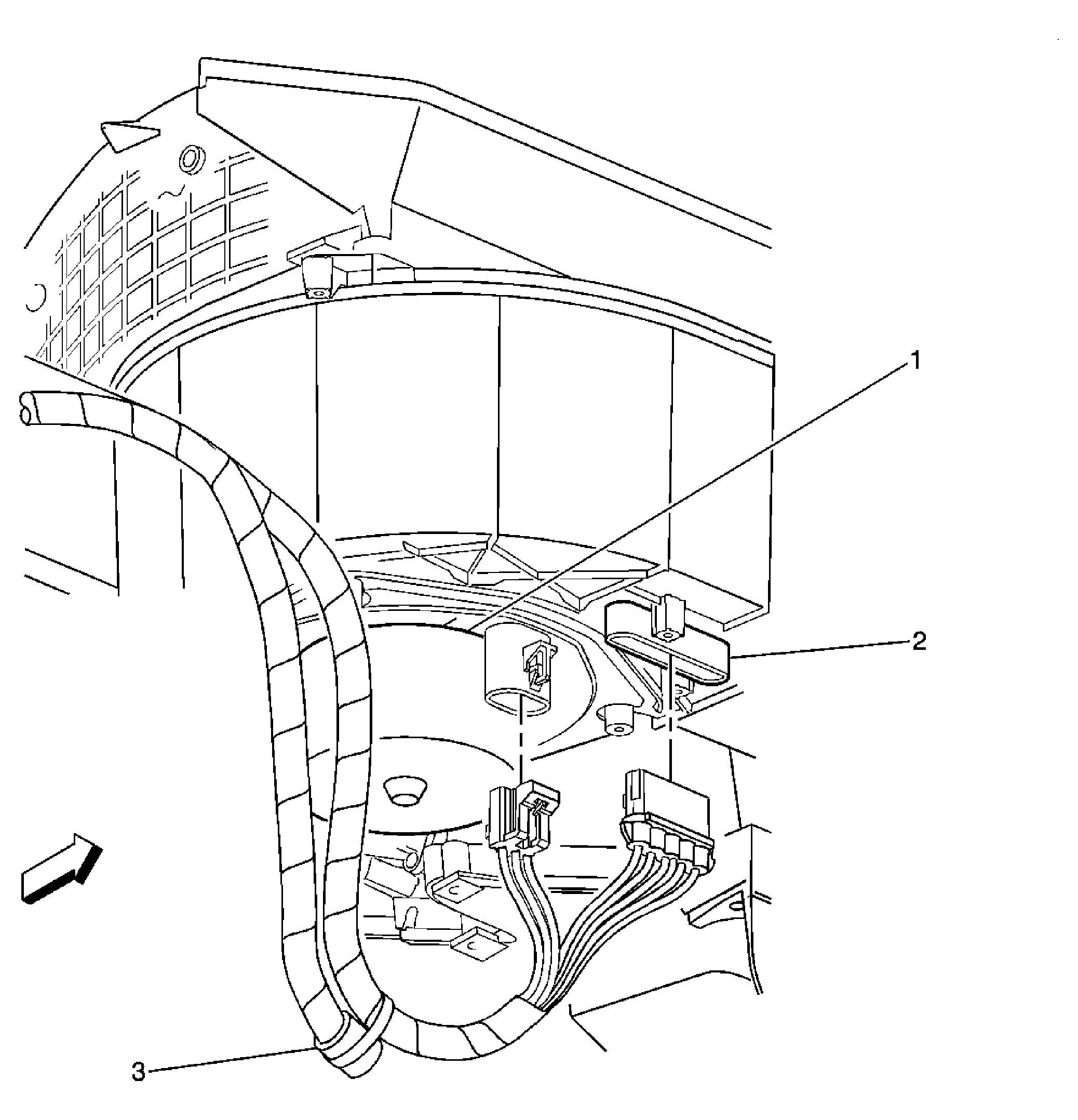

Fig 7: Under the Right Side of the Instrument Panel Component View
GM1382406Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Blower Motor
2 Blower Motor Resistor (CJ2)/Blower Motor Processor (CJ3)
3 Auxiliary Power Drop Connector

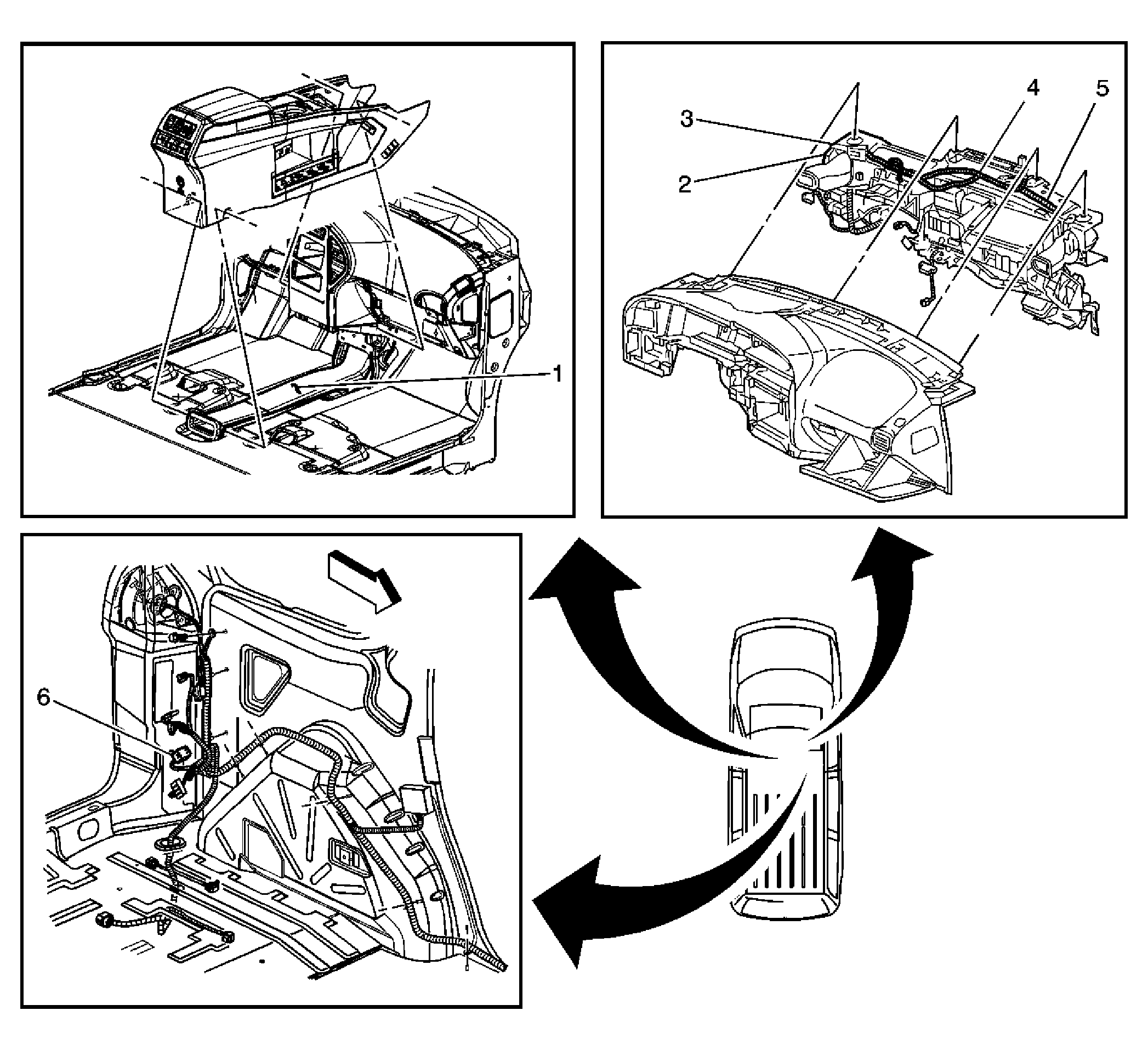

Fig 8: Splice Packs 205, 206, 215, 250, 315 and 409 Harness Routing View
GM1515376Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 SP 315
2 SP 205
3 SP 206
4 SP 215 (U32)
5 SP 250
6 SP 409

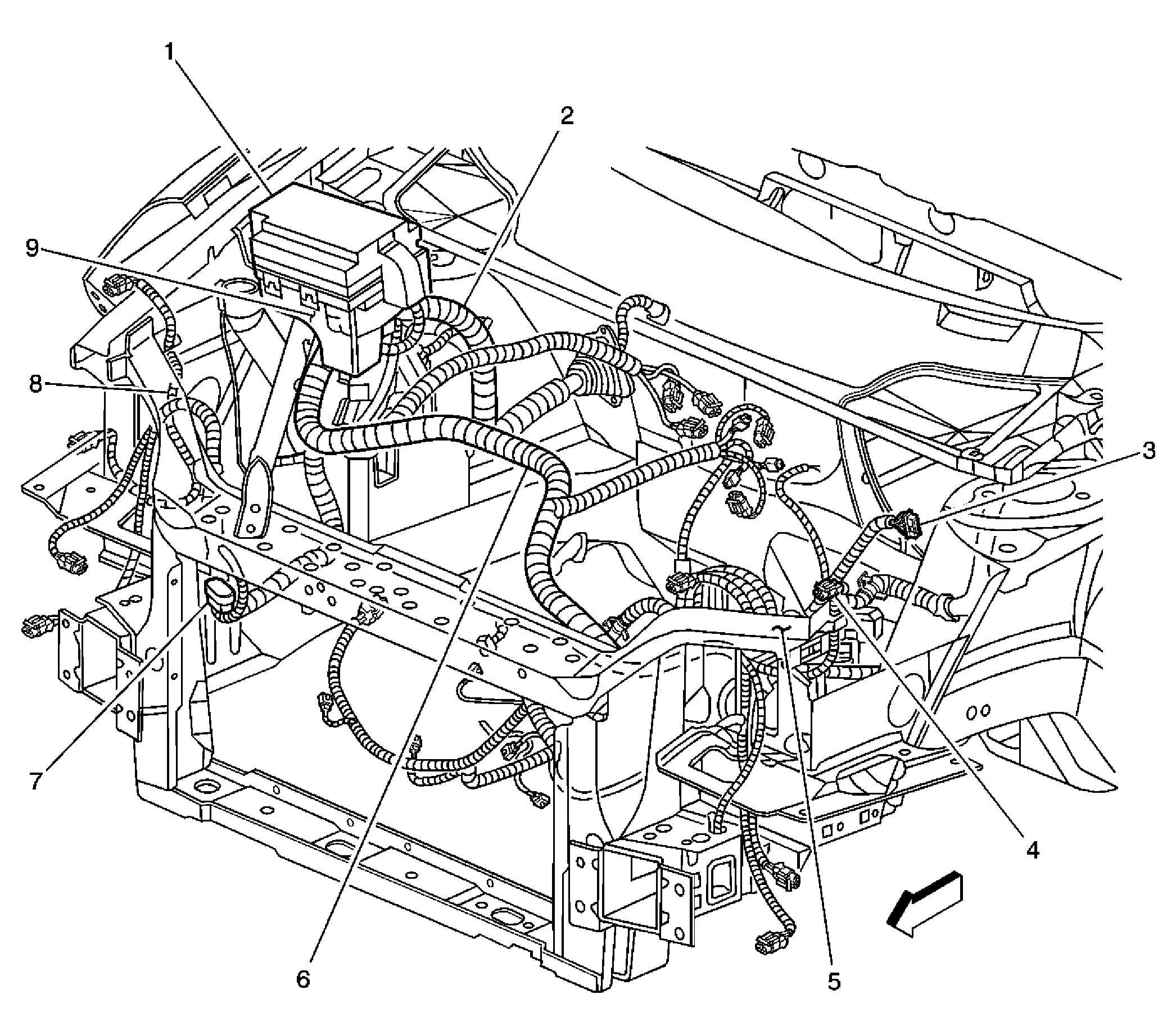

Fig 9: Grounds 100 and 101
GM1515498Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood
2 Instrument Panel (I/P) Harness
3 C101
4 C103
5 G101
6 Engine Harness
7 Forward Lamp Harness
8 G100
9 C120

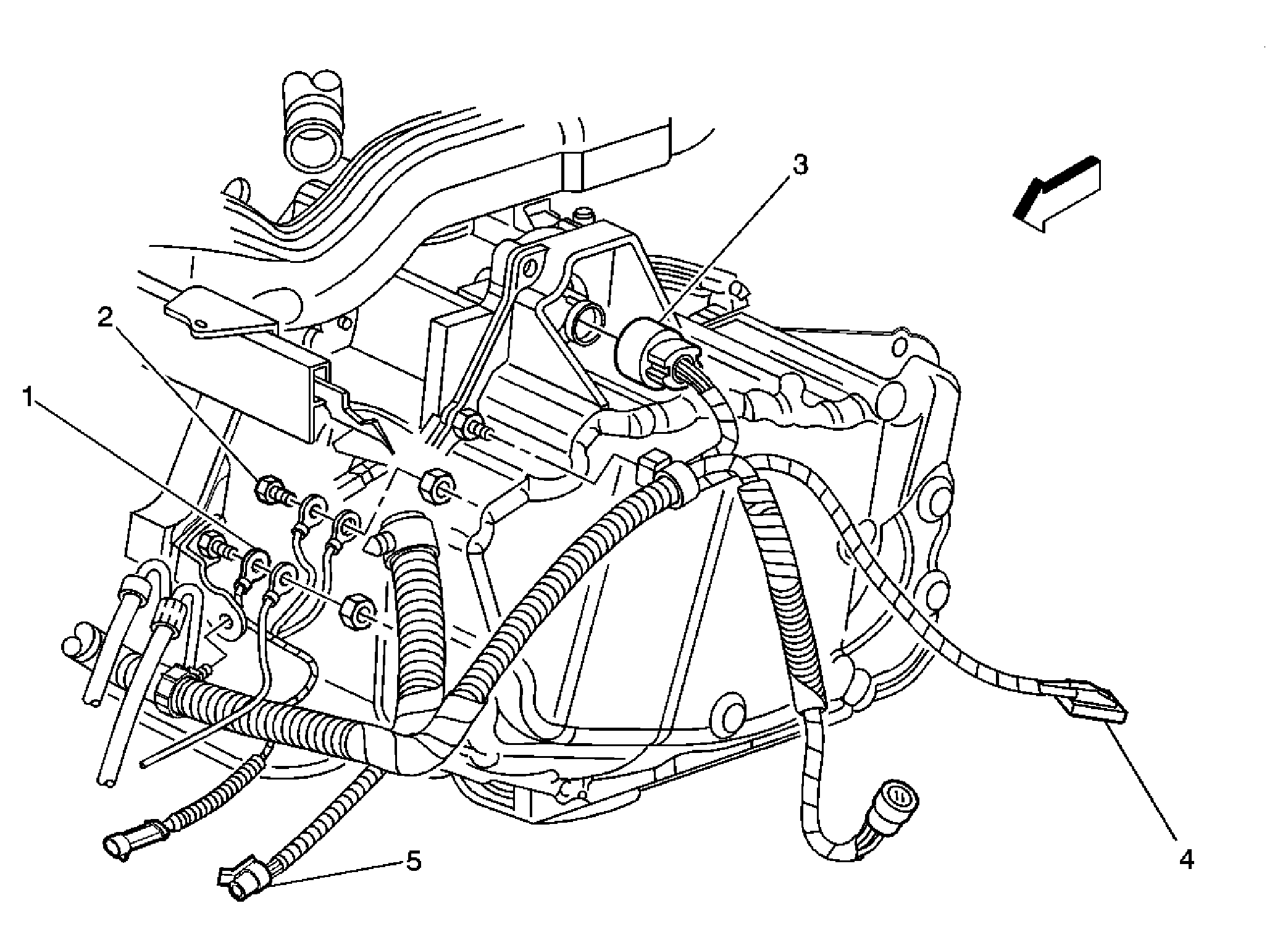

Fig 10: Left Side of Engine Compartment (LA1) Harness Routing View
GM1400905Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G111
2 G117
3 C111
4 Electronic Brake Control Module (EBCM)
5 A/C Refrigerant Pressure Sensor Connector

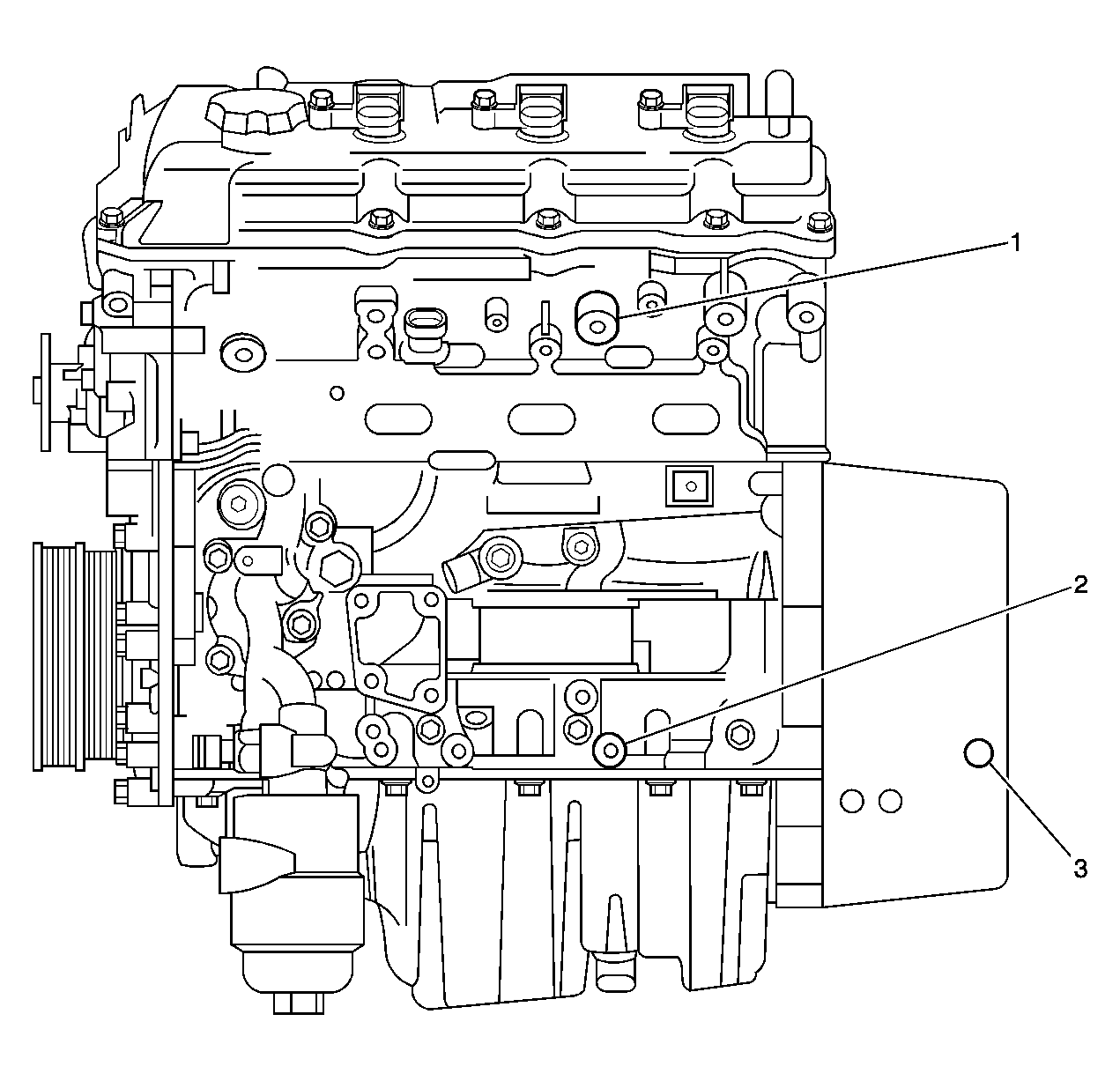

Fig 11: Grounds G111 and G117 and G131 - LY7
GM1515676Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G131
2 G111
3 C117

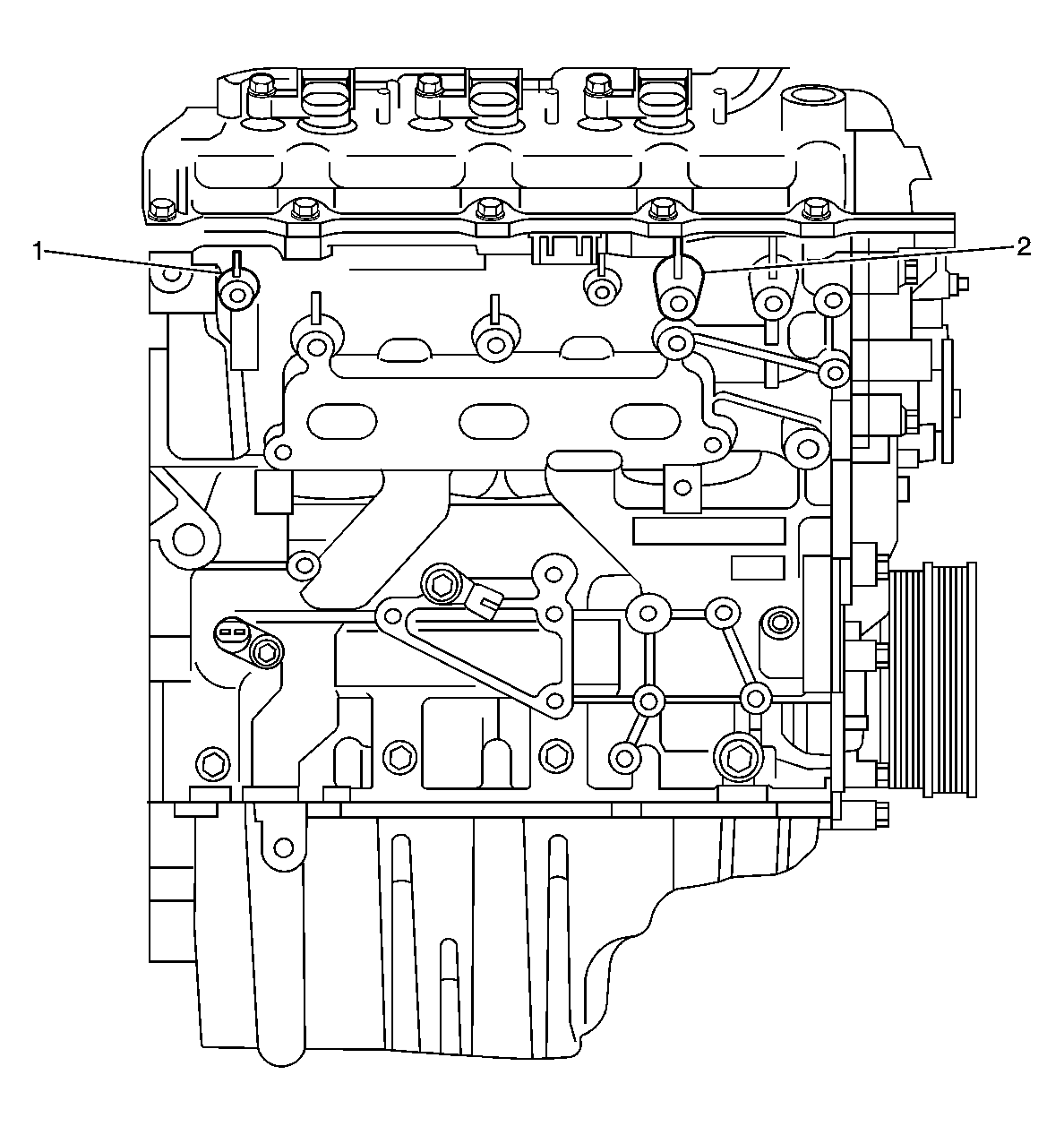

Fig 12: Grounds G130 and G132 - LY7
GM1515707Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G130
2 G132
Fig 13: Body Harness Routing View
GM861244Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ground G401
2 C351
3 Ground G301
4 C313, C317 (A43)
5 C301 & C303
6 C203
7 C200
8 C302
9 C316 (KA1)
10 C352
11 Ground G302
12 Inflatable Restraint Sensing and Diagnostic Module (SDM)
13 C314
14 C315 (KA1)
15 C305
16 Ground G402
17 C309
18 C420

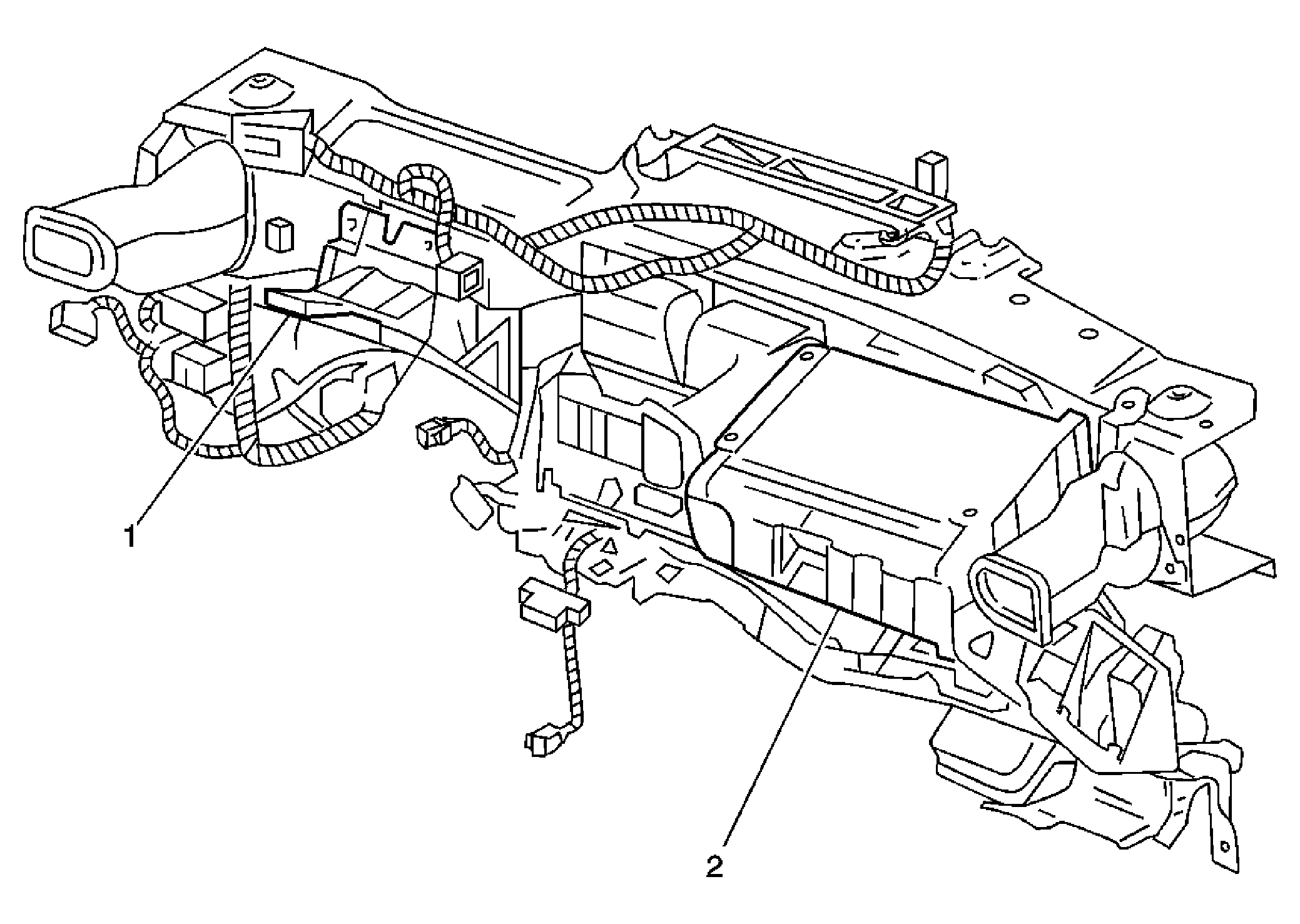

Fig 14: Grounds G200, G201, and G202
GM1515814Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G200
2 G200 and G201
