Fuse Block - Center Console (Buick), Label

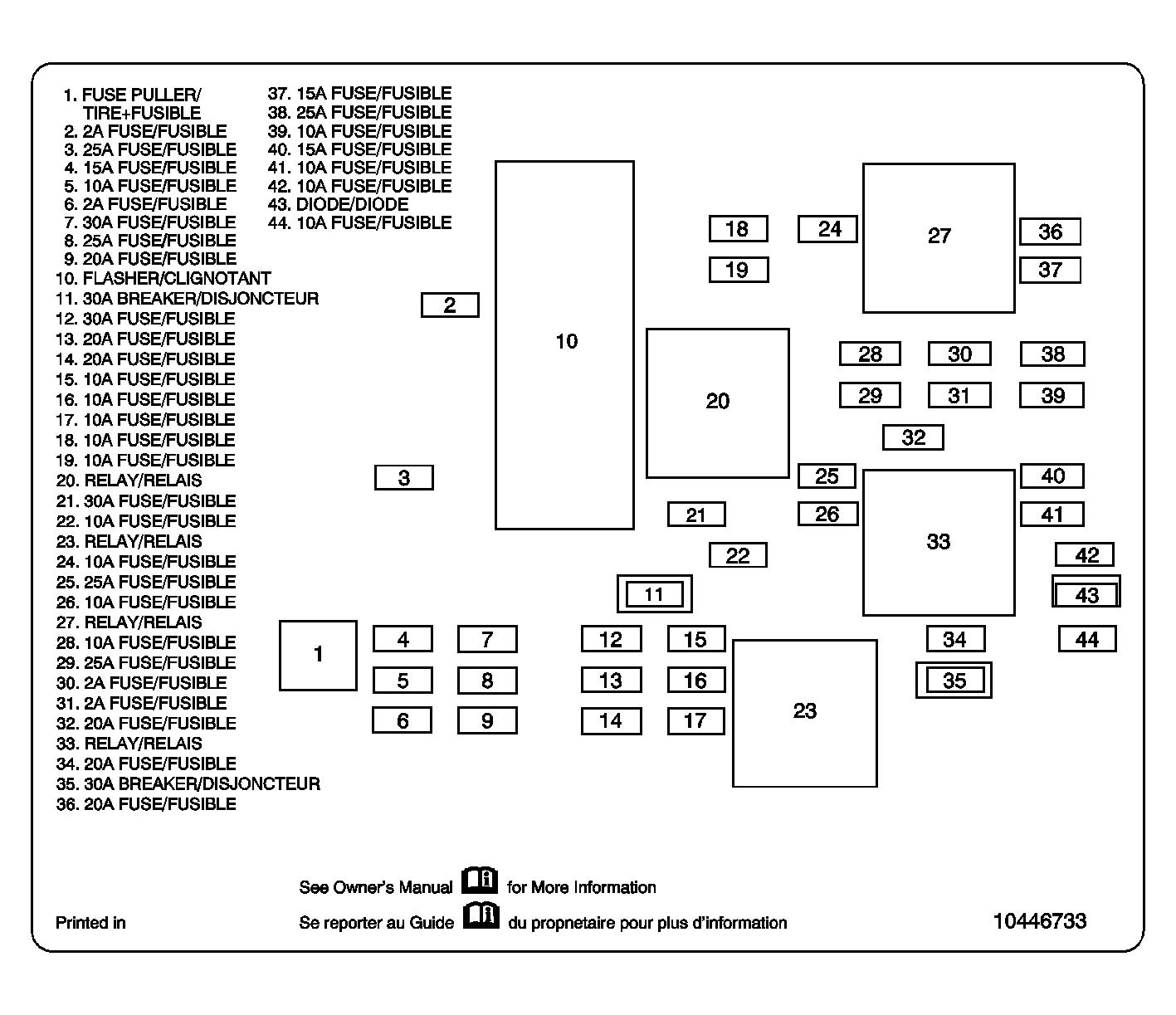

Fig 1: Fuse Block Identification View - Center Console (Buick), Label Usage

Courtesy of GENERAL MOTORS CORP.

Fuse Block - Center Console (Buick), Label Usage

No.	Device	Rating	Description
1	FUSE PULLER	-	Not Used
2	STG COL	2A	Inflatable restraint steering wheel module coil
3	BCMD	25A	Body control module (BCM)
4	SPARE FUSE	15A	Not Used
5	SPARE FUSE	10A	Not Used
6	SPARE FUSE	2A	Not Used
7	SPARE FUSE	30A	Not Used
8	SPARE FUSE	25A	Not Used
9	SPARE FUSE	20	Not Used
10	FLASHER	-	Turn signals/hazard lamps
11	PWR STS	30A	Driver heated seat relay module Driver seat adjuster motor assembly Passenger heated seat relay module Passenger seat adjuster motor assembly
12	ELCBATT	30A	Automatic level control (ALC) relay
13	GATE REL	30A	Body control module (BCM)
14	RR AUX	20A	With G67: Automatic level control (ALC) air compressor Automatic level control (ALC) inflation timer Rear auxiliary power outlet Trailer wiring harness Without G67: Rear auxiliary power outlet
15	ELC ACCY	10A	Automatic level control (ALC) relay Automatic level control (ALC) sensor
16	HTDMIRR	10A	Not Used
17	PWR MIR	10A	Outside rearview mirror remote control switch
18	IGN1MDL	10A	Body control module (BCM)
19	TRN SIG	10A	Transaxle range switch Turn signal/hazard flasher switch
20	RR DEFOG Relay	-	HTDMIRR Fuse RR DEF Fuse
21	RR DEF	30A	Rear window defogger
22	SIR	10A	Inflatable restraint sensing and diagnostic module (SDM)
23	-	-	Not Used
24	INTEMM	10A	Evaporative emission (EVAP) canister vent solenoid valve Stop lamp switch
25	BLWR	25A	HVAC control module
26	IGN3 HVAC	10A	Head up display HVAC control module HVAC mode actuator HVAC air temp actuator - Left HVAC air temp actuator - Right Recirculation actuator
27	ACCY Relay	-	ACCPWR Fuse ELC PWR Fuse RR WPR Fuse WIPER Fuse
28	ACCPWR	10A	Auxiliary power drop connector
29	WIPER	25A	Windshield wiper motor Windshield wiper/washer switch
30	IGN0	2A	Body control module (BCM) Instrument panel cluster (IPC) Theft deterrent control module
31	KEY SOL	2A	Automatic transmission shift lock control actuator solenoid
32	RRWPR	20A	Not used
33	RAP Relay	-	PWR WDWS circuit breaker SUN RF Fuse
34	SUN RF	20A	Sunroof module
35	PWR WDWS	30A	Window master switch Window switch - Front passenger
36	BCML	20A	Body control module (BCM)
37	RADIO	15A	Radio
38	RD AMP	25A	Audio amplifier
39	HUD	10A	Head up display
40	HZD FL	15A	Flasher Stop lamp switch
41	IP MDL	10A	HVAC control module Instrument panel cluster (IPC) Remote control door lock receiver (RCDLR) Security indicator lamp Theft deterrent shock sensor
42	INKEY	10A	Ignition switch Theft deterrent control module
43	ACCY	-	Ignition switch
44	BCM-ACC	10A	Body control module (BCM)
