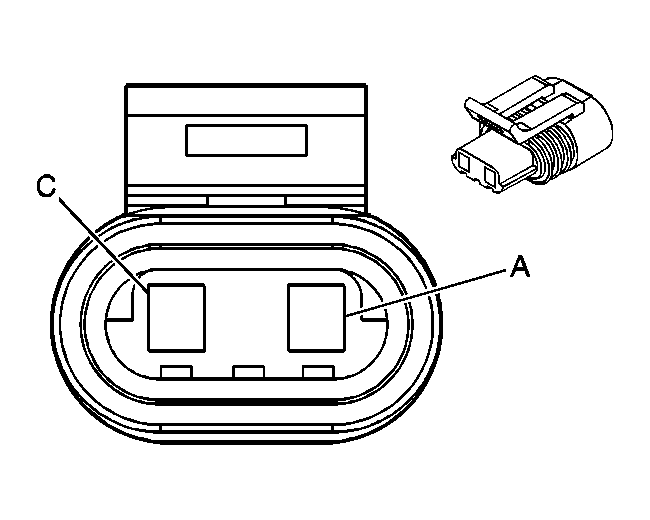

Ignition Control Module (ICM) (3.4L) - Connector End View C2
Ignition Control Module (ICM) (3.4L) - Connector End View C2
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 12162184
- 2-Way F Metri-Pack 150.2 Series Sealed Pull To Seat (BK)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| A |
YE |
573 |
CKP Sensor 1 Signal |
| C |
PU |
574 |
Low Reference |
