Installation procedure

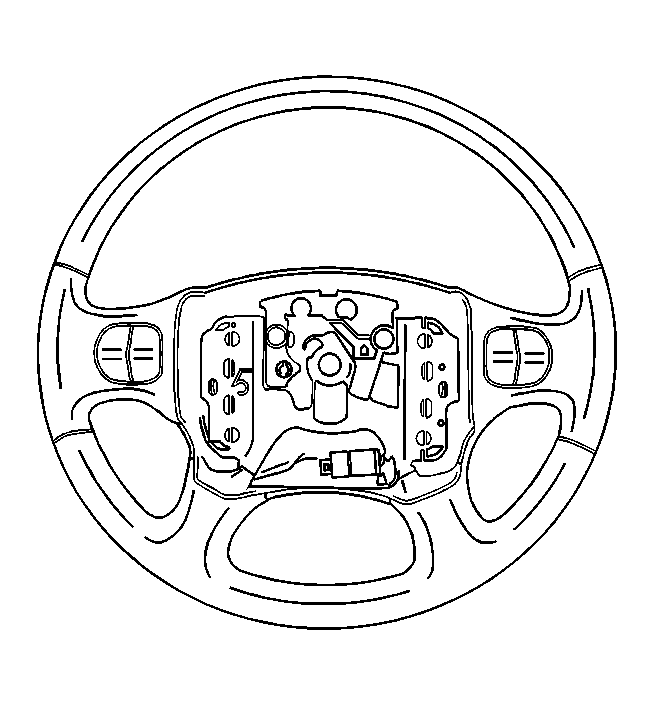

    Fig 1: View Of Inner Steering Wheel Connector
    GM691024Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector.
  2. Align the switch to the opening in the steering wheel.
  3. Push the switch into the steering wheel.

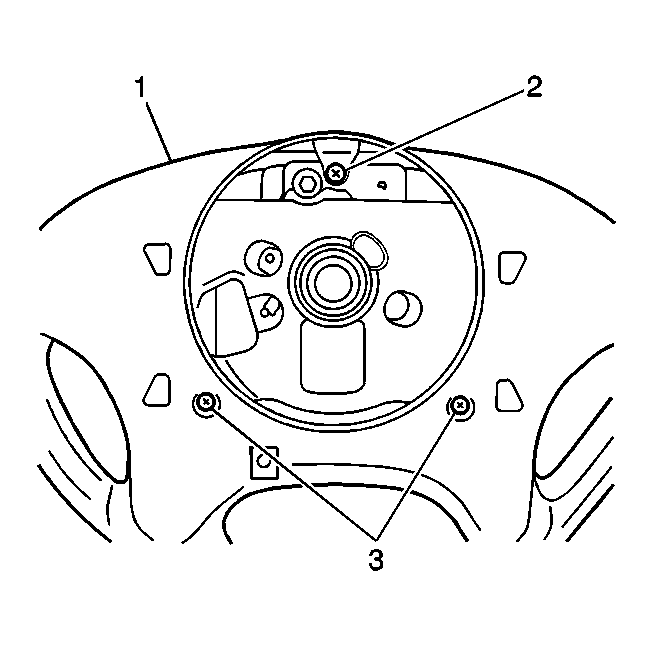

    4. Fig 2: Identifying Steering Wheel Rear Bezel Retaining Screws
    GM691015Courtesy of GENERAL MOTORS CORP.
  4. Install the steering wheel rear bezel (1).
    5. NOTE: Refer to Fastener Notice in Cautions and Notices.
  5. Install the retaining screws (2, 3) to the steering wheel rear bezel.

    Tighten:  Tighten the screws to 3 N.m (27 lb in).

  6. Install the steering wheel. Refer to Steering Wheel Replacement .
  7. Enable the SIR System. Refer to SIR Disabling and Enabling Zone 3 in SIR.
