Steering Wheel and Column Component Views

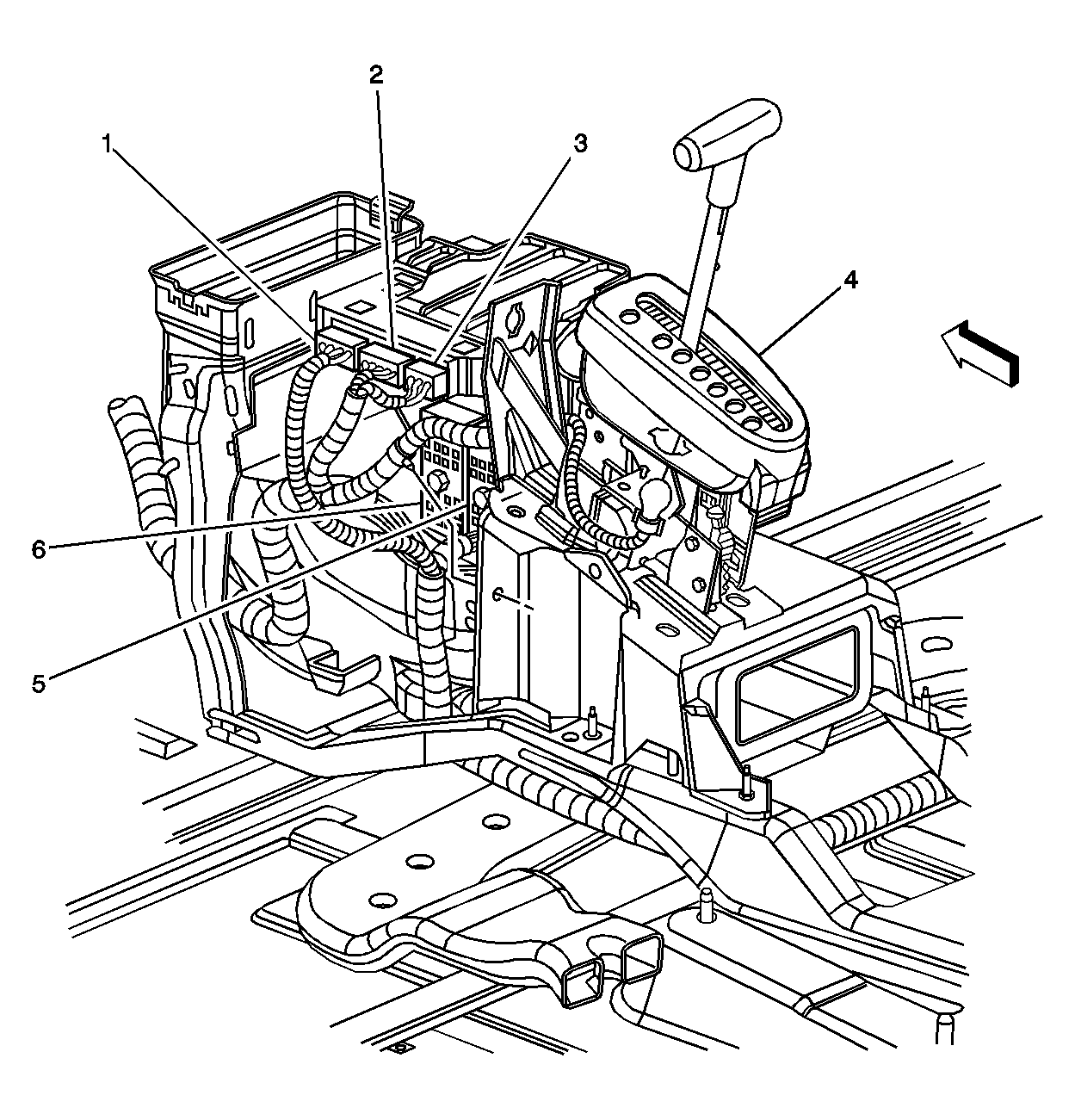

Fig 1: Center Console Component View (Pontiac)
GM861248Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Control Module (BCM) C2
2 Body Control Module (BCM) C1
3 Body Control Module (BCM) C0
4 Automatic Transmission Floor Shift Control
5 Fuse Block - Center Console C2
6 Fuse Block - Center Console C1

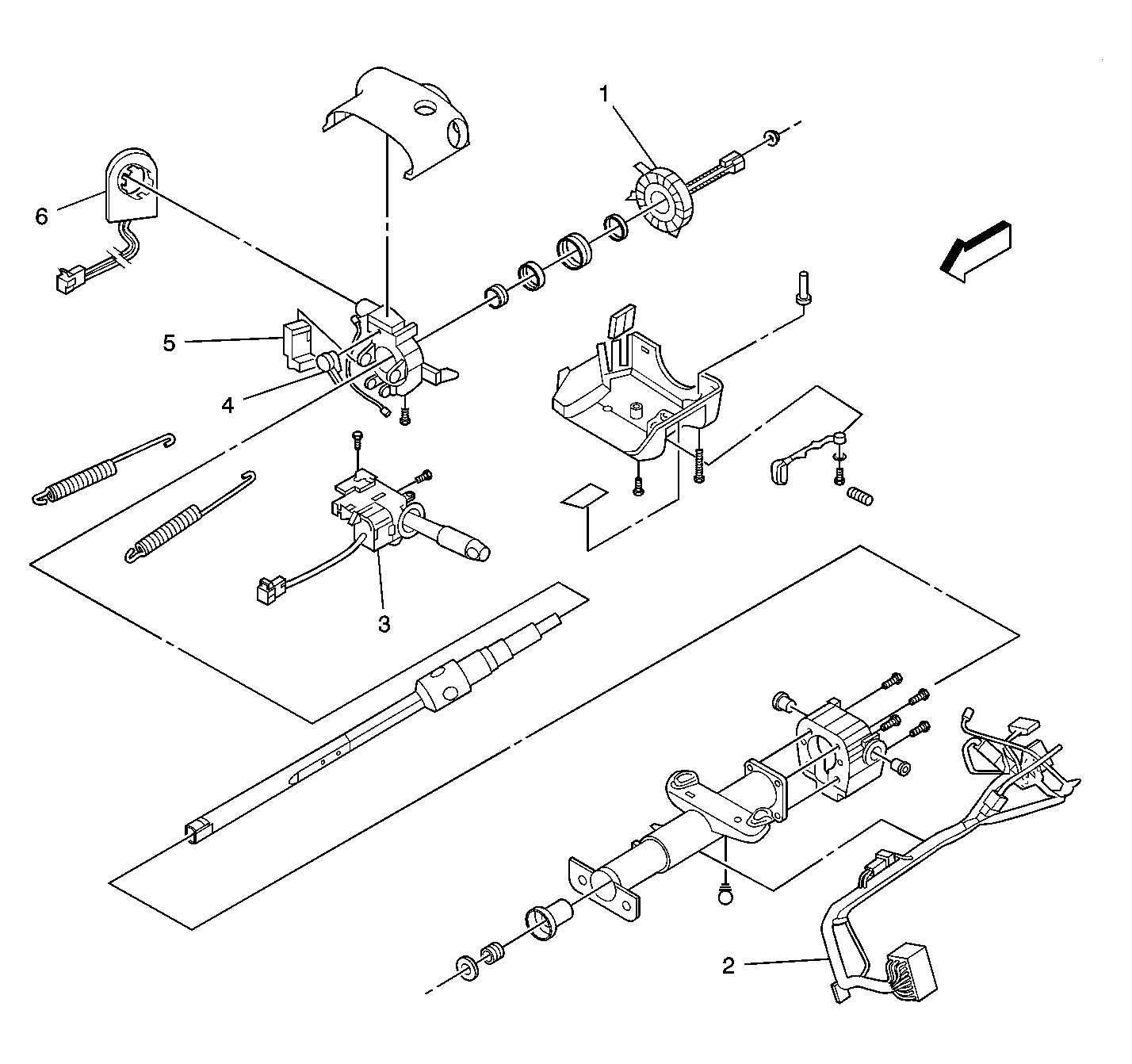

Fig 2: Steering Column Disassembled View (Pontiac)
GM1384374Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Steering Wheel Module
2 Wire Harness Assembly
3 Multifunction Switch
4 Ignition Lock Cylinder Control Actuator
5 Ignition Switch
6 Theft Deterrent Module
