Navigation System Component Views

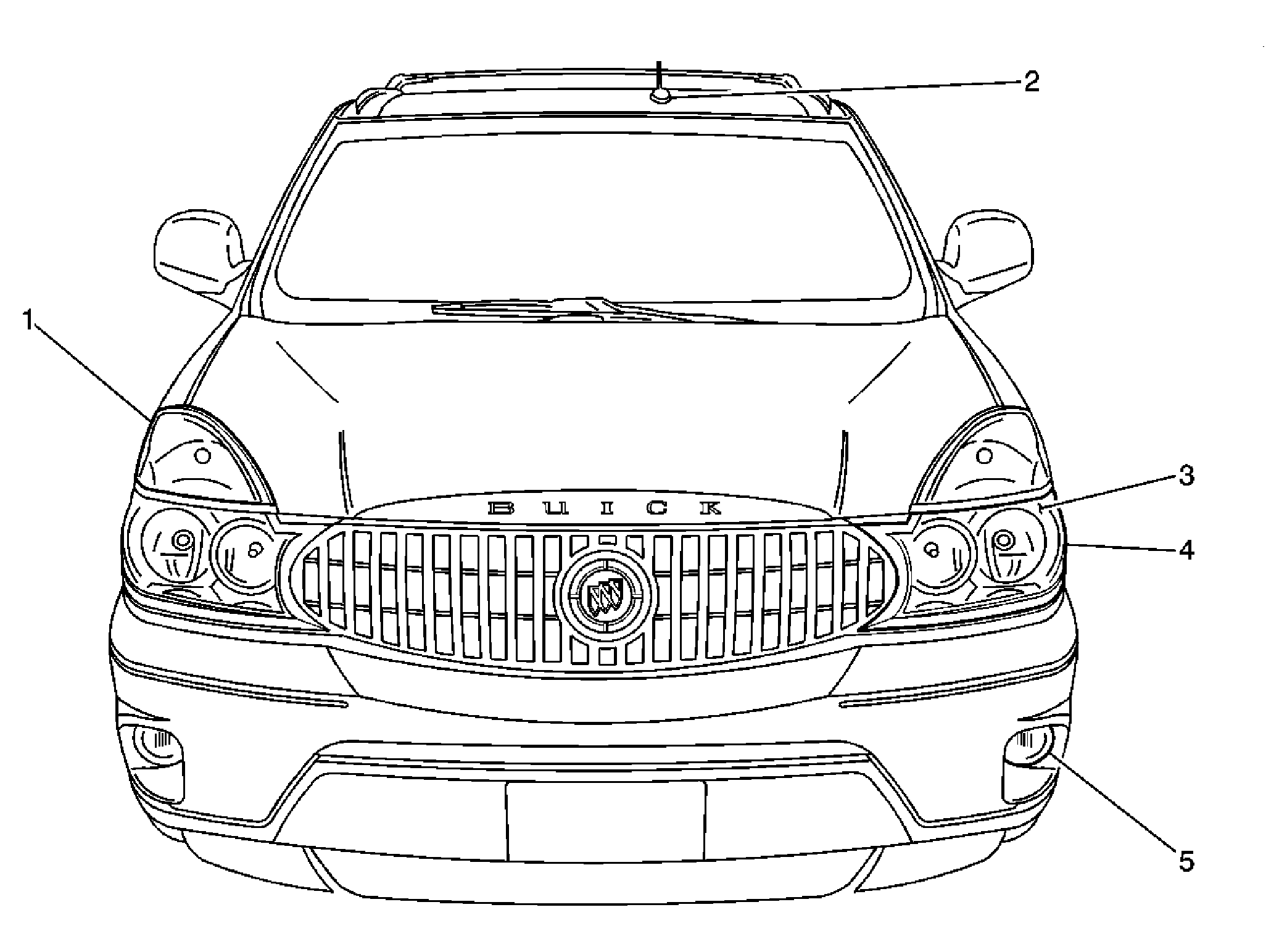

Fig 1: Front of Vehicle Location View - Buick
GM1400347Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Park/Turn Signal Lamp - RF (LF Similar)
2 Cellular Antenna
3 Low Beam/High Beam Headlamp Assembly - LF (RF Similar)
4 Front Marker Lamp - LF (RF Similar)
5 Fog Lamp - LF (RF Similar)
