Electrical Component Locator: Motors
MOTORS LOCATION
| Component | Location |
|---|---|

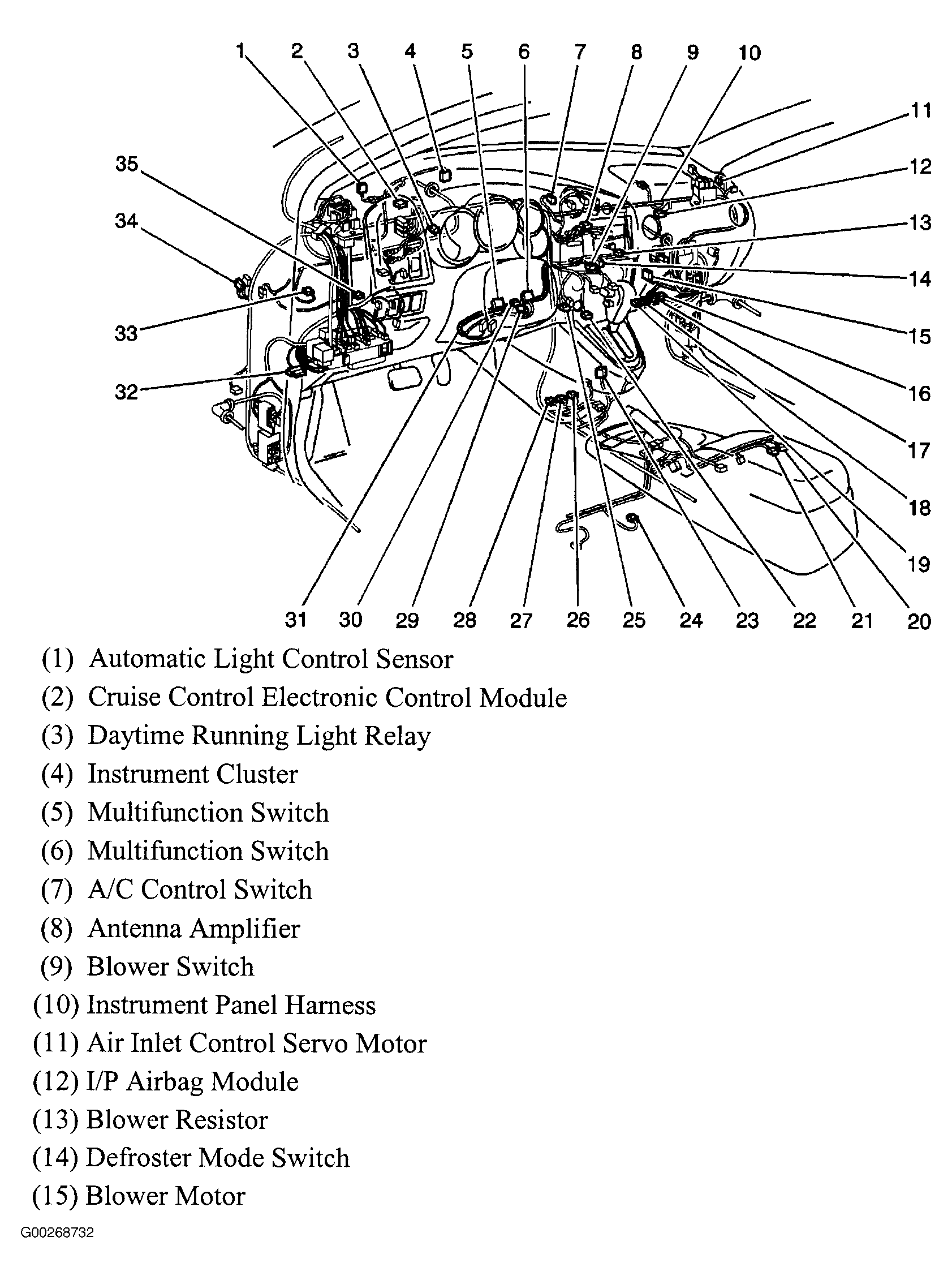

| Air Inlet Control Servo Motor | Located on HVAC module. See Figure . |
| Air Pump Motor (1.8L LNK) | At left side of engine compartment, between battery & left front fender. |

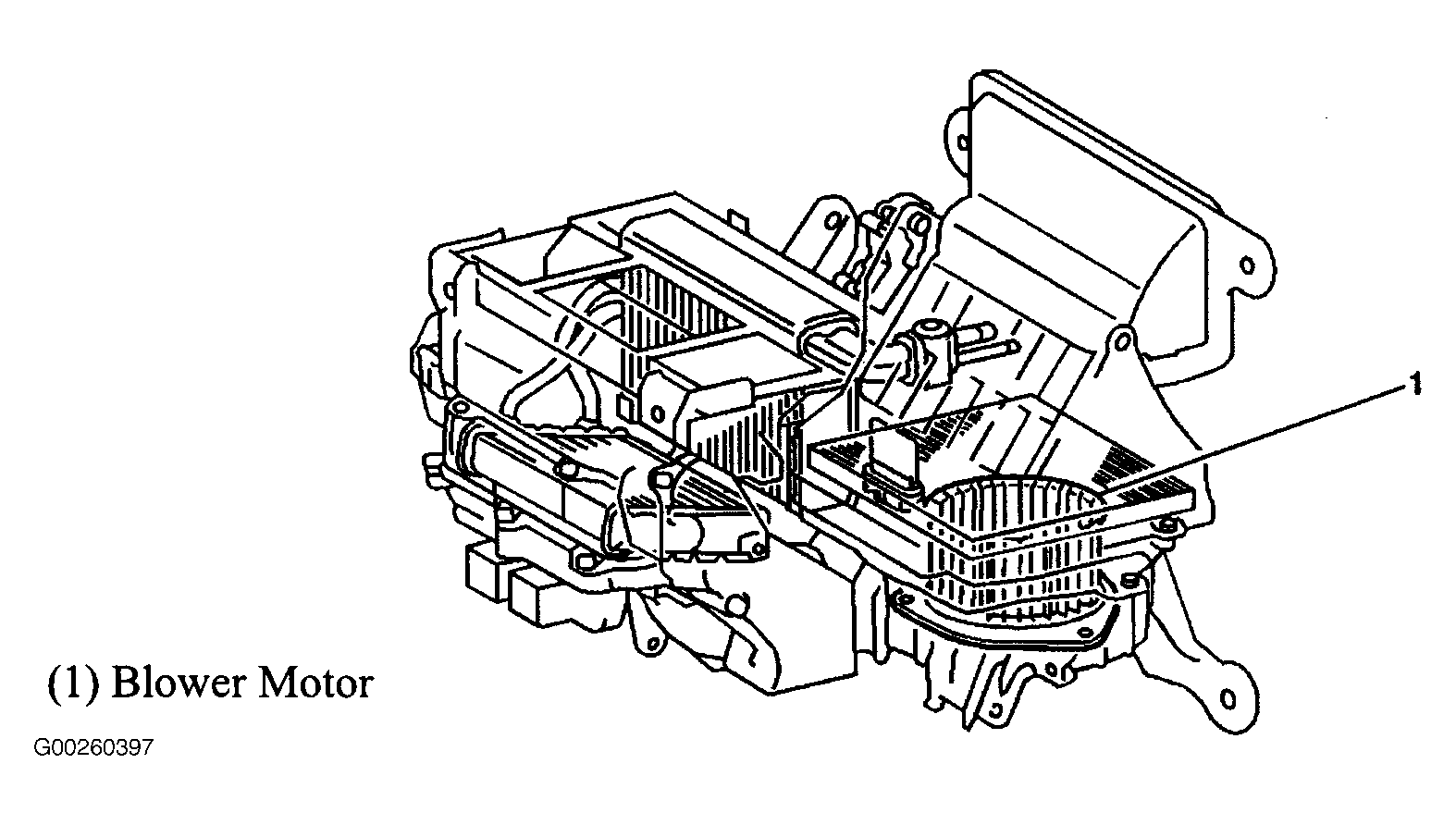

| Blower Motor | At lower right side of HVAC. See Figure . |
| Door Lock Actuator - Left Front | Inside rear of left front door, on door lock assembly. |
| Door Lock Actuator - Left Rear | Inside rear of left rear door, on door lock assembly. |
| Door Lock Actuator - Right Front | Inside rear of right front door, on door lock assembly. |
| Door Lock Actuator - Right Rear | Inside rear of right rear door, on door lock assembly. |
| Engine Cooling Fan Motor (1.8L LNK) | Behind left side of radiator. See Figure . |

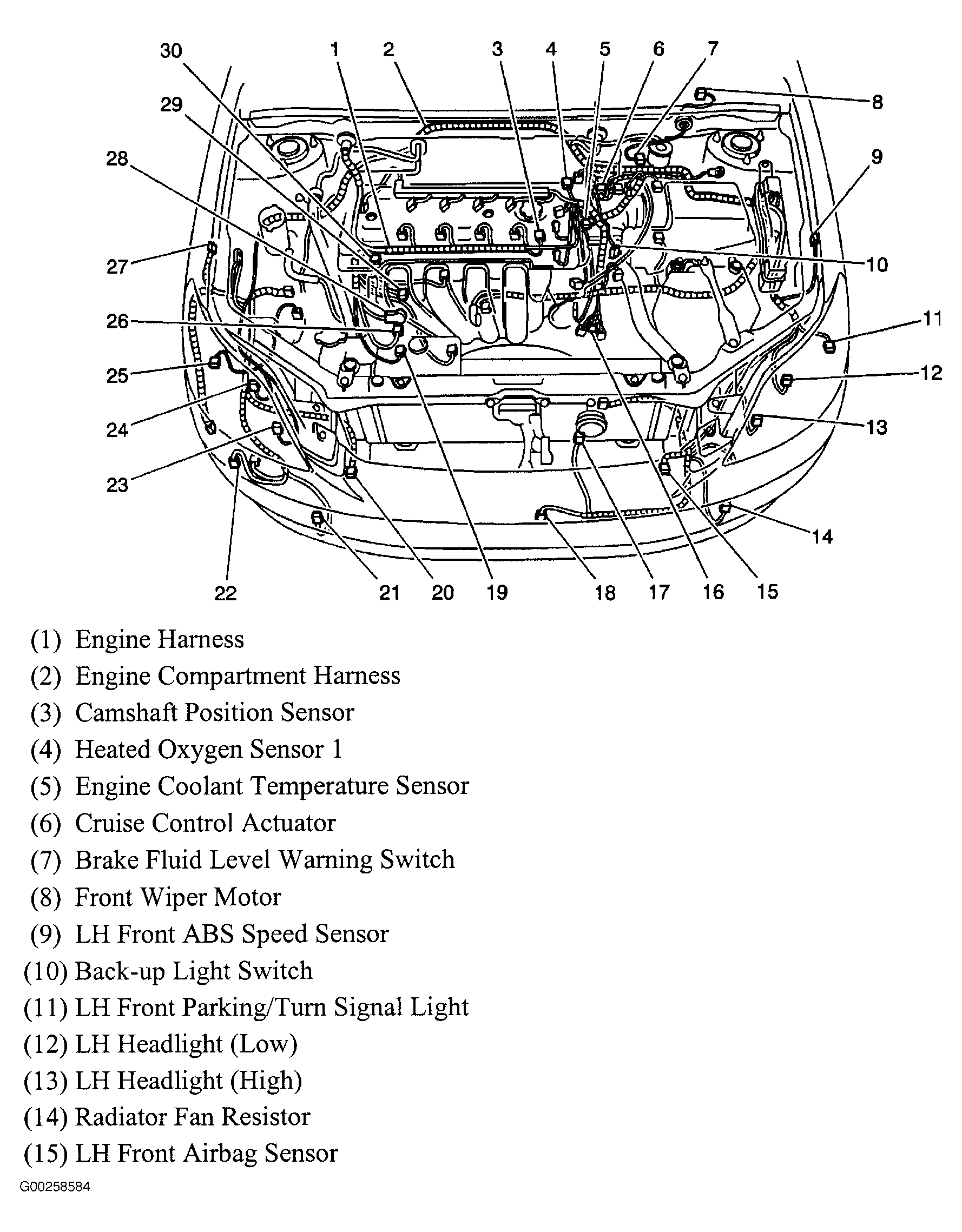

| Front Washer Motor (1.8L LNK) | At right front side of engine compartment. See Figure . |
| Front Washer Motor (1.8L LV6) | At right front side of engine compartment. See Figure . |

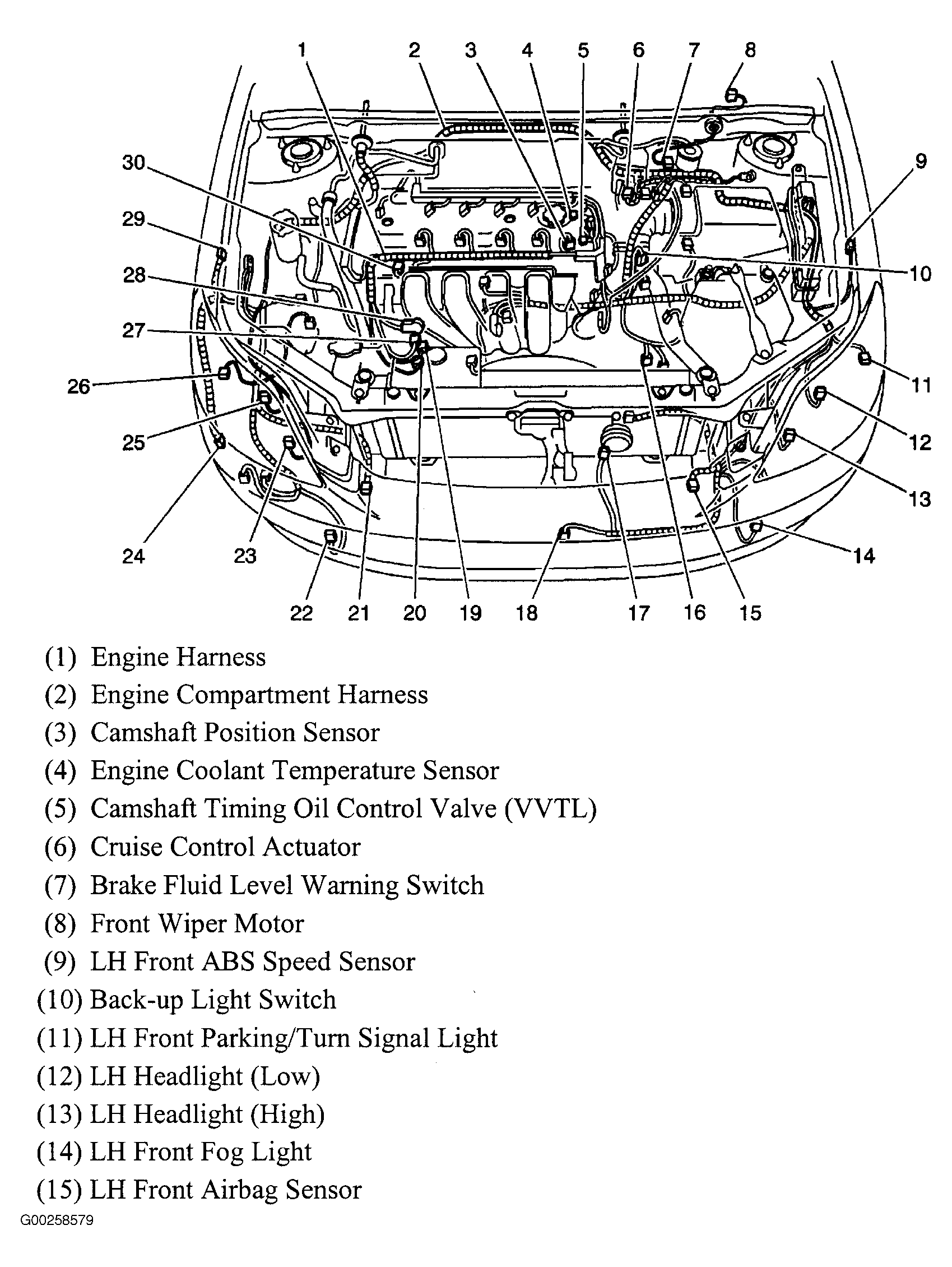

| Front Wiper Motor (1.8L LNK) | At left rear of engine compartment. See Figure . |
| Front Wiper Motor (1.8L LV6) | At left rear of engine compartment. See Figure . |
| Fuel Pump & Sender (2WD) | At top center of fuel tank. See Figure . |
| Fuel Pump & Sender (4WD) | At top left of fuel tank. See Figure . |
| LH Front Door Lock Motor | In driver door. See Figure . |
| LH Front Power Widow Motor | In driver door. See Figure . |
| LH Rear Door Lock Motor | In left rear door. See Figure . |
| LH Rear Power Window Motor | In left rear door. See Figure . |
| Liftgate Door Lock Motor | In liftgate. See Figure . |
| Outside Rear View Mirror - Left | In mirror. |
| Outside Rear View Mirror - Right | In mirror. |
| Radiator Fan Motor | At front of engine compartment, behind radiator. |
| Rear Washer Motor (1.8L LNK) | Inside washer fluid reservoir. See Figure . |
| Rear Washer Motor (1.8L LV6) | Inside washer fluid reservoir. |
| Rear Wiper Motor | Attached to rear liftgate glass. |

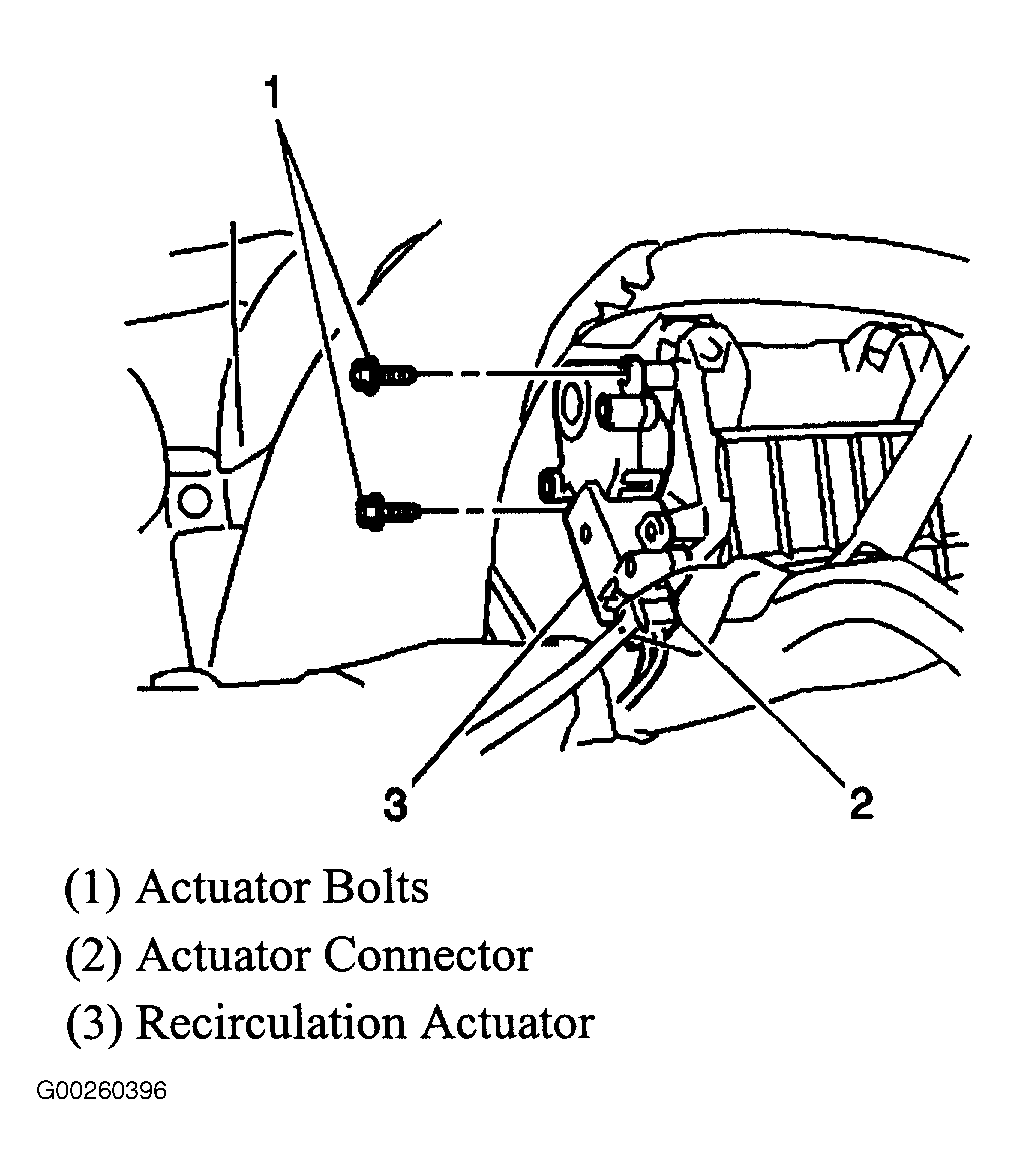

| Recirculation Actuator | At left side of HVAC. See Figure . |
| RH Front Door Lock Motor | In right front door. See Figure . |
| RH Front Power Widow Motor | In right front door. See Figure . |
| RH Rear Door Lock Motor | In right rear door. See Figure . |
| RH Rear Power Window Motor | In right rear door. See Figure . |

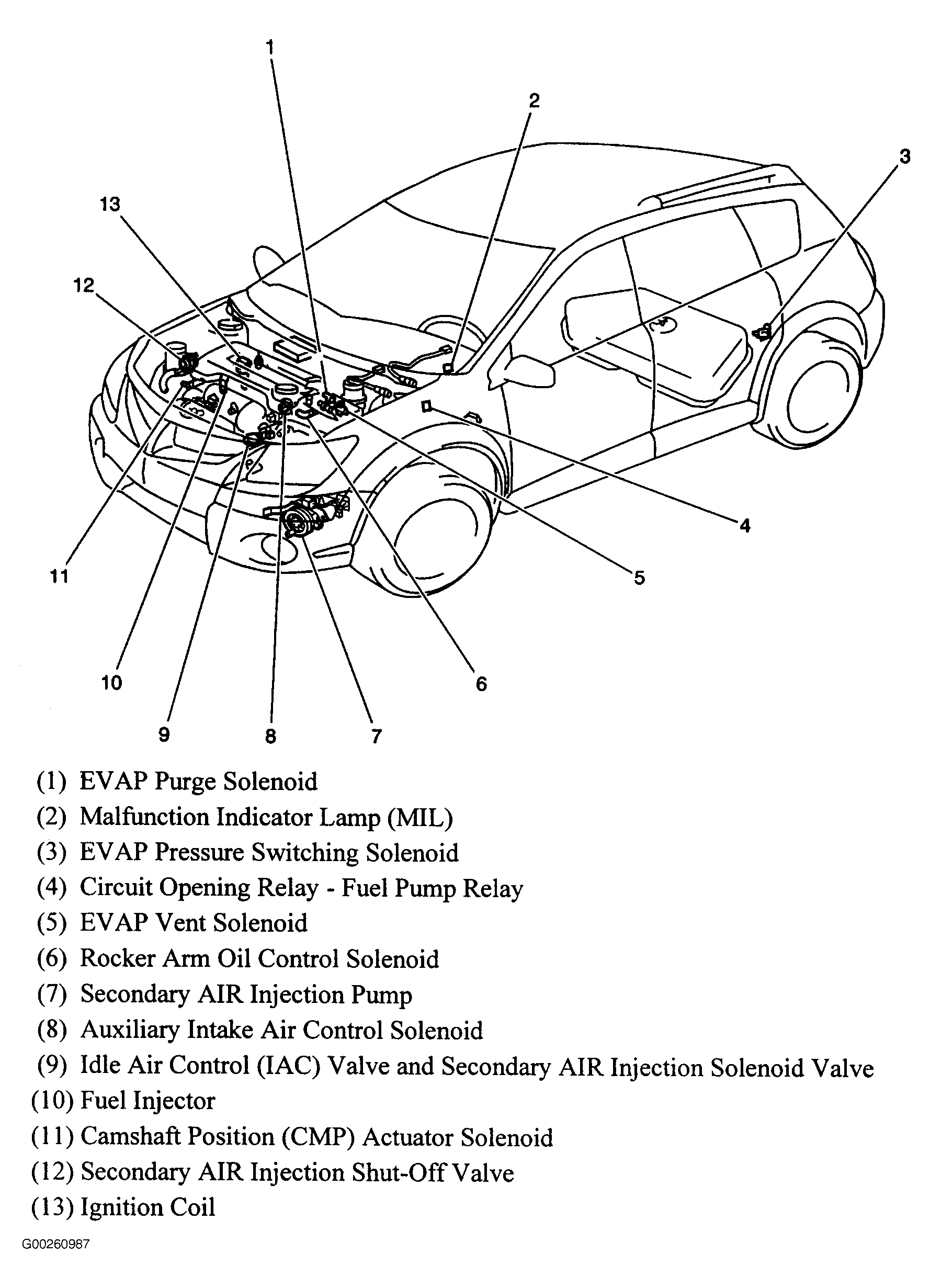

| Secondary AIR Injection Pressure Pump (1.8L LNK) | At left front of engine compartment. See Figure . |
| Starter (1.8L LNK) | At lower left rear of engine. See Figure . |
| Starter (1.8L LV6) | At lower left rear of engine. |
| Sun Roof Actuator | At front center of roof headliner. |

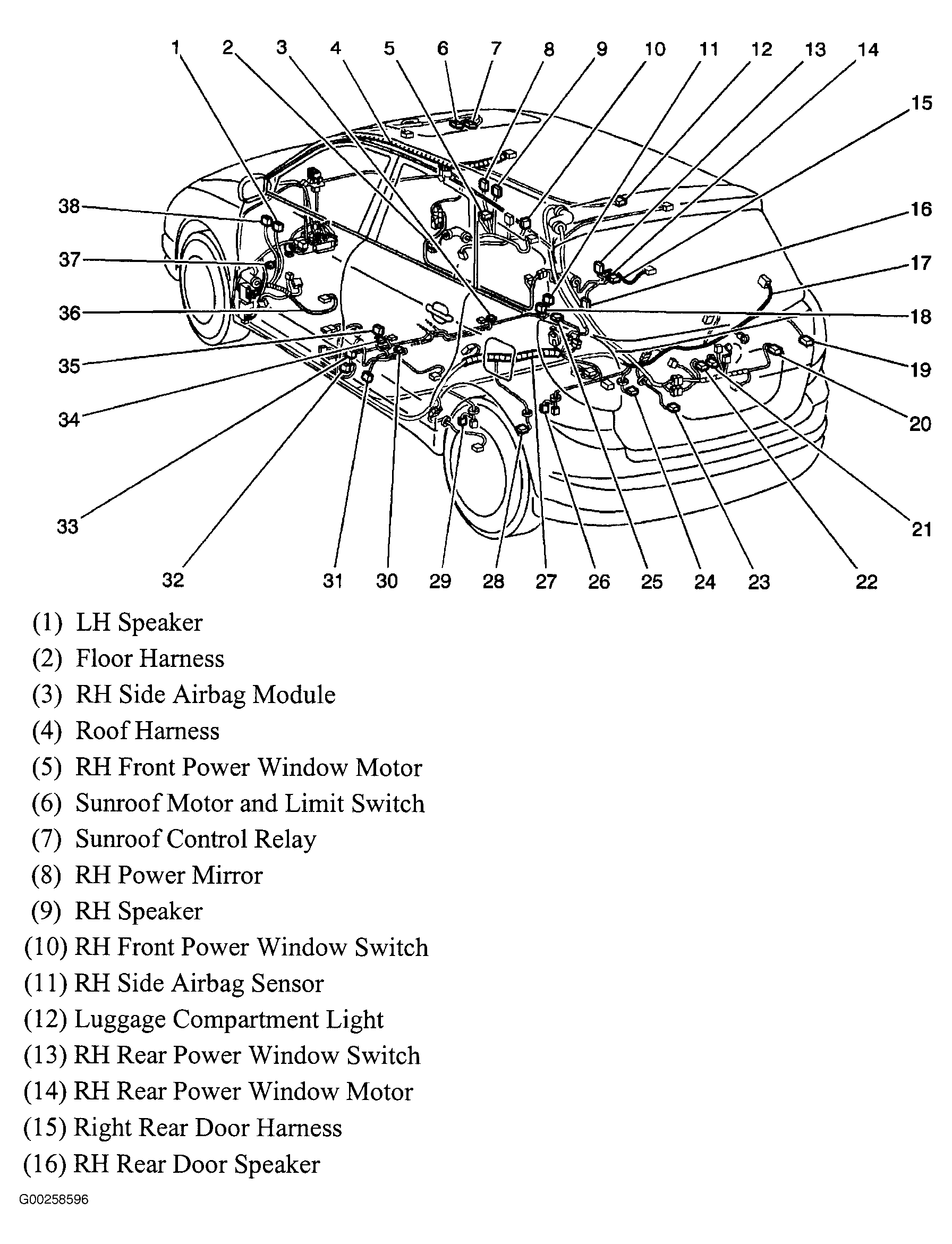

| Sunroof Motor & Limit Switch | At front center of roof. See Figure . |
| Window Motor - Left Front | Inside center of door, on window regulator. |
| Window Motor - Left Rear | Inside center of door, on window regulator. |
| Window Motor - Right Front | Inside center of door, on window regulator. |
| Window Motor - Right Rear | Inside center of door, on window regulator. |
