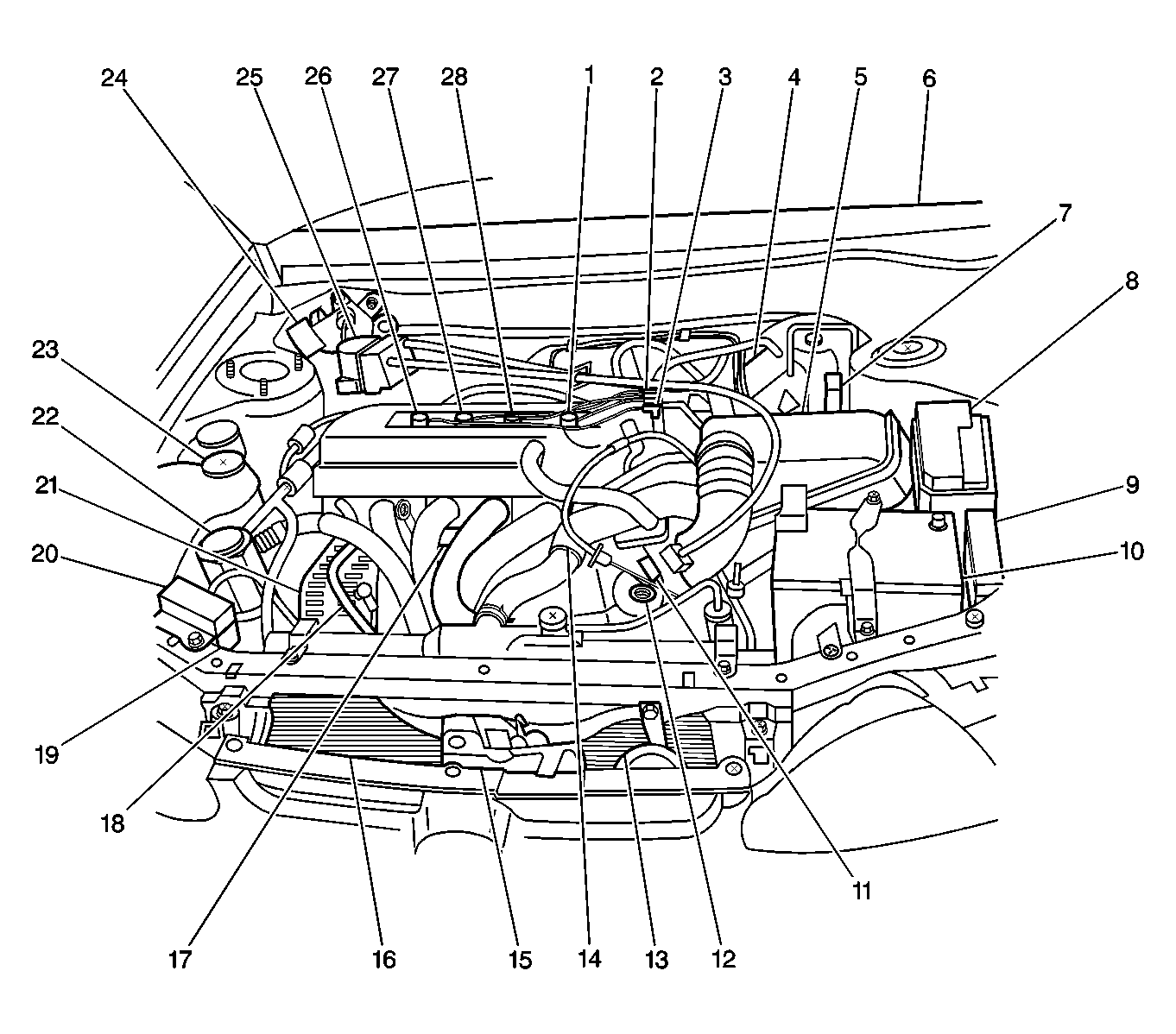

| 1 |
Spark Plug 4 |
| 2 |
Ignition Coil 1 |
| 3 |
Ignition Coil 2 |
| 4 |
Brake Pressure Modulator Valve (BPMV) |
| 5 |
Data Link Connector (Underhood) |
| 6 |
Ambient Light Sensor |
| 7 |
Intake Temperature (IAT) Sensor |
| 8 |
Fuse and Relay Block 1 |
| 9 |
Fuse and Relay Block 2 |
| 10 |
Battery |
| 11 |
Throttle Position (TP) Sensor (In Back) |
| 12 |
Throttle Linkage |
| 13 |
Horn |
| 14 |
Camshaft Position (CMP) Sensor Right Rear of Cylinder Head |
| 15 |
Ambient Air Temperature Sensor (Tachometer Only) |
| 16 |
Auxiliary Radiator Fan Motor (Attached to Rear of Radiator) (With A/C Only) |
| 17 |
Knock Sensor |
| 18 |
A/C Compressor Clutch (Below Generator) |
| 19 |
Refrigerant Pressure Switch (With A/C Only) |
| 20 |
Fuse and Relay Block 3 |
| 21 |
Generator |
| 22 |
A/C Accumulator (With A/C Only) |
| 23 |
Windshield Washer Pump |
| 24 |
Windshield Wiper Motor |
| 25 |
Cruise Control Servo |
| 26 |
Spark Plug 1 |
| 27 |
Spark Plug 2 |
| 28 |
Spark Plug 3 |
