ABS Component Views

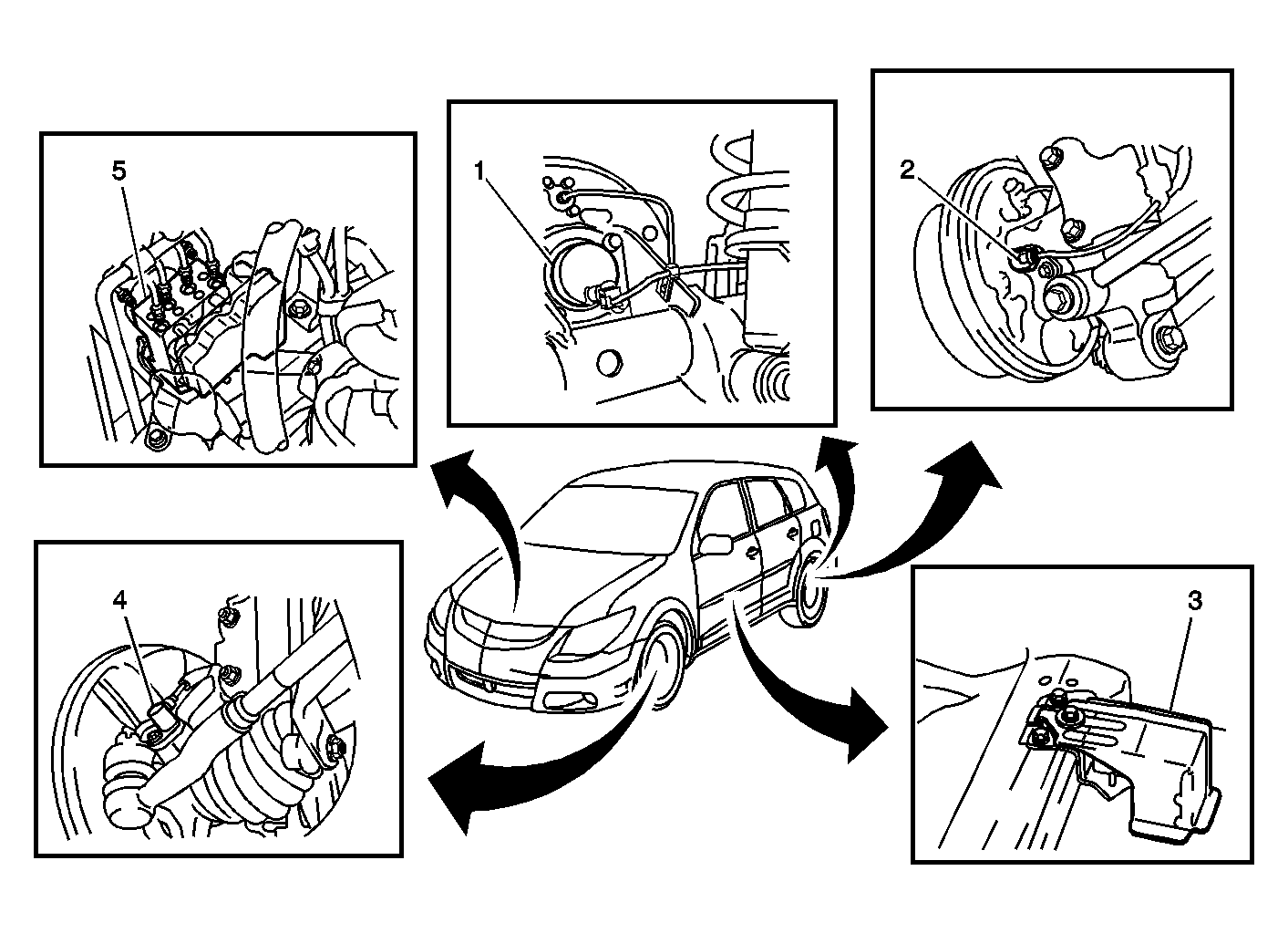

Fig 1: ABS Component View
GM819715Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Wheel Speed Sensor FWD
2 Rear Wheel Speed Sensor AWD
3 Deceleration Sensor AWD
4 Front Wheel Speed Sensor
5 Electronic Brake Control Module (EBCM)/Brake Pressure Modulator Valve (BPMV) Assembly
