Installation Procedure

    Fig 1: Ip Center Trim Panel Components
    GM858097Courtesy of GENERAL MOTORS CORP.
  1. Install the defogger switch (4) to the IP center trim panel.

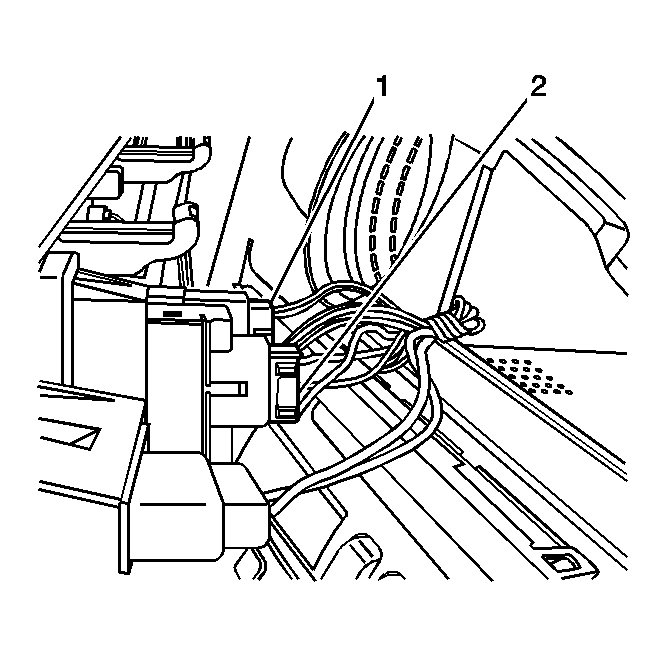

    2. Fig 2: Defogger Switch Electrical Connectors
    GM858095Courtesy of GENERAL MOTORS CORP.
  2. Connect the defogger switch electrical connector (2).
  3. Install the IP center trim panel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Center in Instrument Panel, Gages and Console.
