Wiper/Washer System Component Views
WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

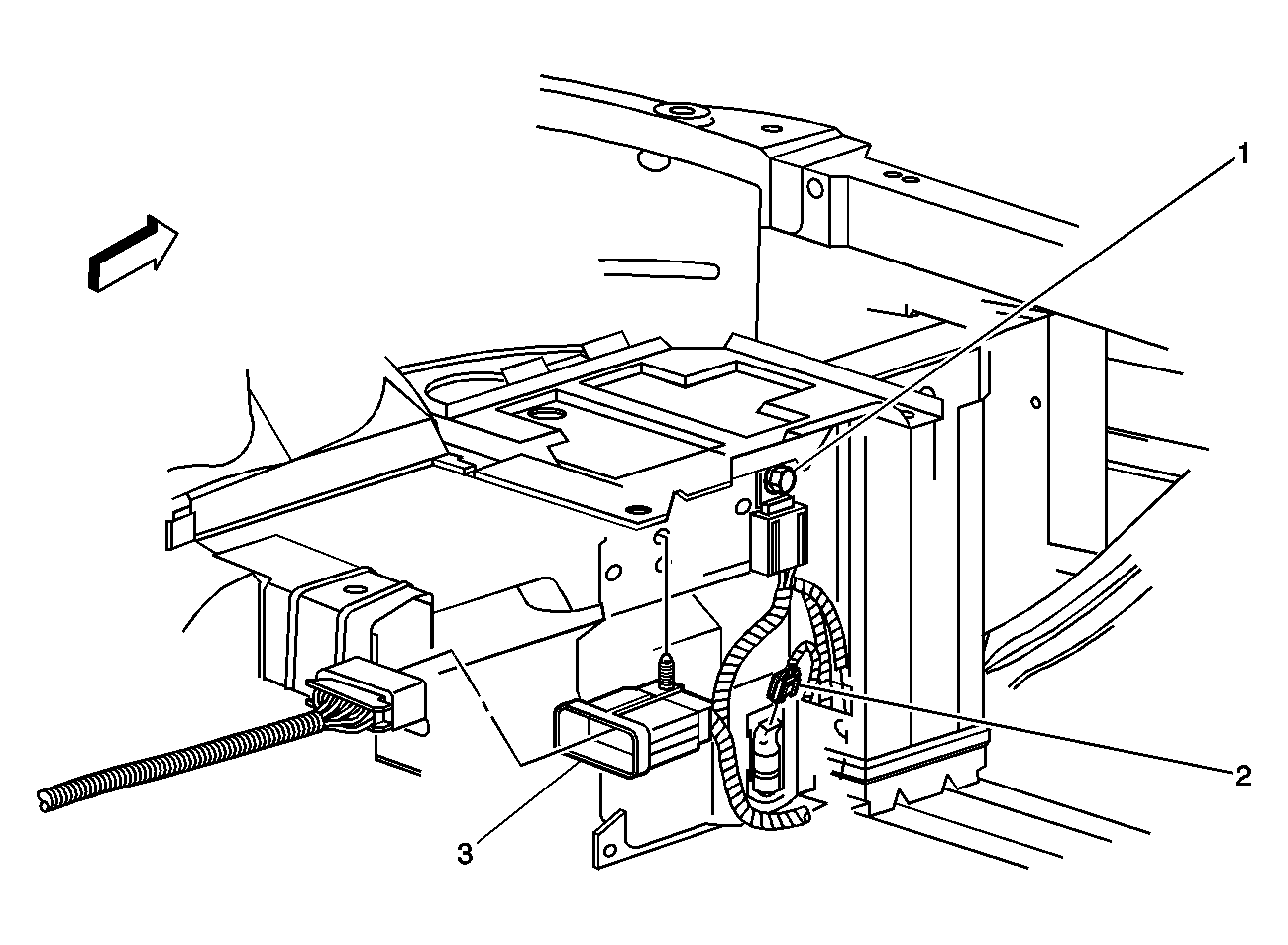

| Callout | Component Name |
|---|---|
| 1 | SP102, G102 |
| 2 | Windshield Washer Fluid Pump |
| 3 | C101 |

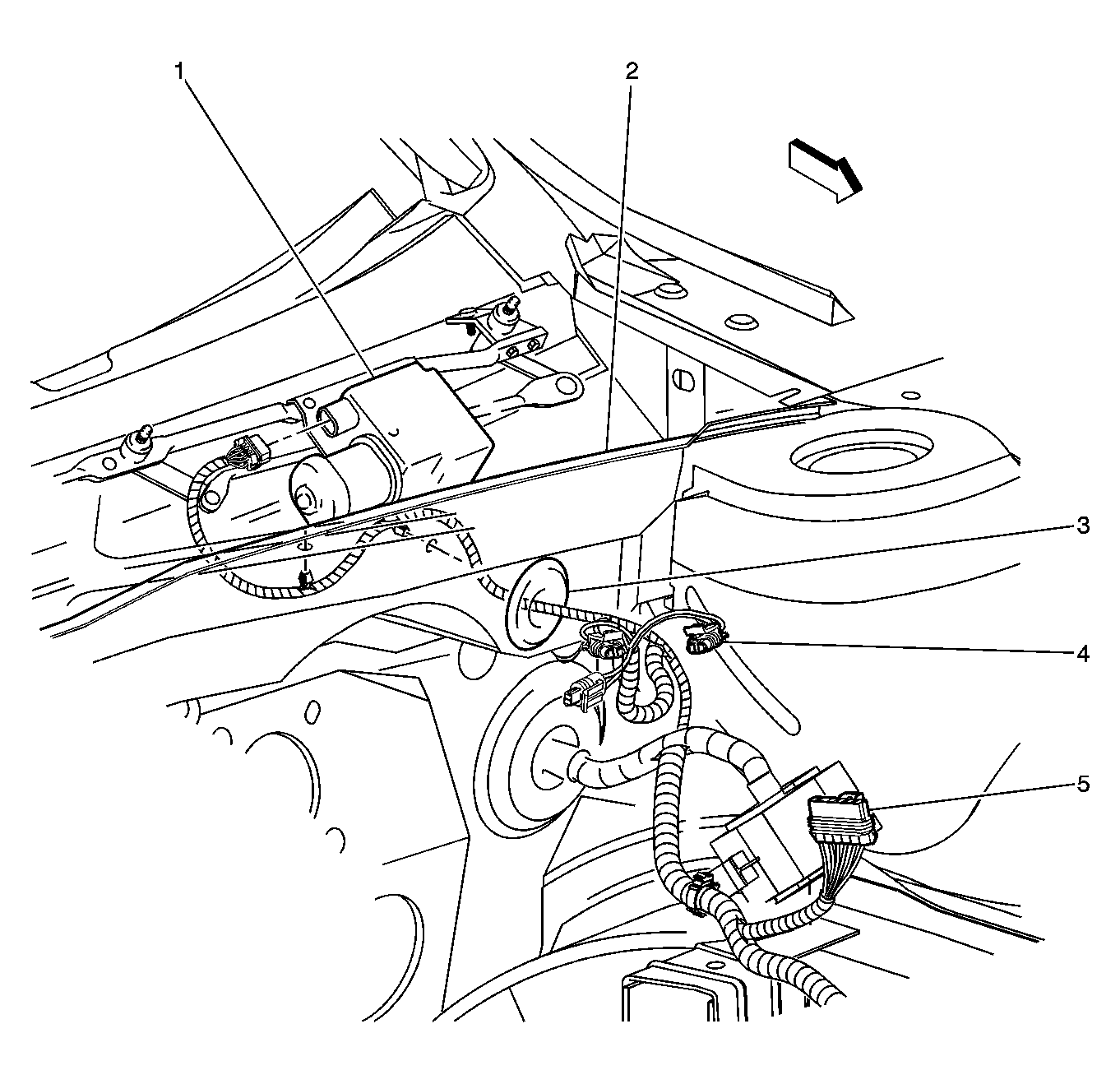

| Callout | Component Name |
|---|---|
| 1 | Windshield Wiper Motor Assembly |
| 2 | Dash Panel Extension |
| 3 | P200 |
| 4 | Brake Fluid Level Switch |
| 5 | Electronic Brake Control Module (EBCM) Connector |

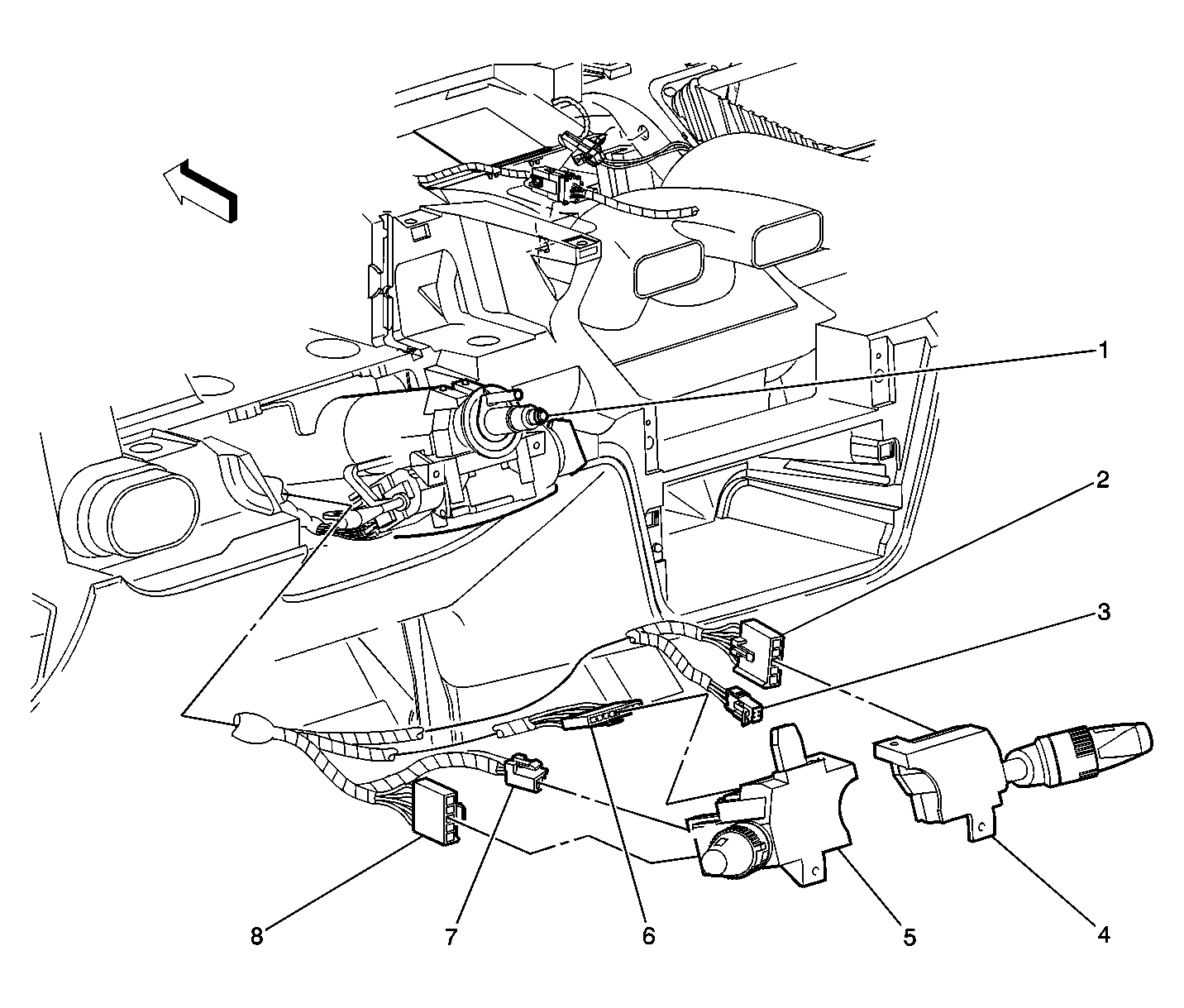

| Callout | Component Name |
|---|---|
| 1 | Steering Column Assembly |
| 2 | Windshield Wiper Connector |
| 3 | Passlock™ Lock Sensor Connector |
| 4 | Windshield Wiper Switch Assembly |
| 5 | Turn Signal/Multifunction Switch |
| 6 | Turn Signal/Mulfunction Connector C1 |
| 7 | Turn Signal/Mulfunction Connector C2 |
| 8 | Headlamp Connector |
