Automatic Transmission Shift Lock Control Component Views

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

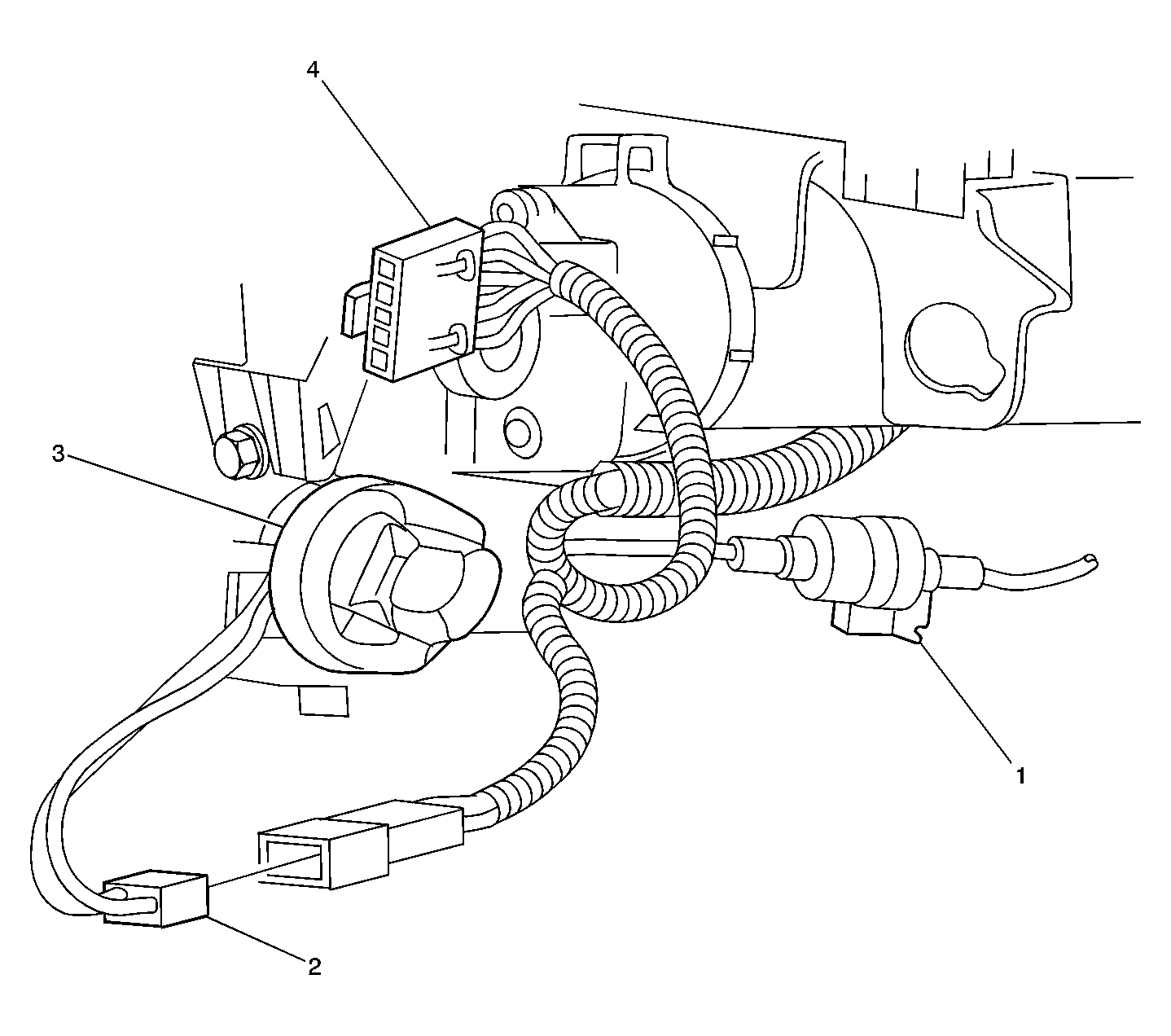

Fig 1: Under Steering Column Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/T Shift Lock Solenoid
2	Passlock™ Lock Sensor Connector
3	Ignition Key Cylinder
4	Windshield Wiper Lead
