Cruise Control Component Views
WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Cruise Control Module (CCM) |
| 3 | Powertrain Control Module (PCM) Electrical Connectors |

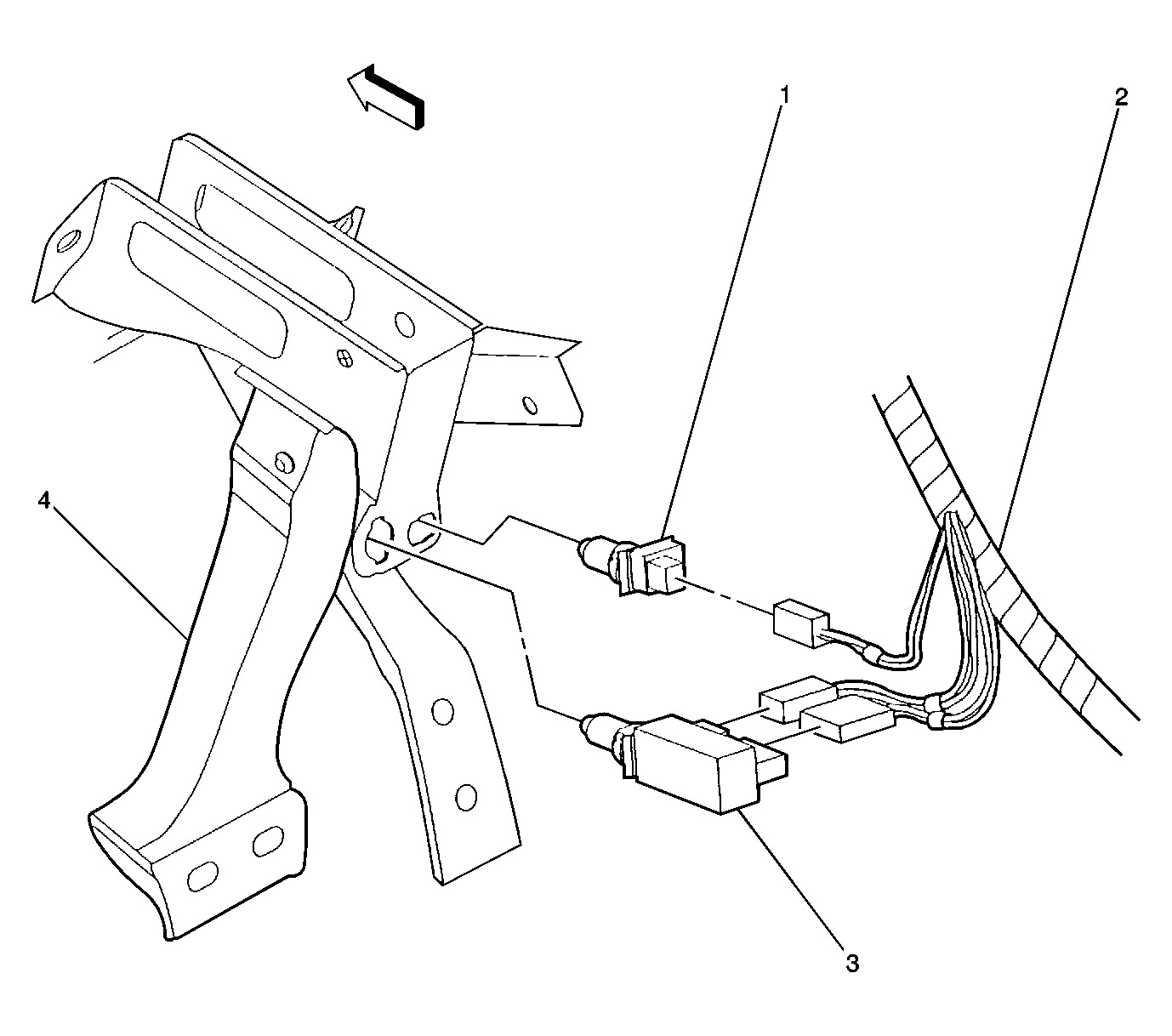

| Callout | Component Name |
|---|---|
| 1 | Cruise Control Brake Switch |
| 2 | Dash Harness |
| 3 | Stop Lamp Switch |
| 4 | Brake Pedal |

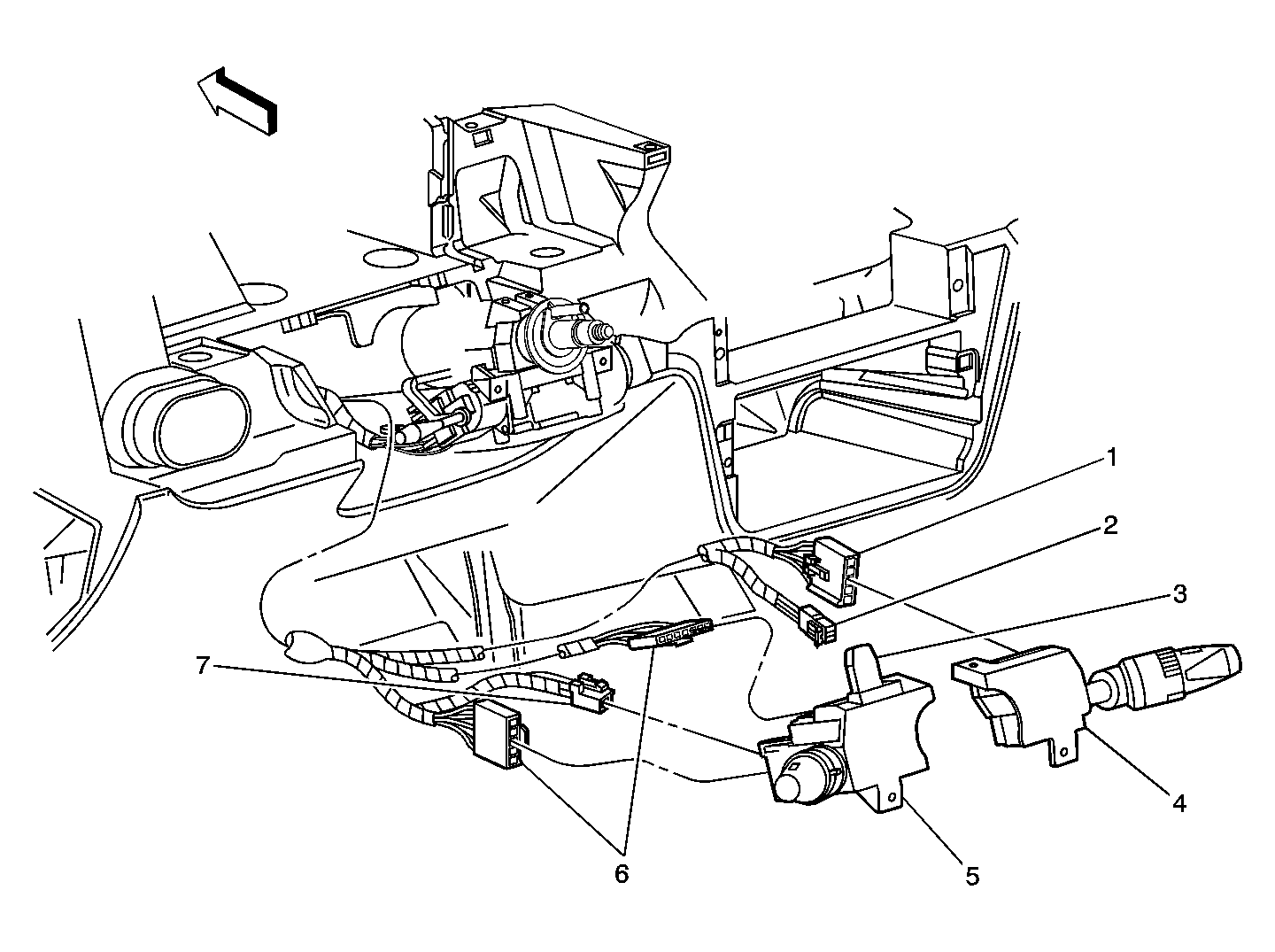

| Callout | Component Name |
|---|---|
| 1 | Wiper/Washer Switch Connector |
| 2 | Passlock™ Sensor Connector |
| 3 | Hazard Flasher Switch |
| 4 | Wiper/Washer Switch |
| 5 | Turn Signal/Multifunction Switch |
| 6 | Turn Signal/Multifunction Switch Connectors |
| 7 | Cruise Control ON/OFF Switch Connector |
