SIR Component Views
WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

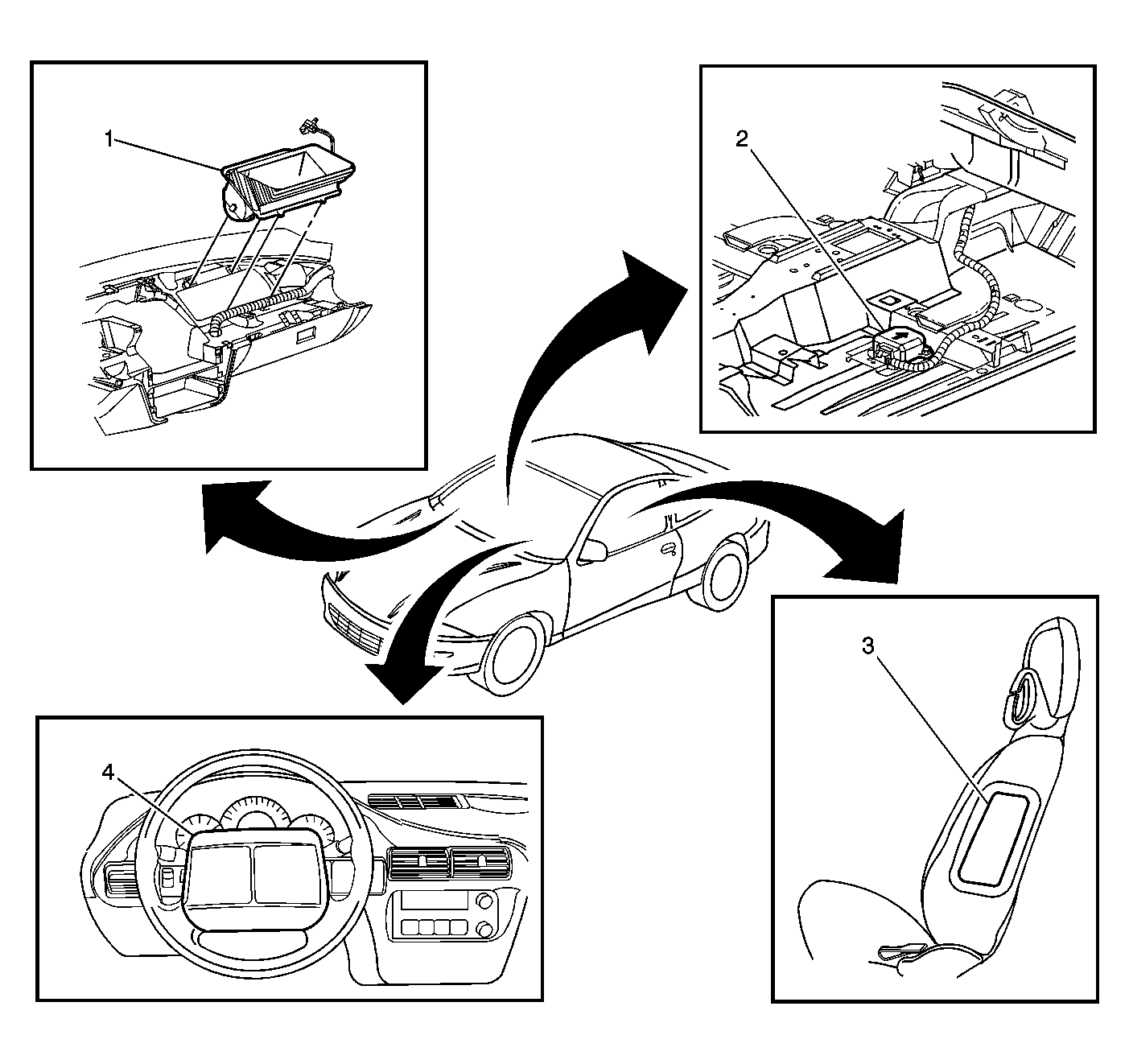

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Inflatable Restraint I/P Module |
| 2 |
Sensing and Diagnostic Module (SDM) |
| 3 |
Inflatable Restraint Side Impact Module - LF(RF Similar) |
| 4 |
Inflatable Restraint Steering Wheel Module |

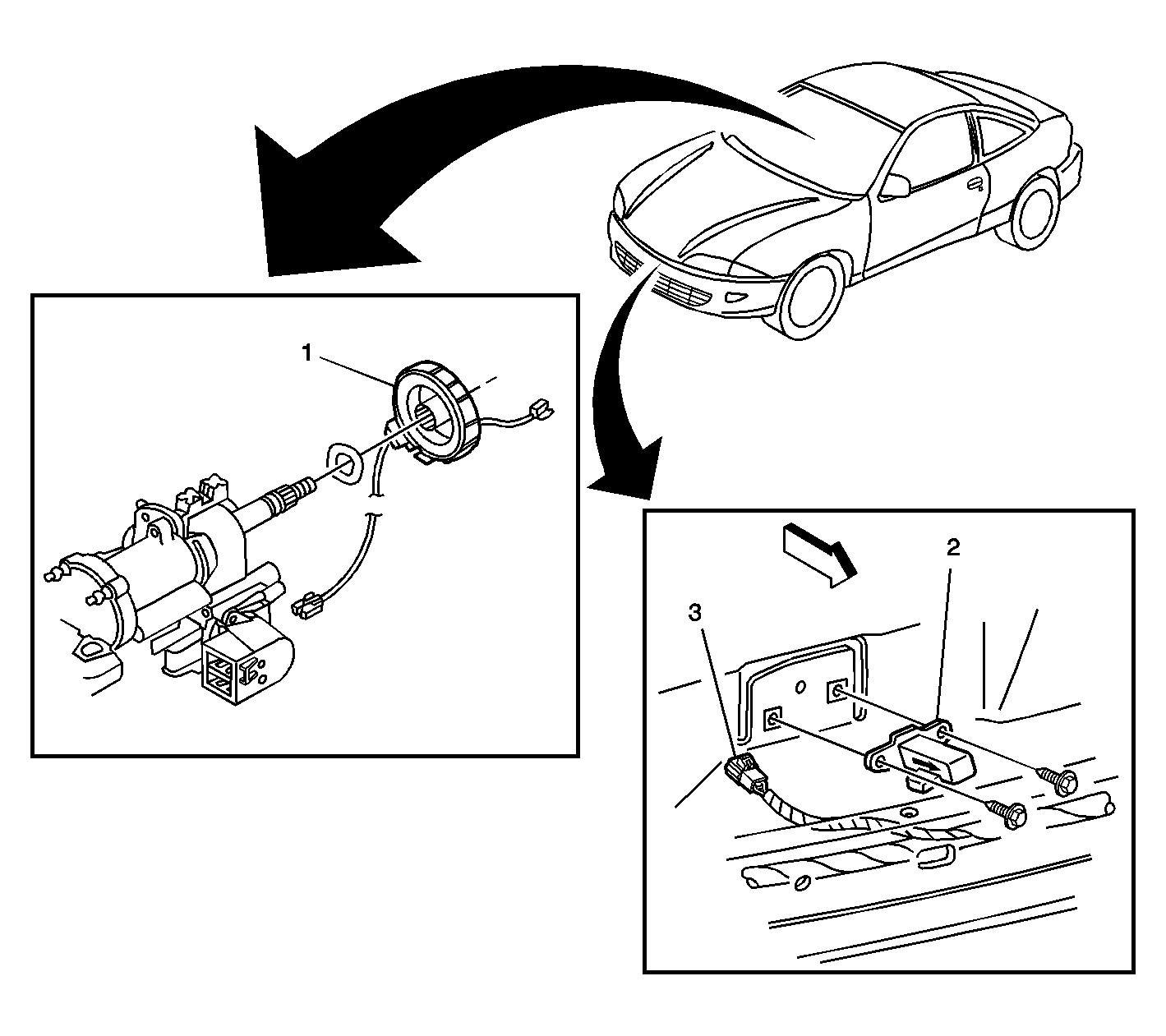

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Inflatable Restraint Steering Wheel Module Coil |
| 2 |
Inflatable Restraint Front End Discriminating Sensor |
| 3 |
Inflatable Restraint Front End Discriminating Sensor Connector |
