Power Door Systems Component Views

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

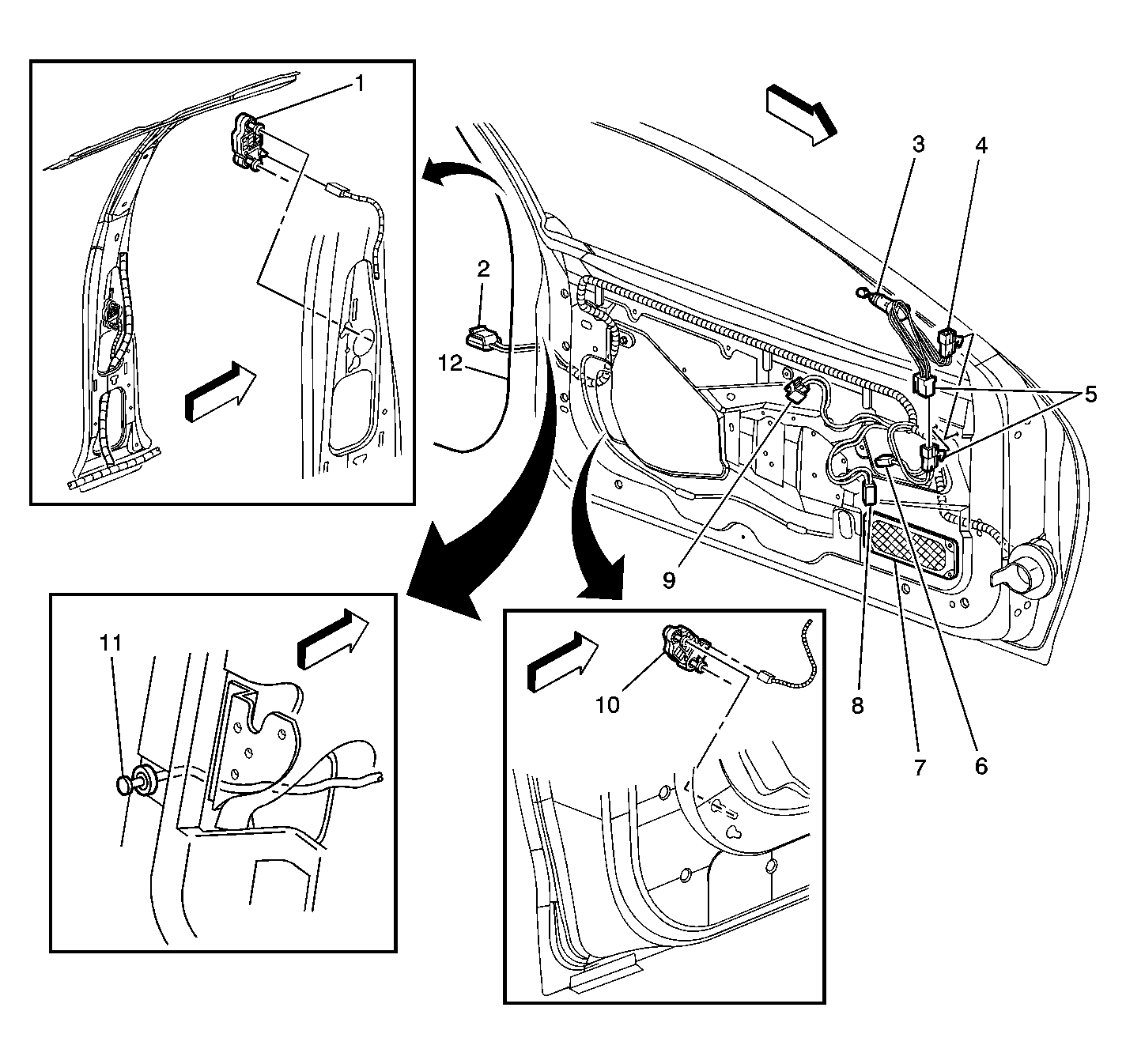

Fig 1: Driver Door Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Side Impact Sensor - LF (Sedan)
2	Door Lock Connector - LF
3	Outside Rearview Mirror Switch - LF
4	Outside Rearview Mirror - LF Connector
5	Outside Rearview Mirror Switch Connector - LF
6	Window Motor Connector
7	Speaker - LF
8	Speaker Connector - LF
9	Door Lock Switch Connector - LF
10	Inflatable Restraint Side Impact Sensor - LF (Coupe)
11	Door Jamb Switch - LF
12	Center Pillar - Left (Sedan)

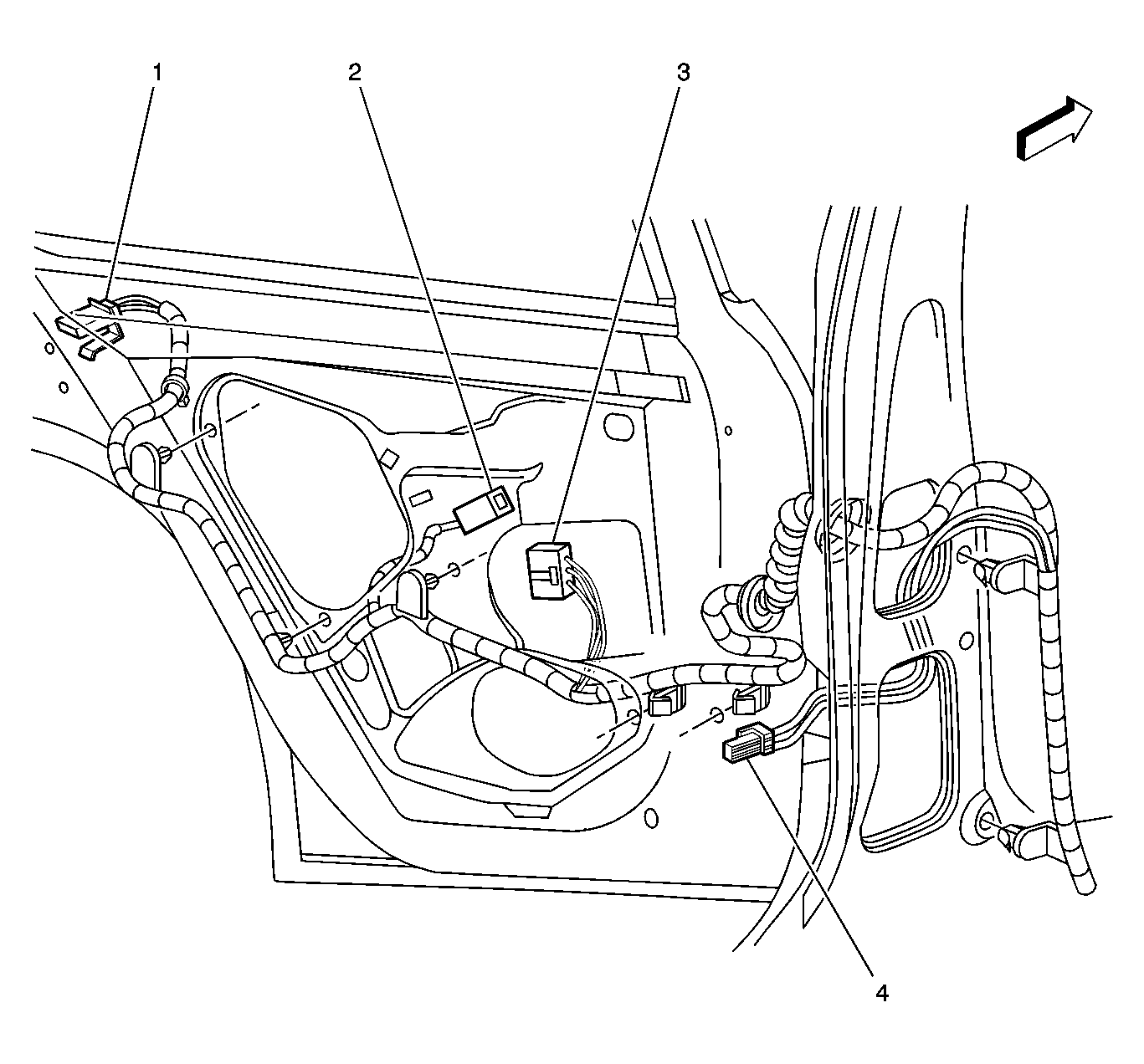

Fig 2: LR Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Motor - LR Connector
2	Window Motor - LR Connector
3	Window Switch - LR Connector
4	Door Jamb Switch - LR Connector

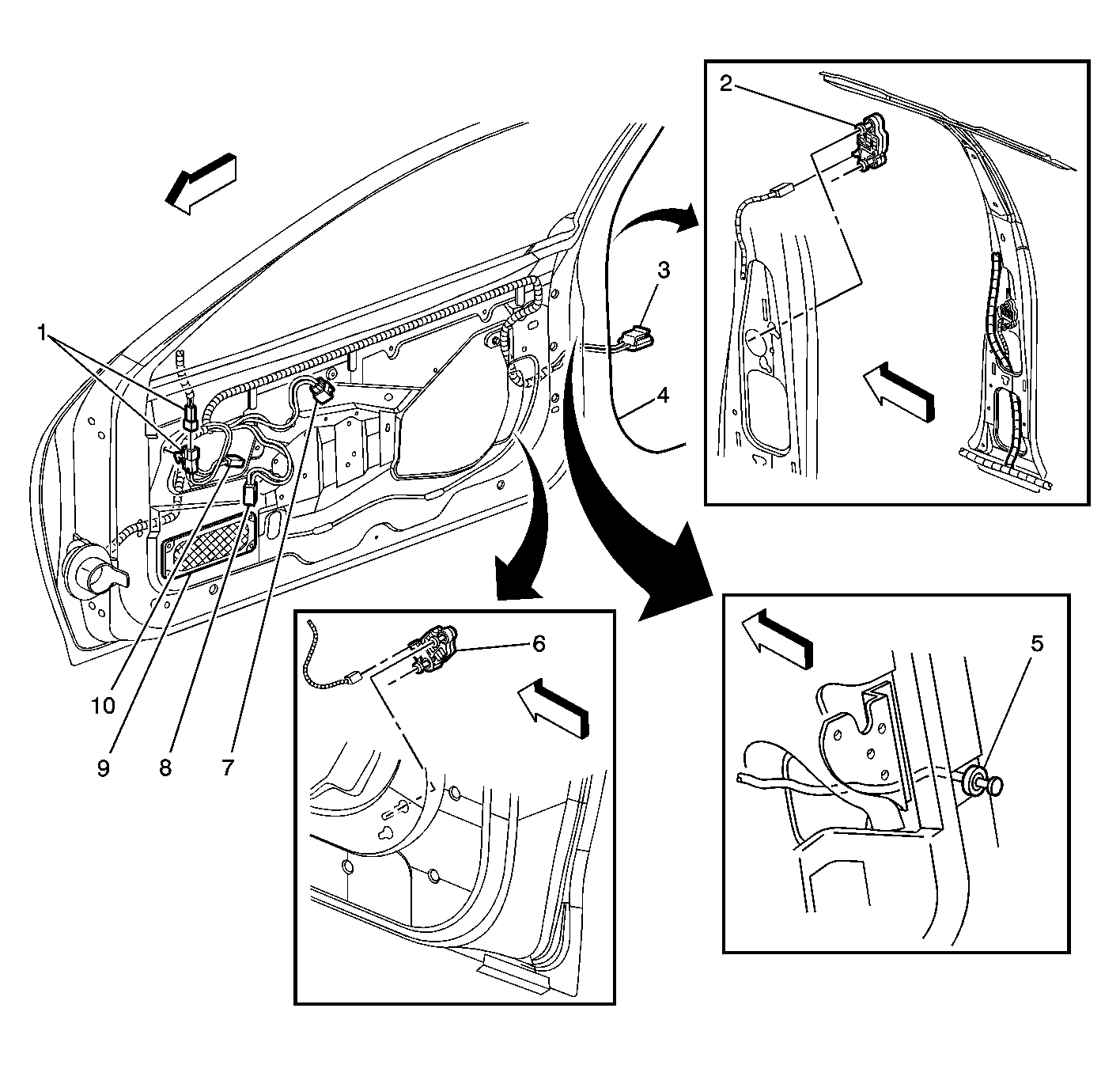

Fig 3: Passenger Door Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror Switch Connectors
2	Inflatable Restraint Side Impact Sensor - RF (Sedan)
3	Door Lock Connector
4	Center Pillar - Right (Sedan)
5	Door Jamb Switch - Passenger
6	Inflatable Restraint Side Impact Sensor - RF (Coupe)
7	Door Lock Switch Connector
8	Speaker Connector
9	Speaker
10	Window Motor Connector

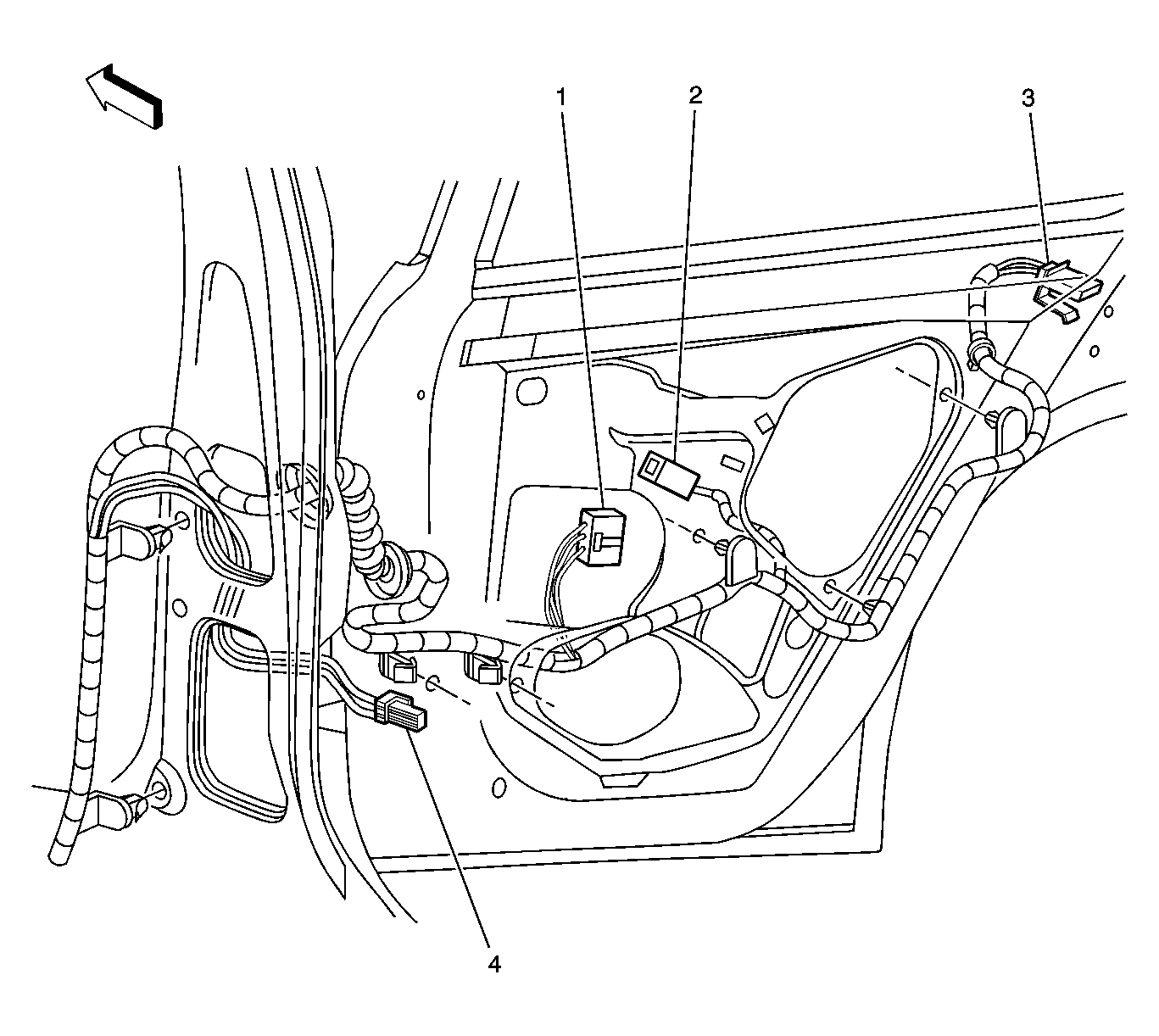

Fig 4: Right Rear Door Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Switch - RR Connector
2	Window Motor - RR Connector
3	Door Lock Motor - RR Connector
4	Door Jamb Switch - RR Connector

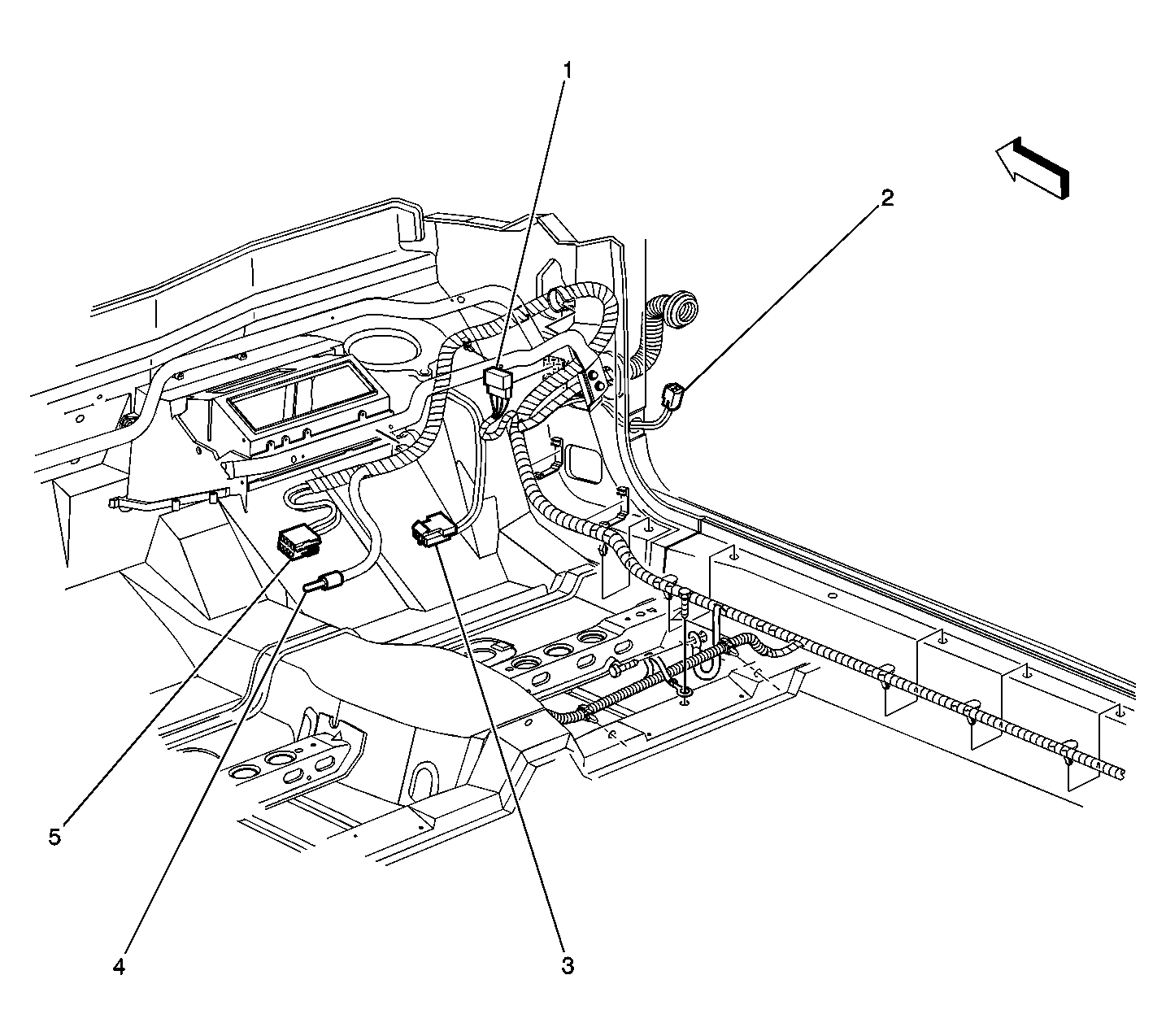

Fig 5: Right Front I/P Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Relay
2	Door Jamb Connector, Front Passenger
3	HVAC Connector
4	Antenna Lead
5	Radio Connector

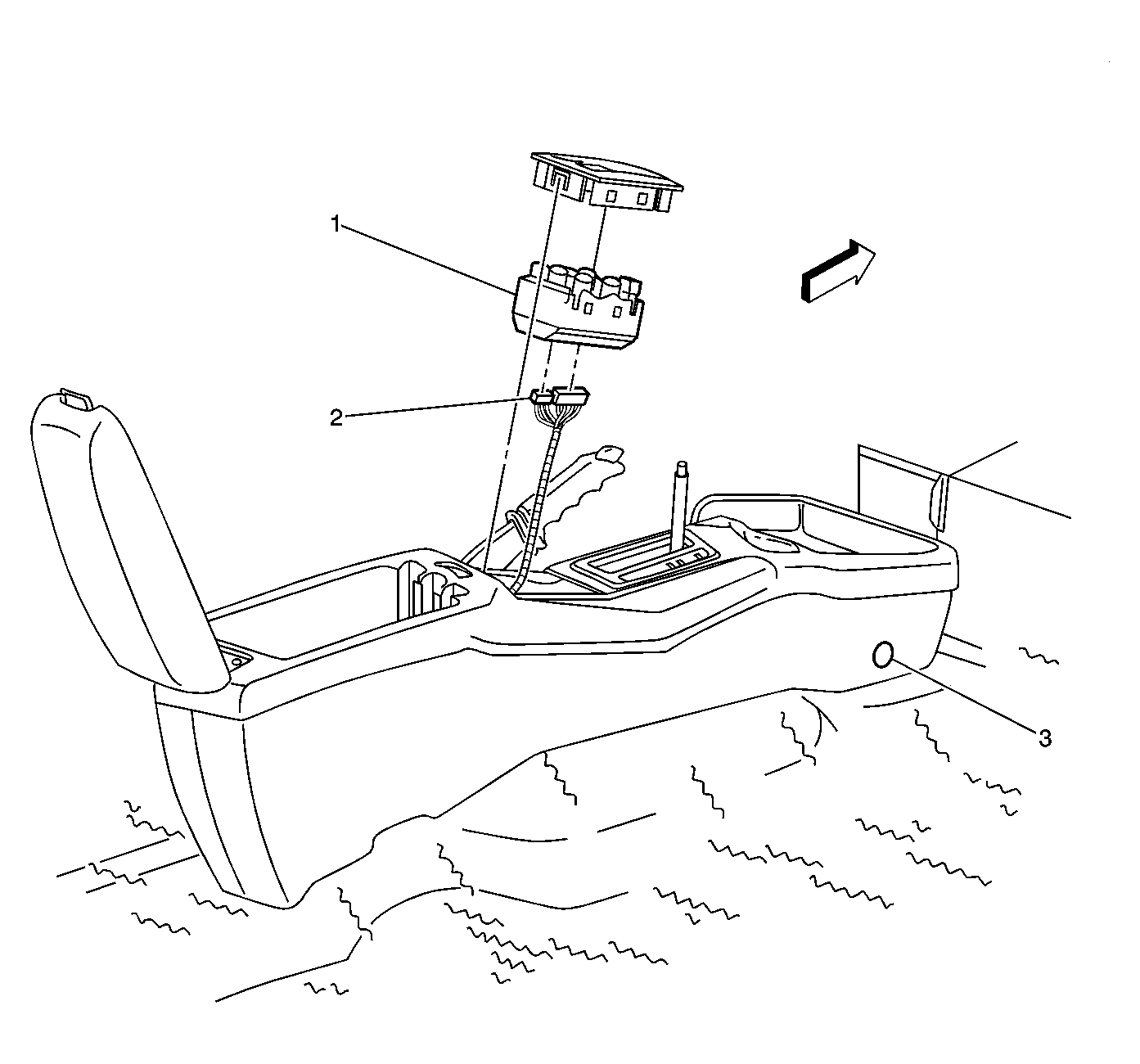

Fig 6: Center Console Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Master Window Switch
2	Power Window Switch Connectors
3	Accessory Power Outlet
