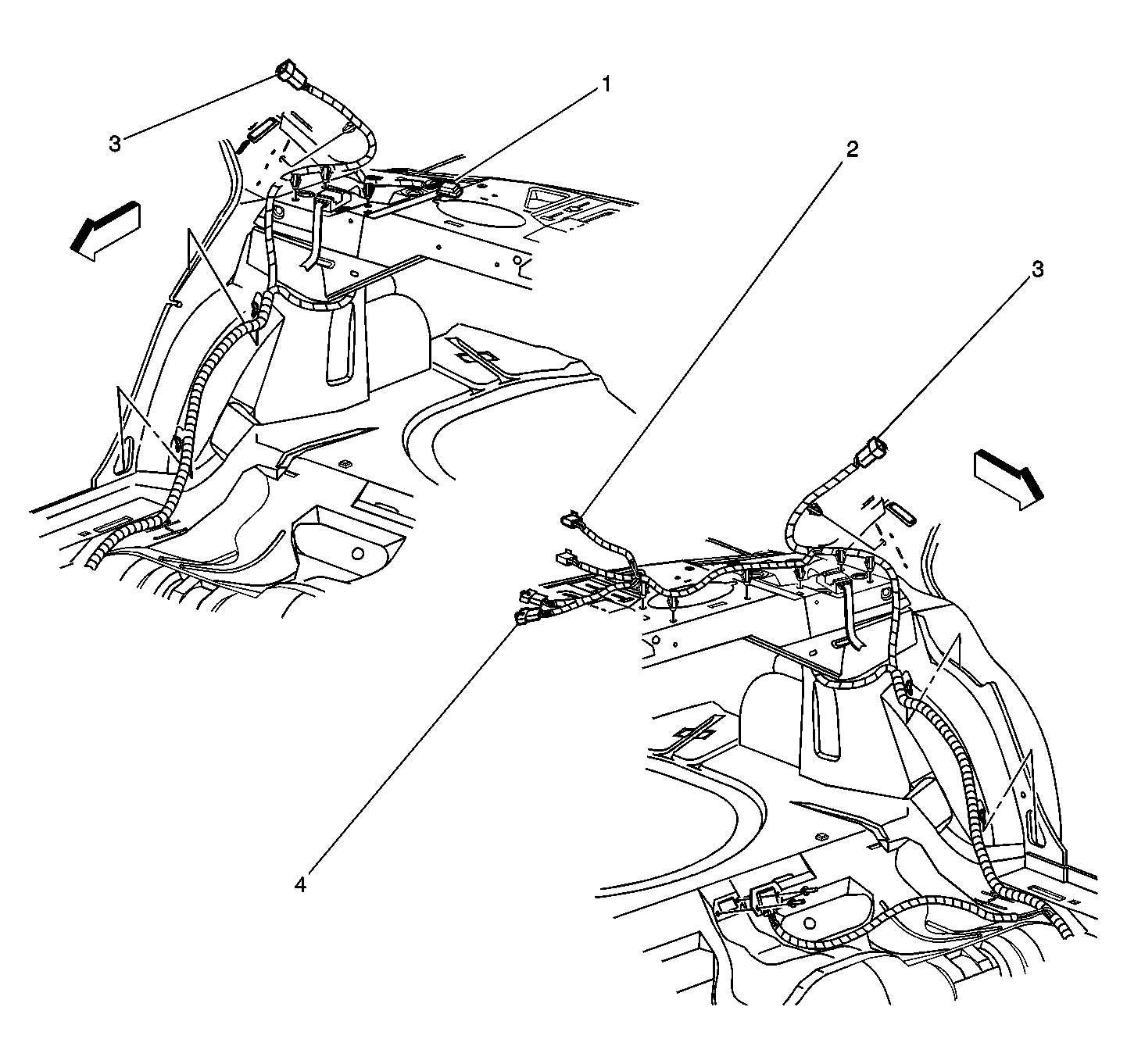

Stationary Windows Component Views
WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Speaker Connector |
| 2 |
Luggage Compartment Lamp Connector |
| 3 |
Rear Window Defogger Connector |
| 3 |
Rear Window Defogger Connector |
| 4 |
High-Mounted Stop Lamp Assembly Connector (- T43) |
