Harness Routing Views

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Engine Compartment ICM & Sensors Harness Routing View
GM799009Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Intake Air Temperature (IAT) Sensor
2 Ignition Control Module (ICM)
3 ICM Interconnect
4 Knock Sensor (KS)
5 C103
Fig 2: Fuel Injectors Harness Routing View
GM901654Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C102
2 Fuel Injector 4
3 Fuel Injector 3
4 Fuel Injector 2
5 Fuel Injector 1
Fig 3: Fuse Block - Underhood Harness Routing View
GM291909Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood
2 C100
3 P201
Fig 4: Crankshaft Position Sensor & Engine Oil Pressure Sensor Harness Routing View
GM903441Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Oil Pressure Sensor
2 C104
3 Crankshaft Position (CKP) Sensor
Fig 5: Left Rear Of Engine Compartment Harness Routing View
GM291969Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Windshield Wiper Motor Assembly
2 Dash Panel Extension
3 P200
4 Brake Fluid Level Switch
5 Electronic Brake Control Module (EBCM) Connector
Fig 6: Under Battery Tray Harness Routing View
GM795463Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 SP102, G102
2 Windshield Washer Fluid Pump
3 C101

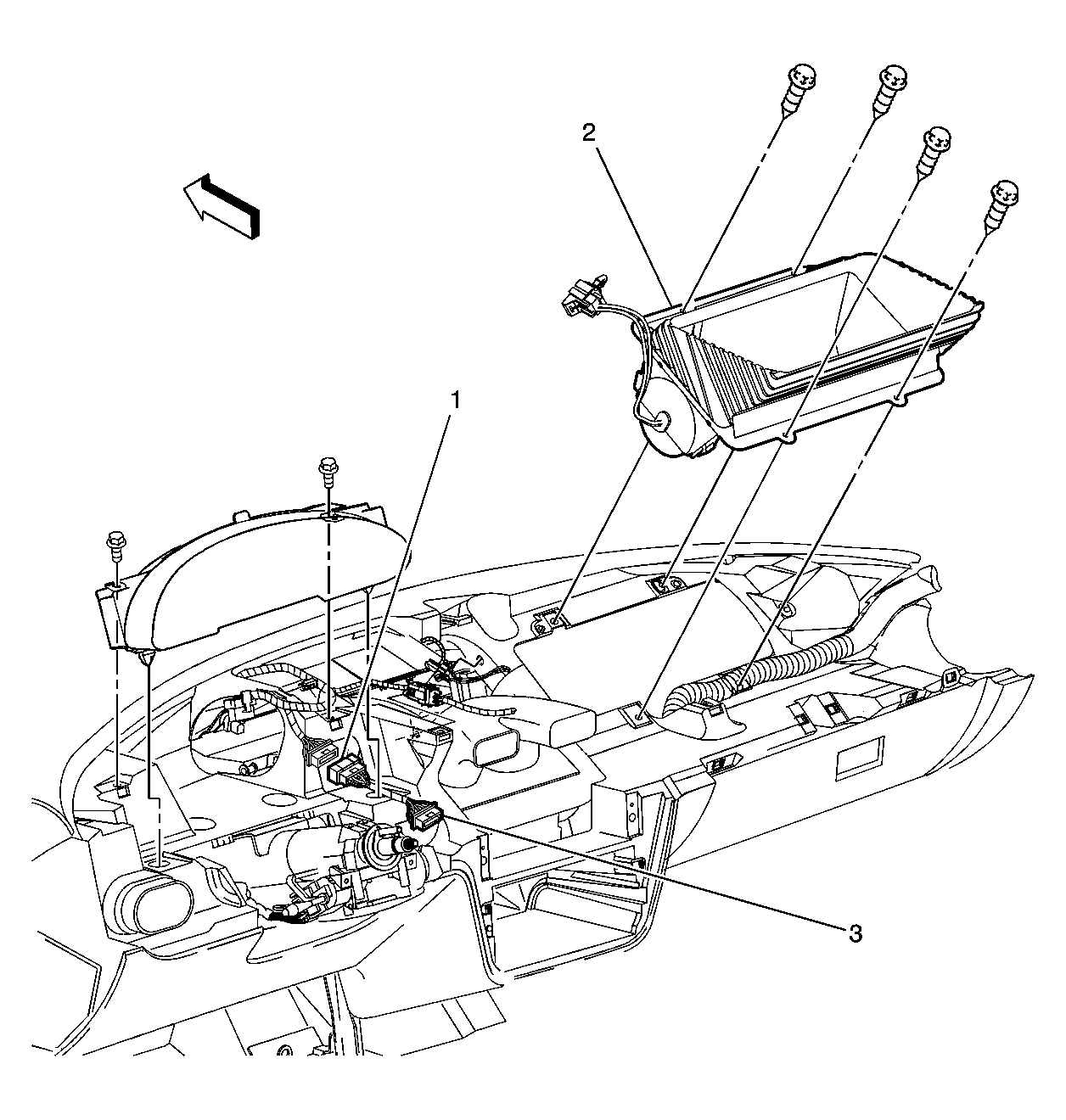

Fig 7: C203 Harness Routing View
GM291801Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C203 (Pontiac Only)
2 Inflatable Restraint I/P Module
3 Cigar Lighter Connector

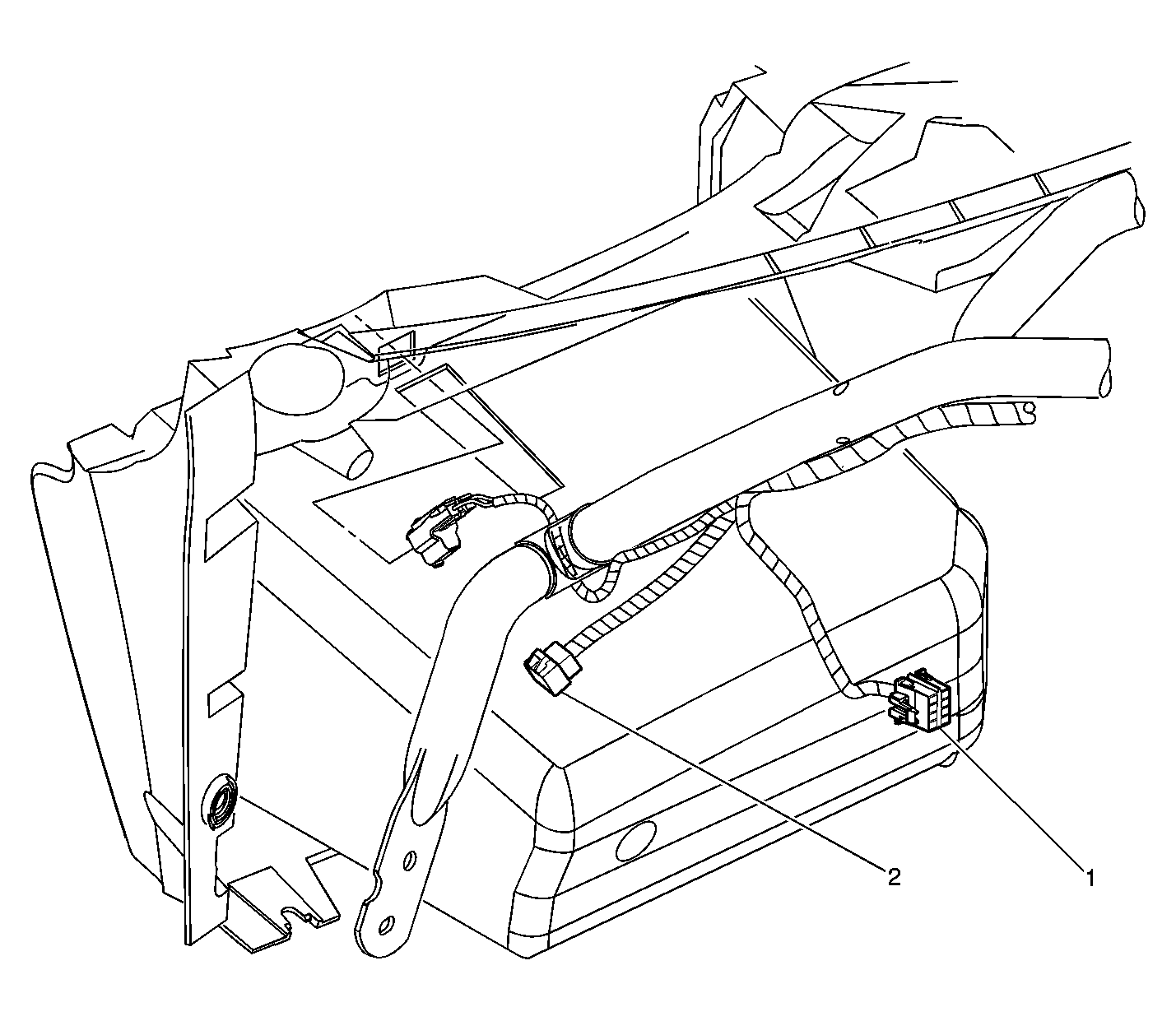

Fig 8: C204 Harness Routing View
GM292110Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C204
2 C222

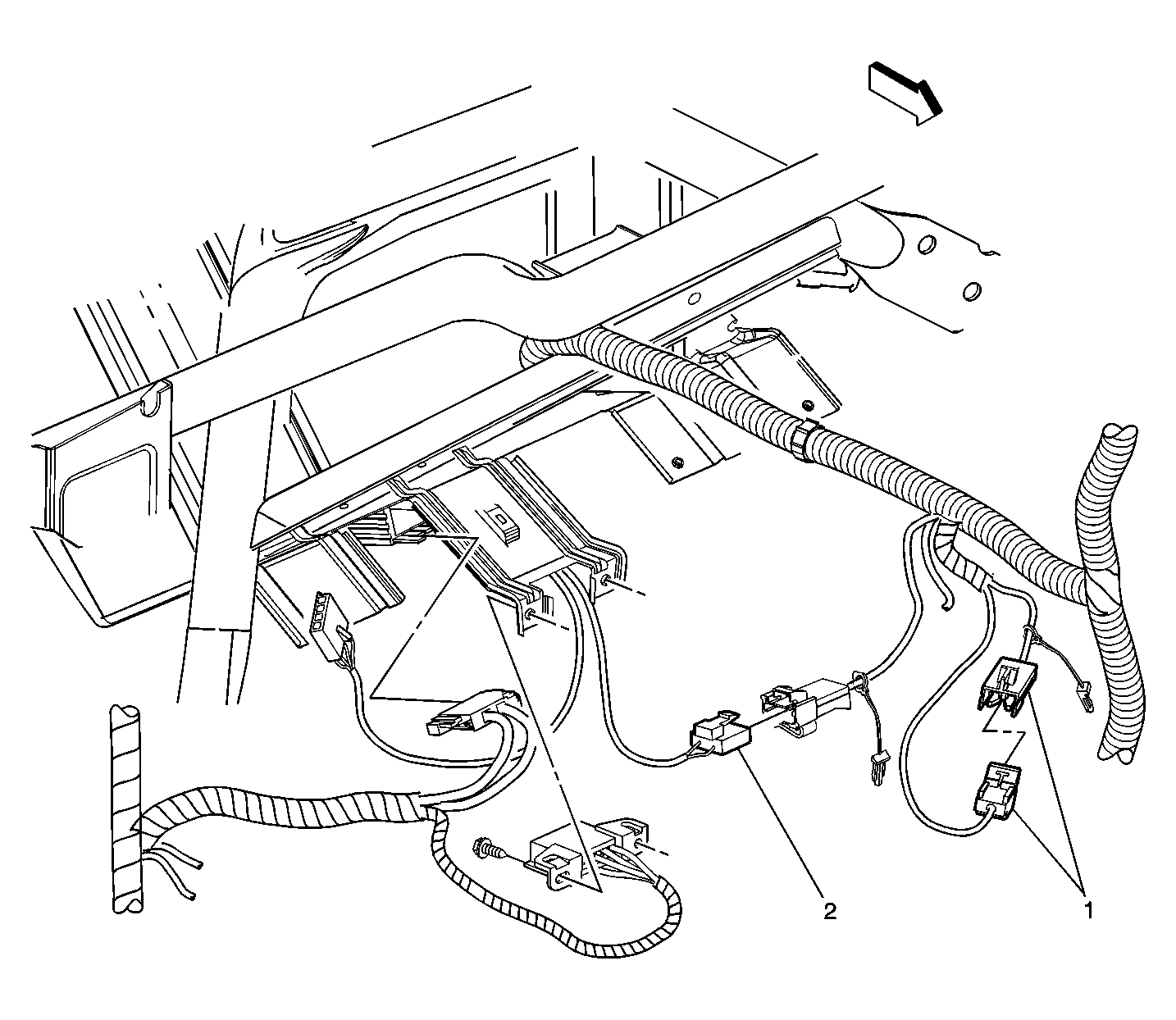

Fig 9: C206 & C207 Harness Routing View
GM291824Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C207
2 C206

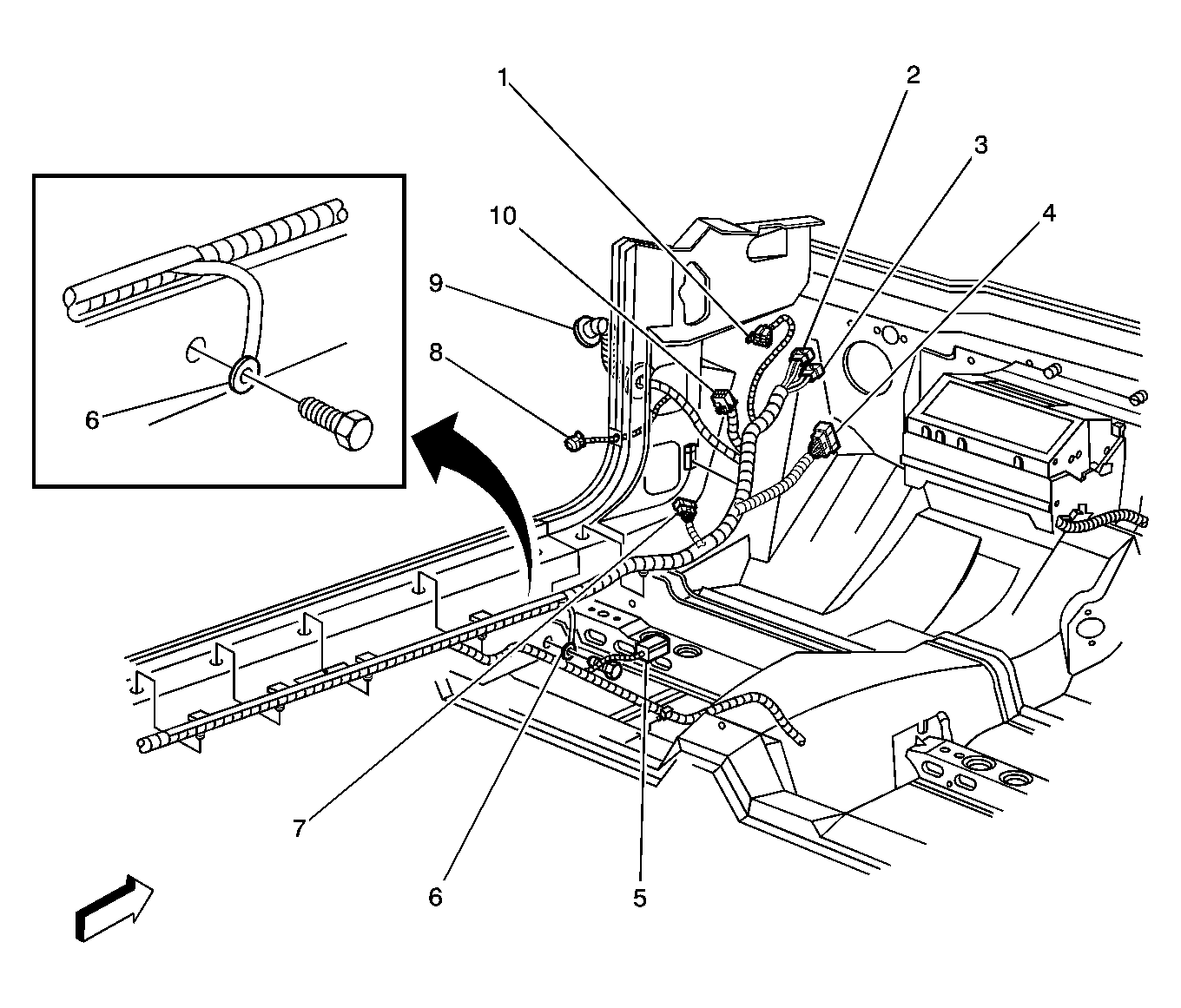

Fig 10: Under Driver Side Carpet Harness Routing View
GM795532Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Control Connector C2
2 C202
3 C220
4 C221
5 Seat Belt Connector
6 G304
7 C200
8 Door Jamb Switch
9 P500
10 Body Control Connector C3

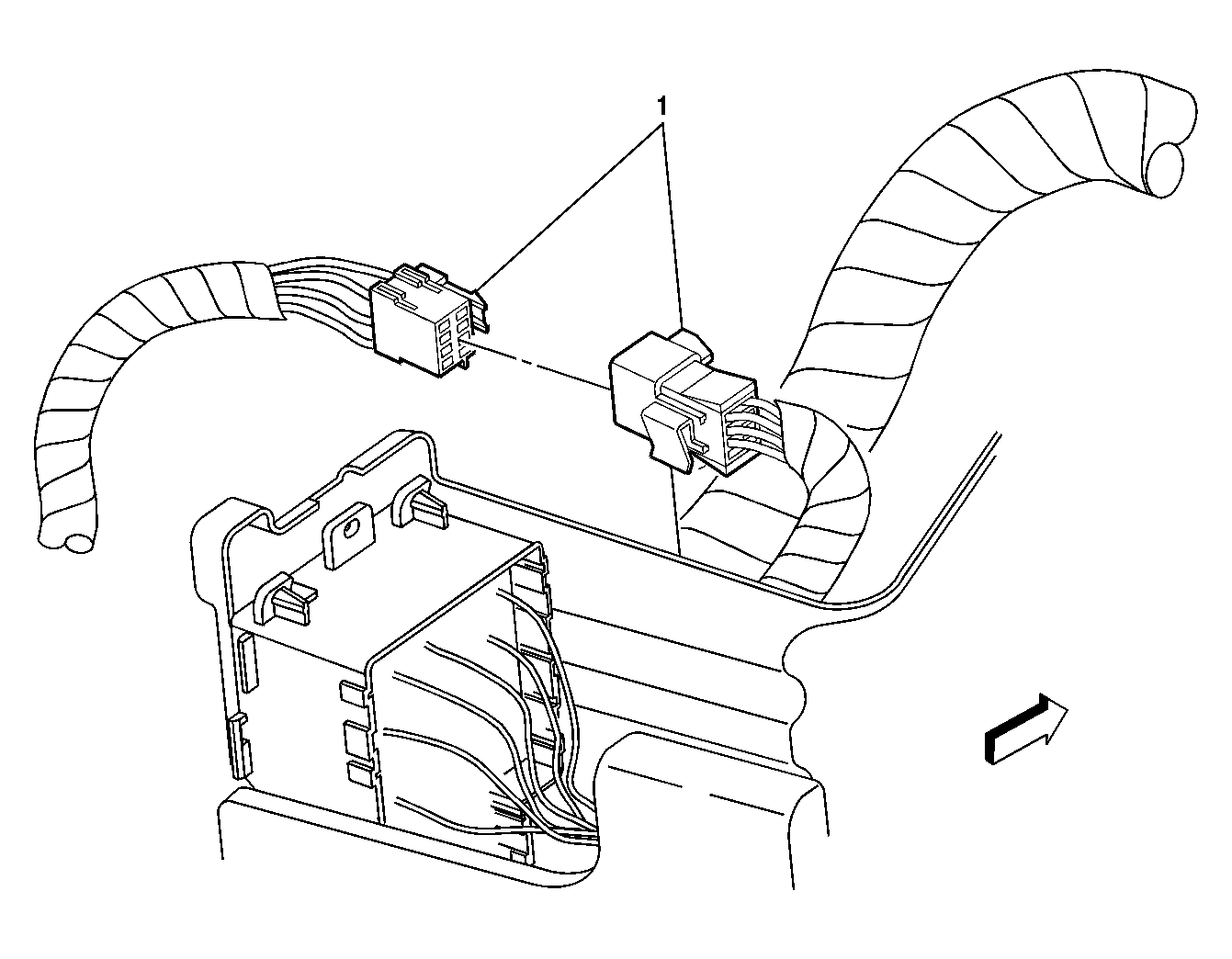

Fig 11: C202 Harness Routing View
GM291837Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C202
1 C202
Fig 12: P600, G302, G303 Harness Routing View
GM291768Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 P600
2 G302
3 G303

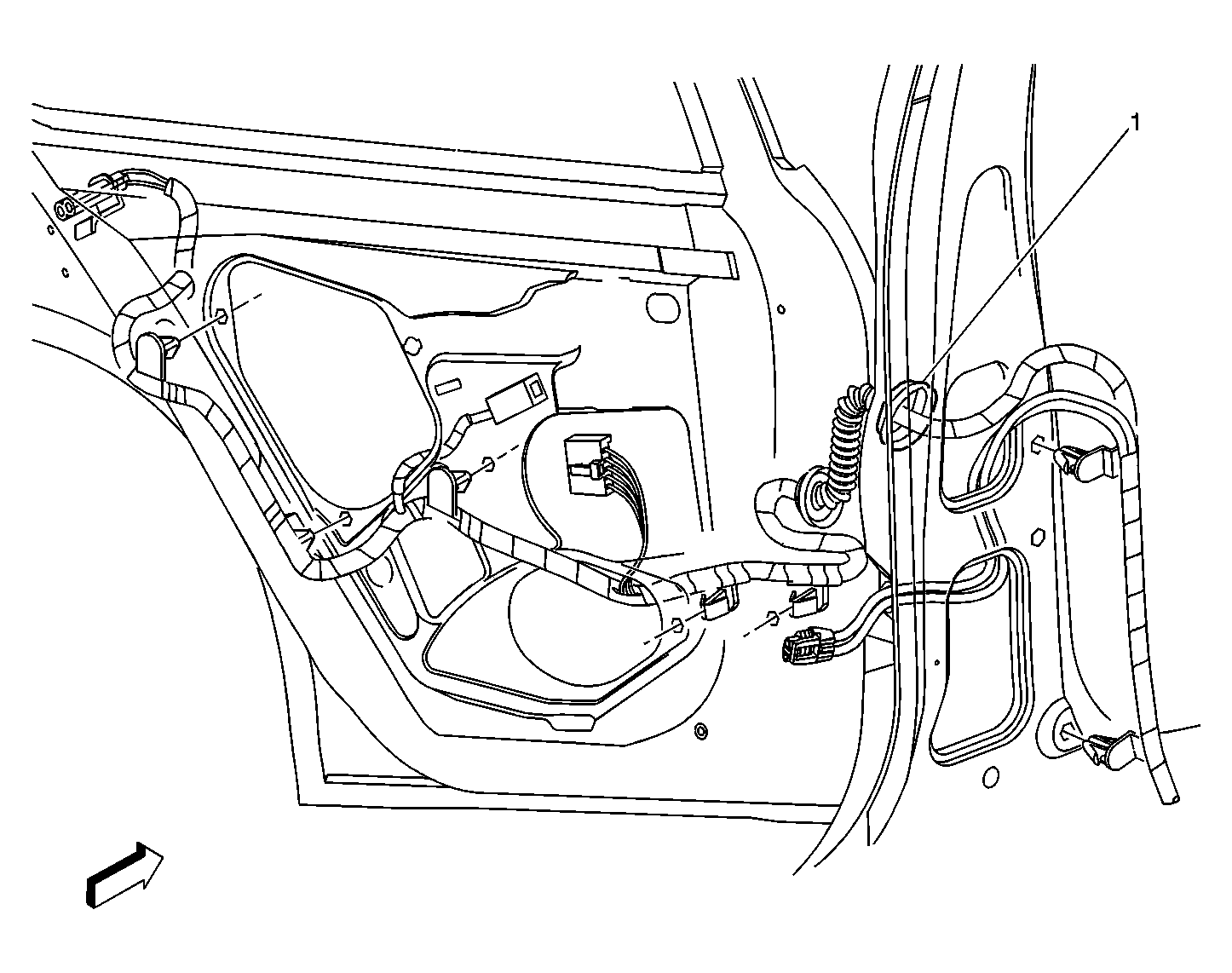

Fig 13: P700 (LH) & P800 (RH) Harness Routing View
GM292113Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 P700, Left Side (P800, Right Side)
Fig 14: Sunroof Assembly Harness Routing View
GM292126Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Sunroof Motor
2 Sunroof Control Module
3 C201
4 Sunroof Assembly

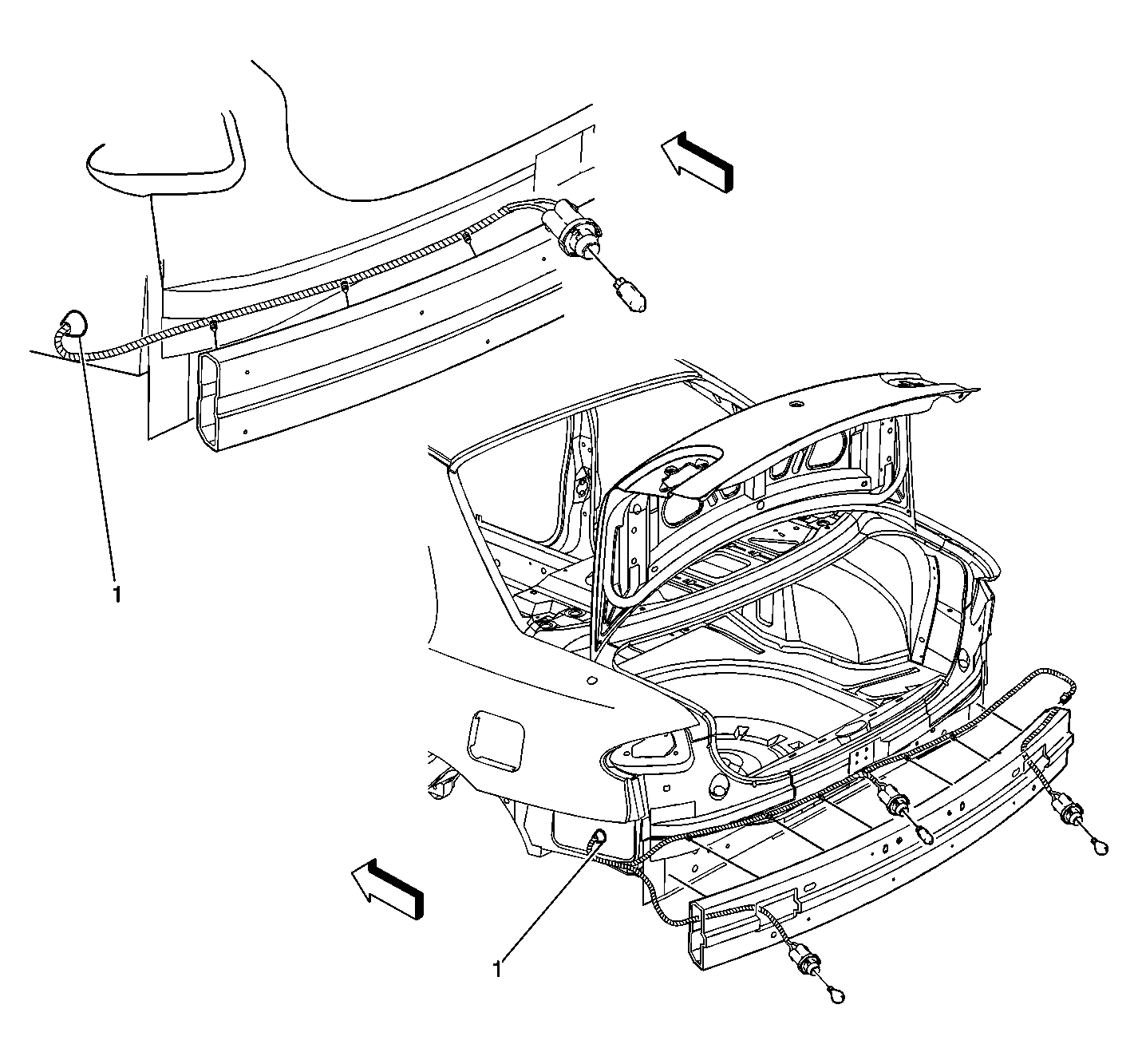

Fig 15: P400 Harness Routing View
GM291686Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 P400
1 P400

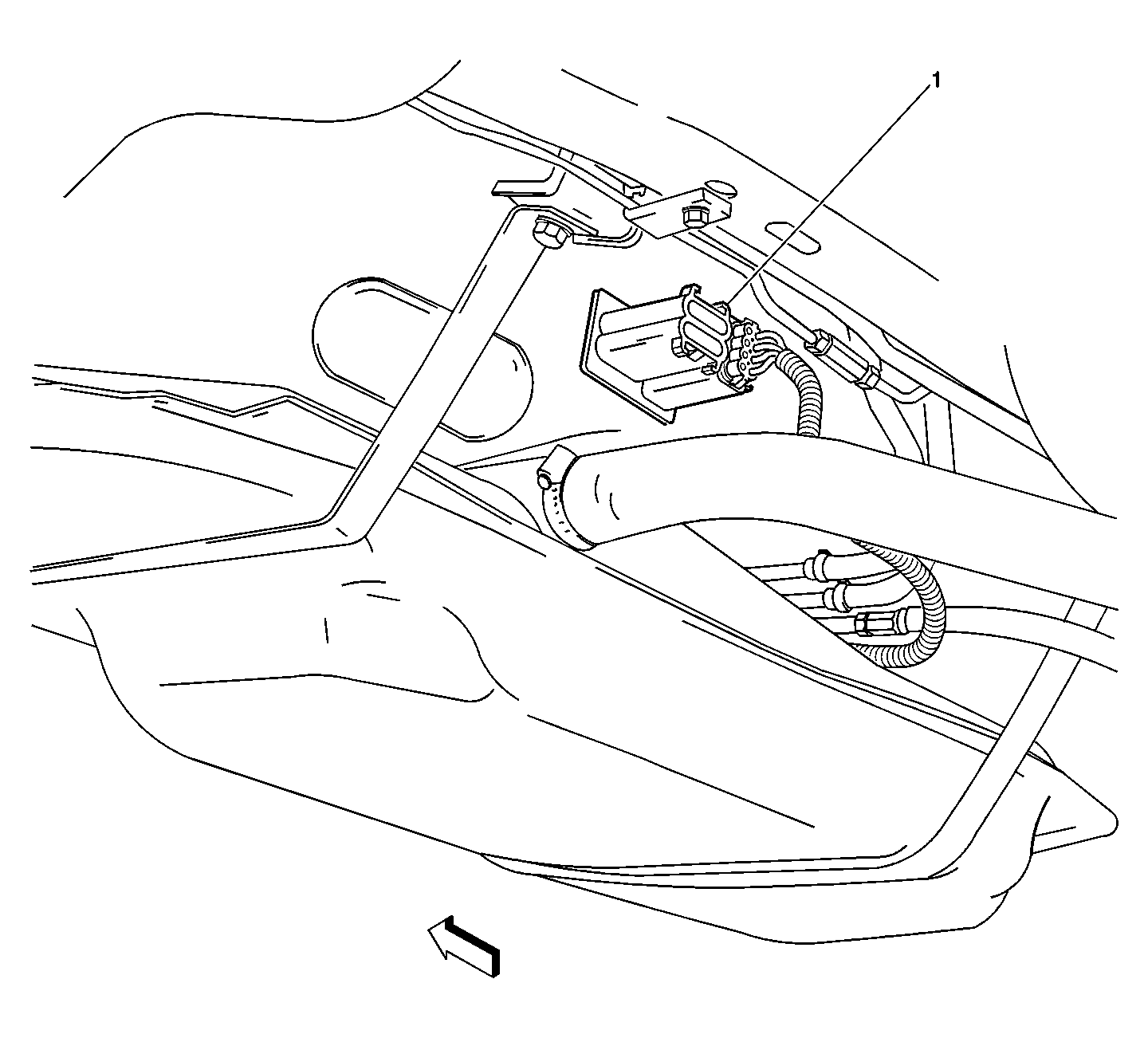

Fig 16: C313 Harness Routing View
GM291755Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C313
