Ignition Switch C2
WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

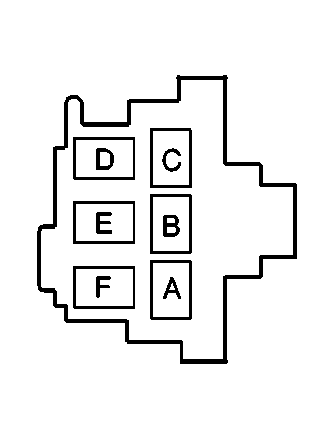

Ignition Switch C2 Connector End View
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 12129842
- 6-Way F Metri-Pack Mixed Series (NAT)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| A |
PNK |
3 |
Ignition 1 Voltage |
| B |
ORN |
300 |
Ignition 3 Voltage |
| C |
YEL |
5 |
Crank Voltage |
| D-E |
- |
- |
Not Used |
| F |
BLK |
150 |
Ground |
