Fuse Block-I/P Top View

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

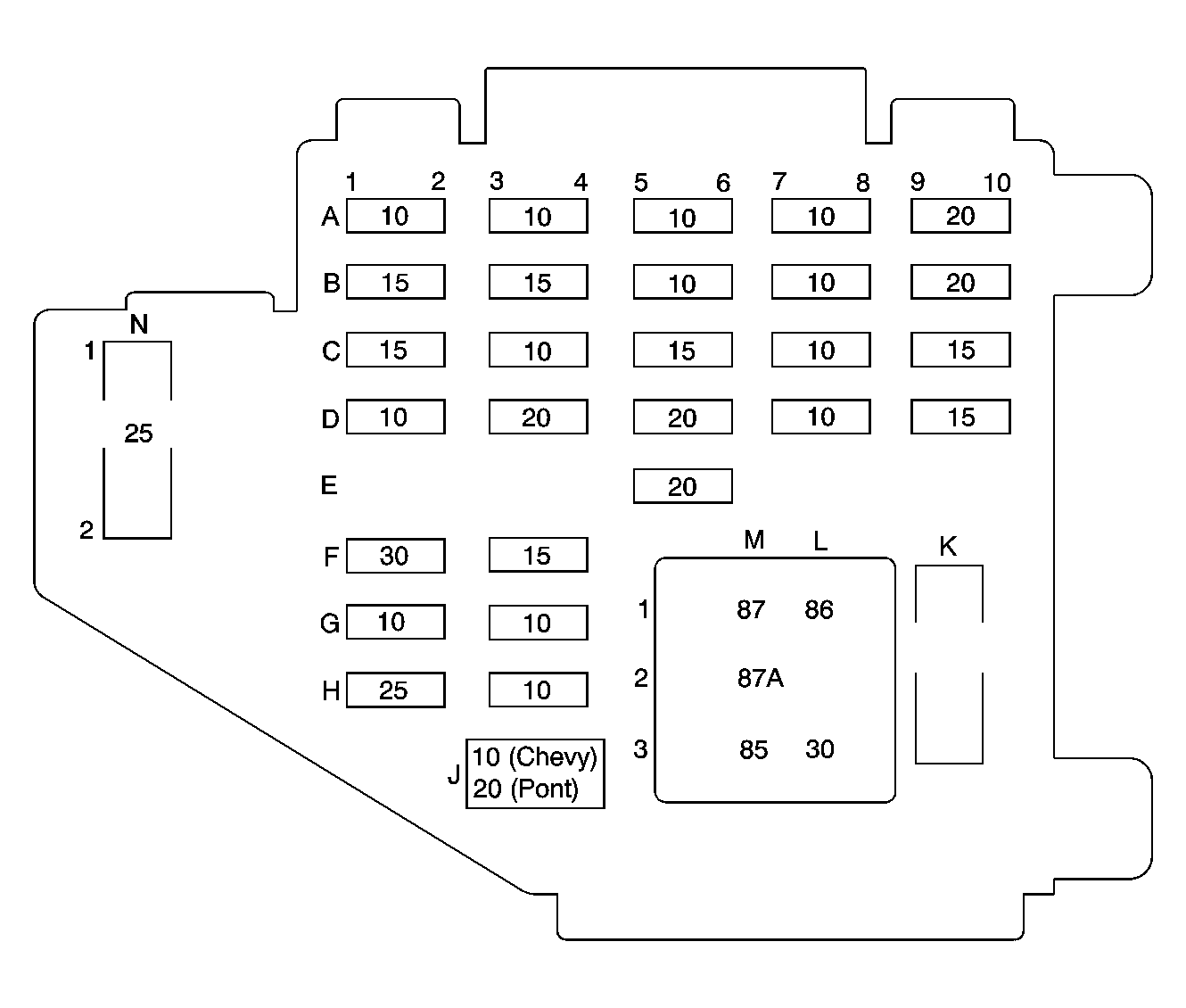

Fig 1: Fuse Block - I/P Top View
GM847483Courtesy of GENERAL MOTORS CORP.
