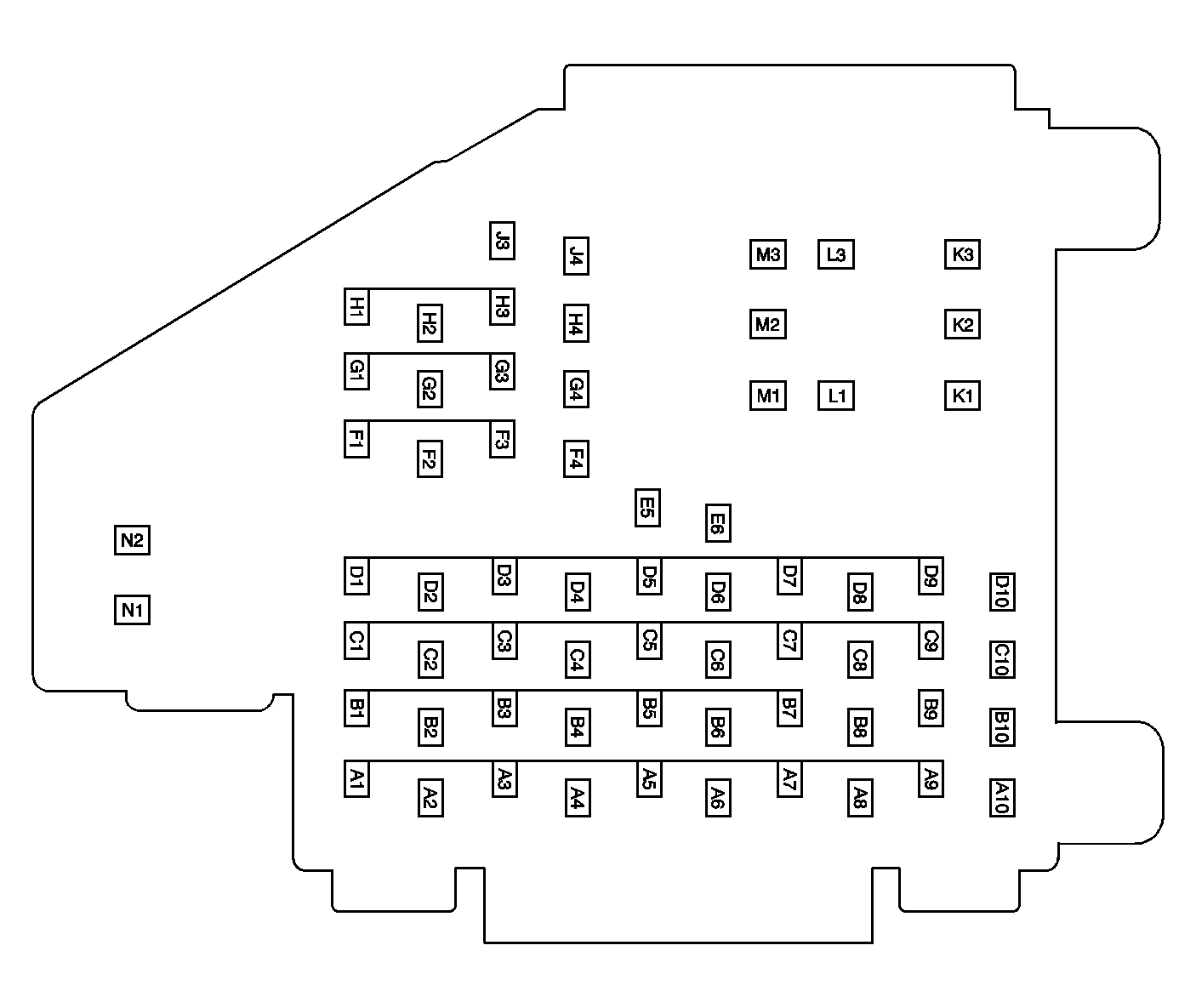

Fuse Block-I/P Bottom View
WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
Fuse Block - I/P Wire Entry
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A1 | PNK | 3 | Ignition 1 Voltage Bus |
| A2 | PNK | 539 | Ignition 1 Voltage |
| PNK | 539 | Ignition 1 Voltage | |
| A3 | PNK | 3 | Ignition 1 Voltage Bus |
| A4 | PNK | 439 | Ignition 1 Voltage |
| A5 | PNK | 3 | Ignition 1 Voltage Bus |
| A6 | PNK | 39 | Ignition 1 Voltage |
| PNK | 39 | Ignition 1 Voltage | |
| A7 | PNK | 3 | Ignition 1 Voltage |
| A8 | PNK/WHT | 639 | Ignition 1 Voltage (Chevrolet) |
| PNK/WHT | 639 | Ignition 1 Voltage (Pontiac) | |
| A9 | PNK | 3 | Ignition 1 Voltage Bus |
| A10 | PNK | 239 | Ignition 1 Voltage |
| B1 | PNK | 3 | Ignition 1 Voltage Bus |
| B2 | PNK | 839 | Ignition 1 Voltage |
| B3 | PNK | 3 | Ignition 1 Voltage Bus |
| B4 | YEL | 1139 | Ignition 1 Voltage |
| B5 | PNK | 3 | Ignition 1 Voltage |
| B6 | PNK | 339 | Ignition 1 Voltage |
| PNK | 339 | Ignition 1 Voltage | |
| B7 | PNK | 3 | Ignition 1 Voltage Bus |
| B8 | PNK | 739 | Ignition 1 Voltage |
| B9 | ORN | 1640 | Battery Positive Voltage |
| B10 | RED | 642 | Battery Positive Voltage |
| C1 | RED | 442 | Battery Positive Voltage Bus |
| C2 | ORN | 1940 | Battery Positive Voltage |
| C3 | RED | 442 | Battery Positive Voltage Bus |
| C4 | ORN | 1040 | Battery Positive Voltage |
| ORN | 1040 | Battery Positive Voltage | |
| C5 | RED | 442 | Battery Positive Voltage Bus |
| C6 | ORN | 740 | Battery Positive Voltage |
| ORN | 740 | Battery Positive Voltage | |
| C7 | RED | 442 | Battery Positive Voltage |
| C8 | ORN | 340 | Battery Positive Voltage |
| ORN | 340 | Battery Positive Voltage | |
| C9 | RED | 442 | Battery Positive Voltage Bus |
| C10 | ORN | 640 | Battery Positive Voltage |
| D1 | RED | 442 | Battery Positive Voltage Bus |
| D2 | ORN | 1440 | Battery Positive Voltage |
| ORN | 1440 | Battery Positive Voltage | |
| D3 | RED | 442 | Battery Positive Voltage Bus |
| D4 | ORN | 240 | Battery Positive Voltage |
| D5 | RED | 442 | Battery Positive Voltage Bus |
| D6 | ORN | 40 | Battery Positive Voltage |
| D7 | RED | 442 | Battery Positive Voltage |
| D8 | ORN/BLK | 1140 | Battery Positive Voltage |
| D9 | RED | 442 | Battery Positive Voltage Bus |
| D10 | ORN | 1540 | Battery Positive Voltage |
| ORN | 1540 | Battery Positive Voltage | |
| E1-E4 | - | - | Not Used |
| E5 | RED | 642 | Battery Positive Voltage |
| E6 | ORN | 140 | Battery Positive Voltage |
| ORN | 140 | Battery Positive Voltage | |
| E7-E10 | - | - | Not Used |
| F1 | RED | 642 | Battery Positive Voltage |
| F2 | ORN | 1340 | Battery Positive Voltage |
| F3 | RED | 642 | Battery Positive Voltage Bus |
| F4 | ORN | 1240 | Battery Positive Voltage |
| F5-F10 | - | - | Not Used |
| G1 | ORN | 300 | Ignition 3 Voltage |
| G2 | BRN | 241 | Ignition 3 Voltage |
| G3 | ORN | 300 | Ignition 3 Voltage Bus |
| G4 | BRN | 41 | Ignition 3 Voltage (Pontiac) |
| BRN | 41 | Ignition 3 Voltage (Pontiac) | |
| G4 | BRN | 41 | Ignition 3 Voltage (Chevrolet) |
| G5-G10 | - | - | Not Used |
| H1 | BRN | 4 | Accessory Voltage |
| H2 | YEL | 143 | Accessory Voltage |
| YEL | 143 | Accessory Voltage | |
| H3 | BRN | 4 | Accessory Voltage Bus |
| H4 | YEL | 43 | Accessory Voltage |
| H5-H10 | - | - | Not Used |
| J1-J2 | - | - | Not Used |
| J3 | RED | 442 | Battery Positive Voltage |
| J4 | ORN/BLK | 440 | Battery Positive Voltage |
| J5-J10 | - | - | Not Used |
| K1-K3 | - | - | Not Used |
| L1 | ORN | 740 | Battery Positive Voltage - Domestic Only |
| L2 | - | - | Not Used |
| L3 | DK BLU | 1201 | DRL Headlamp Low Beam Supply Voltage |
| M1 | GRY | 589 | DRL Resistor Supply Voltage |
| M2 | - | - | Not Used |
| M3 | LT GRN/BLK | 592 | DRL Relay Control - Domestic Only |
| N1 | BRN | 141 | Ignition 3 Voltage |
| BRN | 141 | Ignition 3 Voltage | |
| N2 | ORN | 300 | Ignition 3 Voltage |
