Fuse Block - I/P Identification
WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

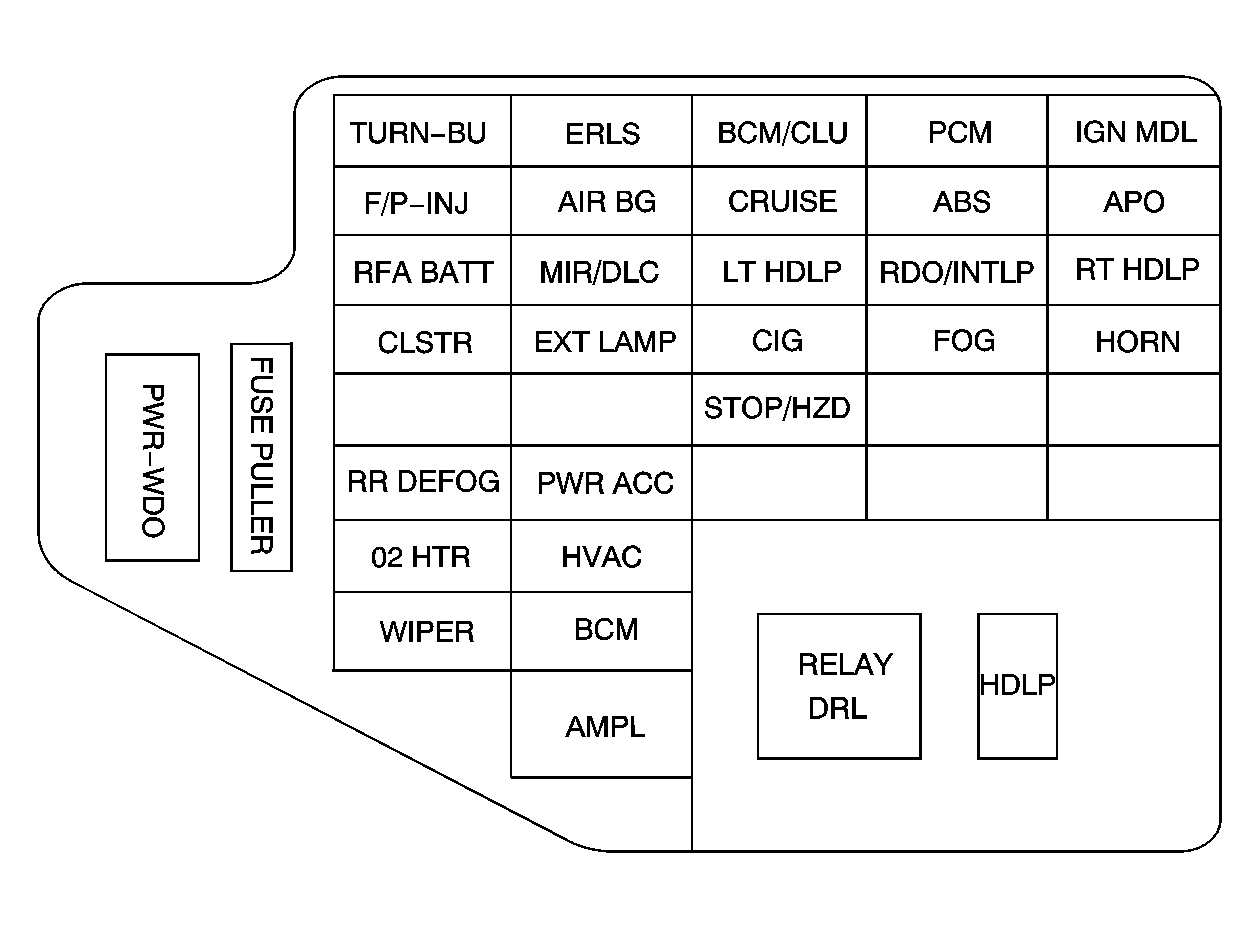

Electrical Center Identification Views
| Fuse/Circuit Breaker | Rating | Description |
|---|---|---|
| ABS | 10 A | Antilock Brake Solenoids |
| AIR BG | 15 A | Air Bag |
| AMPL | 10 A (Chevrolet) 20 A (Pontiac) |
Amplifier |
| APO | 20A | Accessory Power Outlet |
| BCM | 10 A | Body Control Module |
| BCM/CLU | 10 A | Body Control Module/Cluster |
| CIG | 20 A | Interior Lamps, Exterior Lamps |
| CLSTR | 10 A | Instrument Panel Cluster, Electronic Brake Control Module |
| CRUISE | 10 A | Cruise Control |
| ERLS | 10 A | Brake Transaxle Shift Interlock (BTSI), Cruise Control, HVAC: Compressor Control, Multi-port Injection |
| EXT LP | 20 A | Exterior Lamps, Interior Lamps Dimming |
| FOG | 10 A | Daytime Running Lamps: Fog Lamps |
| F/P-INJ | 15 A | Fuel Pump and Fuel Injectors |
| HORN | 15 A | Horn |
| HVAC | 10 A | Antilock Brake, Coolant Fan, HVAC: Compressor Control |
| IGN MDL | 20 A | Ignition Module |
| LT HDLP | 15 A | Left Headlamp |
| MIR/DLC | 10 A | Power Mirror |
| O2 HTR | 10 A | O2 Sensor Heater |
| PCM | 10 A | Powertrain Control Module |
| PWR ACC | 15 A | Power Door Locks |
| PWR WDO (Circuit Breaker) | 25 A | Power Sunroof and Power Windows |
| RDO/INTLP | 10 A | Radio, Interior Lamps |
| RFA BATT | 15 A | Remote Keyless Entry System |
| RR DEFOG | 30 A | Rear Defogger |
| RT HDLP | 15 A | Right Headlamp |
| STOP/ HZD | 20 A | Antilock Brakes, Cruise Control, Exterior Lamps |
| TURN-BU | 10 A | Back Up Lamps, Exterior Lamps |
| WIPER | 25 A | Wiper/Washer |
