Installation Procedure

WARNING: This page is about a different car, the 2005 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

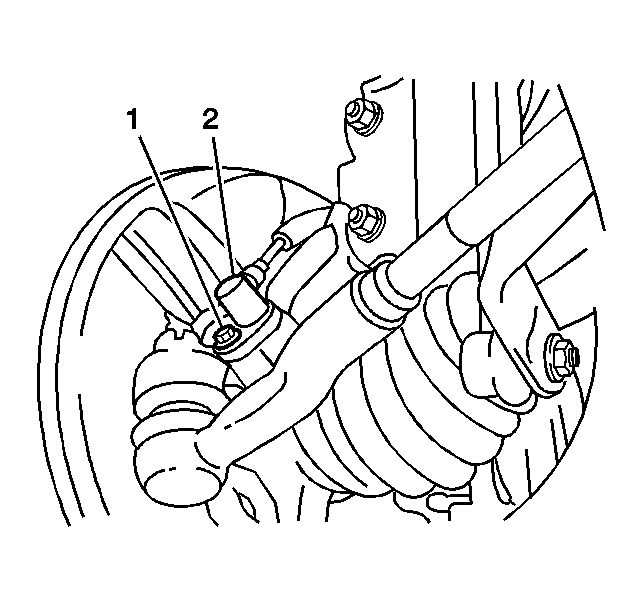

Fig 1: Speed Sensor Retaining Bolt And Speed Sensor

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the wheel speed sensor (2) to the steering knuckle. Secure with 1 bolt.
Tighten: Tighten the front wheel speed sensor bolt to 8 N.m (71 lb in).

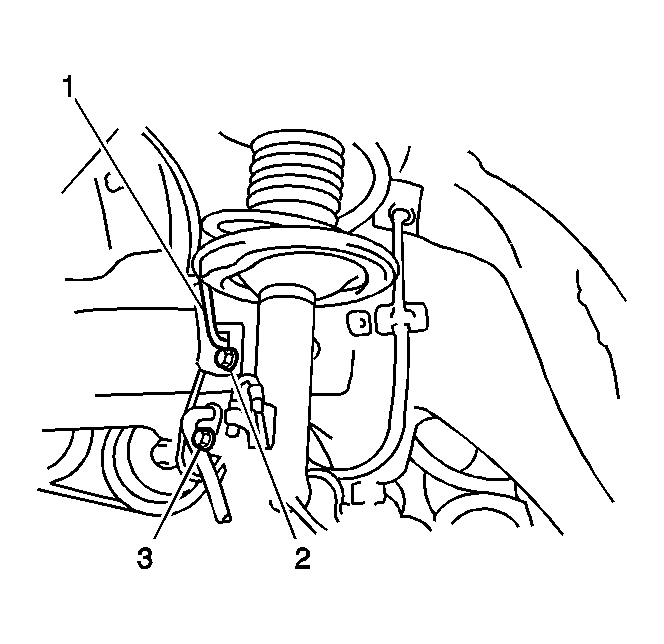

Fig 2: Wiring Harness, Pigtail Harness Nut And Pigtail Harness Nut

Courtesy of GENERAL MOTORS CORP.

Connect the wheel speed wiring harness (1) to the vehicle. Secure with 2 bolts.
Tighten: Tighten the pigtail harness nut (2) to 8 N.m (71 lb in) and pigtail harness nut (3) to 29 N.m (21 lb ft).

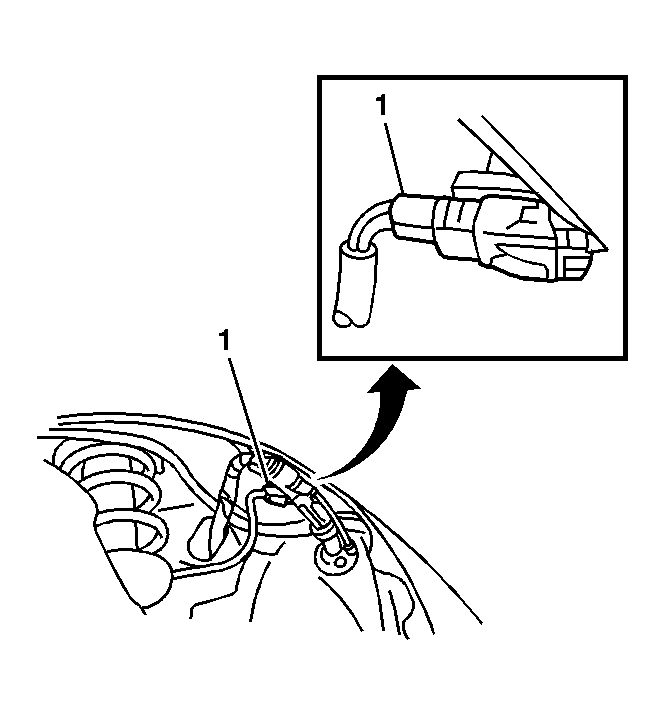

Fig 3: Wheel Speed Sensor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the wheel speed sensor electrical connector (1).
Install the wheelhousing. Refer to Wheelhouse Panel Replacement in Body Front End.
Perform Diagnostic System Check - Vehicle in Vehicle DTC Information.
