Installation Procedure

WARNING: This page is about a different car, the 2005 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the brake pressure modulator assembly to the bracket. Secure with the 2 nuts.
Tighten: Tighten the brake modulator assembly nuts to 6 N.m (53 lb in).

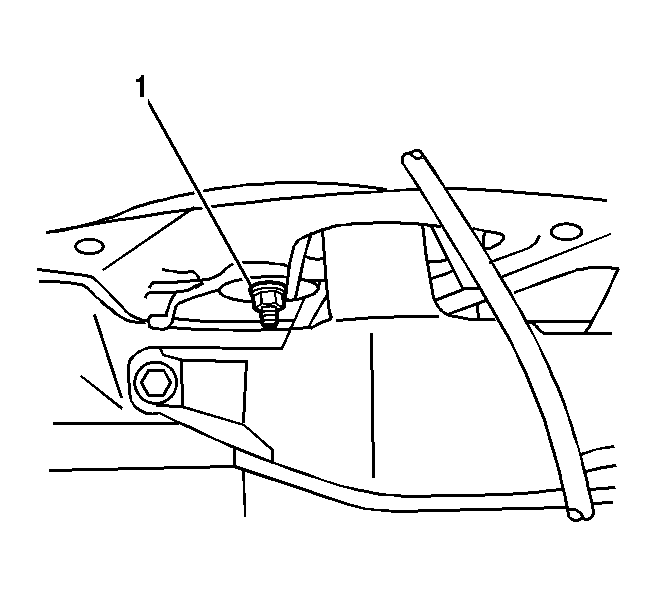

Fig 1: Brake Modulator Nut

Courtesy of GENERAL MOTORS CORP.

Install the brake pressure modulator assembly and bracket. Secure with the nut (1).
Tighten: Tighten the brake modulator bracket nut to 20 N.m (15 lb ft).

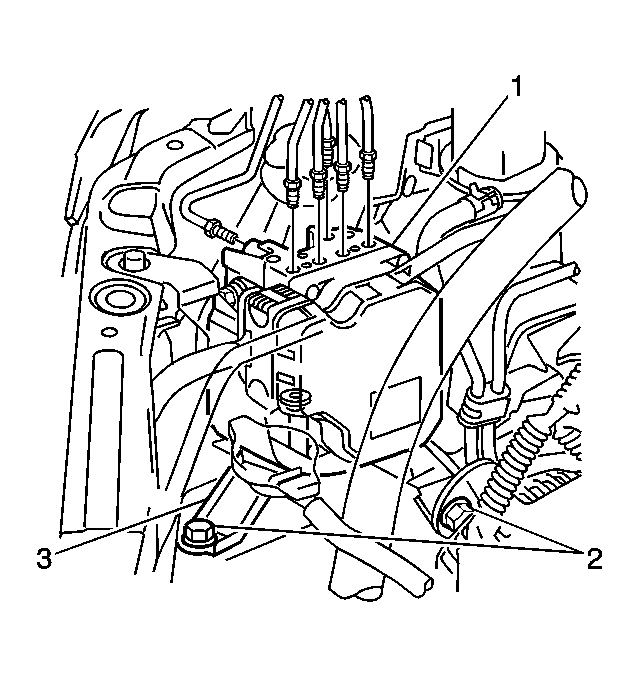

Fig 2: Brake Pressure Modulator Bracket

Courtesy of GENERAL MOTORS CORP.

Install the 2 bolts (2) to the brake pressure modulator bracket (3).
Tighten: Tighten the brake modulator bracket bolts to 20 N.m (15 lb ft).
Remove the plugs from the brake pipes and connect the brake pipes to the brake modulator assembly (1).
Tighten: Tighten the brake pipe fittings nuts to 15 N.m (11 lb ft).

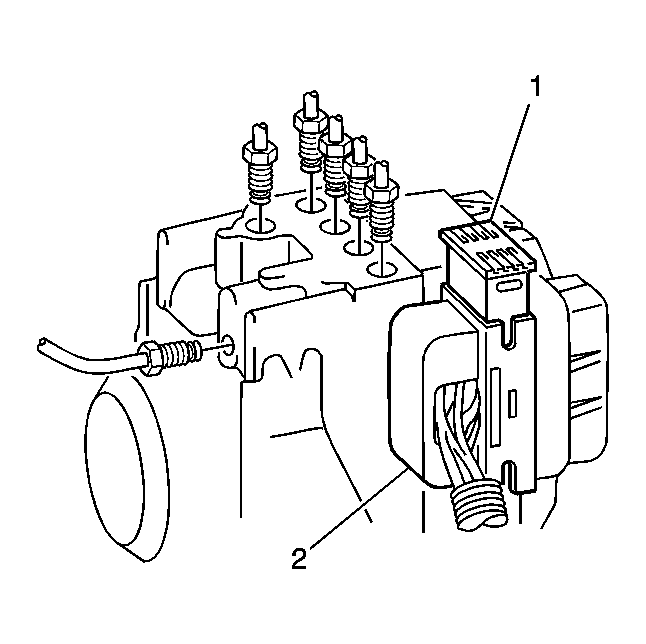

Fig 3: EBCM Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the EBCM electrical connector (2).
Secure the EBCM electrical connector lock lever (1).
Bleed the brake system. Refer to Hydraulic Brake System Bleeding in Hydraulic Brakes.
Using the scan tool, perform the yaw rate sensor zero point calibration under the special functions menu.
Perform the Diagnostic System Check - Vehicle in Vehicle DTC Information.
