ABS Connector End Views

WARNING: This page is about a different car, the 2005 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

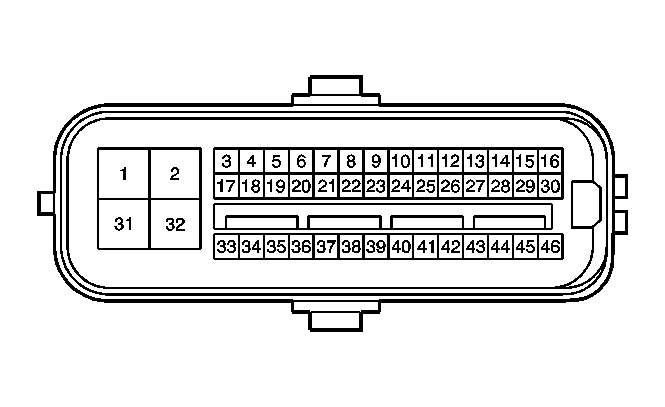

Brake Pressure Modulator Valve (BPMV) (W/O VSC)

GM1488870Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-12426
  • BK
Pin Wire Color Function
1 WH/BK Motor Ground
2 RD Battery Positive Voltage
3 - Not Used
4 YE Traction Control Ground Signal
5 - Not Used
6 BU/RD Park Neutral Position Switch Park Signal
7 - Not Used
8 YE/RD SIR Serial Data
9 GY LH Front Wheel Speed Signal Low
10 RD LH Front Wheel Speed Signal High
11-12 - Not Used
13 BU/RD Serial Data
14 GN/WH Brake Switch Input
15 BK LH Rear Wheel Speed Signal High
16 YE LH Rear Wheel Speed Signal Low
17 WH/RD ABS Indicator Control
18 WH/GN Vehicle Speed Sensor Control
19 - Not Used
20 GY SIR Serial Data
21 PU/BK Ground
22 - Not Used
23 RD/WH Daytime Running Lamps Control Module Signal
24-30 - Not Used
31 BU Battery Positive Voltage
32 WH/BK Solenoid Ground
33 L-GN Tire Pressure Monitor Instrument Panel input Signal
34 RD Tire Pressure Monitor Instrument Panel input Signal
35 - Not Used
36 BU/WH Park Neutral Position Switch Neutral Signal
37 YE/BK Deceleration Sensor Signal
38 - Not Used
39 WH RH Front Wheel Speed Signal Low
40 BK RH Front Wheel Speed Signal High
41 VT/WH Tire Pressure Monitoring Switch Signal
42 - Not Used
43 RD Brake Indicator Control
44 RD RH Rear Wheel Speed Signal High
45 WH RH Rear Wheel Speed Signal Low
46 BK/WH Ignition Positive Voltage

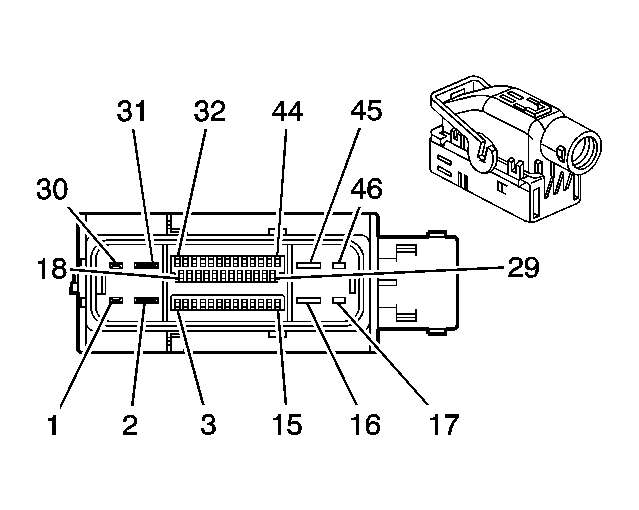

Brake Pressure Modulator Valve (BPMV) (W/VSC)

GM1488869Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-12297
  • BK
Pin Wire Color Function
1 BK/WH Ignition ON Voltage
2 RD ABS Cutoff Relay and ABS Motor Relay Supply Voltage
3 RD Brake Indicator Control
4 RD/YE Traction Control Switch Signal
5 PK OBD 2 Serial Data
6 VT/WH Tire Pressure Monitor Switch Signal
7 BU/RD Park Neutral Position Switch Park Signal
8-10 - Not Used
11 VT Vehicle Stability Control Indicator
12 - Not Used
13 WH Slip Indicator Control
14 - Not Used
15 WH/BK Motor Ground
16 BK Battery Positive Voltage
17 BK/OG Vehicle Stability Control Audible Warning Signal
18 WH/RD ABS Indicator Control
19 RD/WH Daytime Running Lamps Input Signal
20 GN/WH Brake Switch Input
21 L-GN Tire Pressure Monitor Instrument Panel Input Signal
22 WH CAN Low
23 GY SIR Serial Data
24 BU Engine Control Ground Signal
25 WH PCM Traction Control Ground Signal
26 - Not Used
27 BK LH Rear Wheel Speed Sensor Signal High
28 WH RH Rear Wheel Speed Sensor Signal Low
29 RD LH Front Wheel Speed Sensor Signal High
30 WH RH Front Wheel Speed Sensor Signal Low
31 - Not Used
32 BU ABS Motor Relay Coil Ground
33 BK ABS Cutoff Relay Coil Ground
34 BU/RD Serial Data
35 WH/GN Vehicle Speed Sensor Signal
36 BK CAN High
37 RD/YE Power Train Module EFI Signal
38 RD/WH Power Train Module EFI Signal - Positive
39 RD/WH RH Front Wheel Speed Sensor Signal Low
40 RD Tire Pressure Monitor Instrument Panel Input Signal
41 YE LH Rear Wheel Speed Sensor Signal Low
42 RD RH Rear Wheel Speed Sensor Signal High
43 GN LH Front Wheel Speed Sensor Signal Low
44 BK RH Front Wheel Speed Sensor Signal High
45 BK/RD ABS Motor Relay Output
46 WH/BK Solenoid Ground

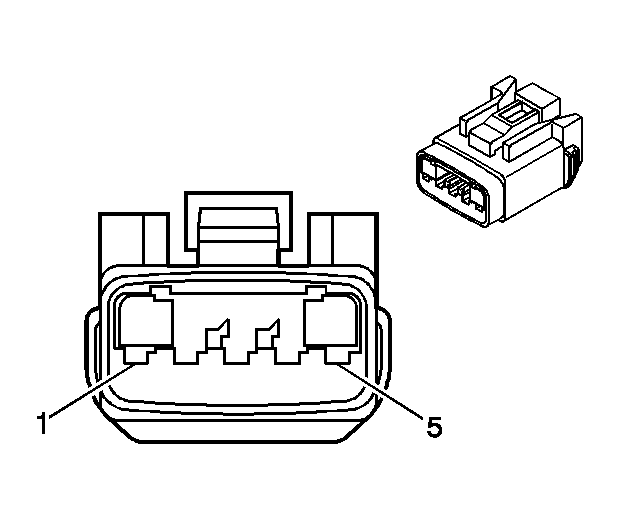

Deceleration Sensor (AWD Only)

GM820097Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11182
  • WH
Pin Wire Color Function
1 WH/BK Accelerometer Ground Circuit
2 YE/RD Brake Pressure Modulator Valve (BPMV)
3 YE Brake Pressure Modulator Valve (BPMV)
4 YE/BK Brake Pressure Modulator Valve (BPMV)
5 BK/WH Accelerometer Feed Circuit

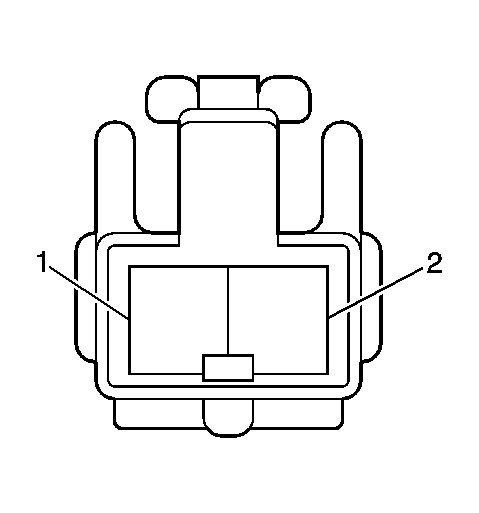

Left Front Wheel Speed Sensor

GM334916Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11003
  • GY
Pin Wire Color Function
1 GN Wheel Speed Sensor Low
2 RD Wheel Speed Sensor High

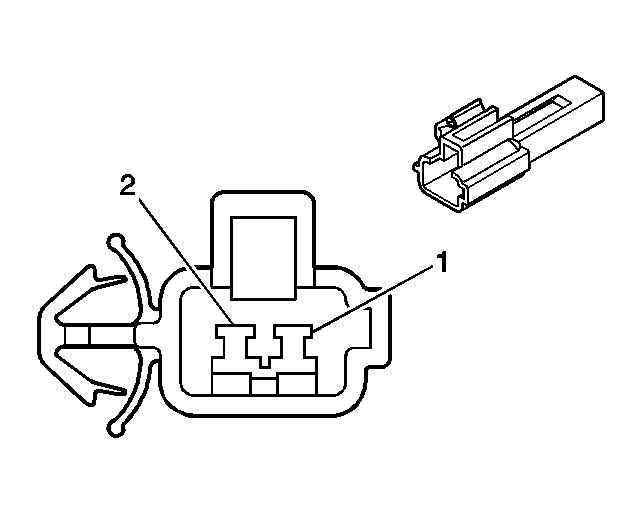

Left Rear Wheel Speed Sensor

GM820100Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11299
  • GY
Pin Wire Color Function
1 YE Left Rear Wheel Speed Sensor Low
2 BK Left Rear Wheel Speed Sensor High
Right Front Wheel Speed Sensor

GM334916Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11003
  • WH
Pin Wire Color Function
1 WH Right Front Wheel Speed Sensor Low
2 BK Right Front Wheel Speed Sensor High

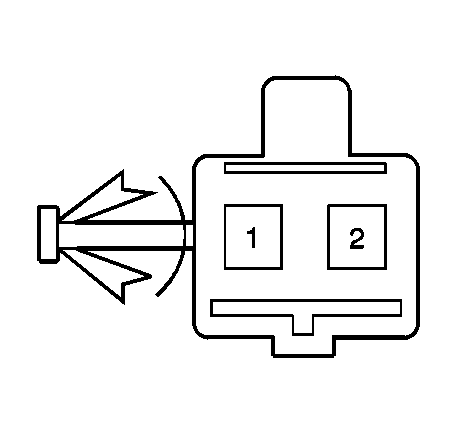

Right Rear Wheel Speed Sensor

GM334946Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11060
  • GY
Pin Wire Color Function
1 WH Right Rear Wheel Speed Signal Low
2 RD Right Rear Wheel Speed Signal High

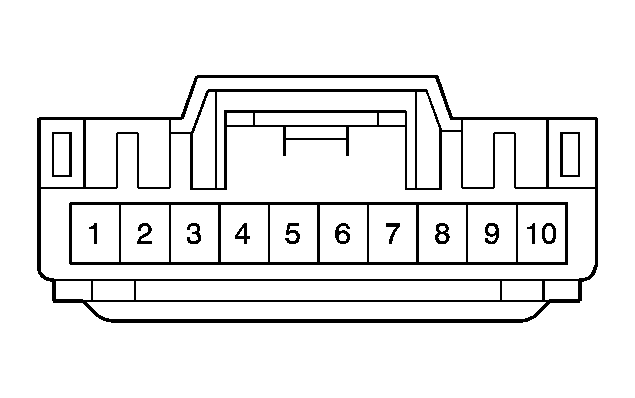

Steering Wheel Angle Sensor

GM1488871Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 82824-45030
  • GY
Pin Wire Color Function
1 BK/WH Ignition Voltage
2 WH/BK Ground
3 RD/BK Battery Voltage
4-8 - Not Used
9 WH CAN Low
10 BK CAN High

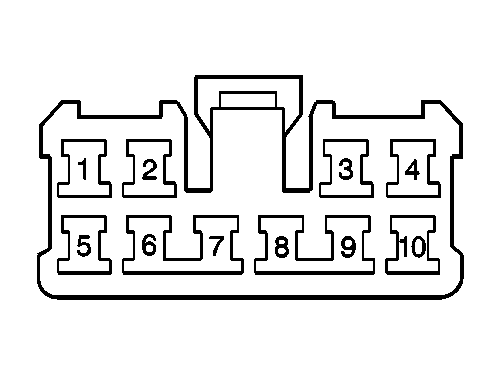

Traction Control Off Switch

GM334473Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-10801
  • BK
Pin Wire Color Function
1 - Not Used
2 GN Switch Illumination Positive
3-5 - Not Used
6 WH/BK Ground
7 WH/BK Switch Illumination Ground
8 - Not Used
9 RD/YE Traction Control Off Signal
10 - Not Used

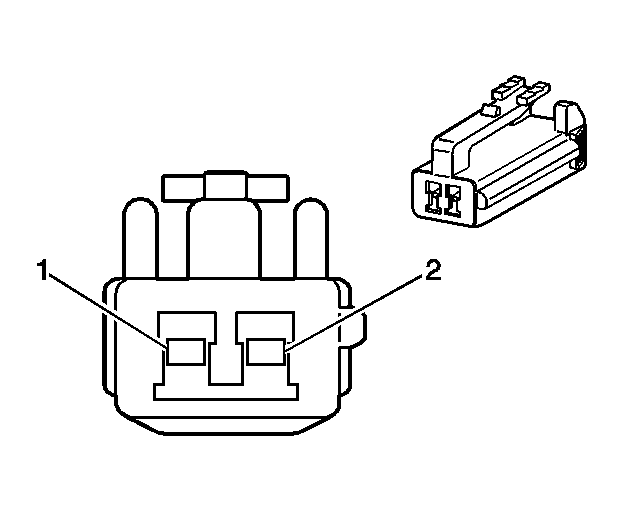

Vehicle Stability Control Audible Warning Buzzer

GM820060Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-10906
  • BK
Pin Wire Color Function
1 YE/BK Ignition Voltage
2 BK/WH Buzzer Signal

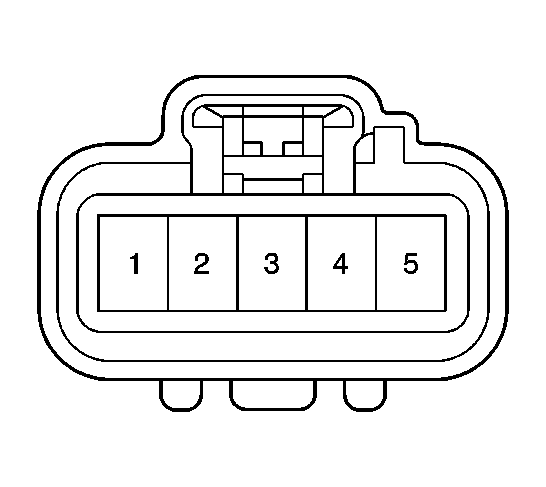

Yaw Rate Sensor

GM1488872Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11904
  • BK
Pin Wire Color Function
1 WH/BK Ground
2 WH CAN Low
3 BK CAN High
4 - Not Used
5 BK/WH Ignition Voltage
