Installation Procedure

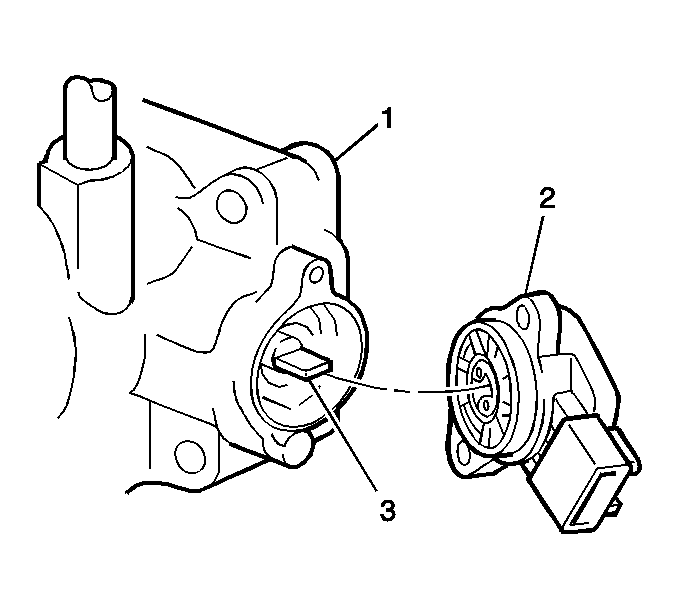

    Fig 1: Throttle Body, TP Sensor And Throttle Shaft (AWD)
    GM850215Courtesy of GENERAL MOTORS CORP.
  1. Align the throttle shaft (3) with the slot in the TP sensor (2).
  2. Install the TP sensor (2) to the throttle body (1).

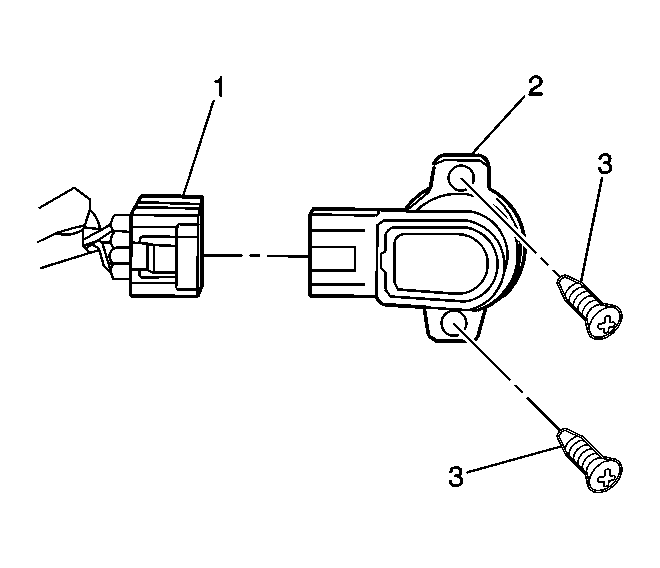

    3. Fig 2: Fasteners And Electrical Connectors (AWD)
    GM229615Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Secure the TP sensor with the 2 fasteners (3).

    Tighten:  Tighten the fasteners to 2.0 N.m (18 lb in).
