Fuel Supply System
| Callout | Component Name |
|---|---|
| 1 | Fuel Pressure Gauge Adapter J 42982 |
| 2 | Fuel Feed Pipe |
| 3 | Fuel Sender Assembly |
| 4 | Fuel Tank |
| 5 | Fuel Pressure Regulator |
| 6 | Fuel Pump |
| 7 | Fuel Sender (gauge) |
| 8 | Fuel Filter |
| 9 | Pinch Off Area |
| 10 | Fuel Pressure Gauge J 34730-1A |
| 11 | Fuel Injectors |
| 12 | Fuel Rail |
The supply of fuel is stored in the fuel tank. An electric fuel pump pressurizes the fuel through to the fuel filter and out to the fuel lines and the fuel rail. The electric fuel pump is suspended from the top of the fuel tank as part of the fuel sender assembly. The fuel pump is designed to provide fuel at a pressure above the regulated pressure needed by the fuel injectors. The fuel pressure regulator keeps the fuel supplied to the fuel injectors at the regulated pressure.
The fuel pressure regulator is located inside of the fuel tank and is part of the fuel sender assembly. Locating the fuel pressure regulator in the fuel tank eliminates the need for a return line from the fuel rail. A returnless system reduces the internal temperature of the fuel tank resulting in lower evaporative emissions.
The fuel system is also equipped with an enhanced evaporative emission system and an on-board refueling vapor recovery (ORVR) system. Together the 2 systems minimize the release of fuel vapors to the atmosphere.

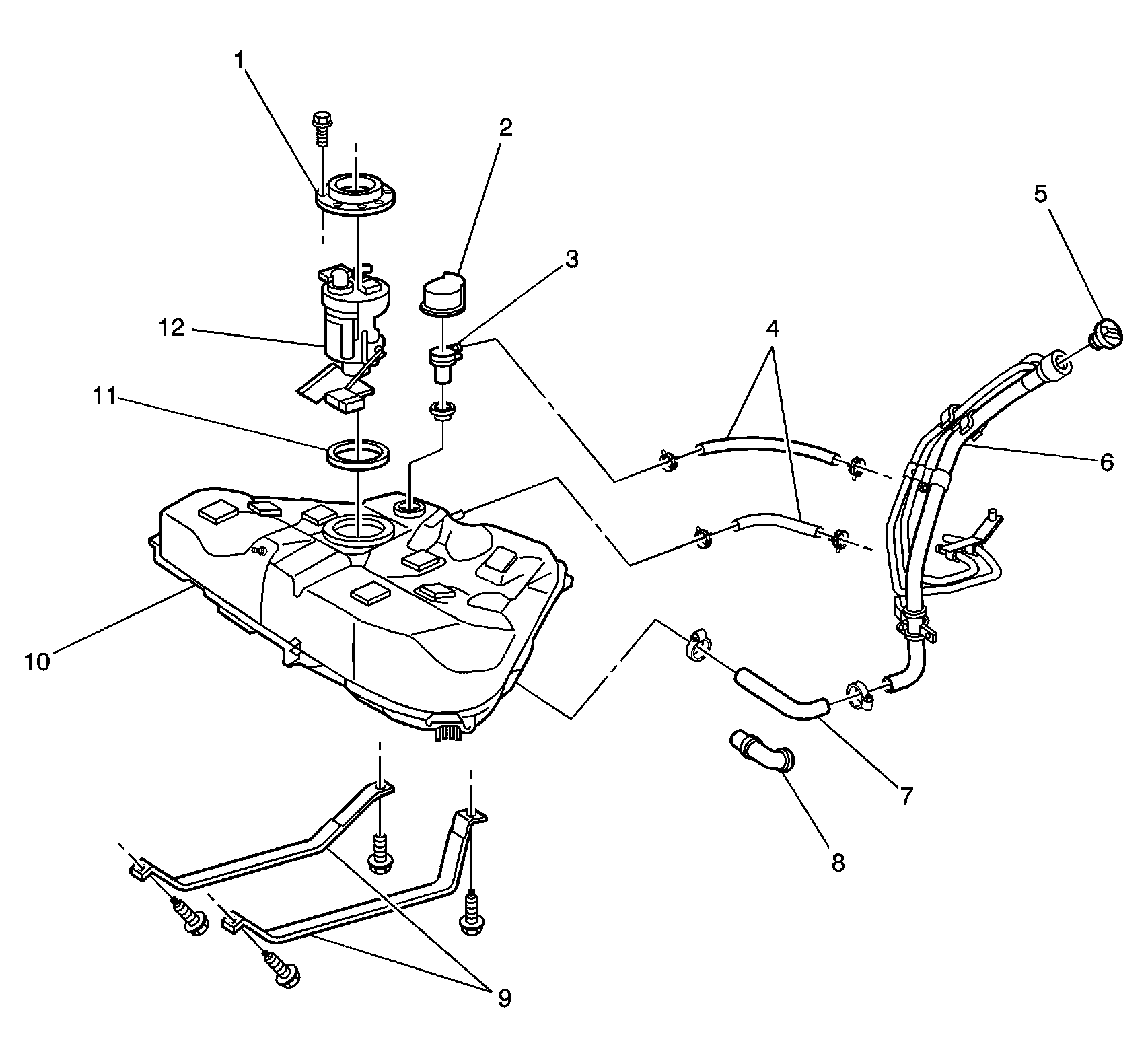

| Callout | Component Name |
|---|---|
| 1 | Hold Down Plate for Fuel Sender Assembly |
| 2 | Fuel Limiter Vent Valve (FLVV) Cover |
| 3 | Fuel Limiter Vent Valve (FLVV) |
| 4 | Fuel Tank Vent Lines |
| 5 | Fuel Filler Cap |
| 6 | Fuel Filler Pipe Assembly |
| 7 | Fuel Filler Hose |
| 8 | Protective Cover for Fuel Filler Hose |
| 9 | Fuel Tank Straps |
| 10 | Fuel Tank |
| 11 | Fuel Sender Assembly Gasket |
| 12 | Fuel Sender Assembly |

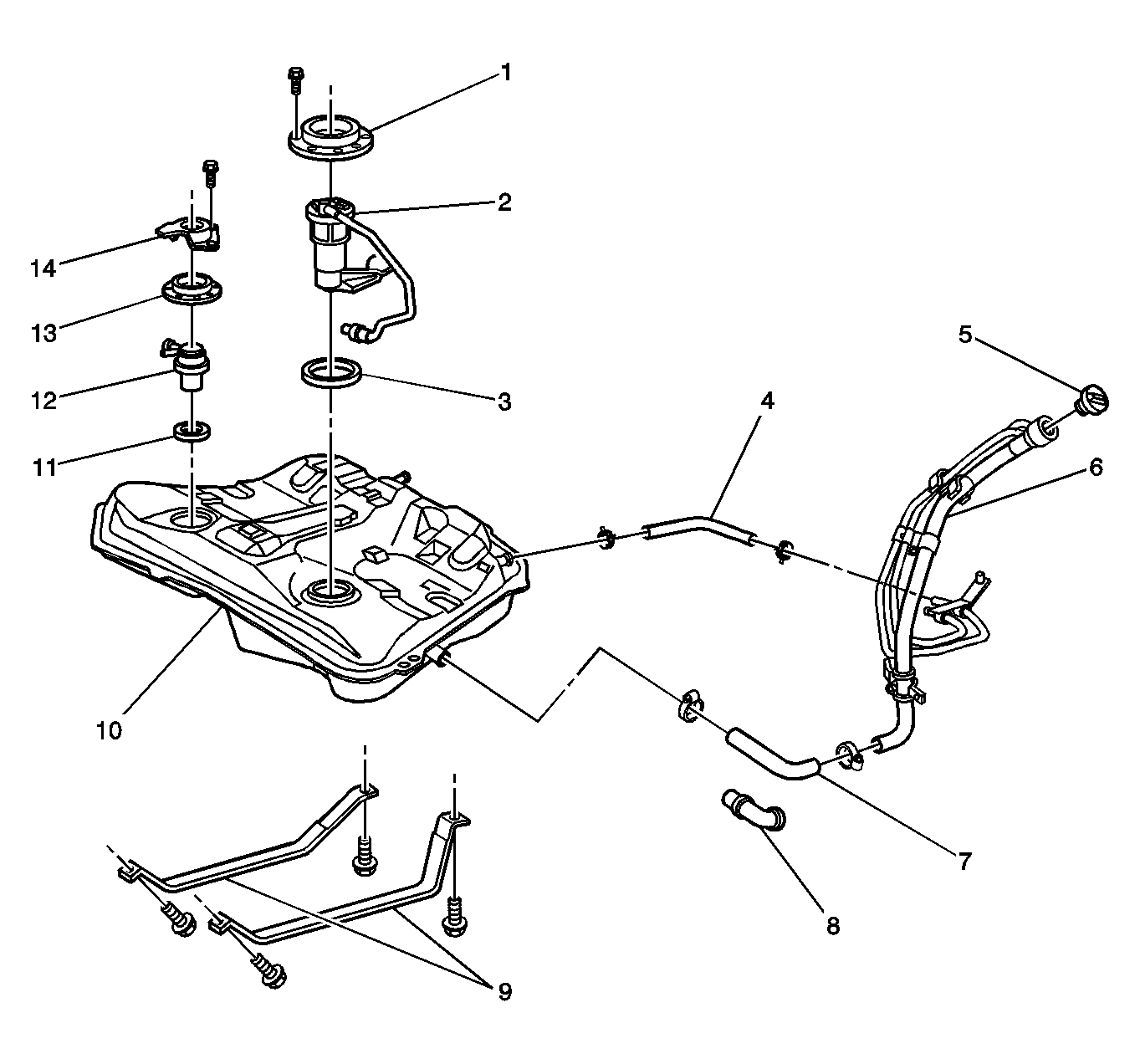

| Callout | Component Name |
|---|---|
| 1 | Hold Down Plate for Fuel Sender Assembly |
| 2 | Fuel Sender Assembly |
| 3 | Fuel Sender Assembly Gasket |
| 4 | Fuel Filler Vent Line |
| 5 | Fuel Filler Cap |
| 6 | Fuel Filler Pipe Assembly |
| 7 | Fuel Filler Hose |
| 8 | Protective Cover for Fuel Filler Hose |
| 9 | Fuel Tank Straps |
| 10 | Fuel Tank |
| 11 | Fuel Sender Assembly Gasket |
| 12 | Fuel Limiter Vent Valve (FLVV) Assembly |
| 13 | Hold Down Plate for FLVV Assembly |
| 14 | Fuel Limiter Vent Valve (FLVV) Cover |
