Power Distribution Schematics

Fig 1: Air Pump, Headlamps, Alt S, EFI, Hazard Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

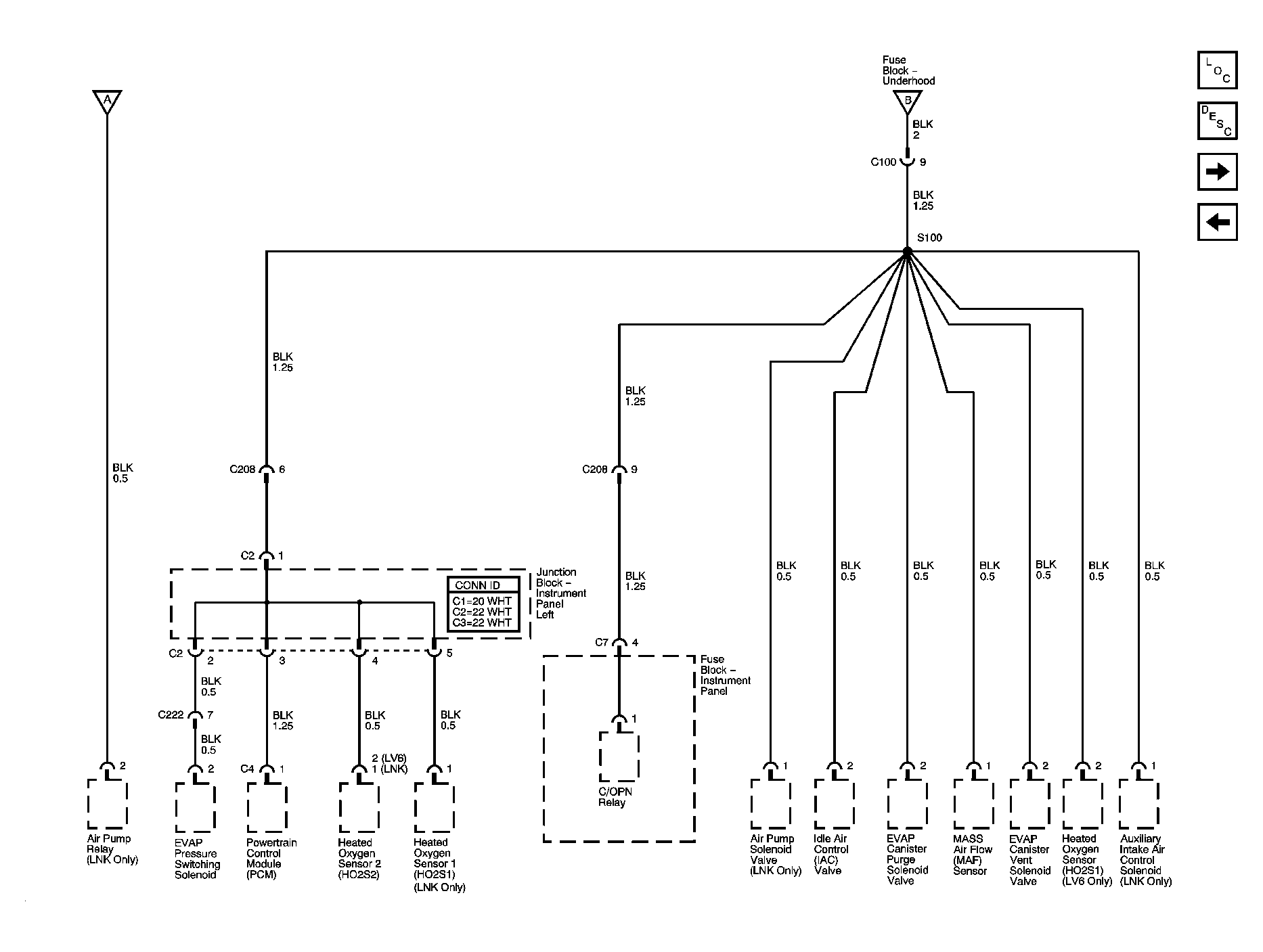

Fig 2: S 100 Schematic

Courtesy of GENERAL MOTORS CORP.

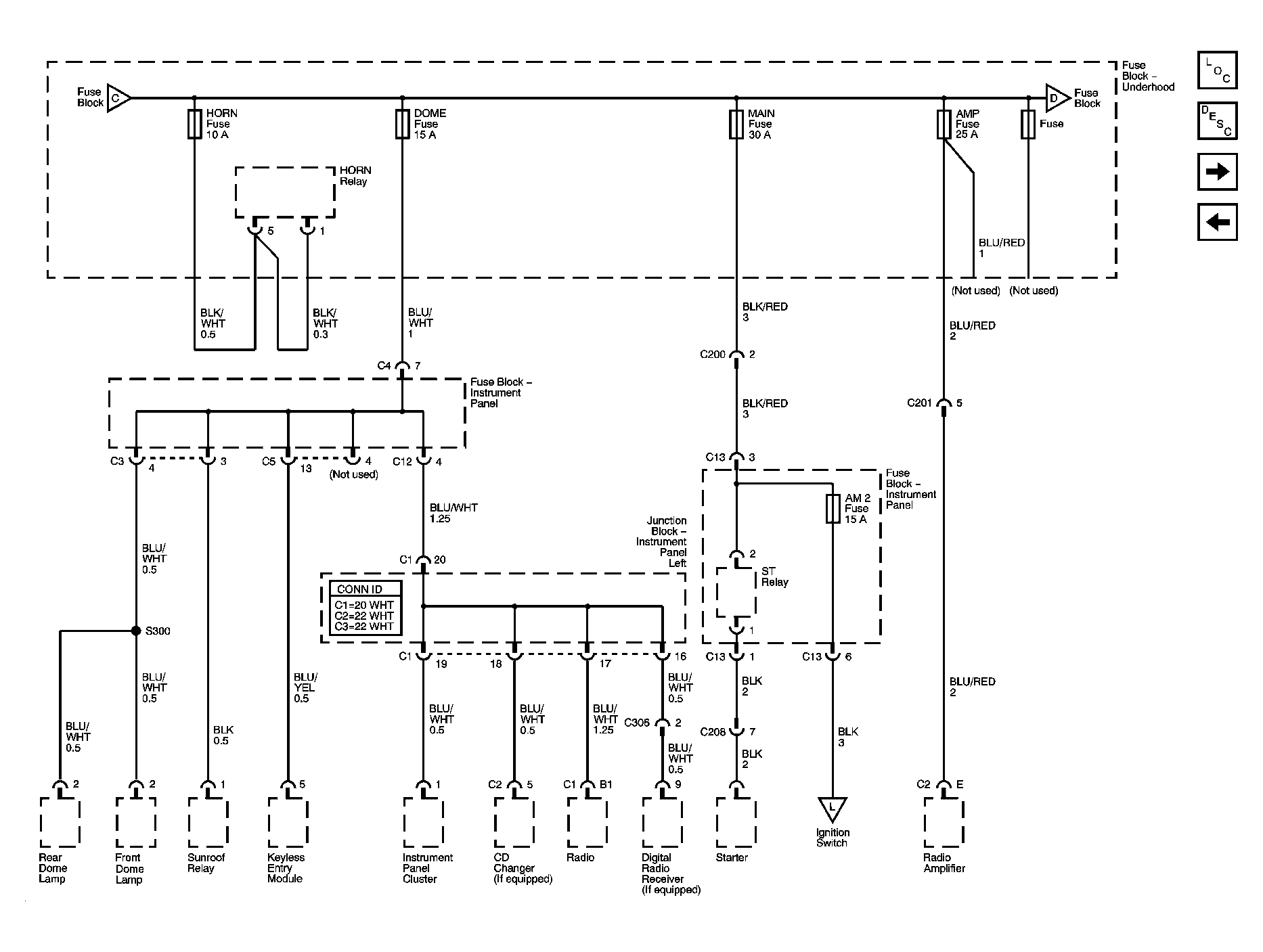

Fig 3: Horn, Dome, Main, Amp Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: Alt, ABS 2, RDI, ABS 1, Fog Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

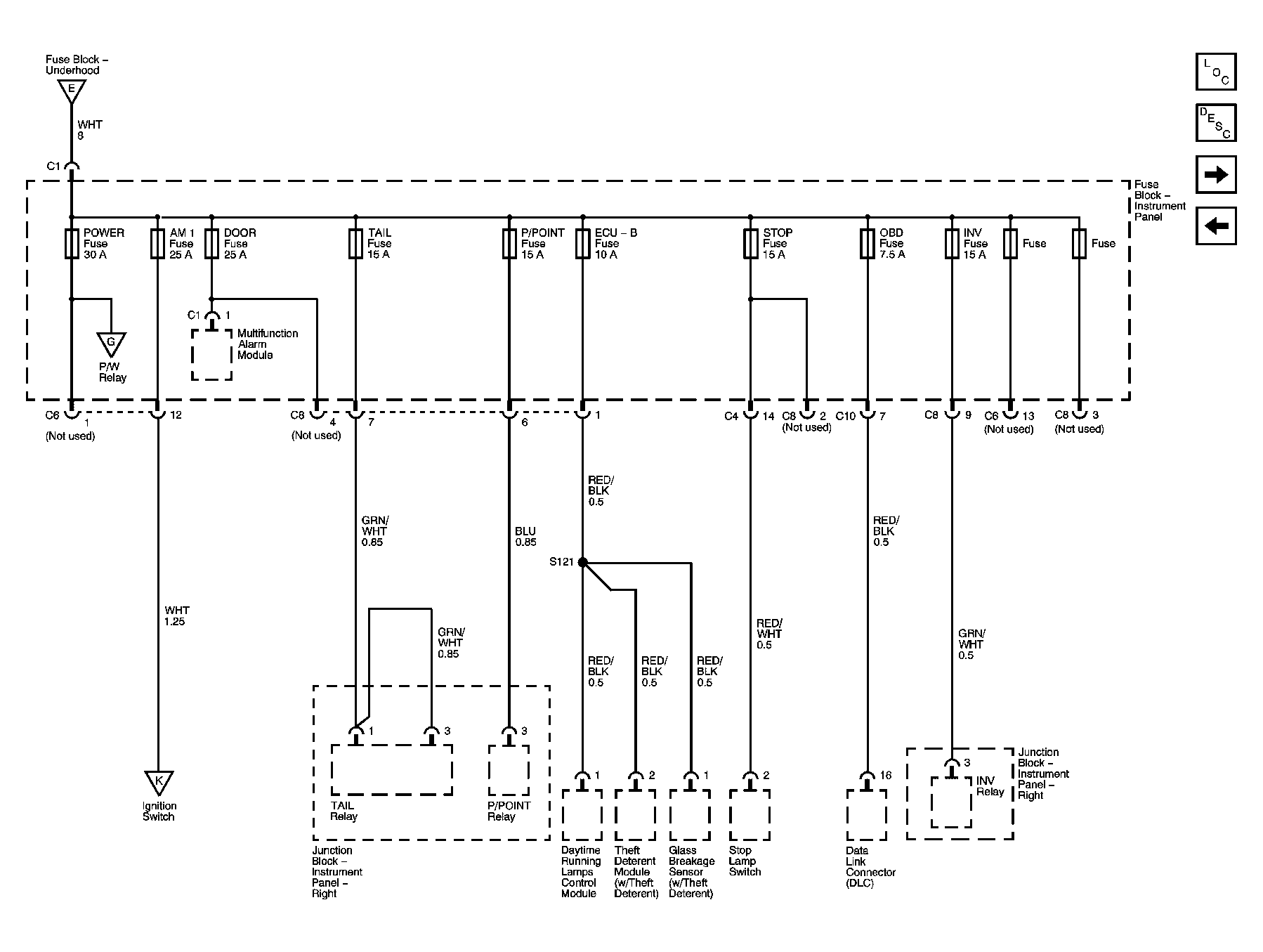

Fig 5: Power, AM 1, Door, Tail, P/Point, ECU-B, Stop OBD, INV Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

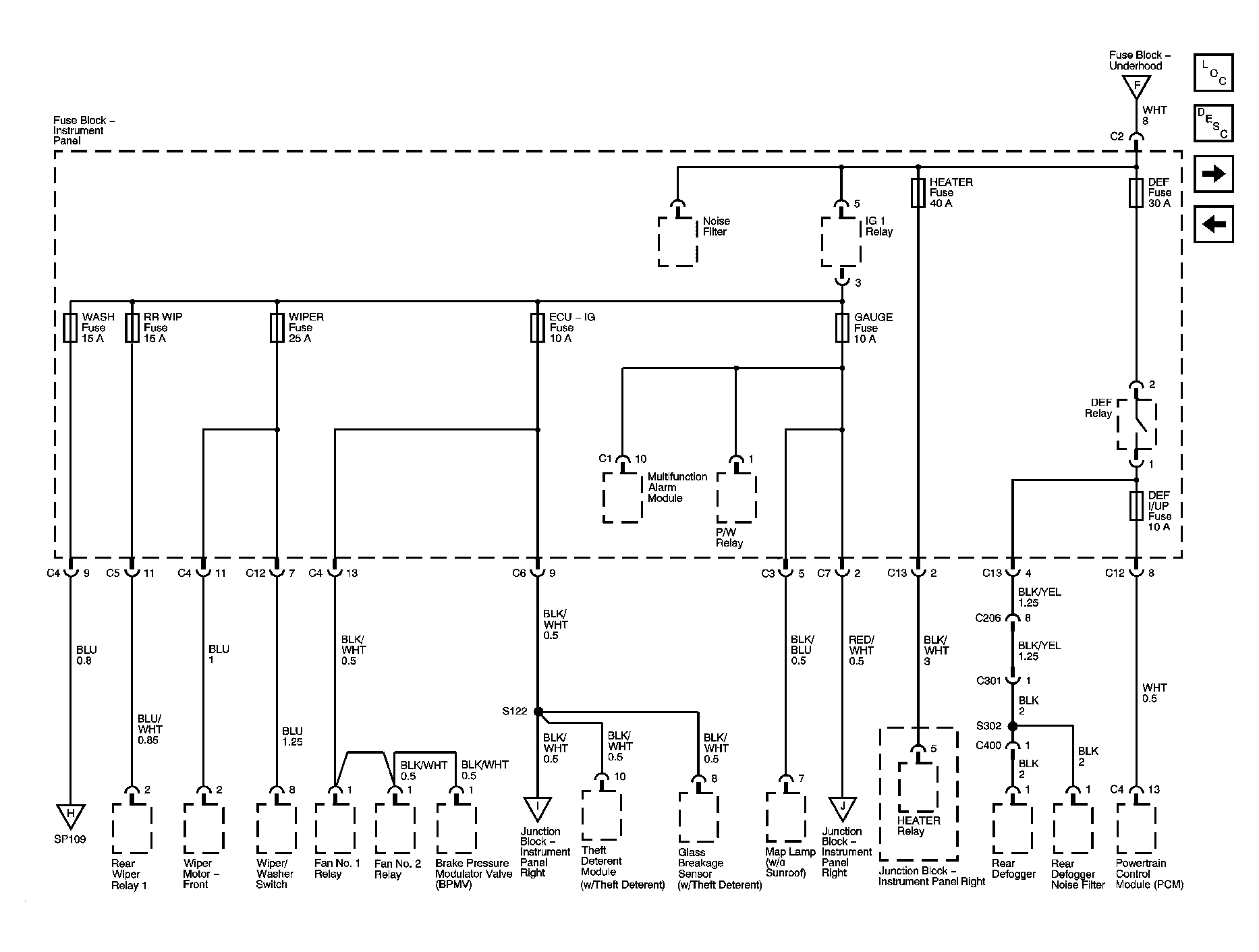

Fig 6: Wash, RR Wip, Wiper, ECU-IG, Gauge, Def Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

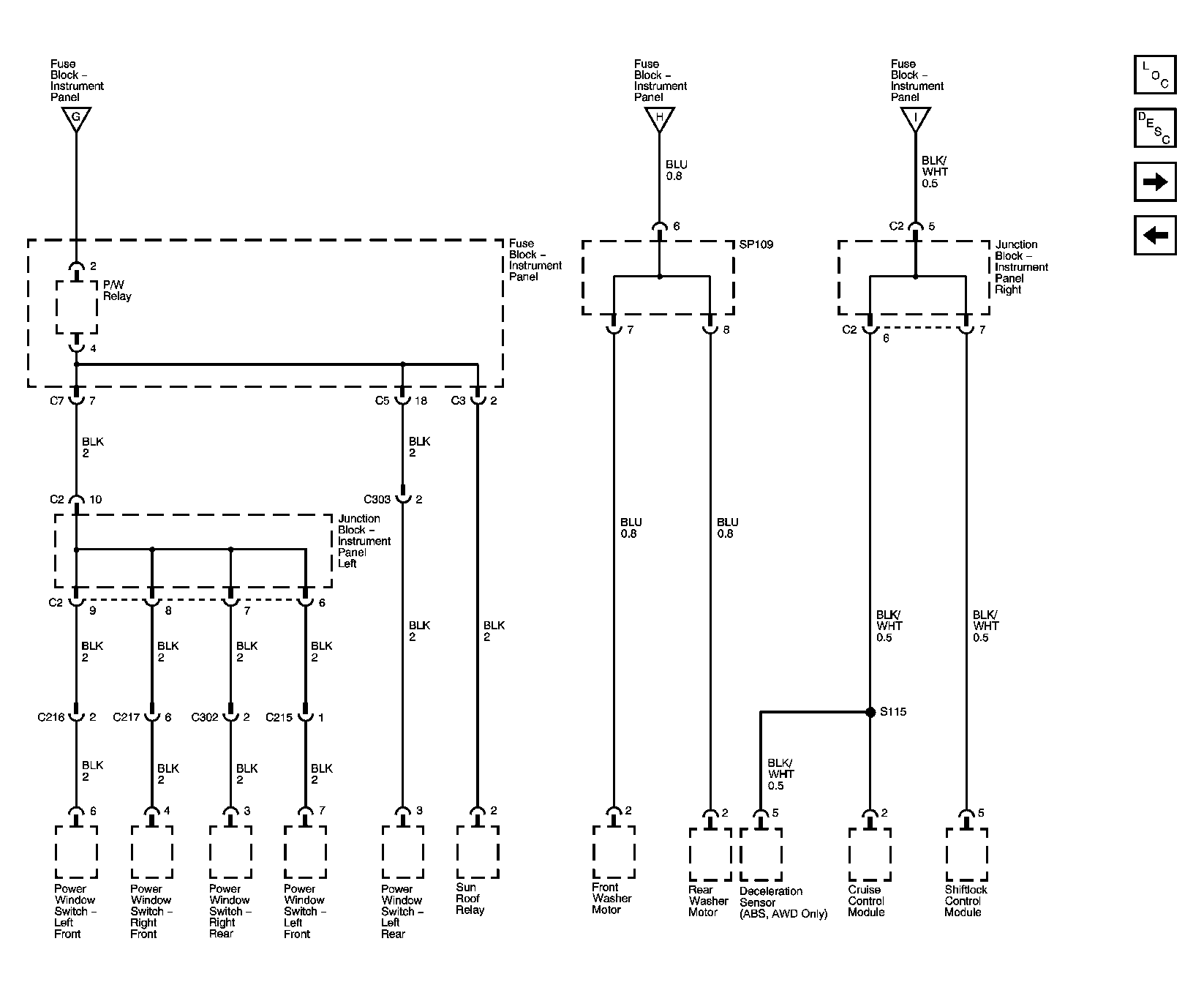

Fig 7: SP 109 Schematic

Courtesy of GENERAL MOTORS CORP.

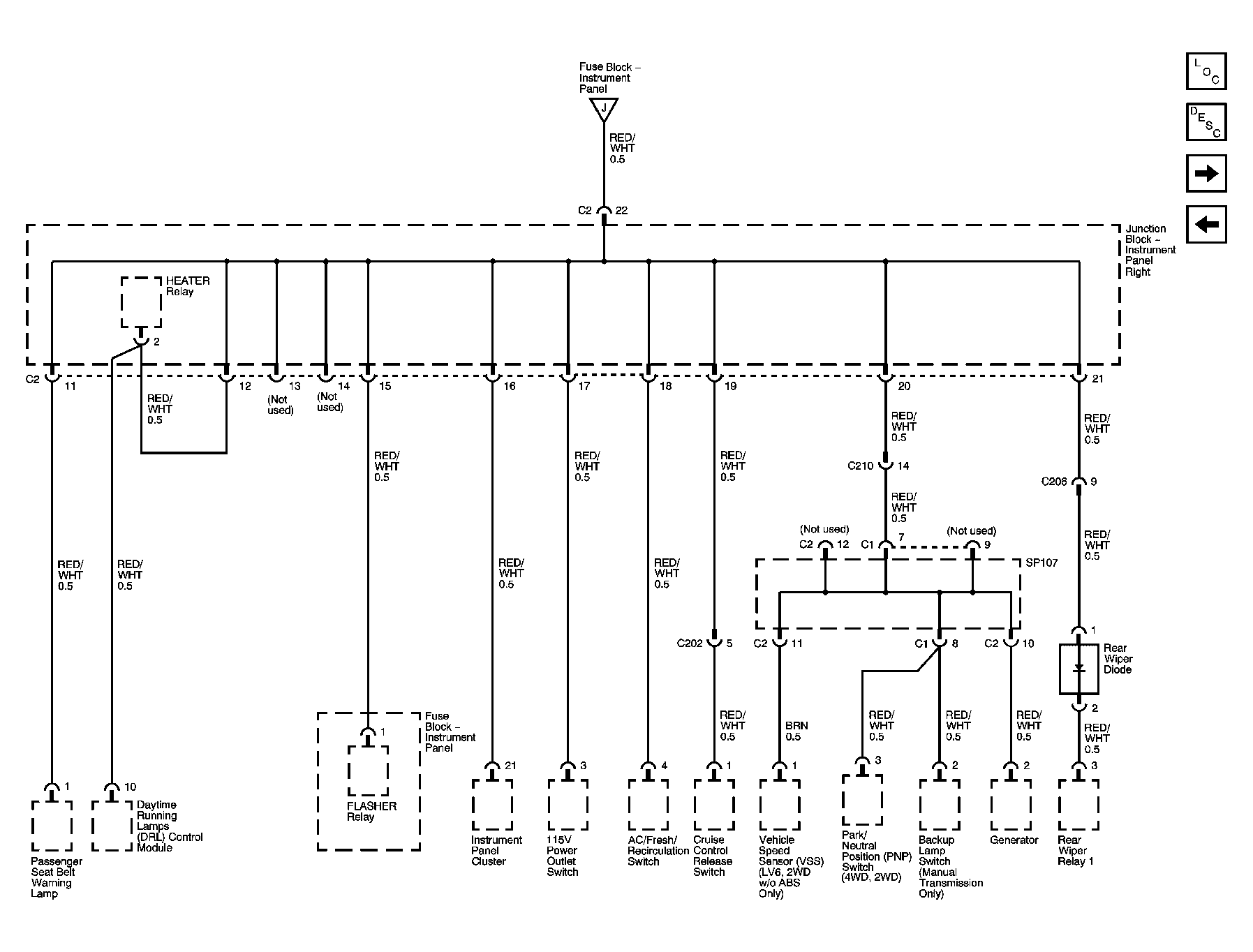

Fig 8: Junction Block - Instrument Panel Right Schematic

Courtesy of GENERAL MOTORS CORP.

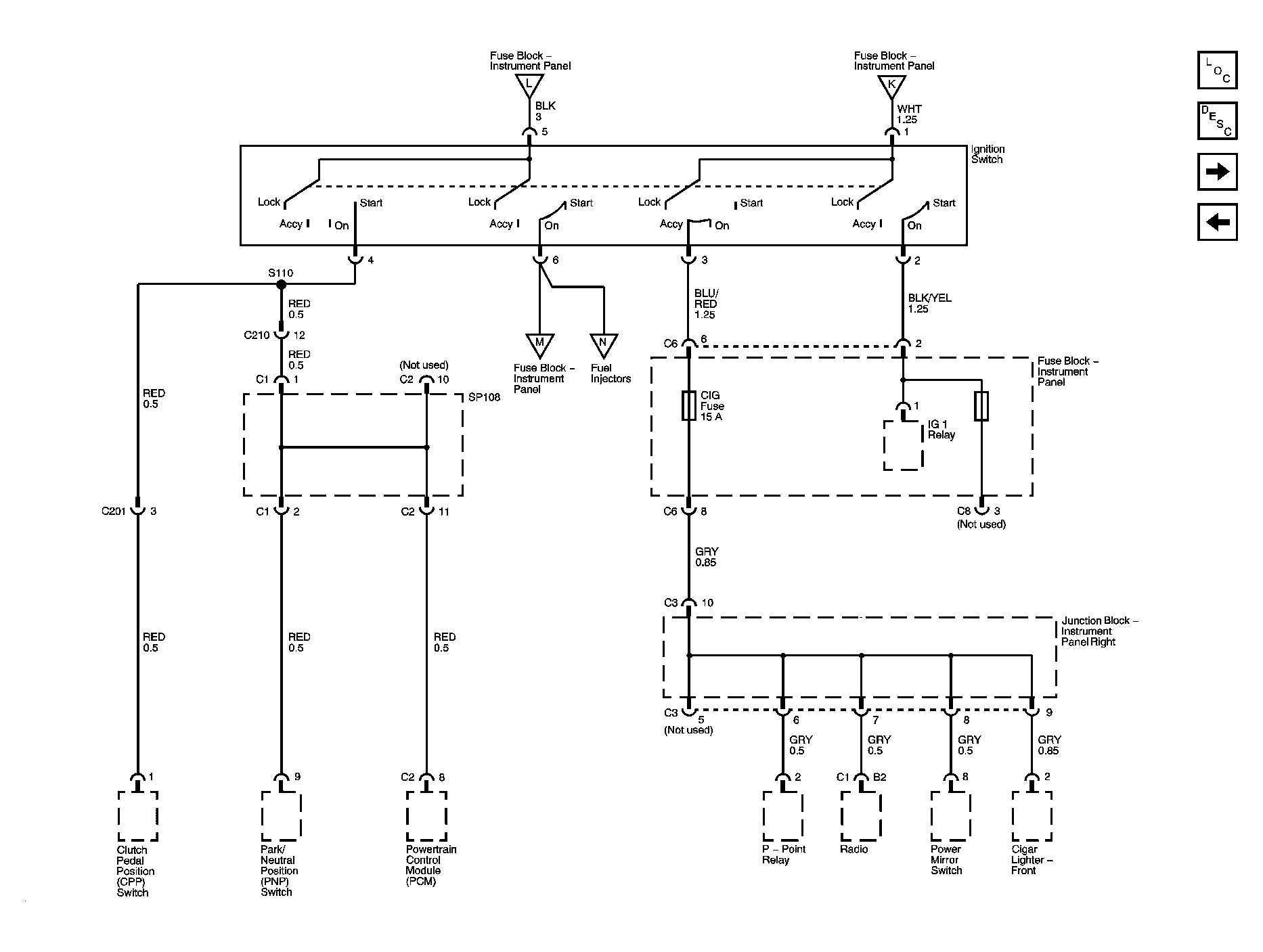

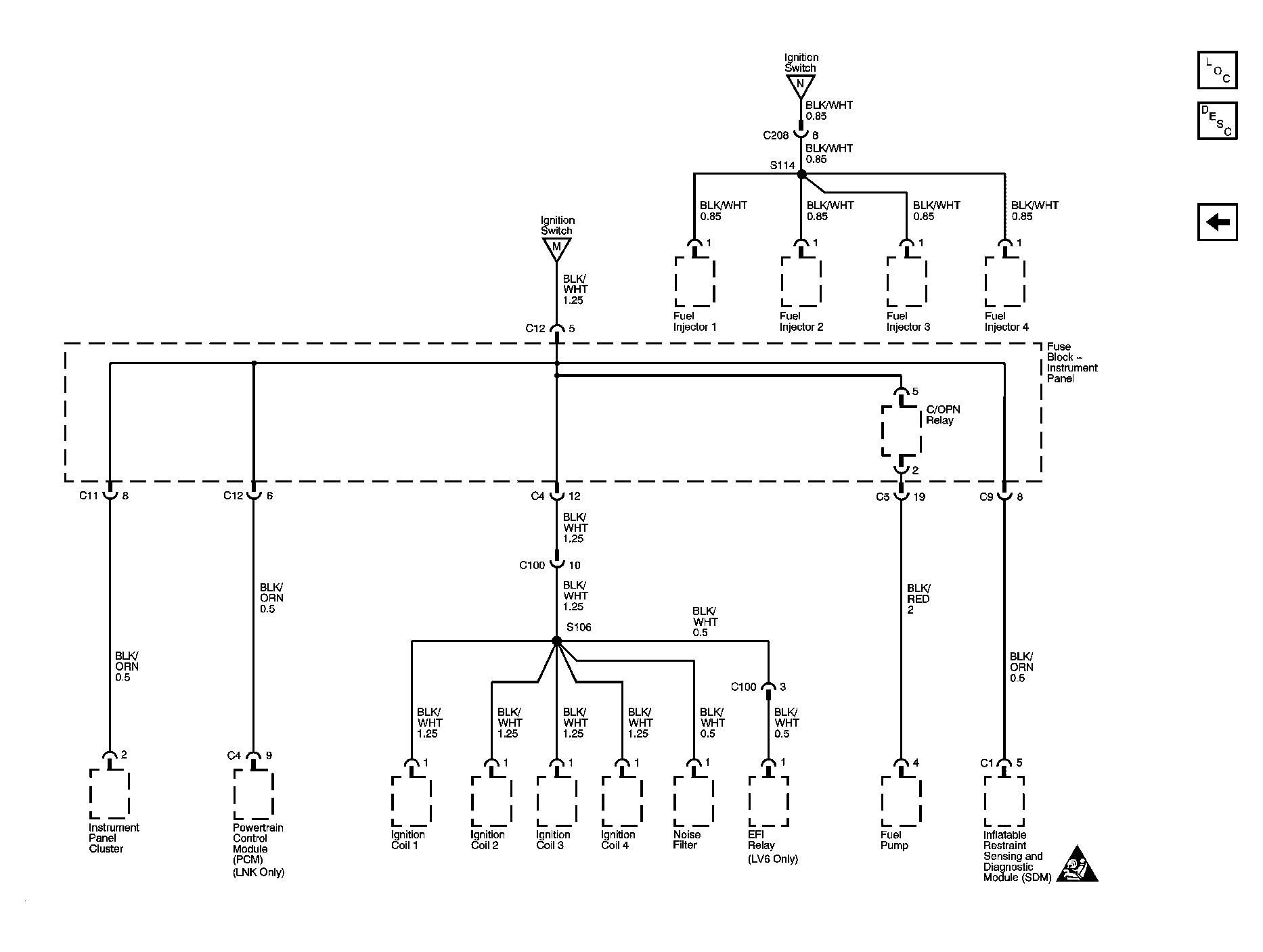

Fig 9: Ignition Switch Schematic (1 of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 10: Ignition Switch Schematic - 2 of 2

Courtesy of GENERAL MOTORS CORP.
