Removal Procedure
- Remove the upper quarter trim panel. Refer to Trim Panel Replacement - Rear Quarter Upper in Interior Trim.
- Cover to protect the following parts from broken glass:
- Upper dash pad
- Defroster outlets and A/C outlets
- Seats and carpeting
- This will allow the urethane adhesive to be separated from the window.
- Leave a base of urethane on the pinch-weld flange.
- The only suitable lubrication is clear water.
- UseJ 24402-A ,. See Special Tools and Equipment .J 39032 or equivalent in order to remove the window. See Special Tools and Equipment .

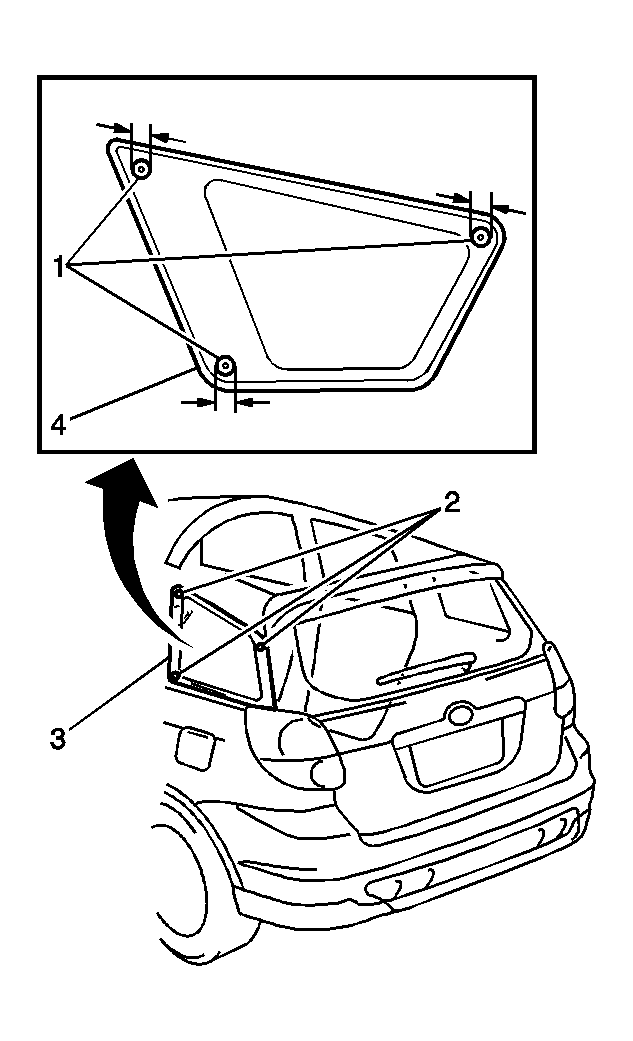

- Gently unseat the quarter window retainer-male ends (1) on the window (4) from the quarter window retainer-female ends (2) on the body.
- Use suction cups in order to lift the quarter window (4) from the opening.
CAUTION:
If a window is cracked but still intact, crisscross the window with masking tape in order to reduce the risk of damage or personal injury.
CAUTION:
If broken glass falls into the defroster outlets, it can be blown into the passenger compartment and cause personal injury.
IMPORTANT:
Before cutting out a quarter window, apply a double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
CAUTION:
Refer to Glass and Sheet Metal Handling Caution in Cautions and Notices.
IMPORTANT:
Keep the cutting edge of the tool against the window.
