Installation Procedure

  1. Install the starter.

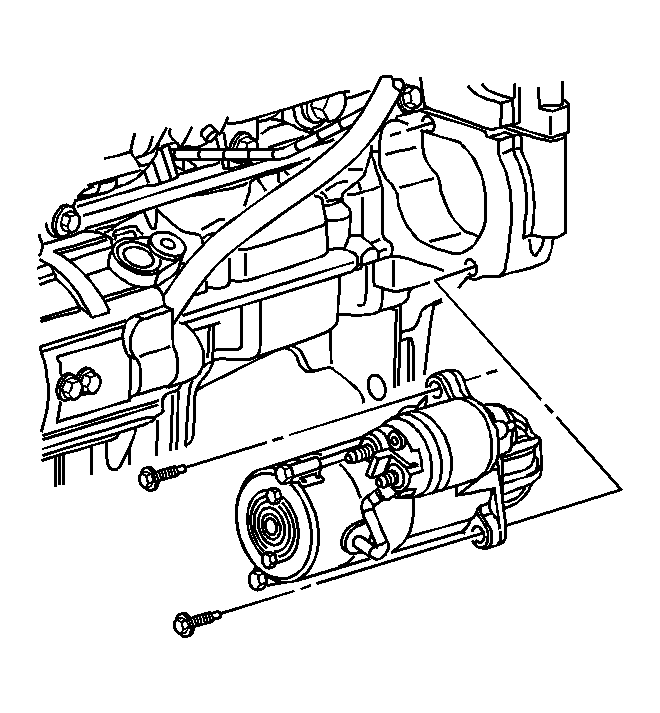

    Fig 1: View Of Starter
    GM758470Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the starter bolts.

    Tighten:  Tighten the starter bolts to 40 N.m (30 lb ft).

  3. Connect the electrical connectors (4) to the starter.

    Tighten:  Tighten the battery terminal nut to 17 N.m (13 lb ft).

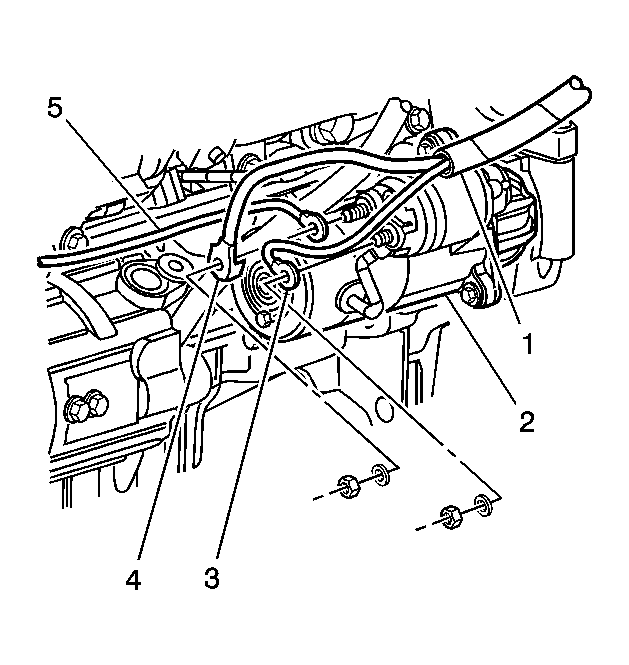

    Fig 2: Identifying Starter Electrical Connectors
    GM758469Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connectors (3) to the starter.

    Tighten:  Tighten the S terminal nut to 3 N.m (27 lb in).

  5. Lower the vehicle.
  6. Connect the negative battery cable.
