ABS Schematics

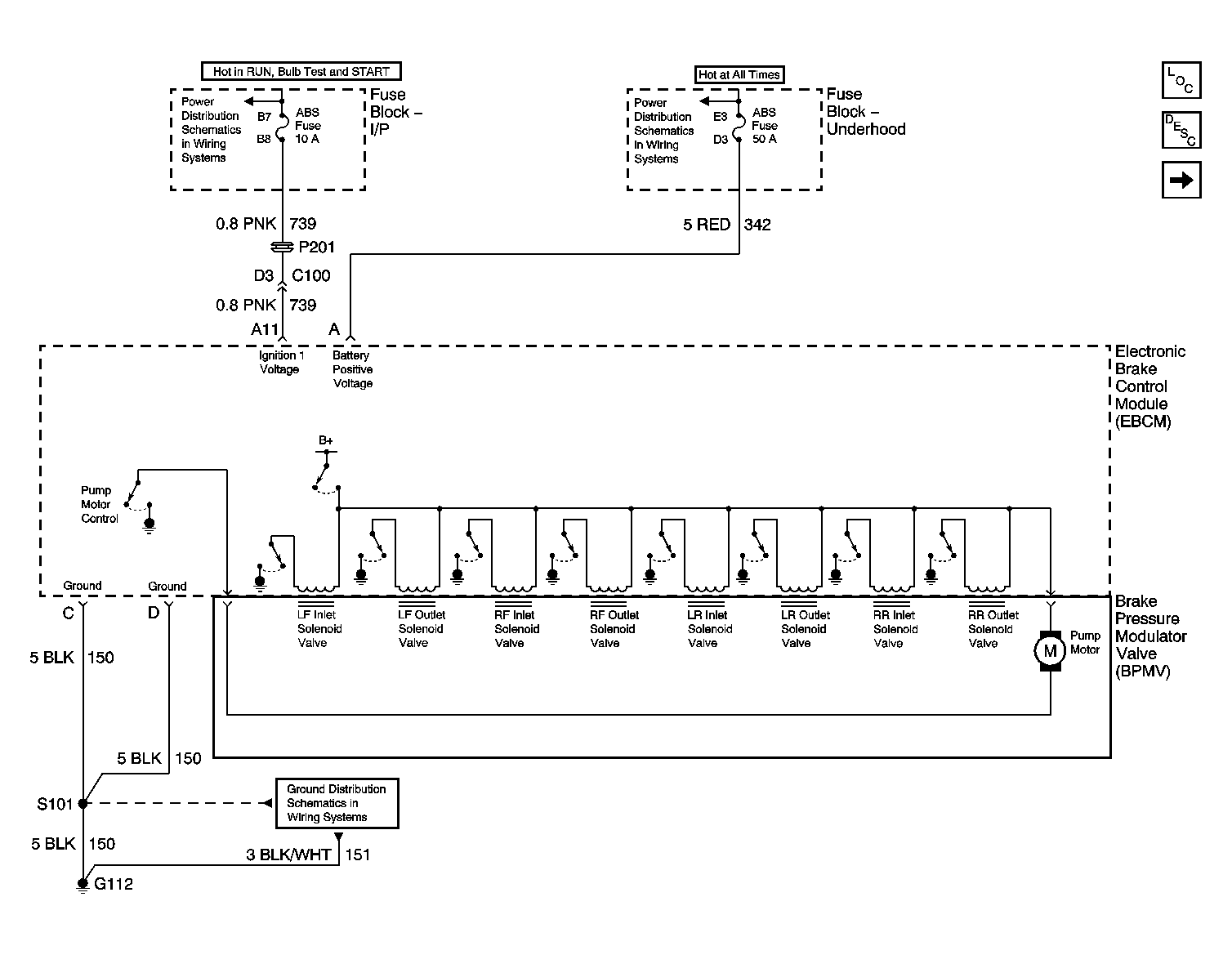

Fig 1: Module Power & Ground Schematic
GM787953Courtesy of GENERAL MOTORS CORP.

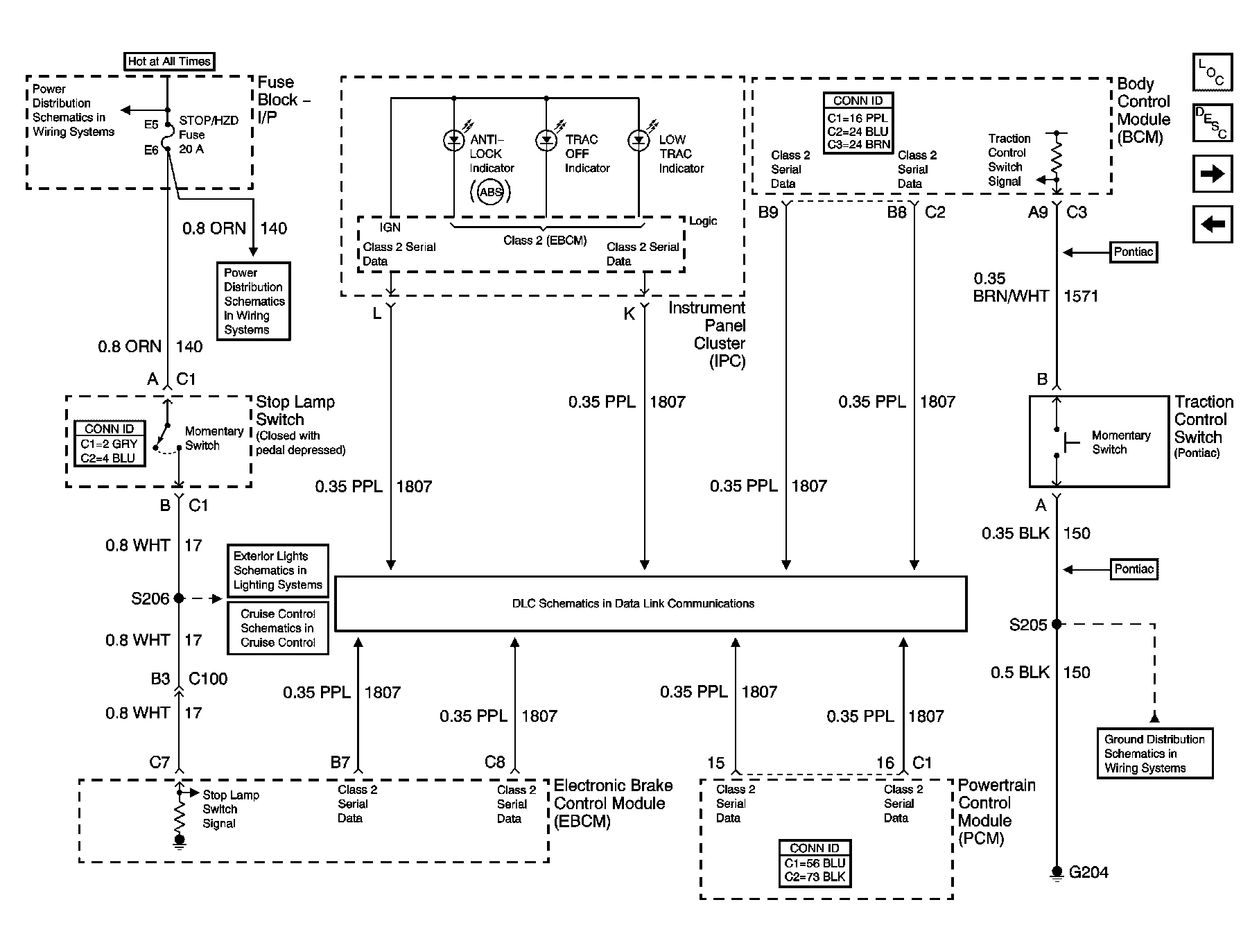

Fig 2: Indicators & Switches Schematic
GM860380Courtesy of GENERAL MOTORS CORP.

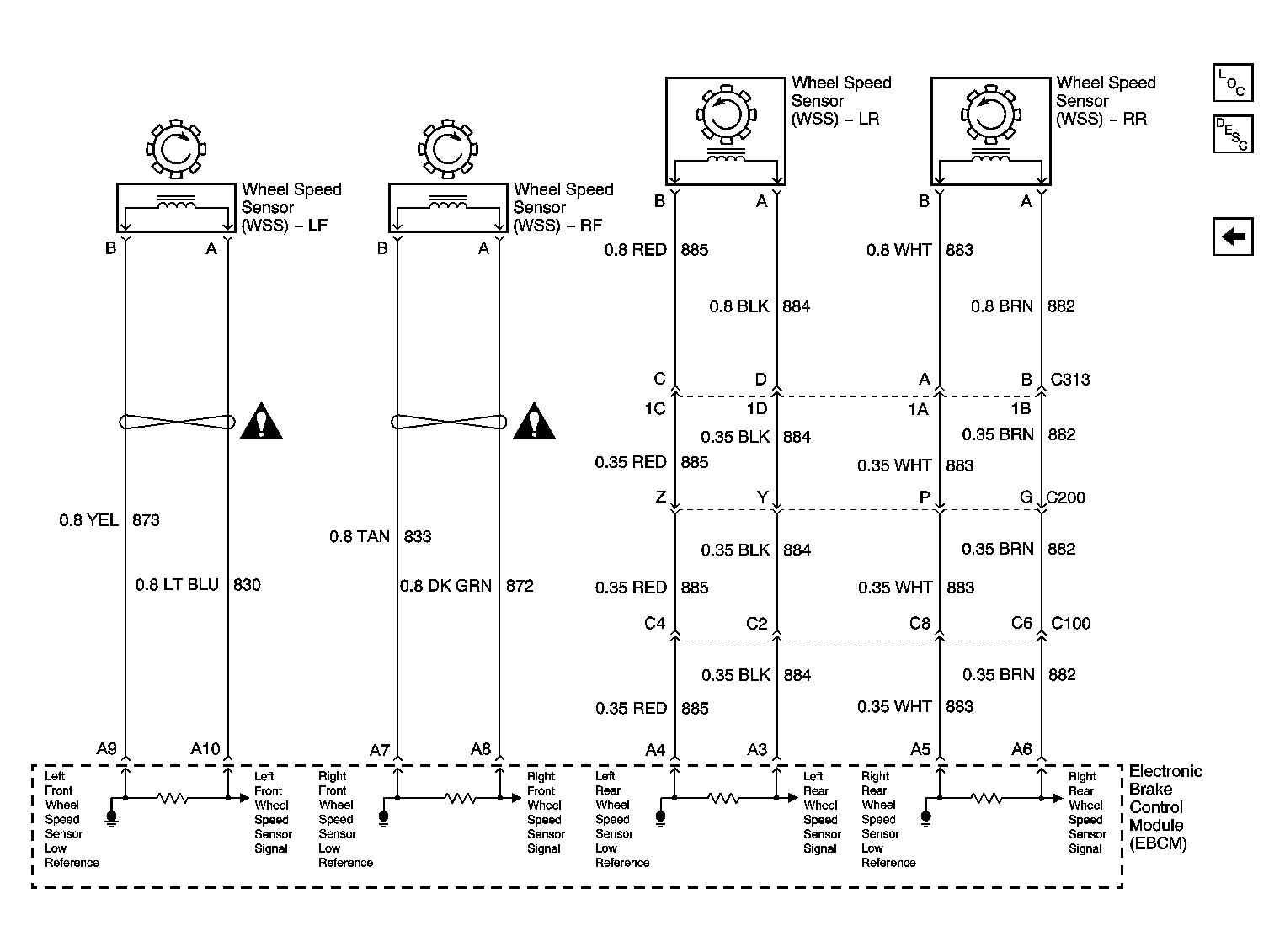

Fig 3: Wheel Speed Sensors Schematic
GM787955Courtesy of GENERAL MOTORS CORP.
