Installation Procedure

  1. Connect the connector to the sunroof control switch.
  2. Firmly push the sunroof control switch into the headlining module in order to secure the sunroof control switch.

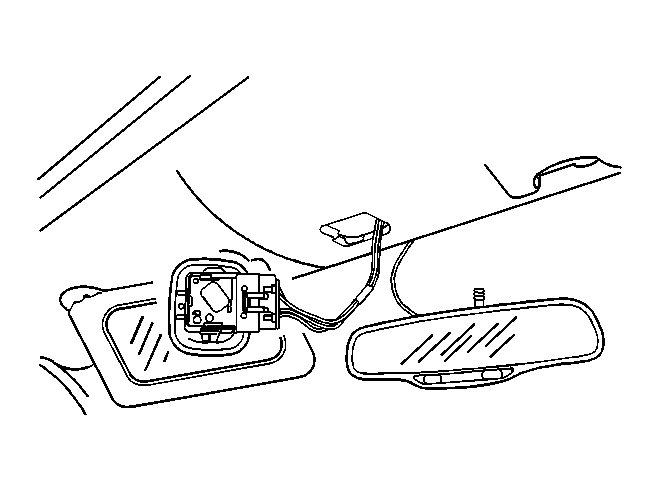

    Fig 1: Connecting Sunroof Control Switch
    GM736989Courtesy of GENERAL MOTORS CORP.
