Power Distribution Schematics

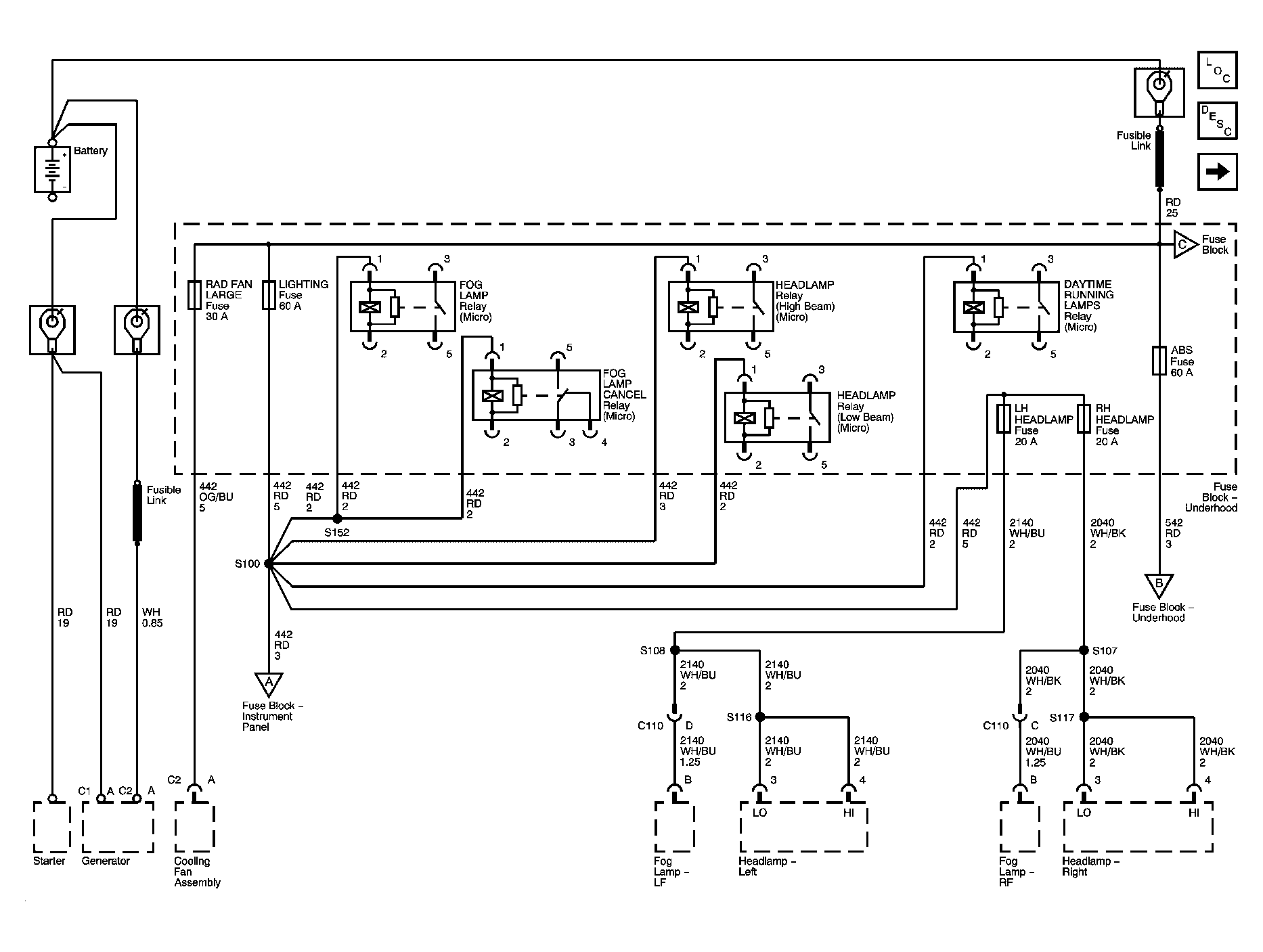

Fig 1: Battery, Rad Fan Large, Lighting, ABS Fuses

Courtesy of GENERAL MOTORS CORP.

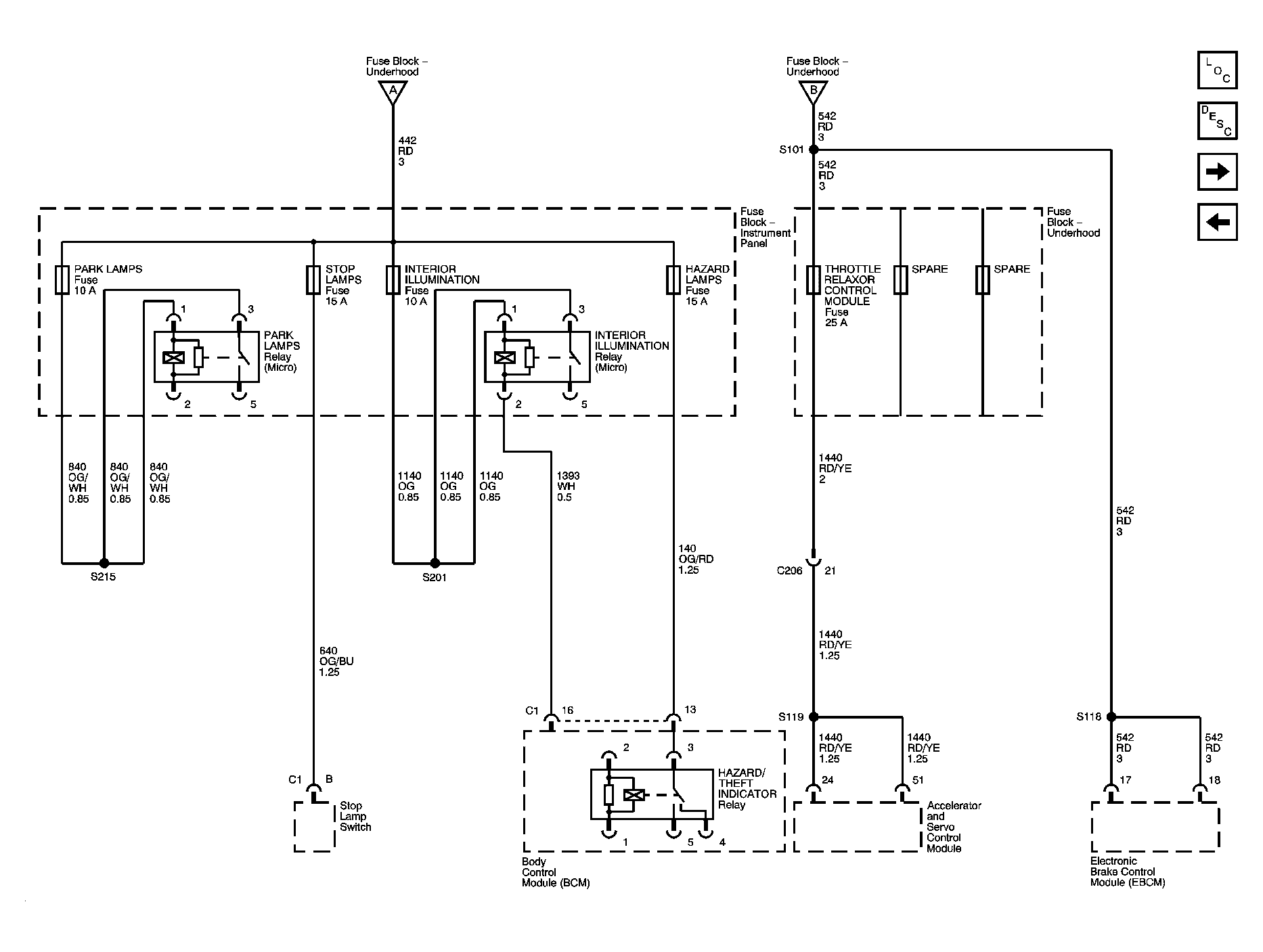

Fig 2: Park Lamps, Stop Lamps, Interior Illumination, Hazard Lamps, Throttle Relaxer Control Fuses

Courtesy of GENERAL MOTORS CORP.

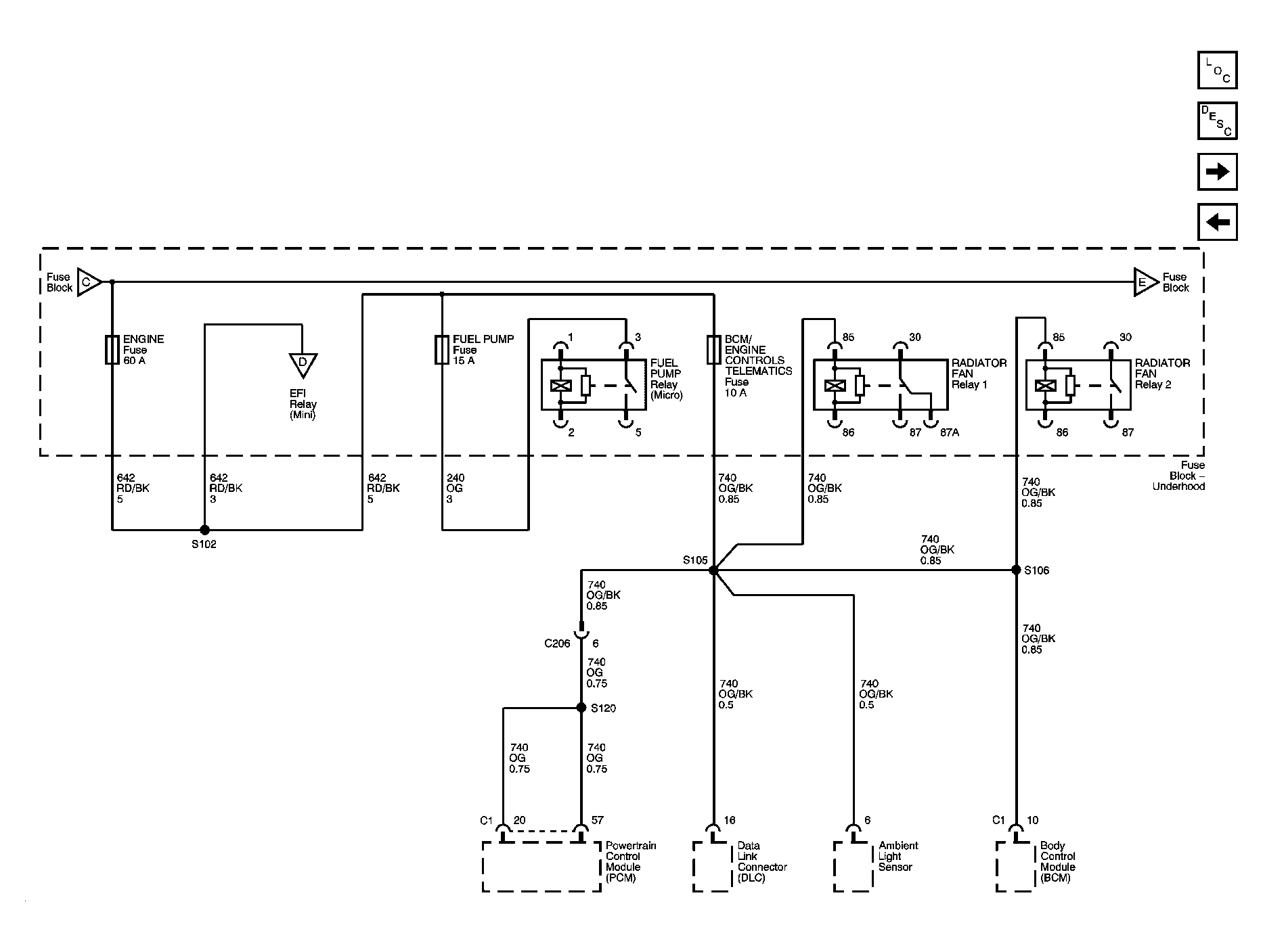

Fig 3: Engine, Fuel Pump, Bcm/Engine Control Telematics Fuses

Courtesy of GENERAL MOTORS CORP.

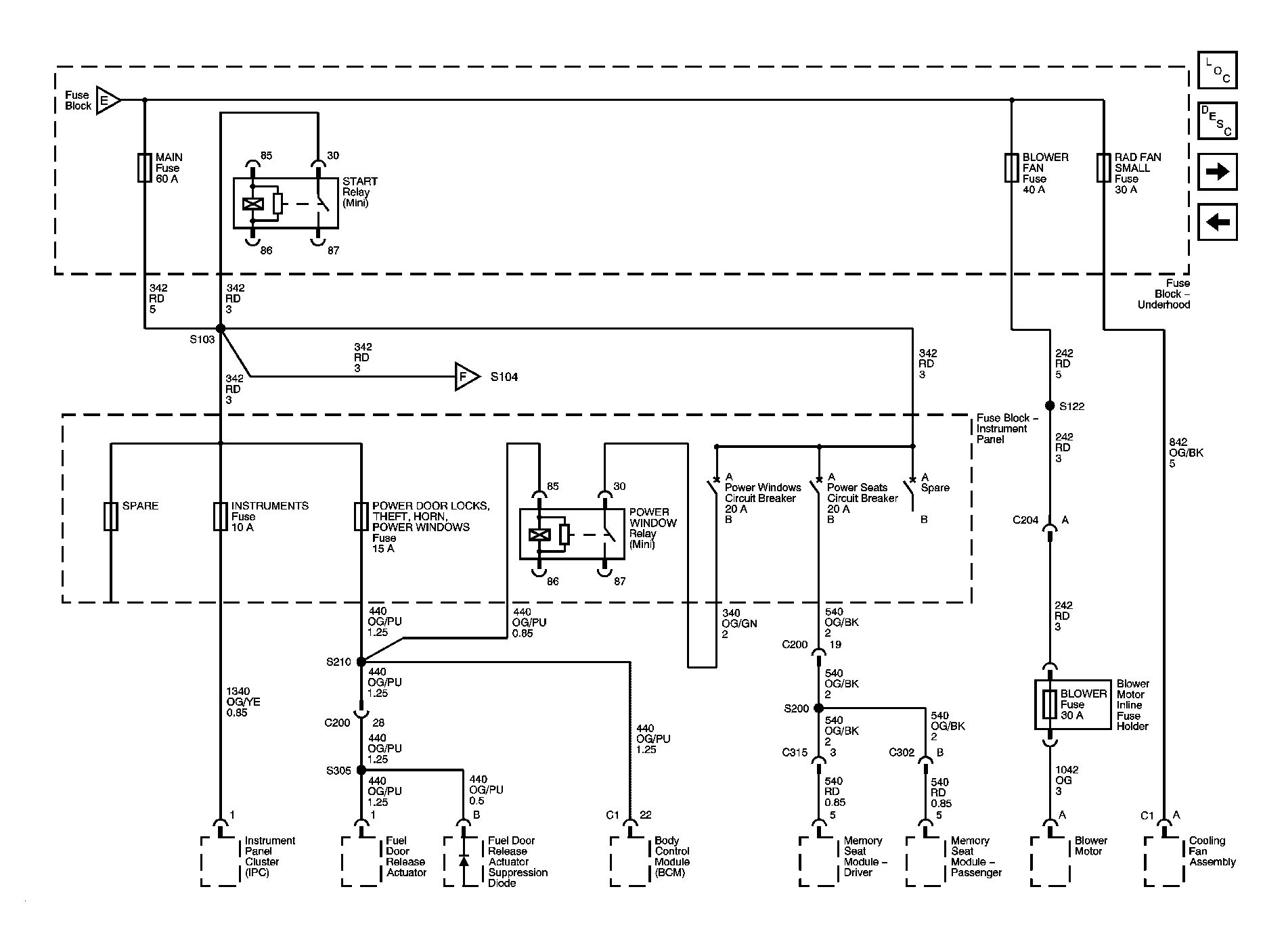

Fig 4: Main, Blower Fan, Rad Fan Small, Instruments, Power Door Locks, Theft, Horn, Power Windows Fuses

Courtesy of GENERAL MOTORS CORP.

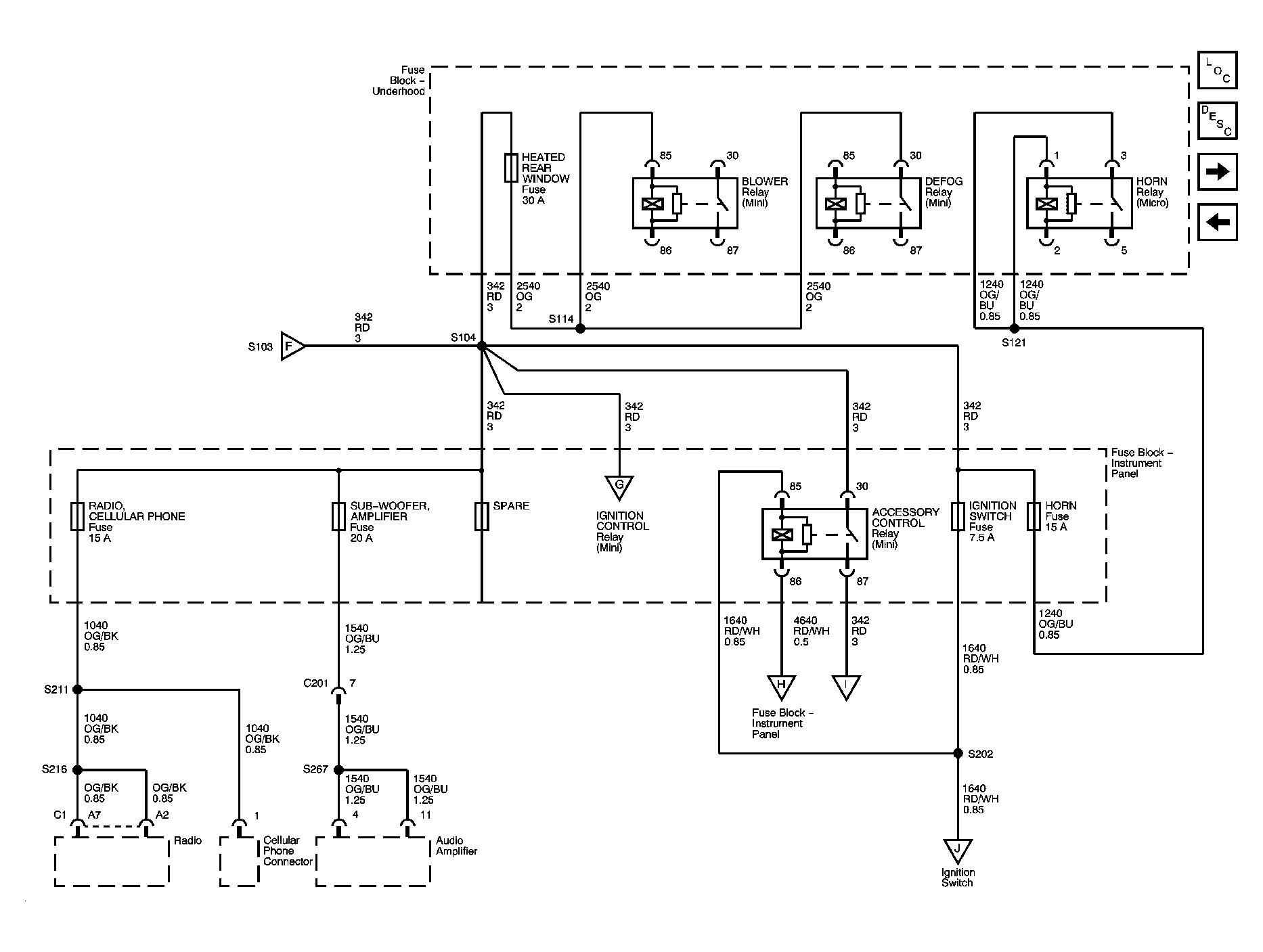

Fig 5: Heated Rear Window, Radio, Cellular Phone, Sub-Woofer, Amplifier, Ignition Switch, Horn Fuses

Courtesy of GENERAL MOTORS CORP.

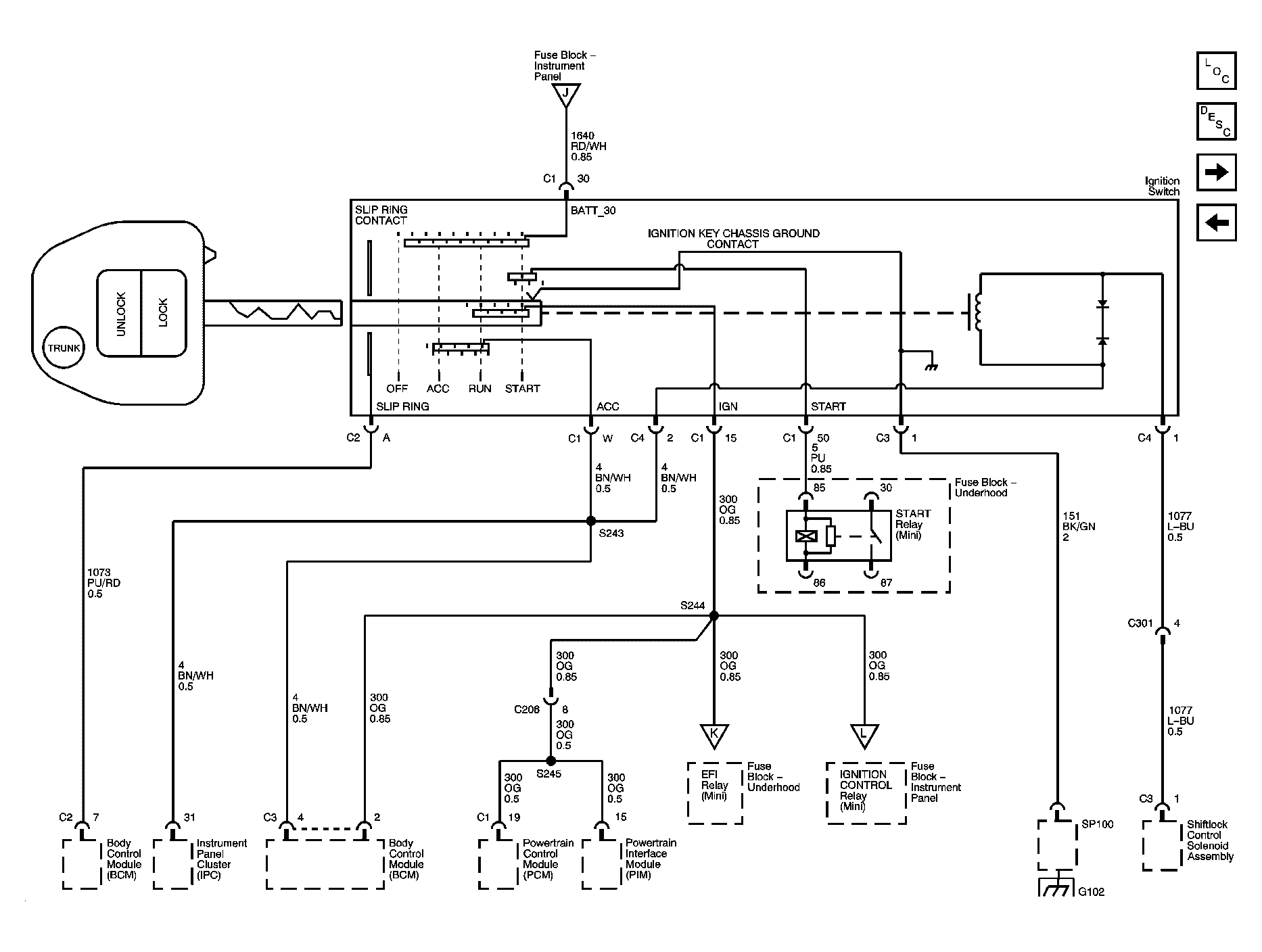

Fig 6: Ignition Switch

Courtesy of GENERAL MOTORS CORP.

Fig 7: Accessory Control Relay, Radio Cellular Phone, Acc Socket, Front Washer And Wiper Fuses

Courtesy of GENERAL MOTORS CORP.

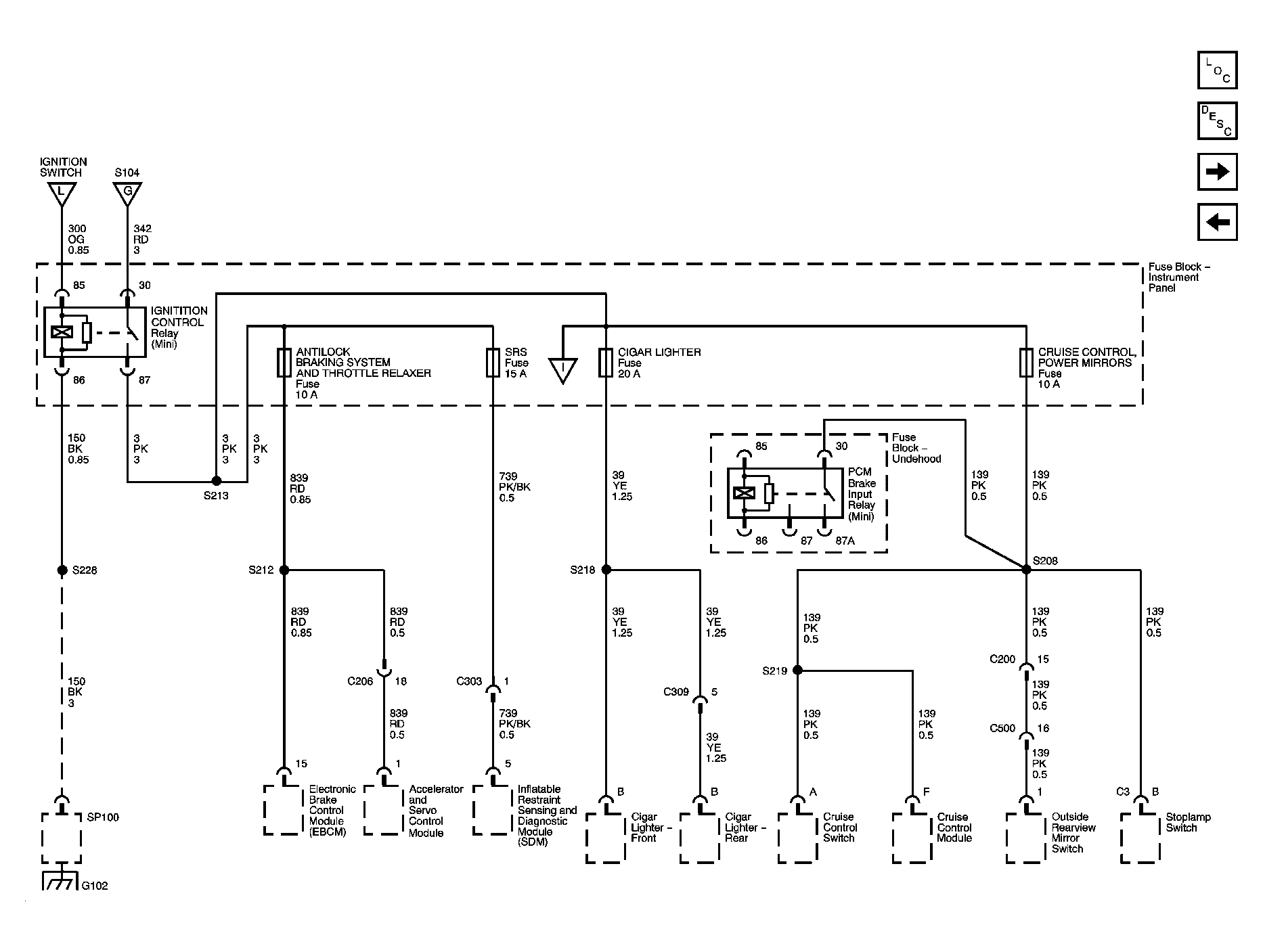

Fig 8: Ignition Control Relay, ABS And Throttle Relaxer, Srs, Cigar Lighter, Cruise Control, Power Mirror Fuses

Courtesy of GENERAL MOTORS CORP.

Fig 9: Turn Signals, Heated Rear Window, Hvac, And Instruments Fuses

Courtesy of GENERAL MOTORS CORP.

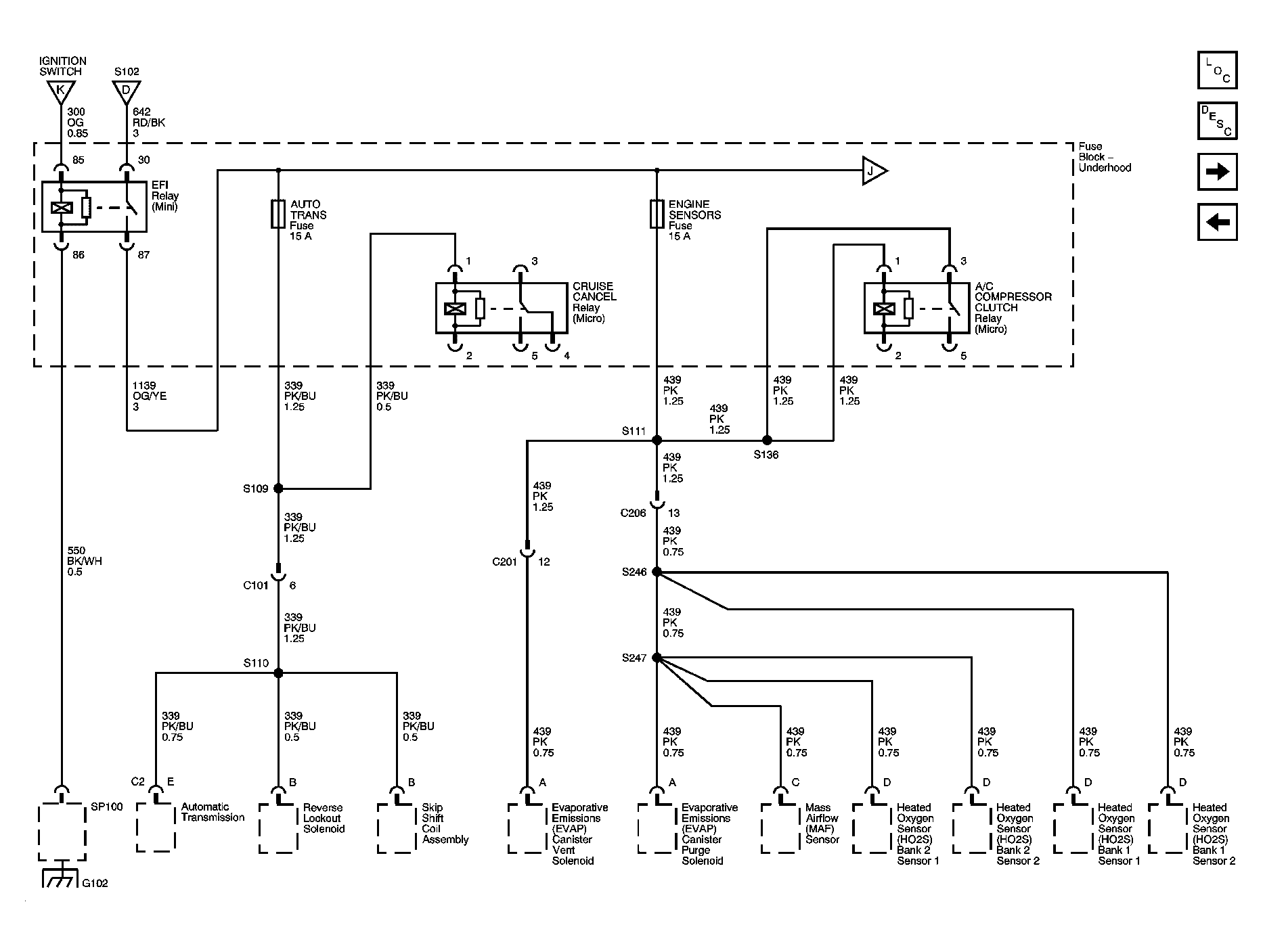

Fig 10: Efi Relay, Auto Trans, Engine Sensors Fuses

Courtesy of GENERAL MOTORS CORP.

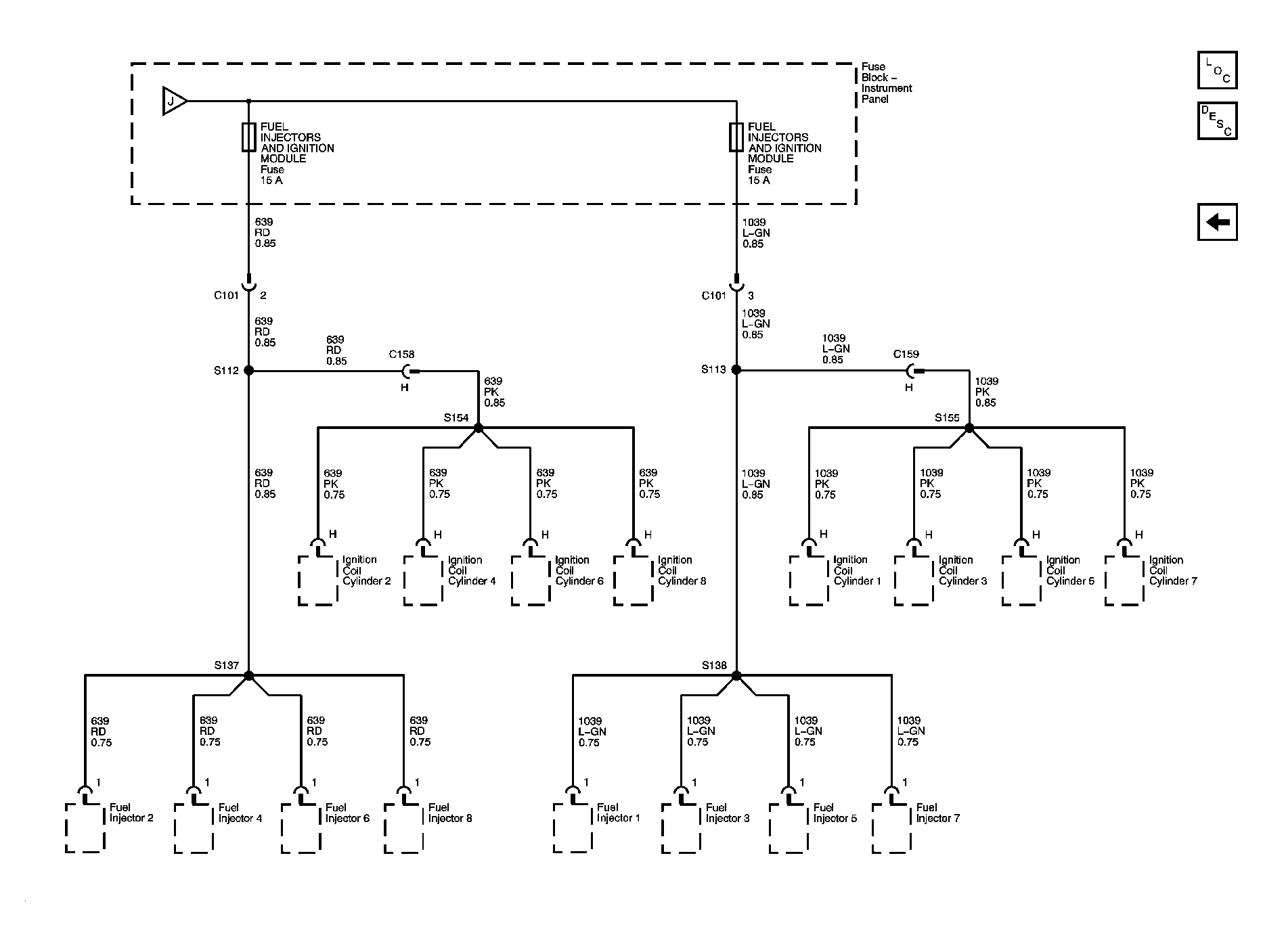

Fig 11: Fuel Injectors And Ignition Module Fuses

Courtesy of GENERAL MOTORS CORP.
