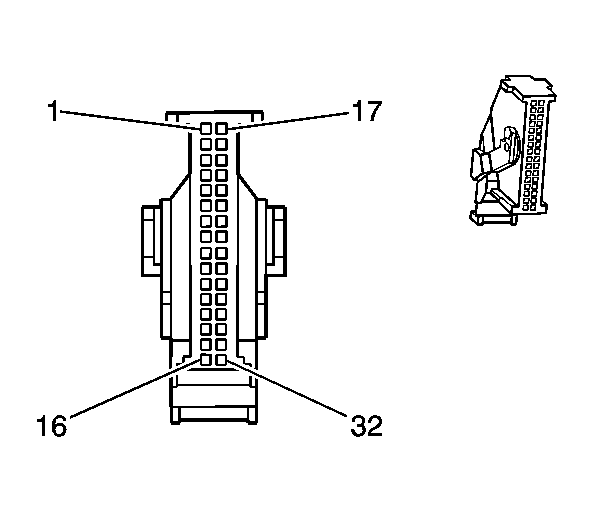

Instrument Panel Cluster (IPC) Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		9123-8265-30 32-Way Female (BK)
Pin	Wire Color	Circuit No.	Function
1	OG/BK	1340	Battery Positive Voltage
2	BN/WH	32	Instrument Panel Lamps Fuse Supply Voltage
3	GN	875	ABS Indicator Control
4	BN/WH	419	MIL Control
5	L-GN/BK	592	DRL Relay Control
6	GN/WH	1061	UART Serial Data (Secondary)
7-8	-	-	Not Used
9	OG	192	Fog Lamps Switch Signal
10	-	-	Not Used
11	BU	1315	Right Front Turn Signal Lamp Supply Voltage
12	BU/YE	1969	Headlamp/High Beam Relay Control
13	L-BU	1314	Left Front Turn Signal Lamp Supply Voltage
14	L-BU	264	Security Indicator Lamp Supply Voltage
15	OG	238	Seat Belt Switch - Left
16	-	-	Not Used
17	BK/YE	251	Ground
18	-	-	Not Used
19	BN	897	DIC Switch Low Reference
20	OG/YE	1340	Battery Positive Voltage
21	GY	85	Cruise Control Engaged Signal
22	WH	396	Cruise Control Engaged Signal
23	-	-	Not Used
24	YE/RD	832	Traction Control Active Signal
25	BN	25	Charge Indicator Control
26	PU/WH	5197	Cruise Control I/P Speed Signal
27	BN/RD	121	Engine Speed Signal
28	BU/BK	894	DIC Toggle Switch Signal
29	-	-	Not Used
30	BN/OG	33	Brake Warning Indicator Control
31	BN/WH	4	Accessory Voltage
32	GY/WH	746	Right Front Door Ajar Switch Signal
