ABS Schematics

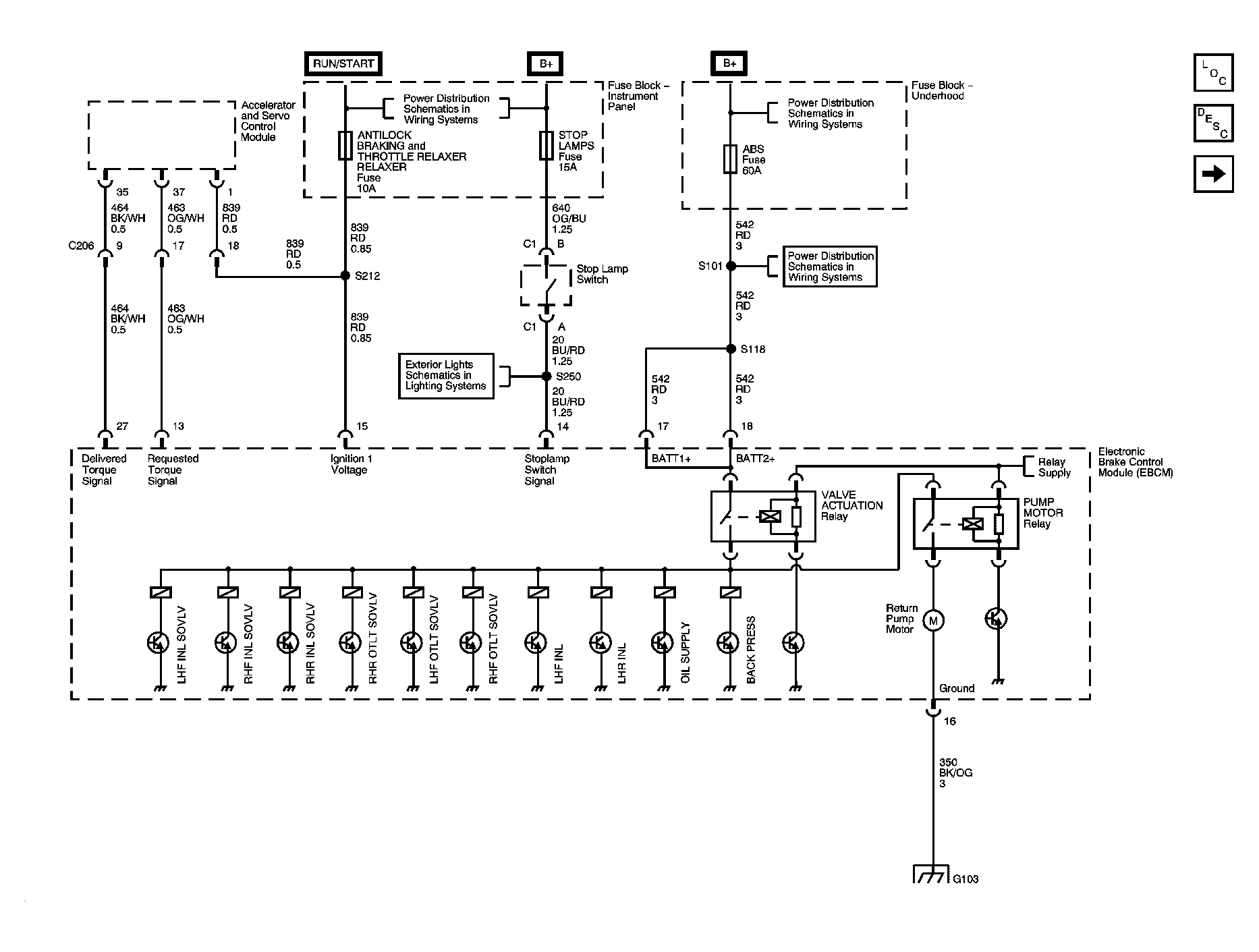

Fig 1: Electronic Brake Control Module (EBCM) Power & Ground, Accelerator & Servo Control Module Schematics
GM1351810Courtesy of GENERAL MOTORS CORP.
Fig 2: Throttle Relaxer System Schematics
GM1349838Courtesy of GENERAL MOTORS CORP.

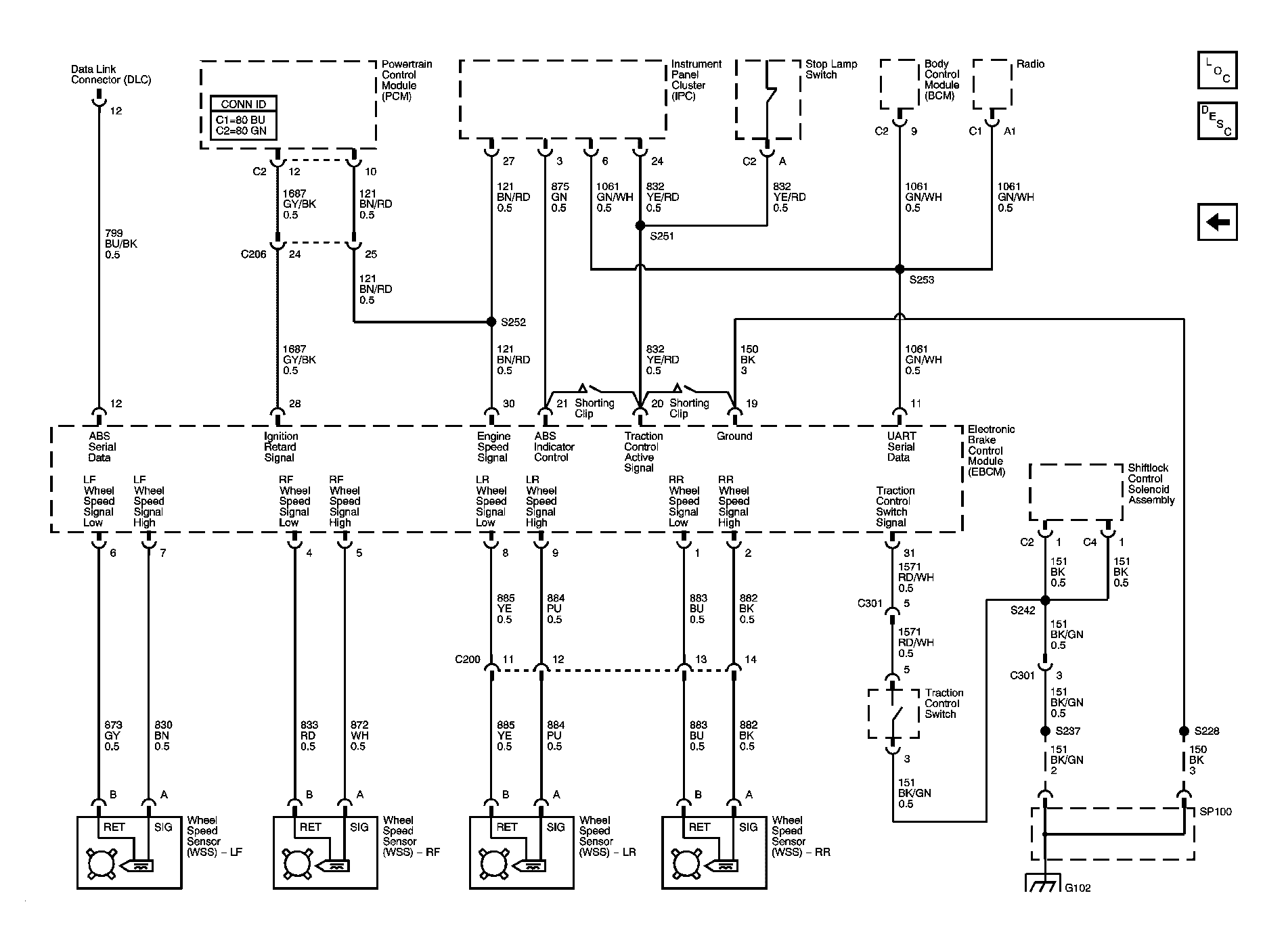

Fig 3: Electronic Brake Control Module (EBCM), Wheel Speed Sensors, DLC, ABS Indicator Schematics
GM1351891Courtesy of GENERAL MOTORS CORP.
