Automatic Transmission Shift Lock Control Schematics

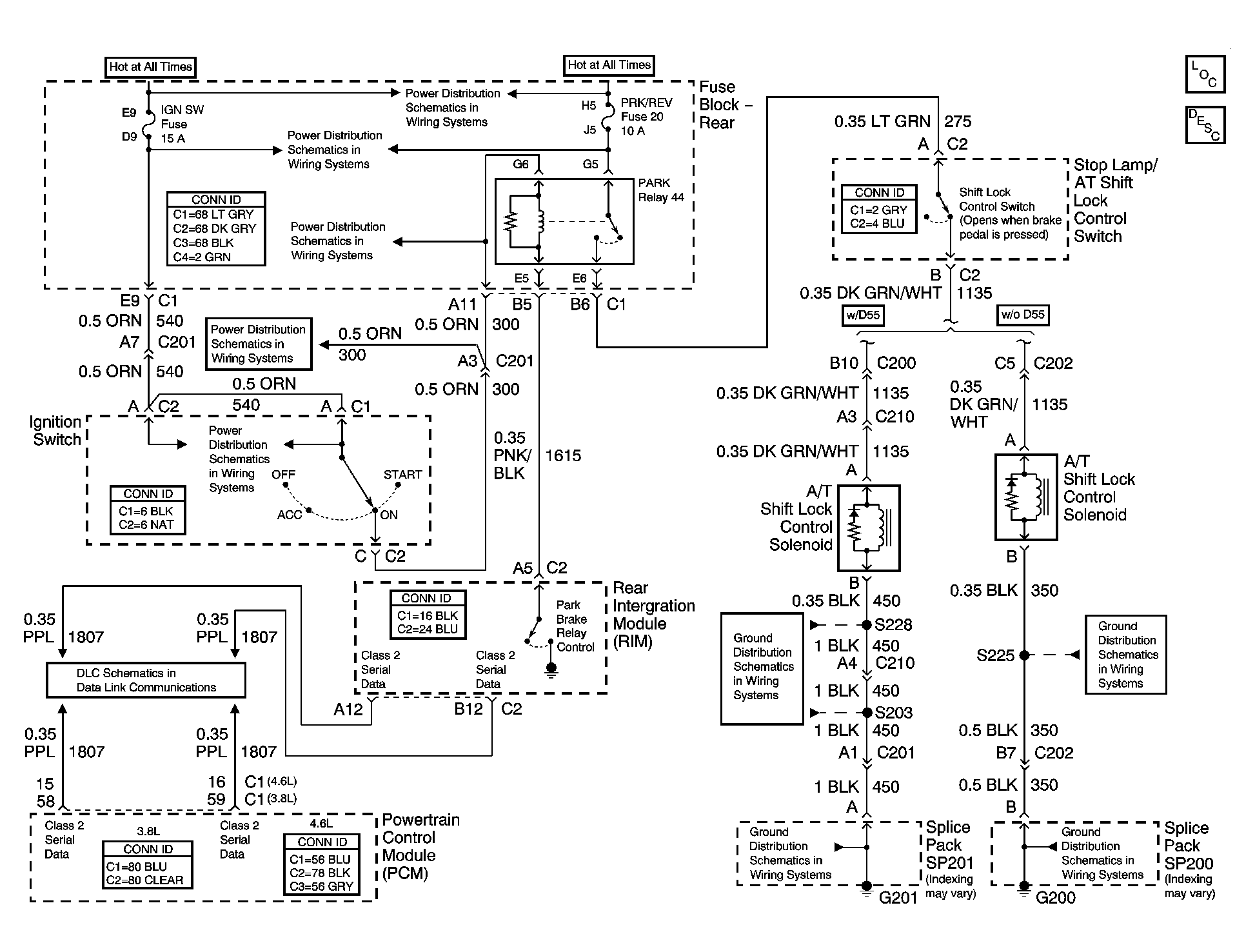

Fig 1: Power, Ground, and Solenoid Schematic

GM1364563

Courtesy of GENERAL MOTORS CORP.
