Automatic Level Control Suspension Component Views

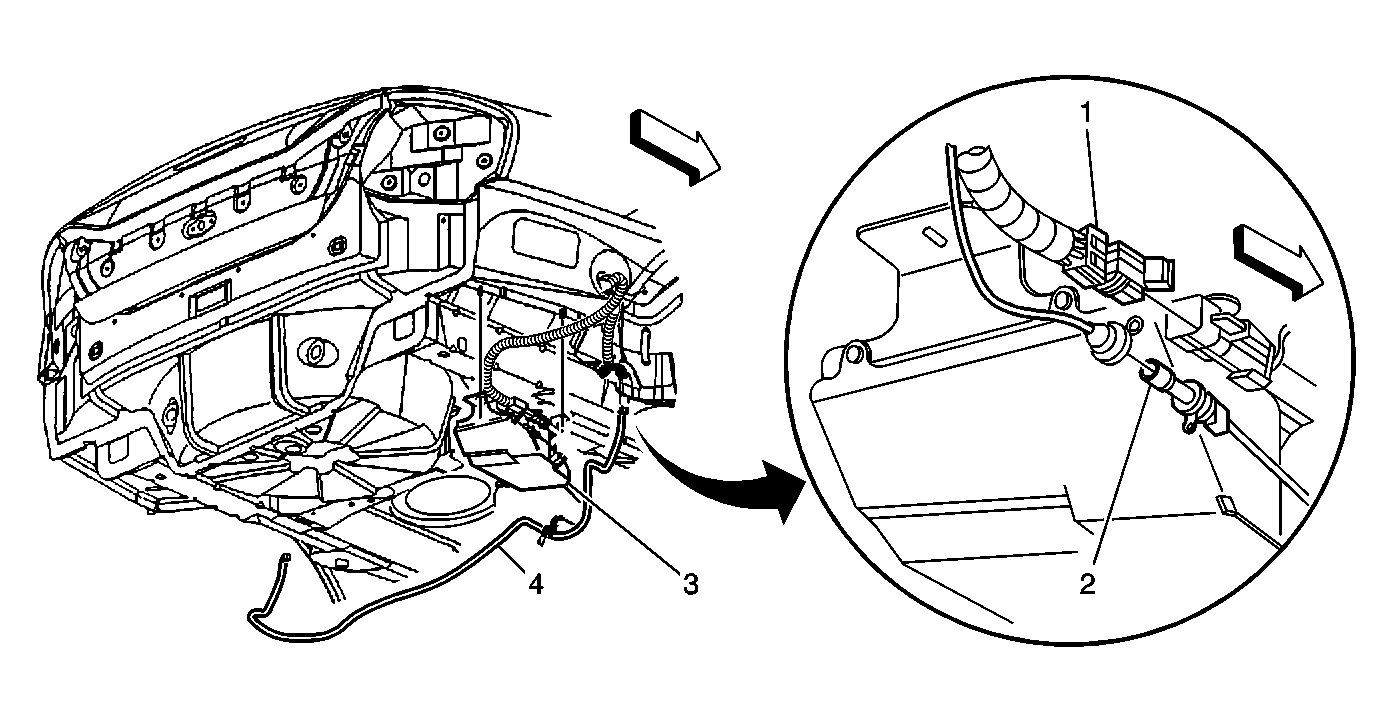

Fig 1: View Of Automatic Level Control Suspension Compressor & Air Tube Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Automatic Level Control (ALC) Harness
2	Air Fitting
3	Automatic Level Control (ALC) Compressor Assembly
4	Air Tube Assembly

Fig 2: Under Left Rear of Vehicle Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Automatic Level Control (ALC) Sensor
2	Suspension Position Sensor Link

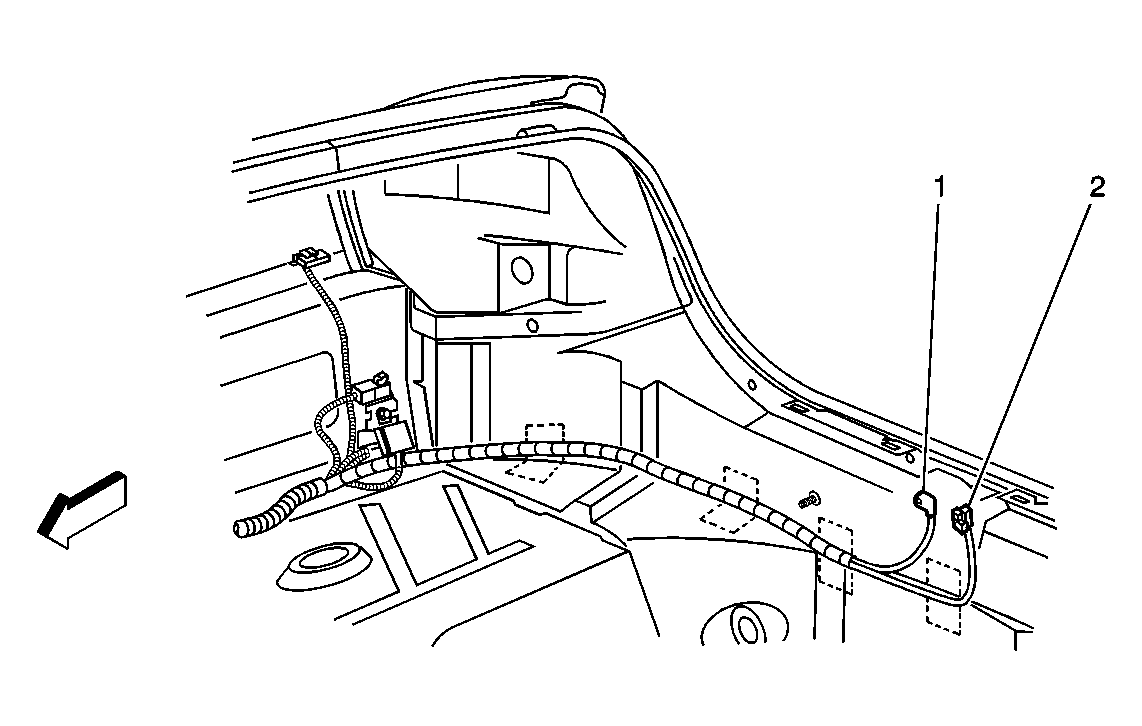

Fig 3: Inside Luggage Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Inflator Tube
2	Accessory Inflator Switch Harness

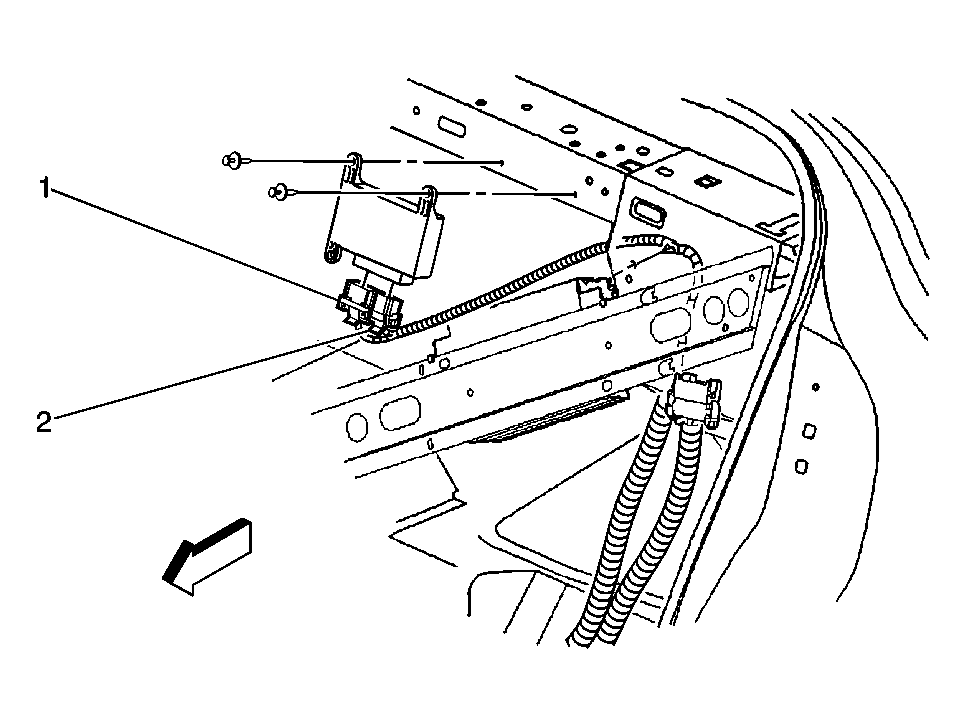

Fig 4: Rear Integration Module (RIM) - Behind Upper Rear Seat Cushion

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Integration Module (RIM) C1
2	Rear Integration Module (RIM) C2
