Power and Grounding Component Views

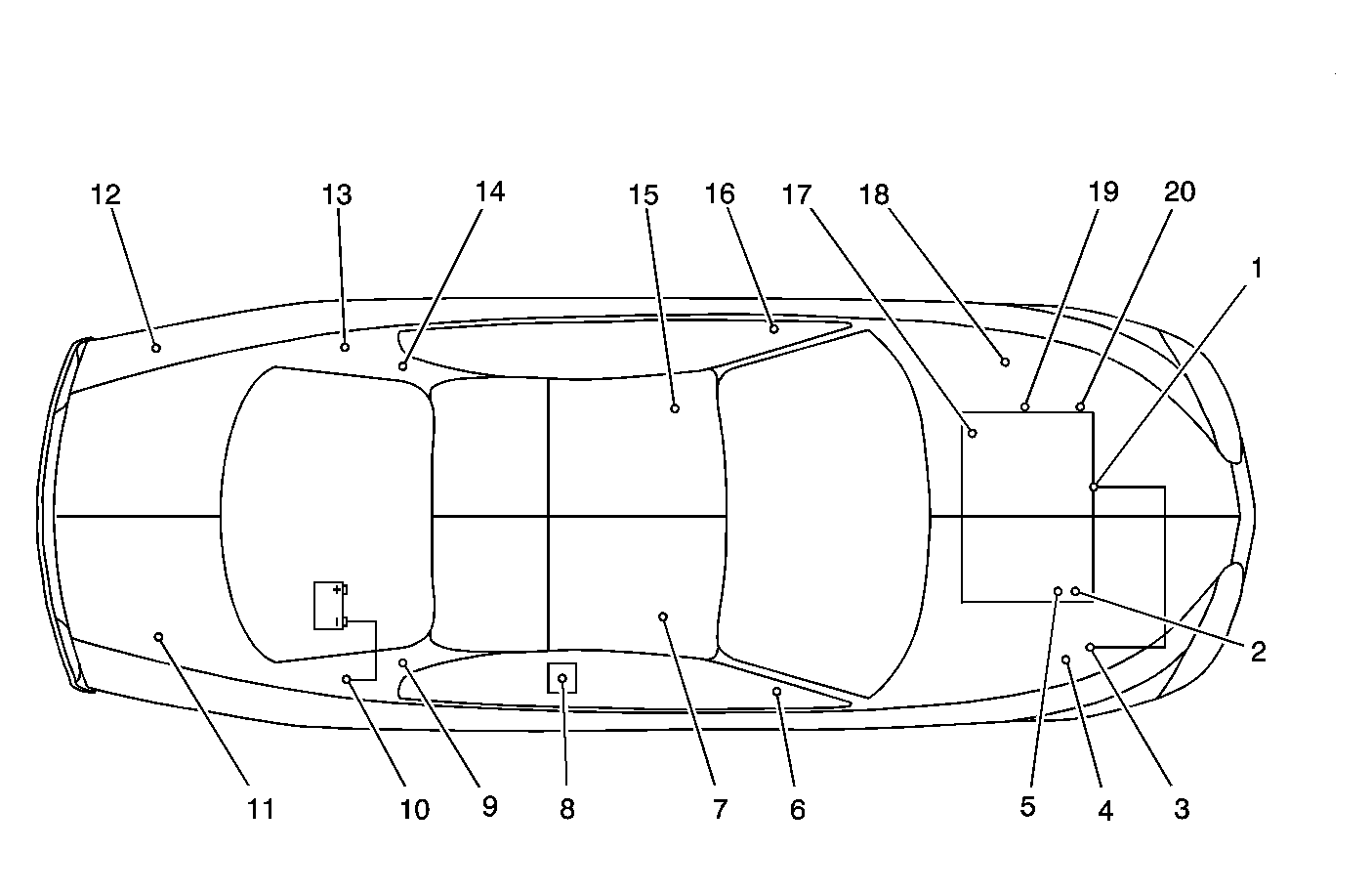

Fig 1: Ground Locations

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G101
2	G102
3	G107
4	G103
5	G105
6	G201
7	G301
8	G303
9	G404
10	G305
11	G401
12	G402
13	G302
14	G310
15	G300
16	G200
17	G104
18	G106
19	G109 (w/4.6L)
20	G108, G110, G111 (w/4.6L)

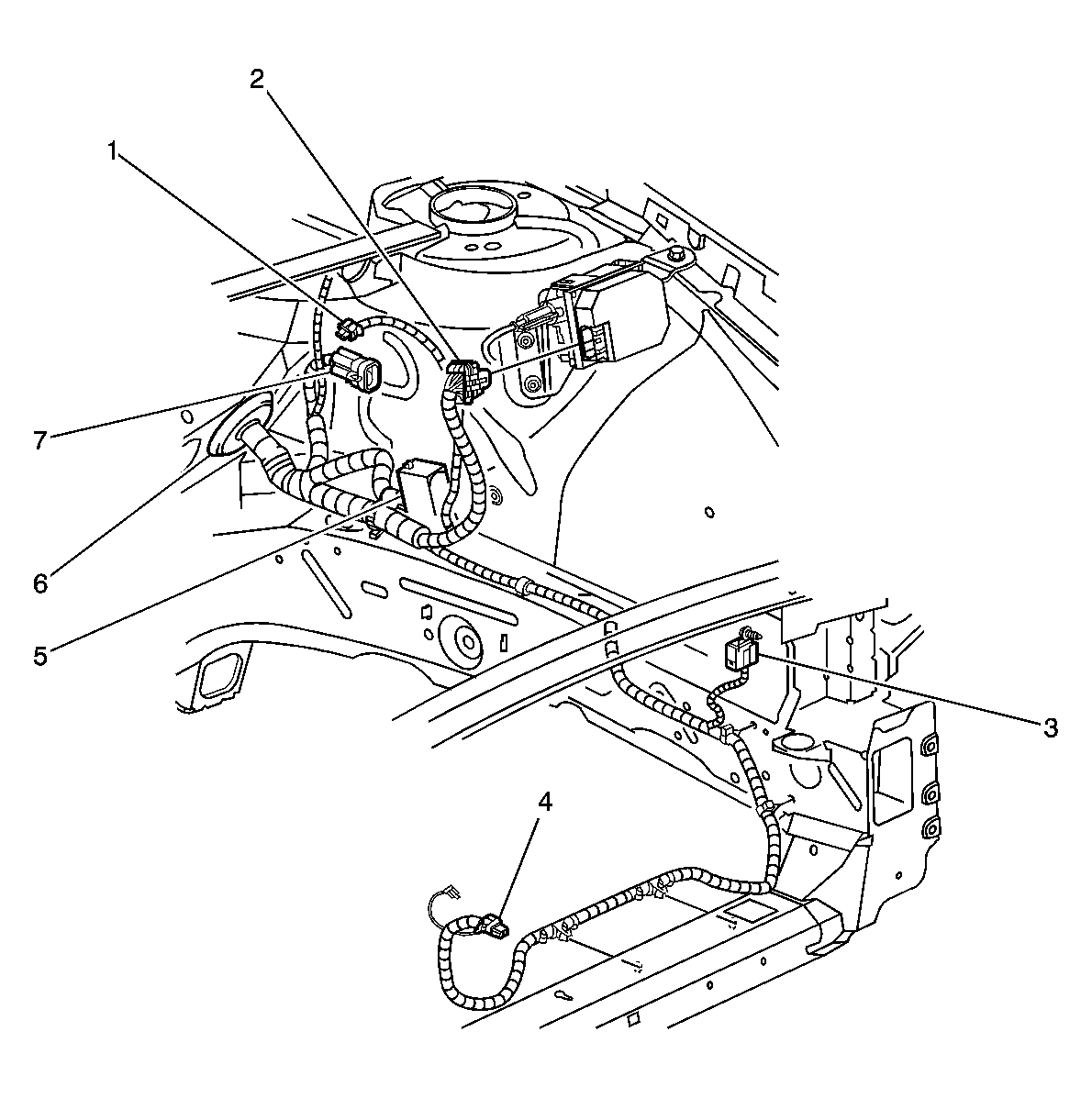

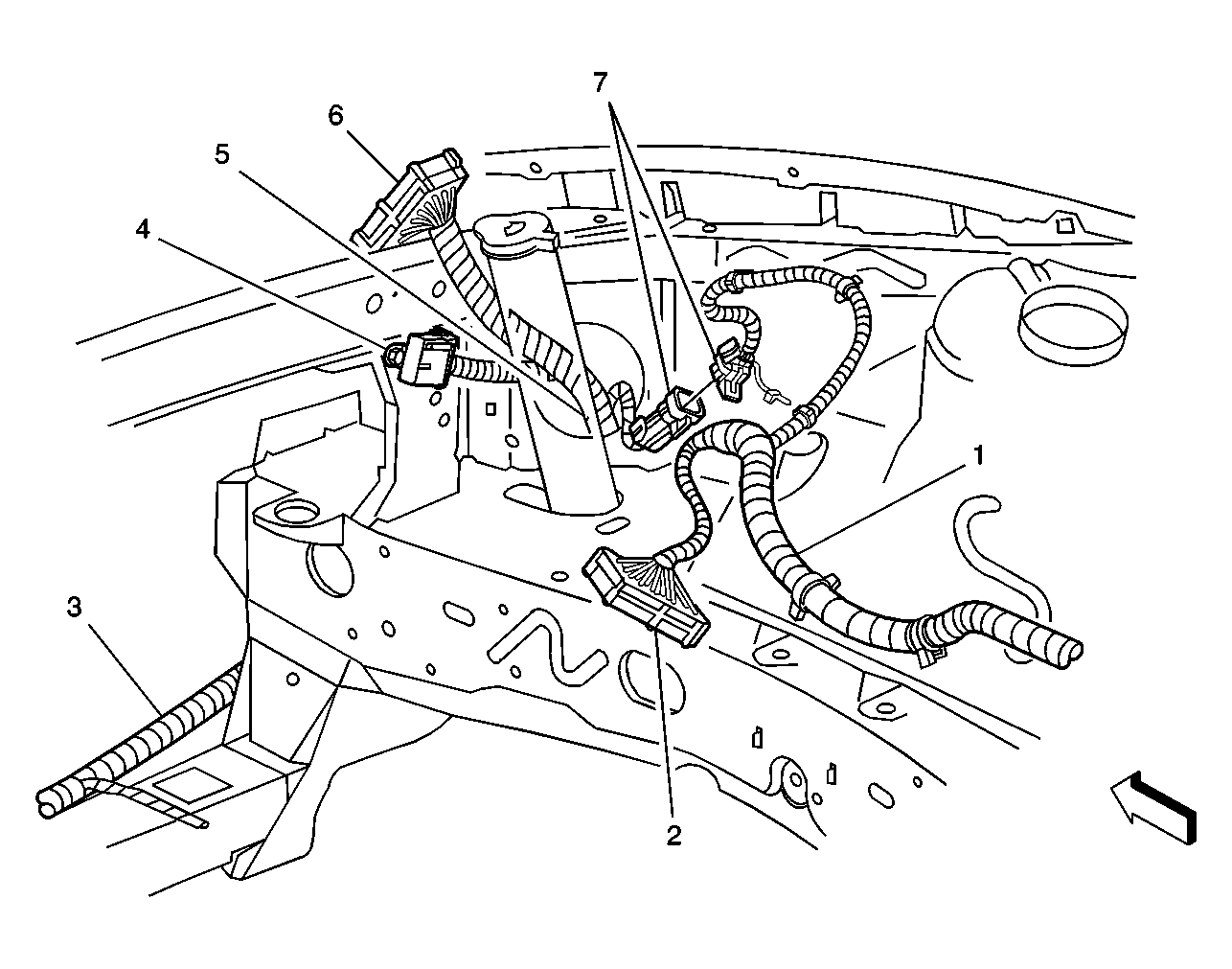

Fig 2: Engine Compartment, In the Right Front Corner

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Harness
2	Fuse Block-Underhood C2
3	Forward Lamp Harness
4	G103
5	S100
6	Fuse Block-Underhood C1
7	C102

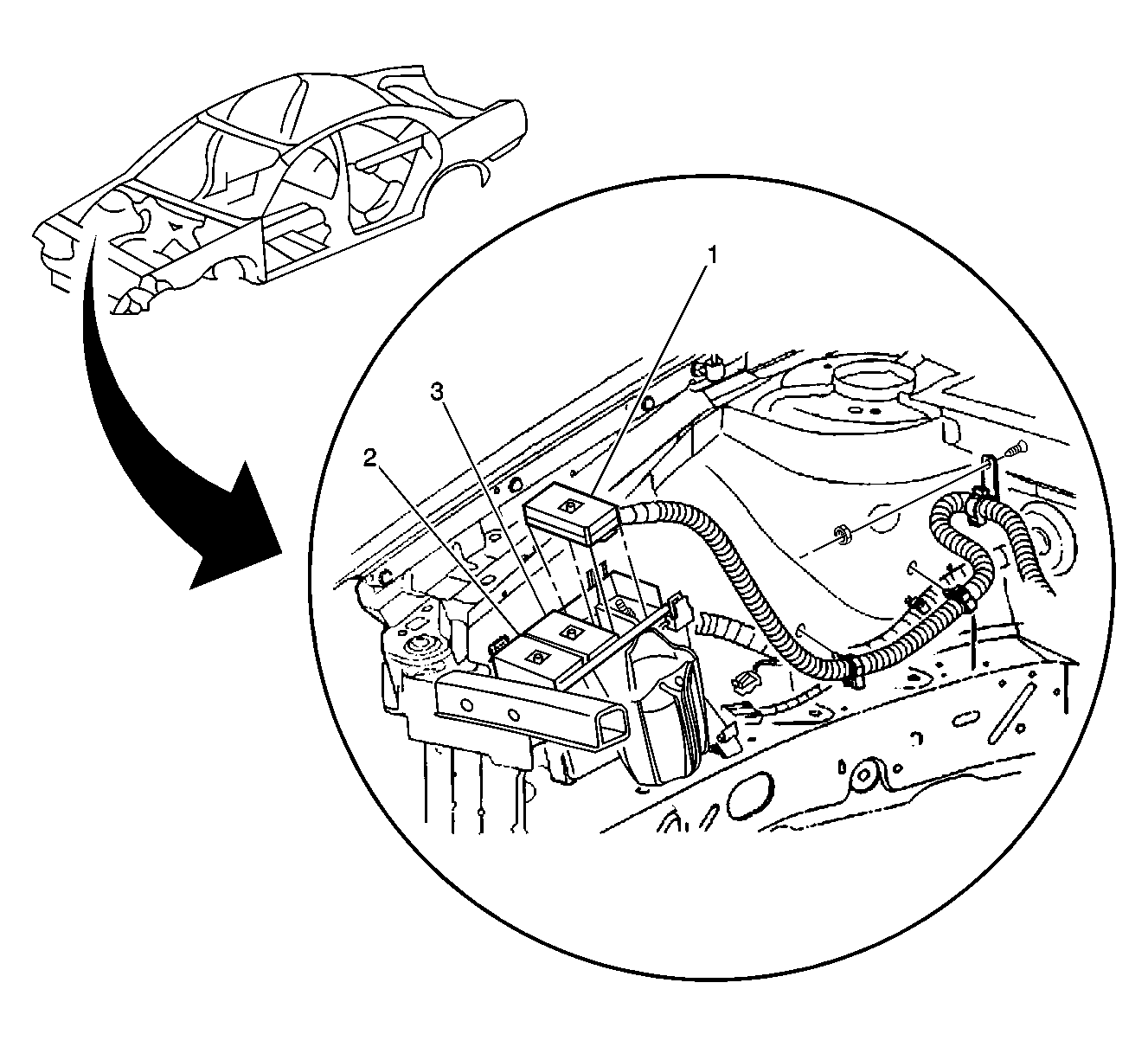

Fig 3: Fuse Block - Underhood

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block-Underhood C3
2	Fuse Block-Underhood C1
3	Fuse Block-Underhood C2

Fig 4: Engine Compartment, Near the Top Left Side of the Transmission - 3.8L

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	SP100, G100
2	G104

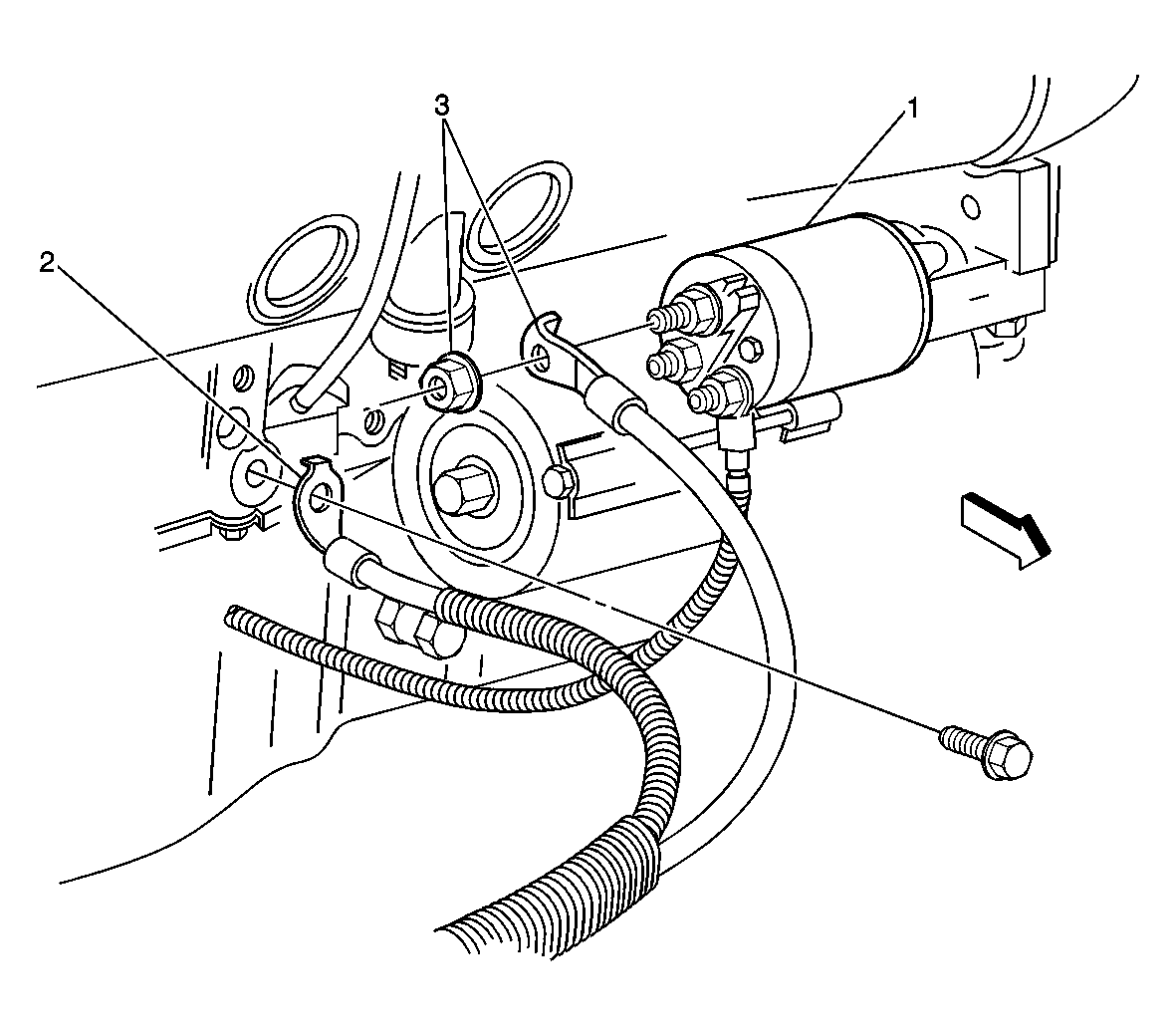

Fig 5: Engine, On the Lower Front Side - 3.8L

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Starter Solenoid
2	G101
3	Positive Battery Cable

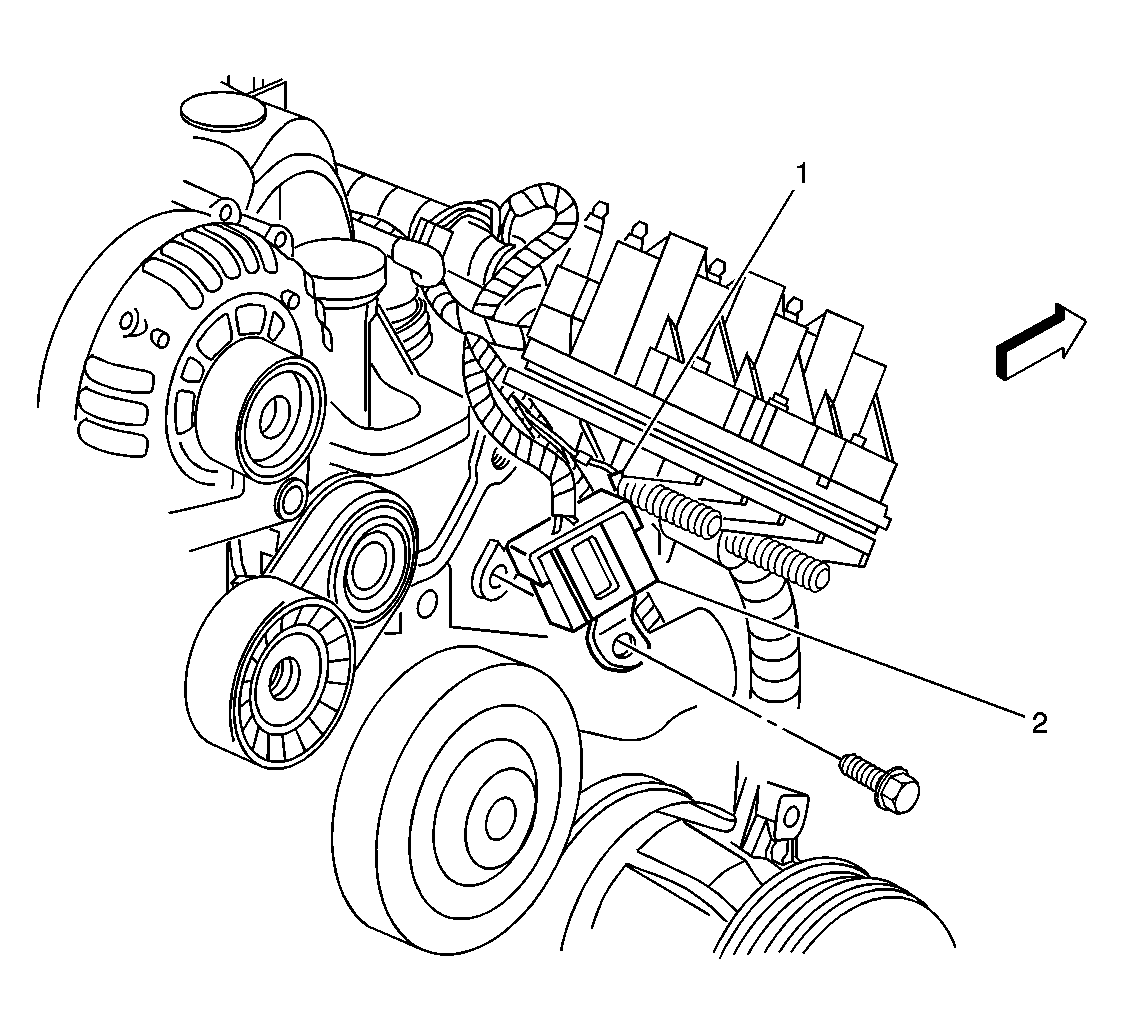

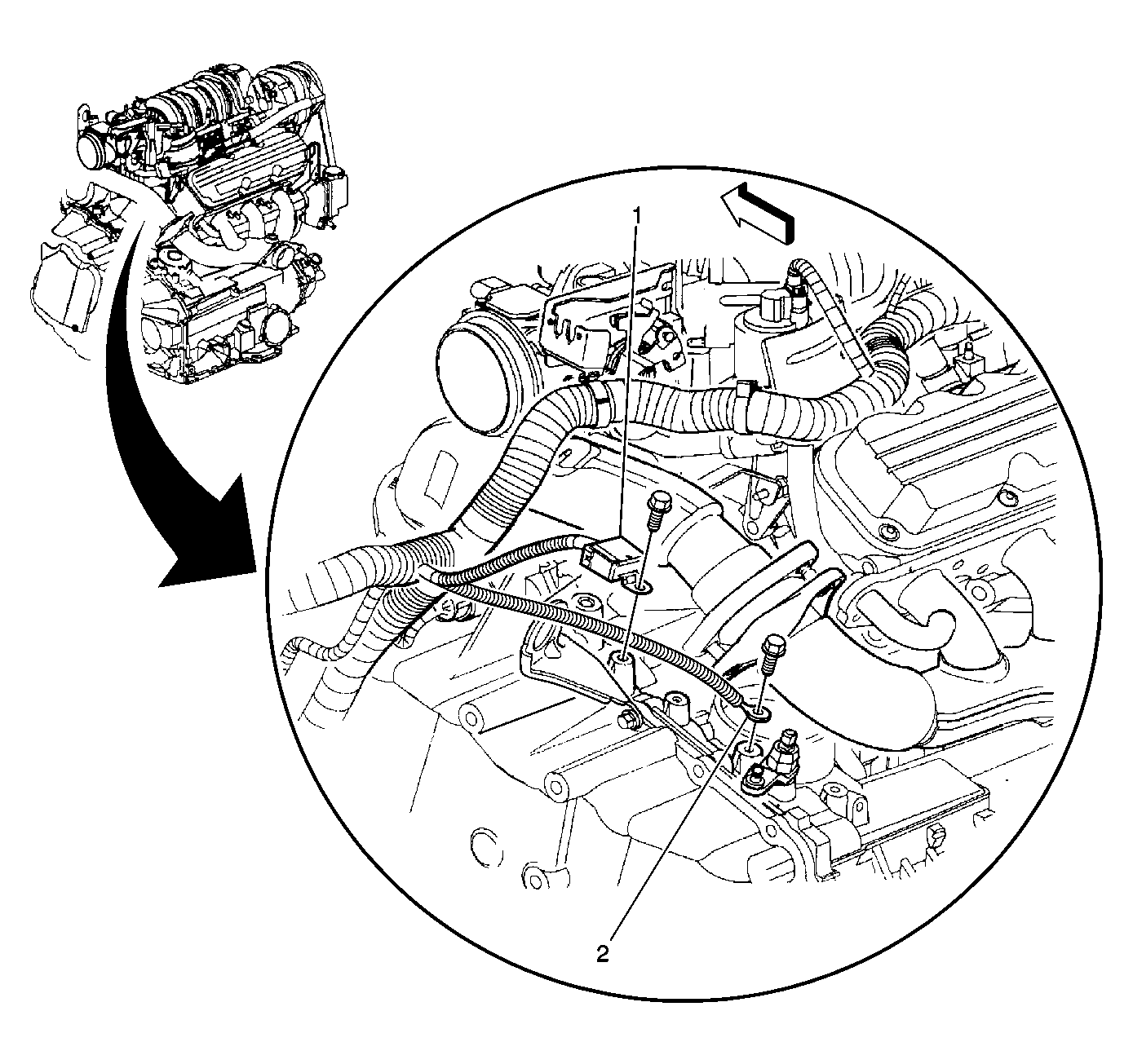

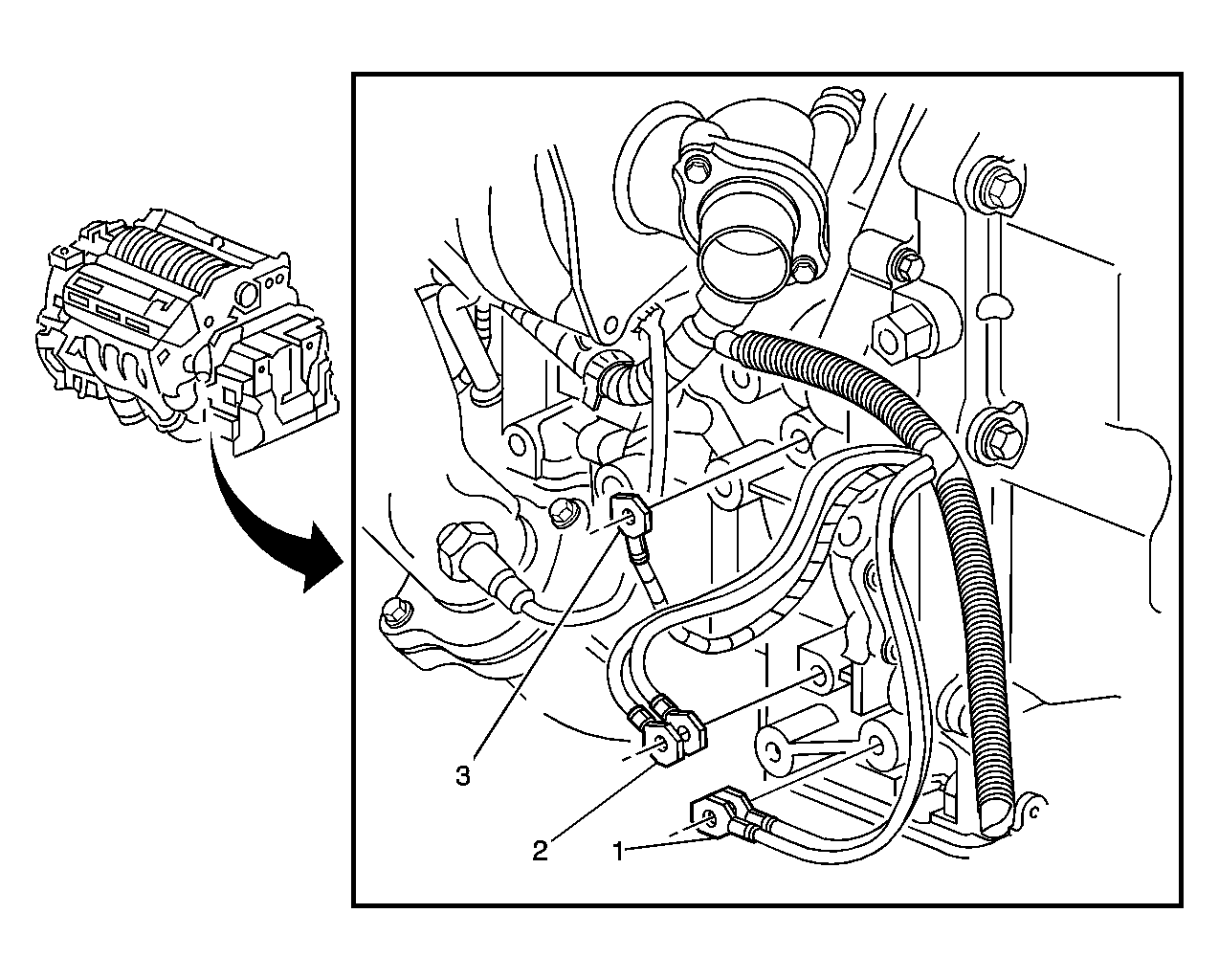

Fig 6: Engine, Below the Ignition Control Module - 3.8L

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G102
2	SP105, G105

Fig 7: Engine Compartment, On the Left Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Level Switch
2	Cruise Control Module (CCM)
3	G106
4	Inflatable Restraint Front End Sensor
5	C101
6	P100
7	C112

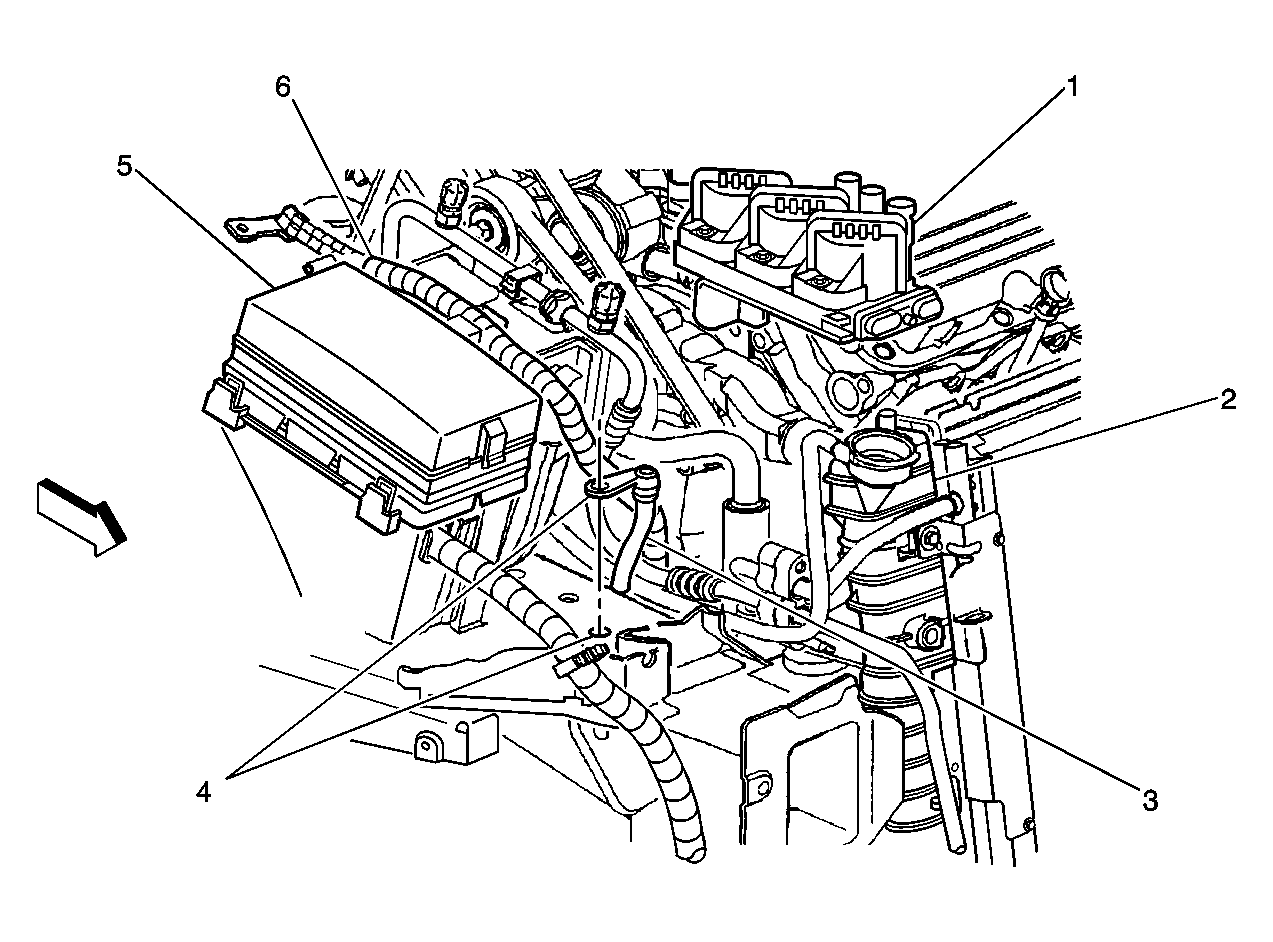

Fig 8: Engine Compartment, In the Right Front Side - 3.8L

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Control Module (ICM)
2	Radiator
3	Negative Ground Cable
4	G107
5	Underhood Fuse Block
6	Positive Battery Cable

Fig 9: Engine, on the Left Side - 4.6L

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Exhaust Gas Recirculation (EGR) Valve
2	Engine Coolant Temperature (ECT) Sensor
3	G109
4	C101
5	S103
6	S104
7	C100
8	Throttle Position (TP) Sensor
9	Idle Air Control (IAC) Sensor
10	Manifold Absolute Pressure (MAP) Sensor

Fig 10: Engine Compartment Left Front, Lower - 4.6L

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G111
2	G110
3	G108

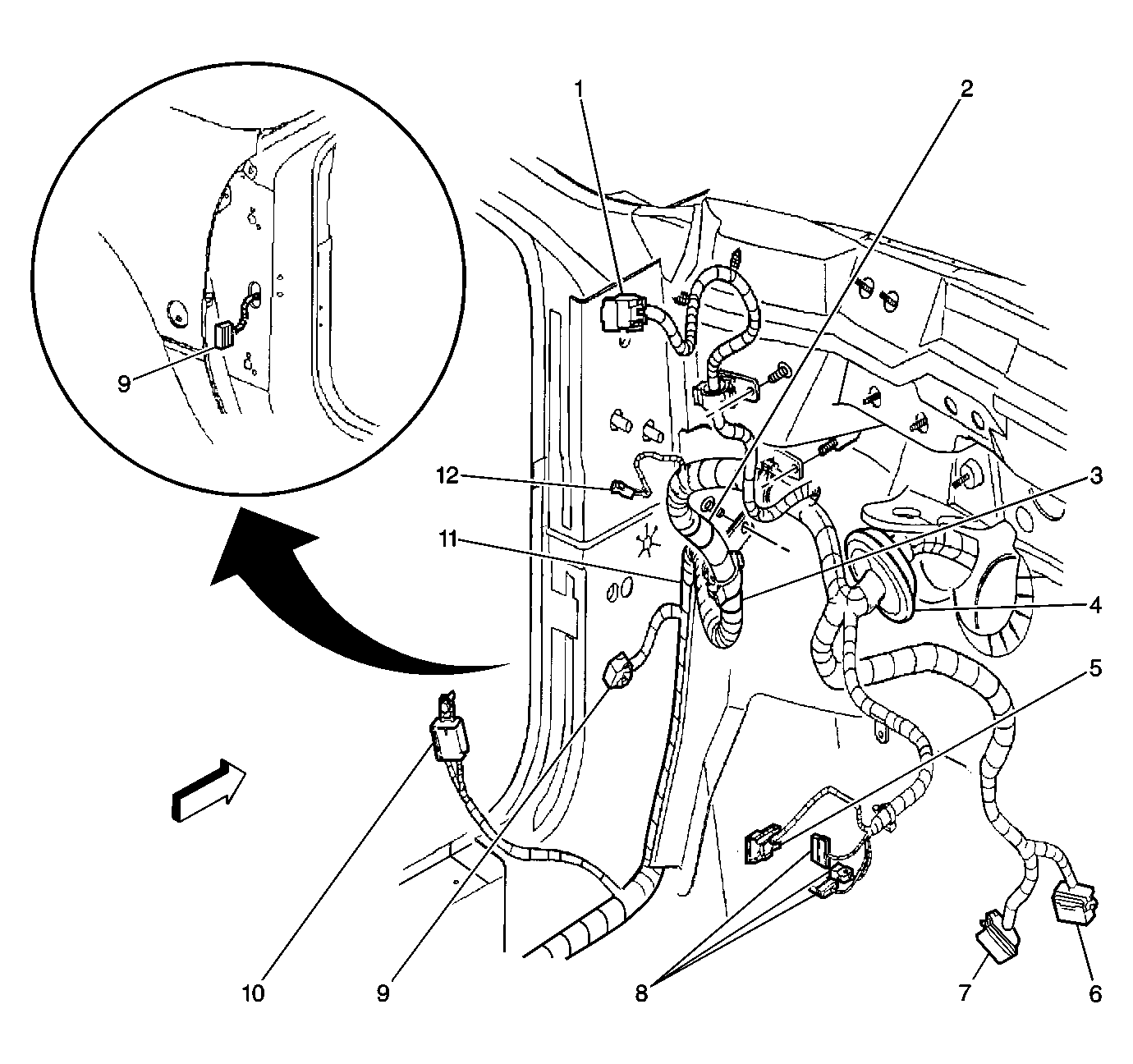

Fig 11: Passenger Compartment, Lower Left Front Corner

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C215
2	S215
3	S216
4	P100
5	Inflatable Restraint Steering Wheel Module Coil
6	C200
7	C202
8	To Stop Lamp Switches
9	C500
10	G200
11	S217
12	Park Brake Switch

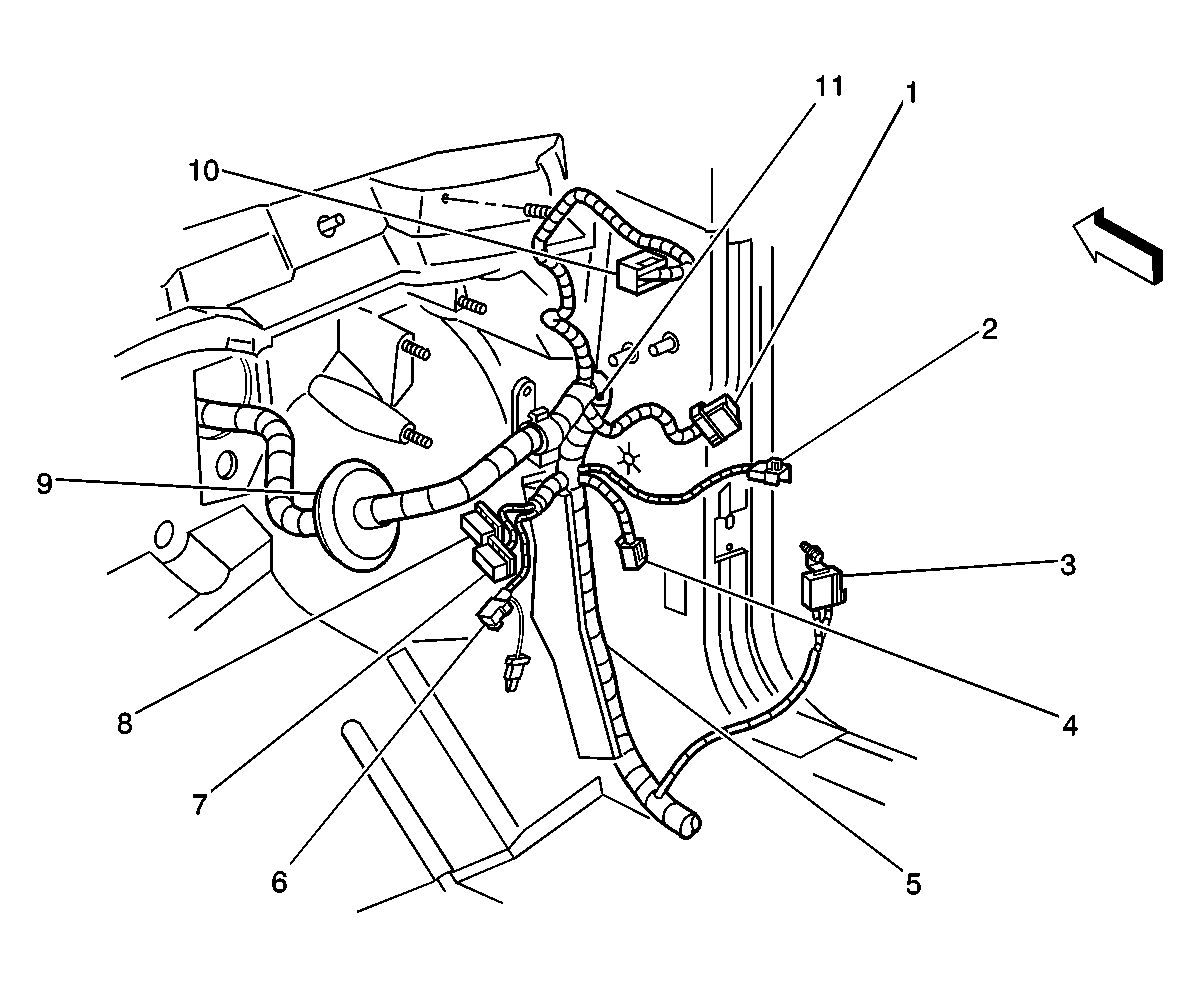

Fig 12: Passenger Compartment, In the Right Front Corner

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Motor Connector
2	Inflatable Restraint IP Module
3	G201
4	C600
5	Right Side Body Harness
6	Dash Integration Module (DIM), C1
7	Dash Integration Module (DIM), C2
8	Dash Integration Module (DIM), C3
9	P102
10	C201
11	S210

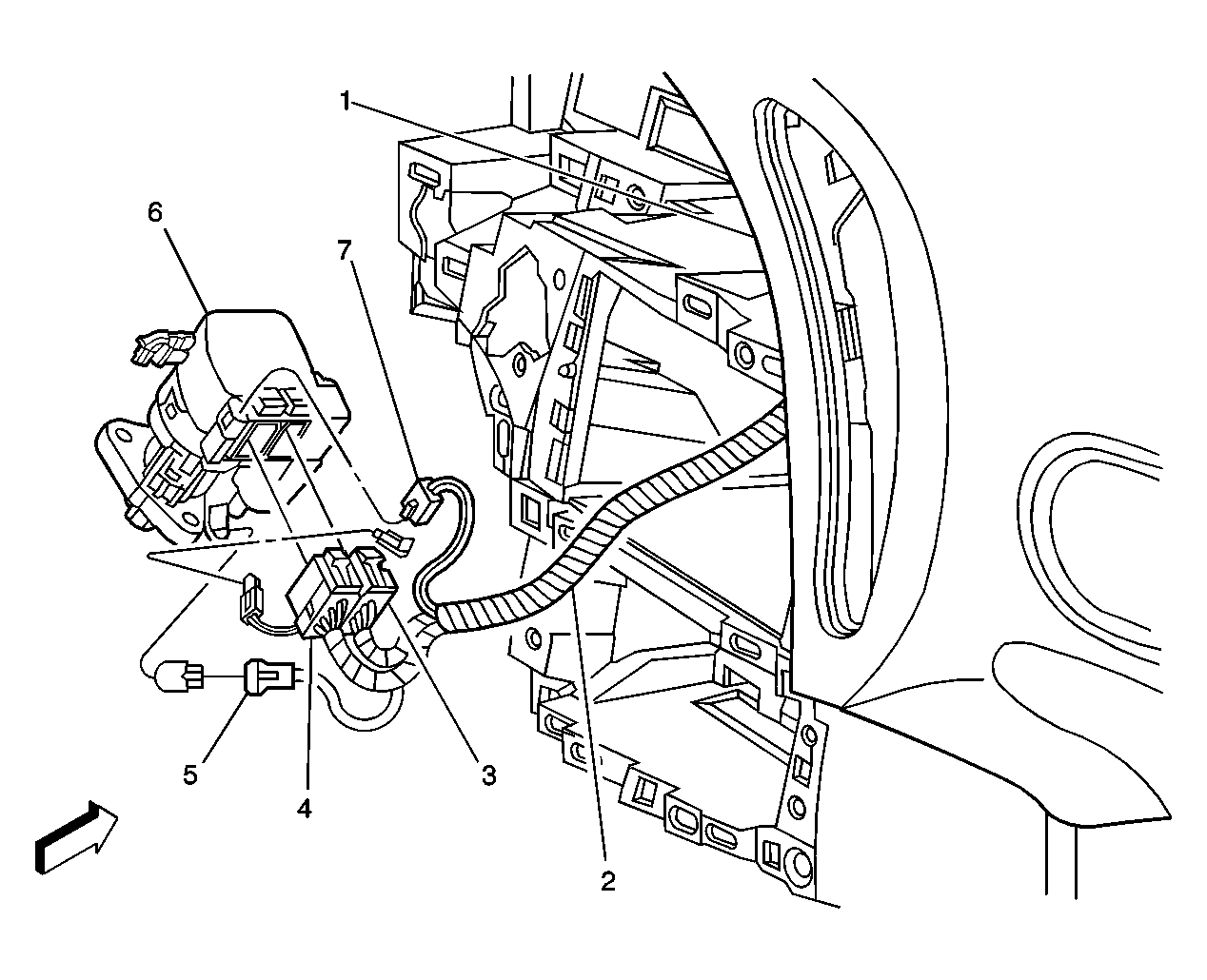

Fig 13: Passenger Compartment, Behind the Center Dash Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Dash Panel
2	IP Wiring Harness
3	Ignition Switch C1
4	Ignition Switch C2
5	Ignition Switch Lamp
6	Ignition Switch
7	Theft Deterrent Exciter Module

Fig 14: Passenger Compartment, Under the Left Front Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G300, SP300

Fig 15: Passenger Compartment, Under the Right Front Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G301, SP301
2	SP303, G303

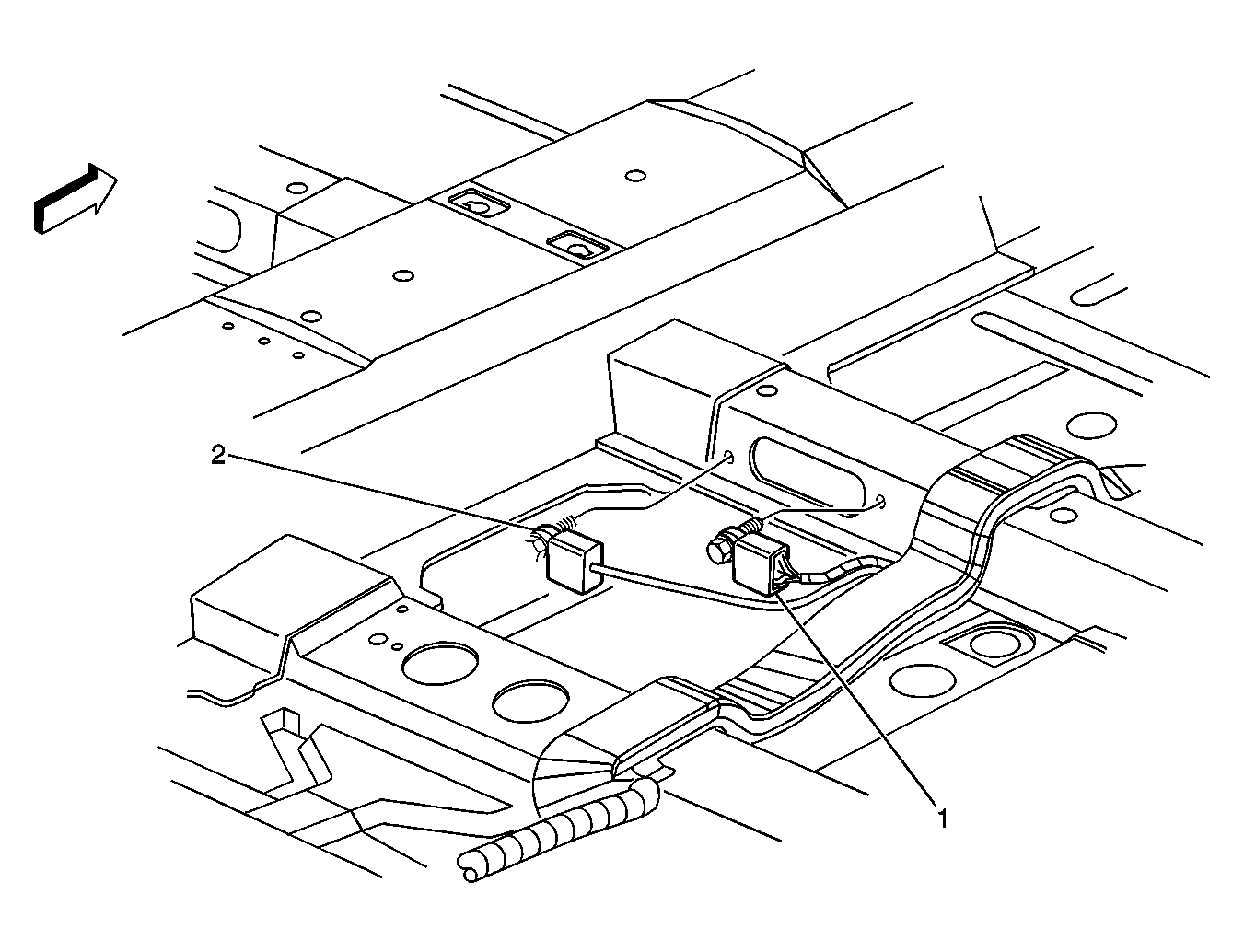

Fig 16: Passenger Compartment, Under the Left Side of the Rear Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Fuse Block
2	Left Body Harness
3	SP302, G302
4	Lateral Acceleration Sensor

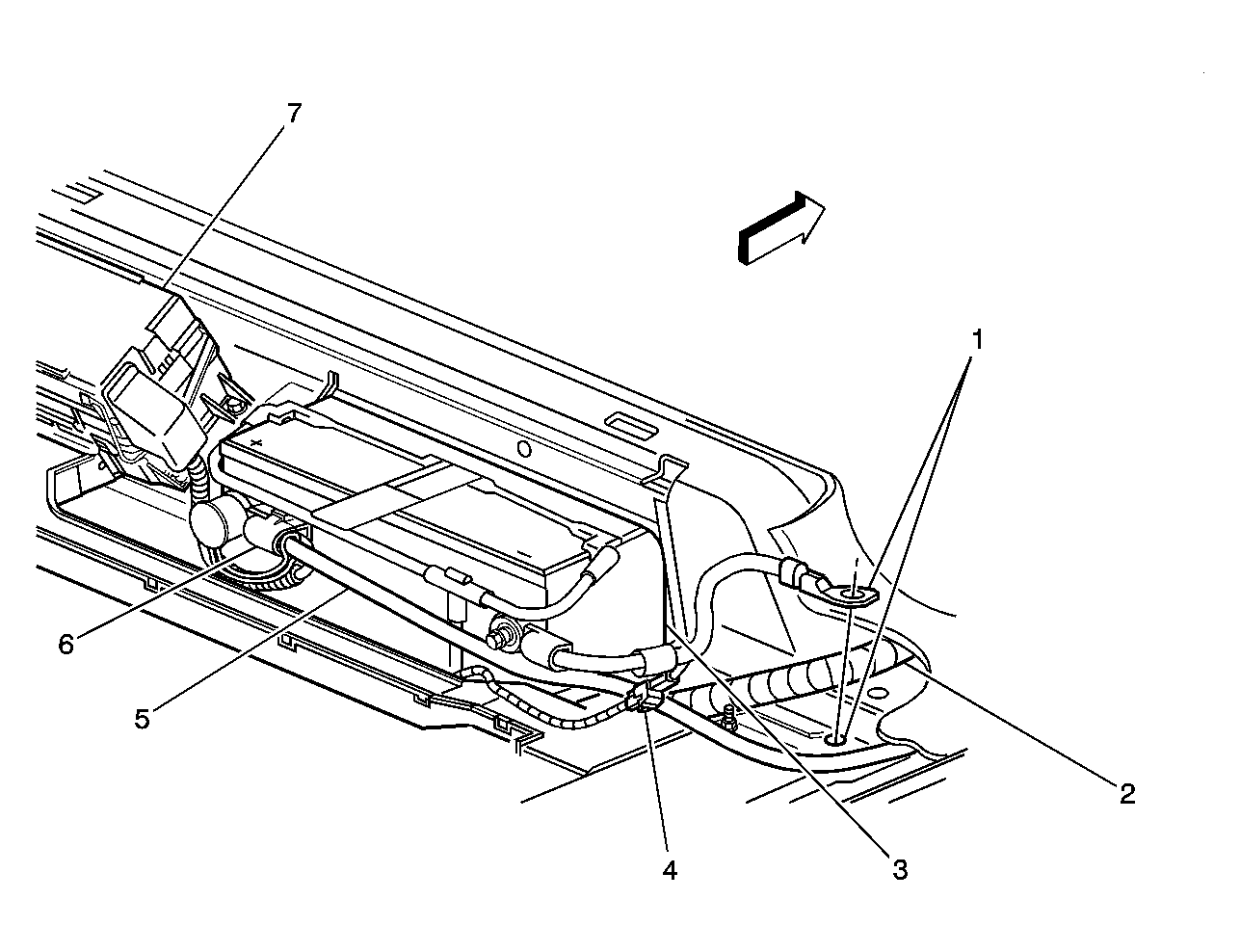

Fig 17: Passenger Compartment, Under the Right Side of the Rear Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G305
2	Body Harness, Right Side
3	Battery
4	C305
5	S345 (w/UE1)
6	Battery Positive Cable
7	Fuse Block - Rear

Fig 18: Passenger Compartment, On the Left Rear Pillar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G310
2	Body Harness, Left Rear
3	Rear Window Defogger Connector

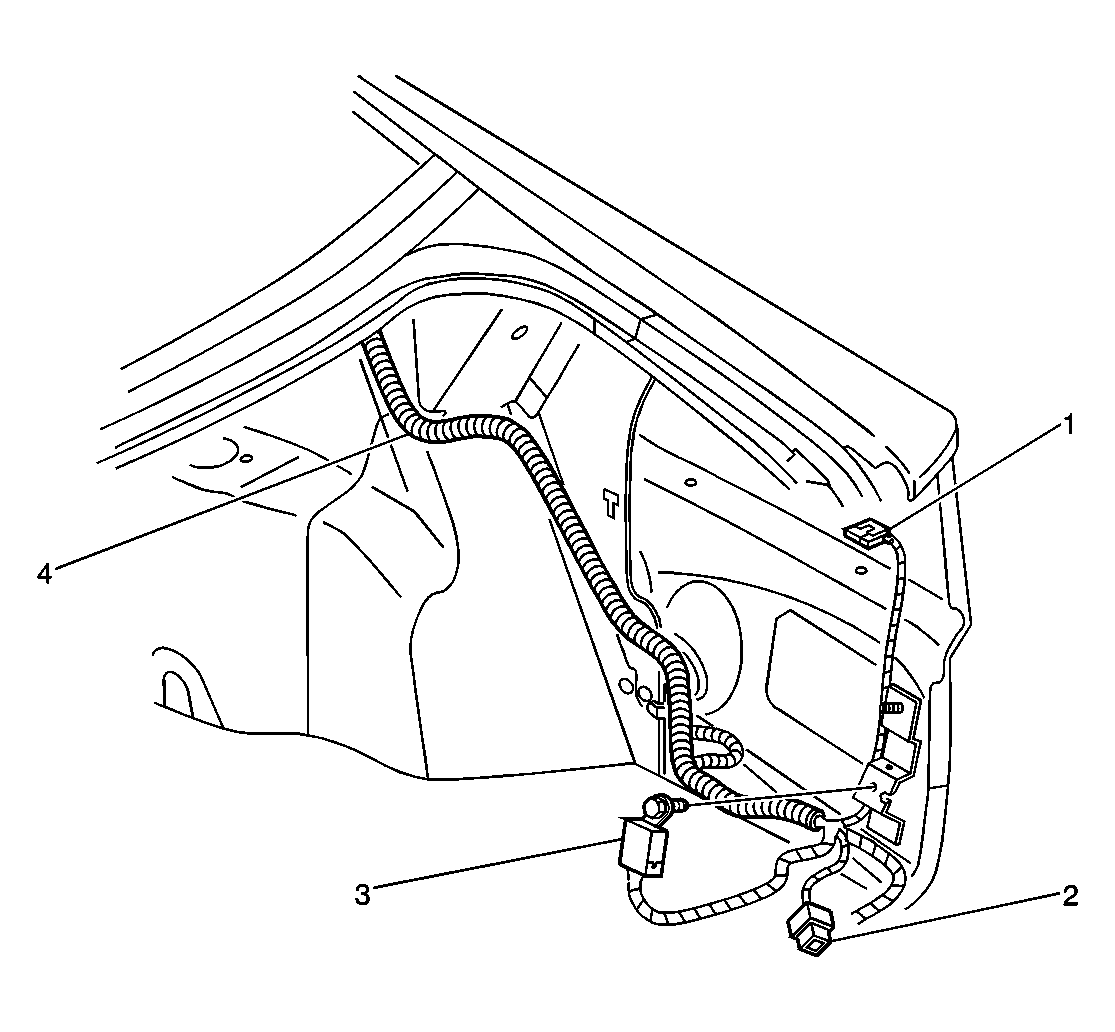

Fig 19: Passenger Compartment, On the Right Rear Pillar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C405
2	Rear Window Defogger Connector
3	G404
4	High Mount Stoplamp Connector

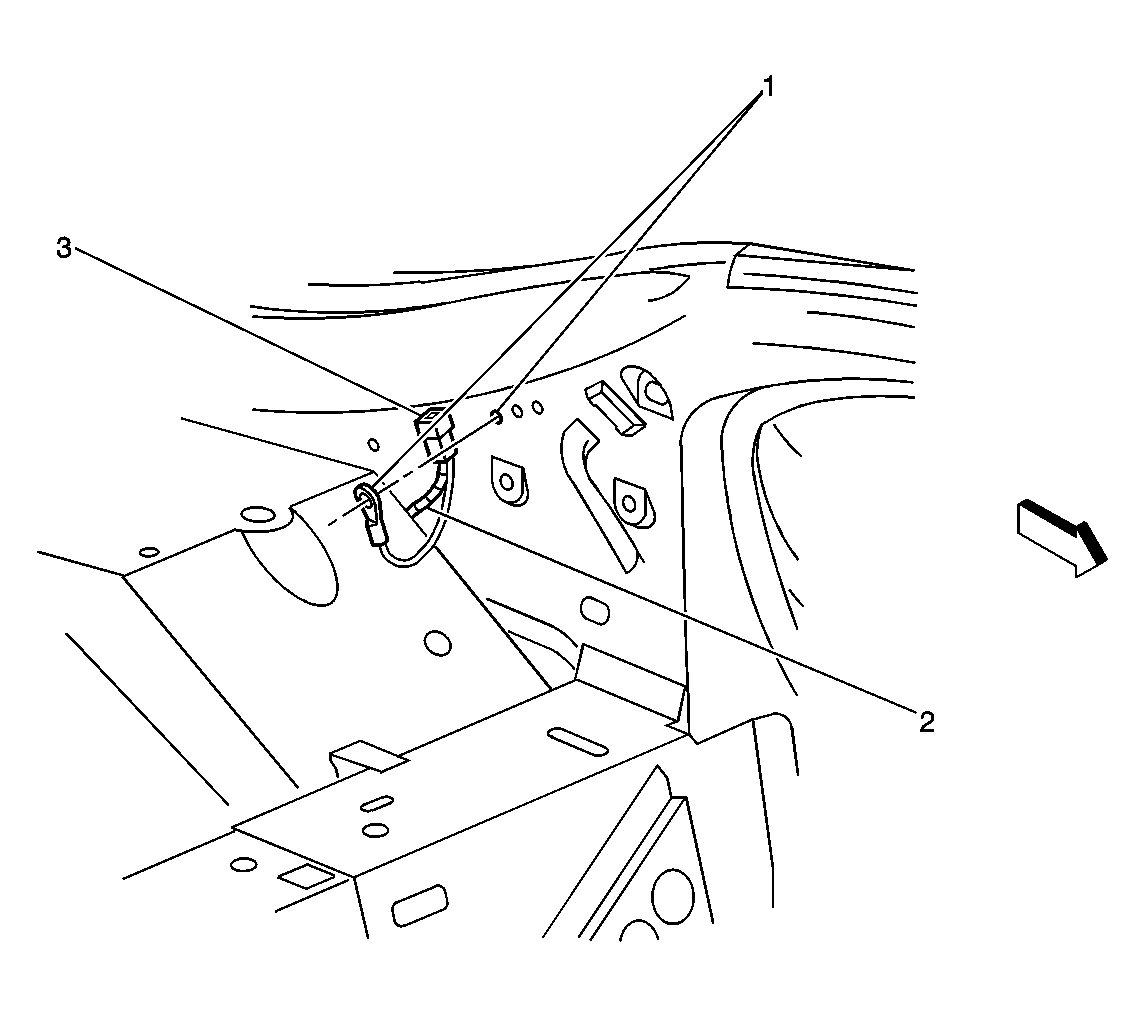

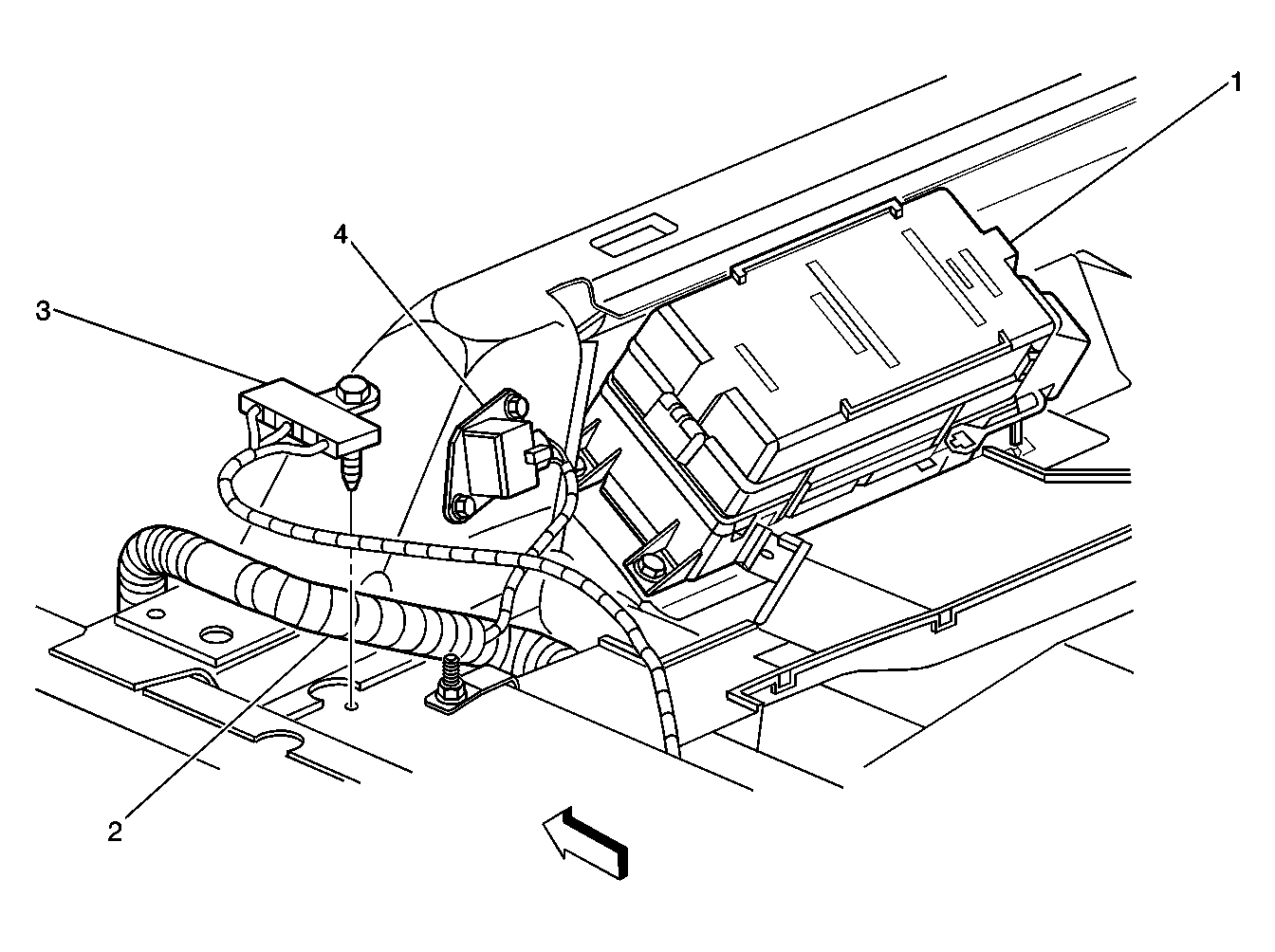

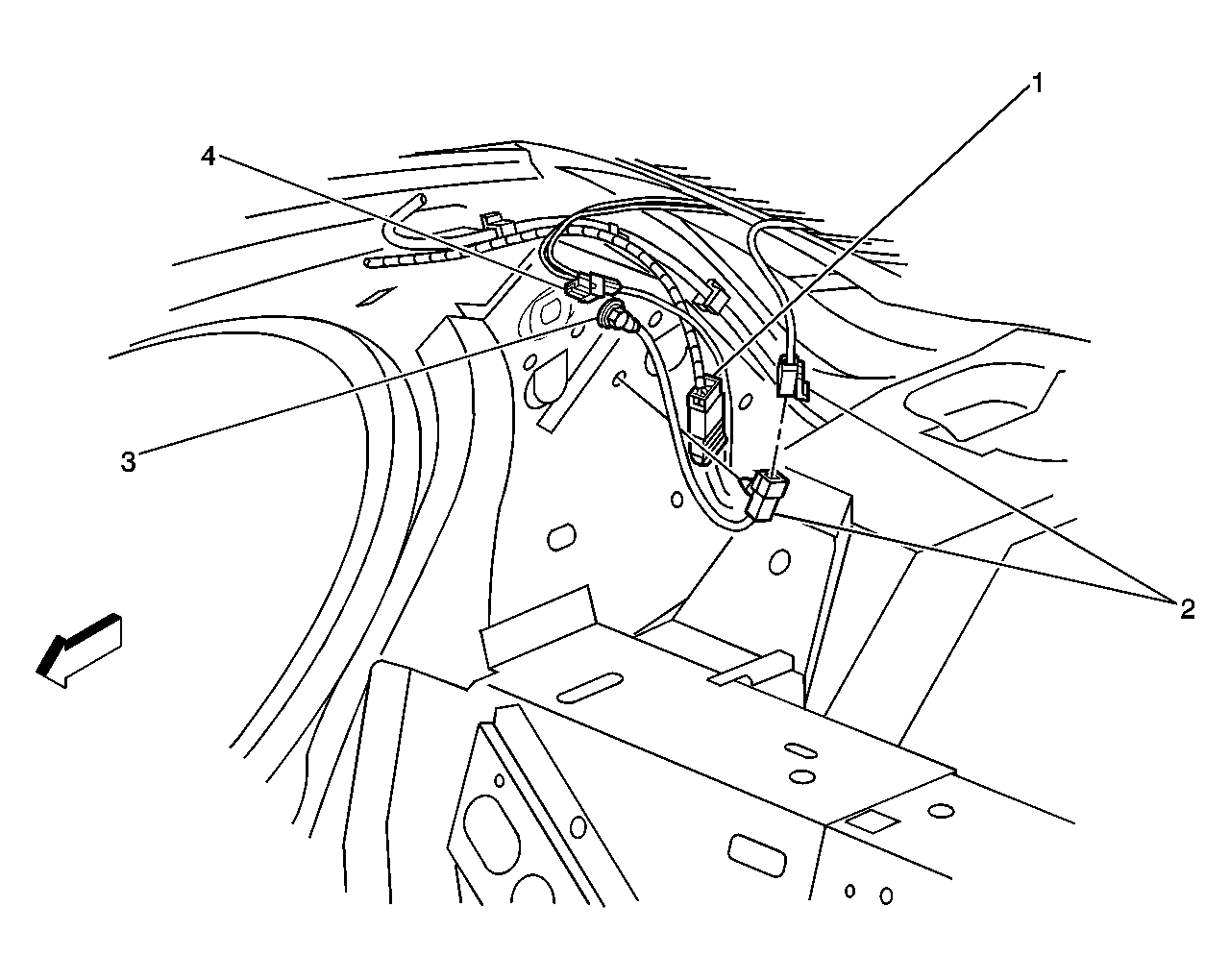

Fig 20: Rear Compartment, In the Right Rear Corner

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Remote Playback Device-CD Changer
2	C402 (Right); C400 (Left)
3	SP401, G401 (Right); SP402, G402 (Left)
4	Right Body Harness (Left Similar)
