Fuse Block - Underhood Bottom View

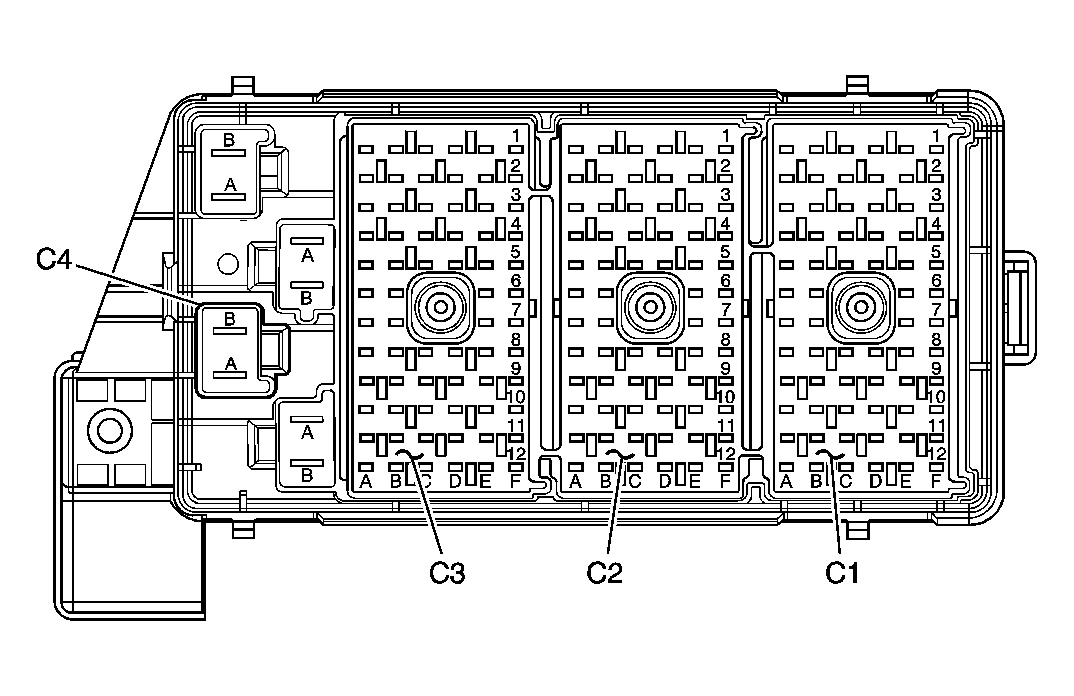

Fig 1: Fuse Block - Underhood Bottom View
GM878950Courtesy of GENERAL MOTORS CORP.
Fuse Block - Underhood C1

GM73172Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15319528
  • 68-Way F Micro-Pack 100 Series (LT GRY)
Pin Wire Color Circuit No. Function
A1-A3 - - Not Used
A4 BRN/WHT 309 Right Park Lamp Supply Voltage (w/4.6L)
A5 RED 228 Windshield Washer Pump Control
A6 - - Not Used
A7 GRY 532 Cooling Fan Motor Supply Voltage
A8 - - Not Used
A9 PNK 1200 Headlamp High Beam Signal (w/3.8L)
A9 LT GRN 839 DLR Resistor Signal
A10-A11 - - Not Used
A12 DK GRN 29 Horn Control
B1 BLK/WHT 99 Windshield Washer Fluid Level Signal (w/3.8L)
B2-B3 - - Not Used
B4 BRN/WHT 309 Right Park Lamp Supply Voltage (w/3.8L)
B5 - - Not Used
B6 LT BLU/BLK 14 Left Turn Signal Lamps Supply Voltage
B7 PPL 709 Left Park Lamp Supply Voltage
B8 - - Not Used
B9 DK BLU 15 Right Turn Signal Lamps Supply Voltage
B10-B12 - - Not Used
C1-C3 - - Not Used
C4 BLK/WHT 99 Windshield Washer Fluid Level Signal (w/4.6L)
C5 TAN/WHT 312 Right Headlamp Low Beam Supply Voltage
LT GRN 838 DLR Resistor Signal (w/4.6L)
C8 BLK 250 Ground
C9 - - Not Used
C10 PPL 34 Front Fog Lamps Supply Voltage
C11 PPL/WHT 34 Front Fog Lamps Supply Voltage
C12 - - Not Used
D1-D9 - - Not Used
D10 WHT 504 Cooling Fan Motor Low Reference
D11-D12 - - Not Used
E1-E4 - - Not Used
E5 YEL 712 Left Headlamp Low Beam Supply Voltage
E6-E9 - - Not Used
E10 LT BLU 409 Cooling Fan Motor Supply Voltage
E11-E12 - - Not Used
F1-F5 - - Not Used
F6 LT GRN/BLK 311 Right Headlamp High Beam Supply Voltage
F7 DK GRN/WHT 711 Left Headlamp High Beam Supply Voltage
F8-F10 - - Not Used
F11 BLK 250 Ground
F12 - - Not Used
Fuse Block - Underhood C2

GM73168Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15319530
  • 68-Way F Metri-Pack 280 Series (DK GRY)
Pin Wire Color Circuit No. Function
A1 BRN 241 Ignition 3 Voltage (w/3.8L)
A2-A5 - - Not Used
A6 BLK 250 Ground (w/4.6L)
A7-A12 - - Not Used
B1 BLK/WHT 99 Windshield Washer Fluid Level Signal (w/3.8L)
B2-B4 - - Not Used
B5 BRN/WHT 309 Right Park Lamp Supply Voltage
B6 ORN 240 Battery Positive Voltage
B7-B9 - - Not Used
B10 LT GRN/
BLK		 592 DRL Relay Control
B11 - - Not Used
B12 ORN 2040 Battery Positive Voltage
ORN 2040 Battery Positive Voltage
C1 - - Not Used
C2 BLK/WHT 1969 Headlamp High Beam Relay Control
BLK/WHT 1969 Headlamp High Beam Relay Control
C3-C5 - - Not Used
C8 PNK 639 Ignition 1 Voltage
C9-C10 - - Not Used
C11 DK GRN/
WHT		 1317 Fog Lamp Relay Control
C12 - - Not Used
D1 DK GRN 1483 Control Power Output
D2 BRN 4 Accessory Voltage
BRN 4 Accessory Voltage
D3 - - Not Used
D4 PNK/WHT 1970 Headlamp Low Beam Relay Control (w/3.8L)
PNK/WHT 1970 Headlamp Low Beam Relay Control
D5-D9 - - Not Used
D10 BLK 28 Horn Relay Control
BLK 28 Horn Relay Control
D11 - - Not Used
D12 PNK 70 RAP Relay Switch Supply Voltage
E1-E4 - - Not Used
E5 BLK/WHT 99 Windshield Washer Fluid Level Signal (w/4.6L)
E6 LT BLU 14 Left Turn Signal Lamps Supply Voltage
E7 PPL 709 Left Park Lamp Supply Voltage
E8-E9 - - Not Used
E10 PNK 3 Ignition 1 Voltage
E11 PPL 34 Front Fog Lamps Supply Voltage
E12 ORN 3540 Battery Positive Voltage
F1 - - Not Used
F2 YEL 43 Accessory Voltage
F3 YEL 143 Accessory Voltage
F4 - - Not Used
F5 RED 228 Windshield Washer Pump Control
F6-F8 - - Not Used
F9 DK BLU 15 Right Turn Signal Lamps Supply Voltage
F10-F12 - - Not Used
Fuse Block - Underhood C3

GM73167Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15319529
  • 68-Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A1-A5 - - Not Used
A6 PNK/BLK 239 Ignition 1 Voltage (w/3.8L)
A6 PNK 239 Ignition 1 Voltage (w/4.6L)
A7 - - Not Used
A8 PNK 339 Ignition 1 Voltage
A9- A10 - - Not Used
A11 DK GRN/
WHT		 459 A/C Clutch Relay Control
A12 - - Not Used
B1-B2 - - Not Used
B3 PNK 139 Ignition 1 Voltage
B4 PNK/BLK 139 Ignition 1 Voltage (w/3.8L)
B4 PNK 139 Ignition 1 Voltage (w/4.6L)
B5 PNK 239 Ignition 1 Voltage (w/4.6L)
B6 PNK 239 Ignition 1 Voltage
B7 PNK 139 Ignition 1 Voltage (w/4.6L)
B8 - - Not Used
B9 PNK/BLK 239 Ignition 1 Voltage (w/3.8L)
B9 PNK 239 Ignition 1 Voltage (w/4.6L)
B10 DK BLU 473 High Speed Cooling Fan Relay Control
B11-B12 - - Not Used
C1 - - Not Used
C2 YEL 447 Starter Relay Coil Control
C3 PPL 6 Starter Solenoid Crank Voltage
C4-C7 - - Not Used
C8 PNK 839 Ignition 1 Voltage (w/4.6L)
C9 PNK 539 Ignition 1 Voltage (w/4.6L)
PNK 539 Ignition 1 Voltage
C10 - - Not Used
C11 DK GRN 59 A/C Compressor Clutch Supply Voltage
C12 - - Not Used
D1-D3 - - Not Used
D4 PNK/BLK 339 Ignition 1 Voltage
D5 ORN 240 Battery Positive Voltage
D8 PNK/BLK 839 Ignition 1 Voltage (w/3.8L)
D8 PNK 839 Ignition 1 Voltage (w/4.6L)
D9 PNK/WHT 539 Ignition 1 Voltage (w/3.8L)
D9 PNK 539 Ignition 1 Voltage (w/4.6L)
D10-D12 - - Not Used
E1 - - Not Used
E2 PNK/BLK 415 Secondary Air Injection (AIR) Check Valve Supply Voltage (w/4.6L)
E3 PPL/WHT 421 AIR Pump Relay Control (w/4.6L)
E4 PNK 339 Ignition 1 Voltage
E5 - - Not Used
E6 PNK 739 Ignition 1 Voltage (w/4.6L)
E7 PNK 739 Ignition 1 Voltage
E8 - - Not Used
E9 WHT 901 IC 2 Control (w/4.6L)
E10-E12 - - Not Used
F1 BRN 241 Ignition 3 Voltage
F2-F3 - - Not Used
F4 PNK 339 Ignition 1 Voltage (w/4.6L)
F5-F7 - - Not Used
F8 DK GRN 335 Low Speed Cooling Fan Relay Control
F9 PNK 39 Ignition 1 Voltage
F10- F12 - - Not Used
Fuse Block - Underhood C4

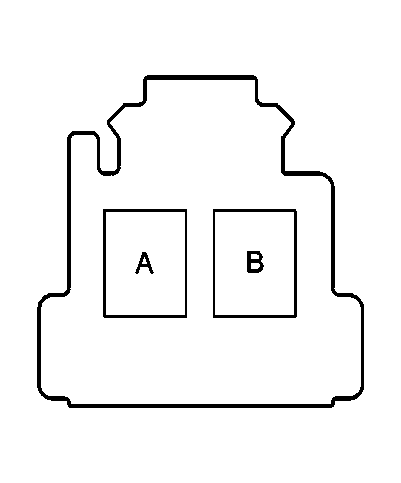

GM258627Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15319799
  • 2-Way F (GRN)
Pin Wire Color Circuit No. Function
A RED 742 Battery Positive Voltage (w/4.6L)
B RED 442 Battery Positive Voltage
