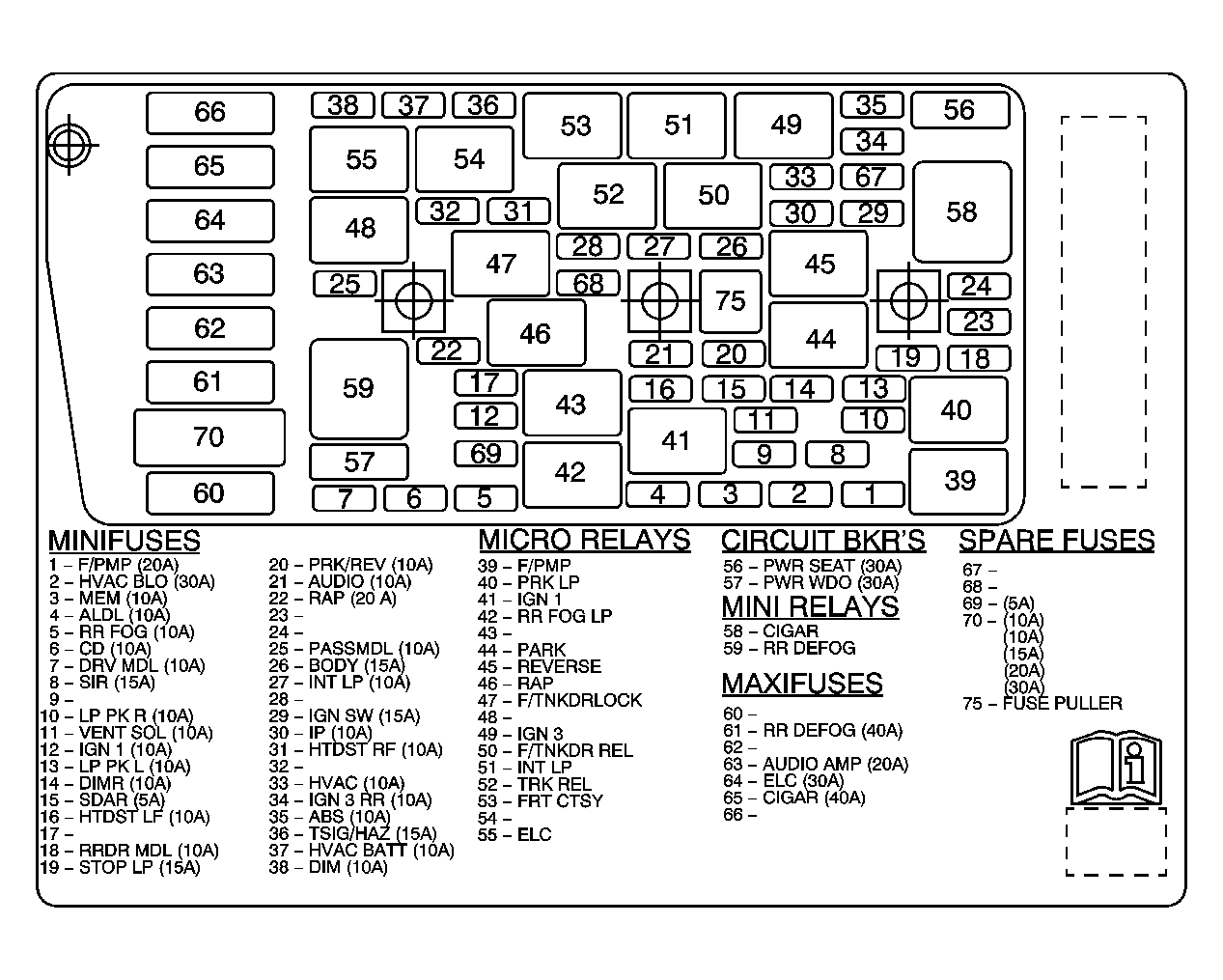

Fuse Block - Rear Label
Fuse Block - Rear Label Usage
| No. | Device | Rating | Description |
|---|---|---|---|
| 1 | F/PMP Fuse | 20 A | F/PMP Relay |
| 2 | HVAC BLO Fuse | 30 A | Blower Motor Control Processor |
| 3 | MEM Fuse | 10 A | Memory Seat Module - Driver, Power Seat Lumbar Switch - LF, and Power Seat Switch - LF (w/A45) |
| 4 | ALDL Fuse | 10 A | DLC and Valet Switch |
| 5 | RR FOG Fuse | 10 A | RR FOG LP Relay |
| 6 | CD Fuse | 10 A | Remote Playback Device (CD Changer) |
| 7 | DRV MDL Fuse | 10 A | DDM |
| 8 | SIR Fuse | 15 A | SDM |
| 9 | - | - | Not Used |
| 10 | LP PK R Fuse | 10 A | Park/Stop Lamps, Right Tail/Stop Lamp, and Side Marker Lamp |
| 11 | VENT SOL Fuse | 10 A | EVAP Canister Purge Vent Valve |
| 12 | IGN 1 Fuse | 10 A | IPC, RIM, TCC/Cruise Release Switch, and Turn Signal/Multifunction Switch |
| 13 | LP PK L Fuse | 10 A | Left Tail/Stop Lamp, Side Marker Lamp, and Park/Stop Lamps |
| 14 | DIMR Fuse | 10 A | License Plate Lamps and DIM |
| 15 | - | - | Not Used |
| 16 | HTDST LF Fuse | 10 A | Left Heated Seat Module |
| 17 | - | - | Not Used |
| 18 | RRDR MDL Fuse | 10 A | Rear Door Modules |
| 19 | STOP LP Fuse | 15 A | Stop Lamp Switch |
| 20 | PRK/REV Fuse | 10 A | PARK and REVERSE Relays |
| 21 | AUDIO Fuse | 10 A | Radio |
| 22 | RAP Fuse | 20 A | RAP Relay |
| 23-24 | - | - | Not Used |
| 25 | PASSMDL Fuse | 10 A | FPDM |
| 26 | BODY Fuse | 15 A | F/TNKDR REL and TRK REL Relays |
| 27 | INT LP Fuse | 10 A | INT LP Relay |
| 28 | - | - | Not Used |
| 29 | IGN SW Fuse | 15 A | DIM, Ignition Switch, RCDLR, and RIM |
| 30 | I/P Fuse | 10 A | Ignition Switch Lamp and IPC |
| 31 | HTDST RF Fuse | 10 A | Right Heated Seat Module |
| 32 | - | - | Not Used |
| 33 | HVAC Fuse | 10 A | Air Temperature Acuators, BCM, IPM, Mode Actuator, and Recirculation Actuator |
| 34 | IGN 3 RR | 10 A | HVAC Control Module (w/CJ2) or IPM (w/C67), Inside Rear View Mirror, and Shift Control Assembly |
| 35 | ABS Fuse | 10 A | EBCM |
| 36 | TSIG/HAZ Fuse | 15 A | Turn Signal/Hazard Lamp Control Module |
| 37 | HVAC BATT Fuse | 10 A | IPM |
| 38 | DIM Fuse | 10 A | DIM and Generator |
| 39 | F/PMP Relay | - | Fuel Pump/Sender Assembly and PCM |
| 40 | PRK LP Relay | - | DIMR, LP PK L, LP PK R Fuses, and DIM |
| 41 | IGN 1 Relay | - | IGN 1 Fuse, VENT SOL Fuse, SIR Fuse, DIM, and Ignition Switch |
| 42 | RR FOG LP Relay (Oldsmobile) | - | DIM, Ignition Switch, Rear Fog Lamps, and RIM |
| 43 | - | - | Not Used |
| 44 | PARK Relay | - | Ignition Switch, RIM, and Stop Lamp Switch |
| 45 | REVERSE Relay | - | Backup Lamps and RIM |
| 46 | RAP Relay | - | Power Sunroof Module and RIM |
| 47 | F/TNKDRLOCK Relay | - | Fuel Door Release Solenoid |
| 48 | - | - | Not Used |
| 49 | IGN 3 Relay | - | Ignition Switch |
| 50 | F/TNKDR REL Relay | - | Fuel Filler Door Release Solenoid and RIM |
| 51 | INT LP Relay | - | Front Door Courtesy Lamps, Rear Door Courtesy Lamps, Footwell Courtesy Lamps, I/P Compartment Lamp and Switch, Overhead Console Reading/Courtesy Lamp, Rear Compartment Courtesy Lamps, Rear Reading Courtesy Lamp, and Vanity Lamps |
| 52 | TRK REL Relay | - | Rear Compartment Lid Release Actuator and RIM |
| 53 | FRT CTSY Relay | - | RIM |
| 54 | - | - | Not Used |
| 55 | ELC (ALC) Relay | - | Automatic Level Control (ALC) Compressor, Ignition Switch, and RIM |
| 56 | PWR SEAT Circuit Breaker | 30 A | Memory Seat Module - Driver (w/A45), Power Seat Switch - LF (w/o A45), Power Seat Lumbar Switch - LF (w/o A45), Power Seat Recline Switch - RF (w/o AG2), Power Seat Switch - RF (w/AG2), and Power Seat Lumbar Switch - RF (w/AG2) |
| 57 | PWR WDO Circuit Breaker | 30 A | Door Modules |
| 58 | CIGAR Relay | - | AUX PWR and C/LTR Fuses in the Underhood Fuse Block |
| 59 | RR DEFOG Relay | - | Ignition Switch and Rear Window Defogger |
| 60 | - | - | Not Used |
| 61 | RR DEFOG Fuse | 40 A | RR DEFOG Relay |
| 62 | - | - | Not Used |
| 63 | AUDIO AMP Fuse | 20 A | Audio Amplifier |
| 64 | ELC (ALC) Fuse | 30 A | ELC Relay and Automatic Level Control (ALC) Compressor |
| 65 | CIGAR Fuse | 40 A | CIGAR Relay |
| 66-69 | - | - | Not Used |
| 70 | Spare Fuses | - | - |
| 75 | Fuse Puller | - | - |
